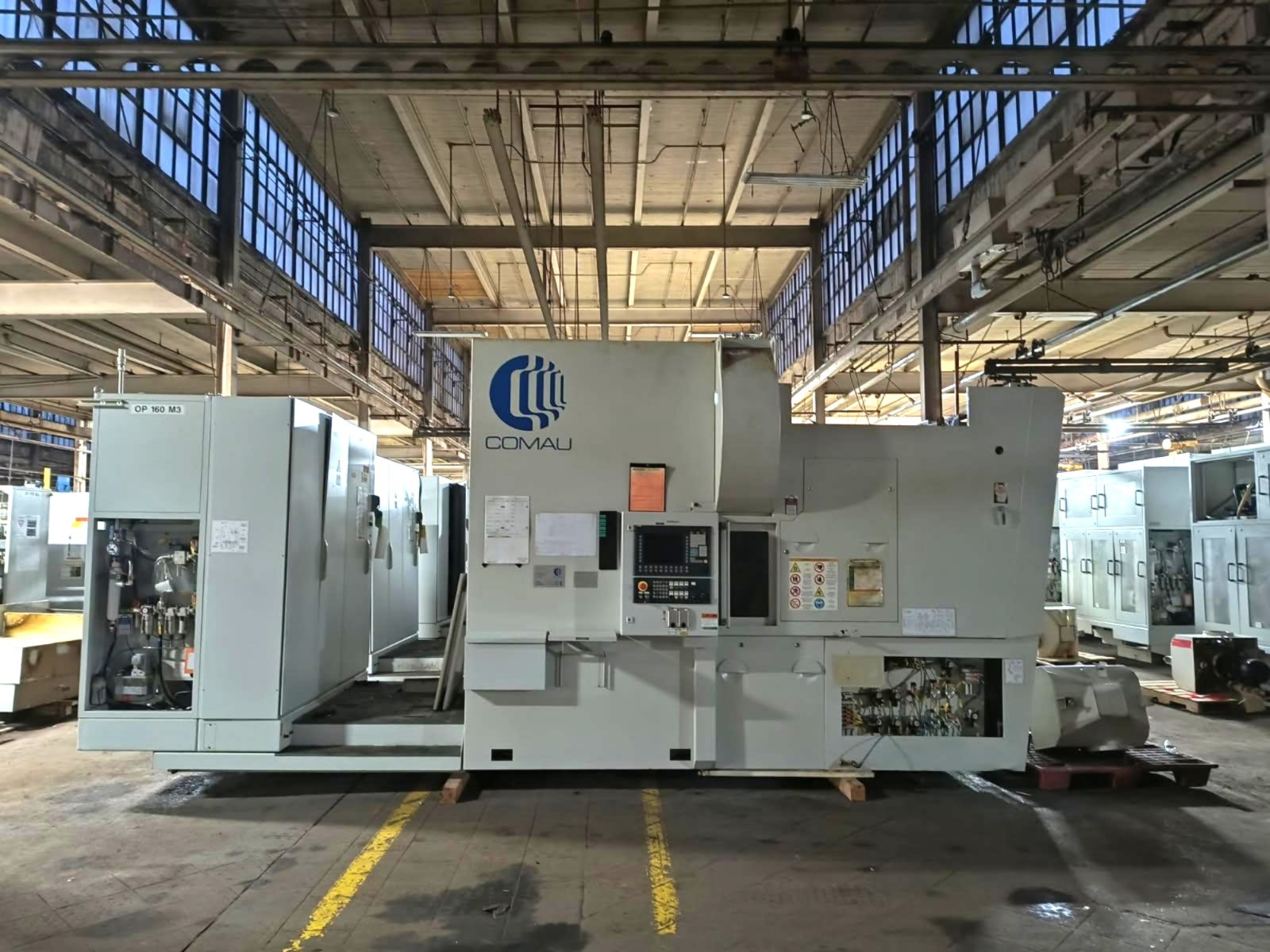

Comau, Model Urane 25, Linear Drives, 4-Axis "A" Axis, Tilting Trunion 1014mm x 850mm - 40 RPM, HSK A63, 18,000RPM, 30/37Kw, 40 Pocket ATC, Tool Change Time 3.7 sec. (18 Units)

Manufacturer

Comau

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

2026-3

Model

Urane 25 "A" Axis Trunnion

Dealer Location

None listed

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Comau Model 25
Linear Drives

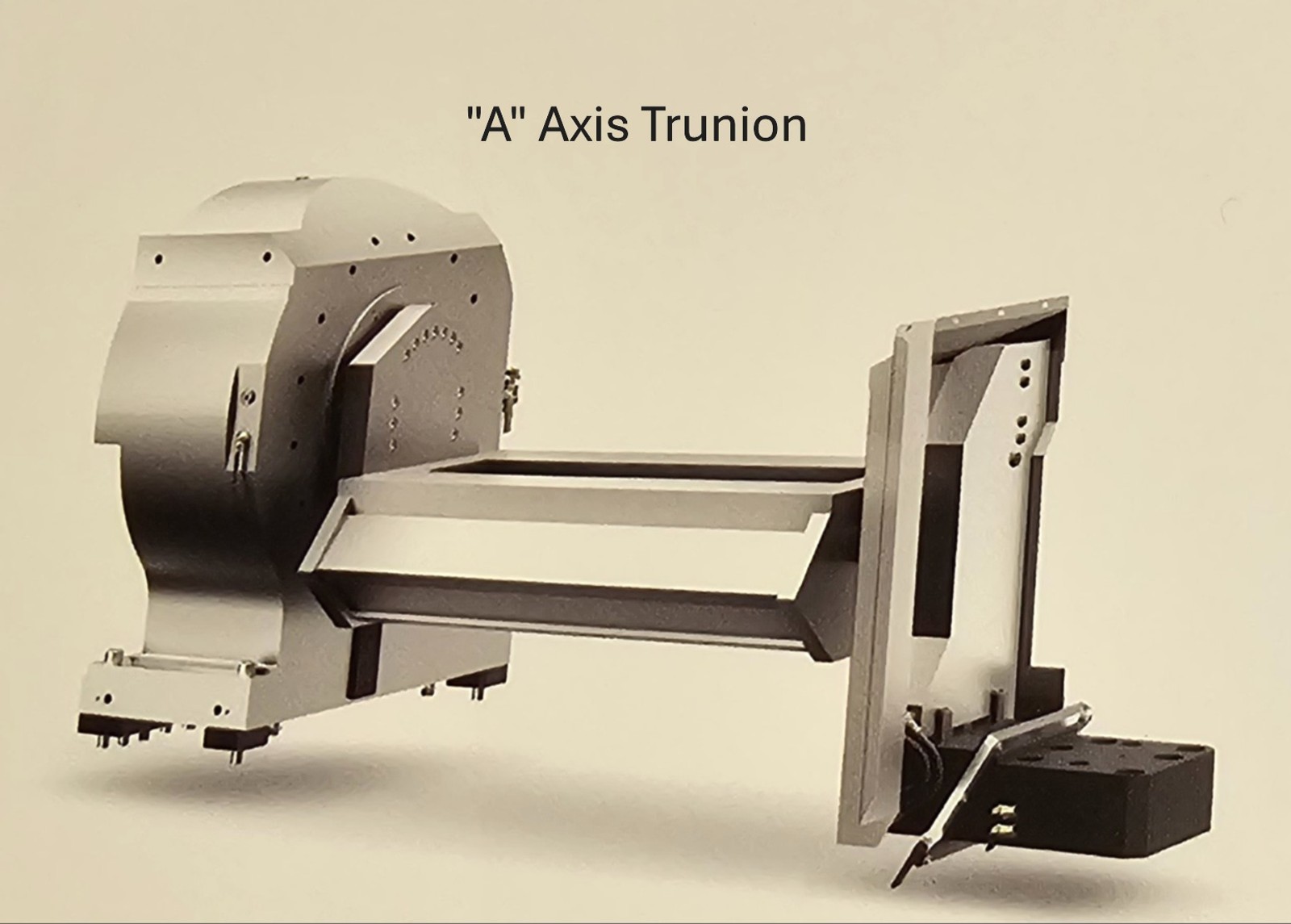

"A" Axis Tilting Trunnion Capacity ...........900 Kgs
Trunnion Table Size..................................1014m x 850mm
"X / Y / Z Travels: .....................................800mm x 700 mm x 400mm
Spindle ....................................................HSK A63
Spindle RPM...........................................18,000
Spndle Power...........................................30 / 37 kw
ATC...........................................................40 Pockets
Max Tool Weight......................................4 Kgs
Tool Change Time....................................3.7 sec.
