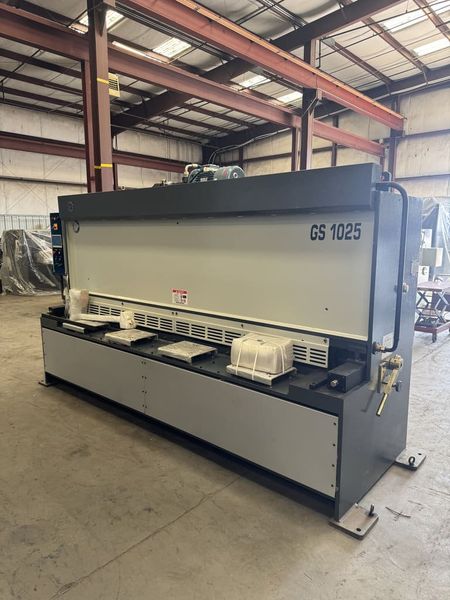

Jay-Shree KHVR-430 1/4″ x 10′ Guillotine Shear w/ NC Controlled Back Gauge (2026)

Manufacturer

Jay-Shree

Category

Shears

Type

SHEARS, POWER SQUARING (Gauges)

Stock

141260008

Model

KHVR-430

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 141260008
  • Location: TN
  • Brand: Jay-Shree
  • Model: KHVR-430
  • Serial #: 887
  • Year: 2026
  • Approx. Shipping Weight: 11,000 LBS.
  • Approx. Shipping Dimensions: 146″L x 89″W x 95″H

Specifications

  • Shearing Capacity (Max Rake Angle): Mild Steel: 1/4″ , Stainless Steel: 1/8″
  • Shearing Length: 120″
  • Rake Angle Adjustment Range: .5 – 3 Deg.
  • Strokes Per Minute: 16 (Minimum Rake Angle) , 8 (Maximum Rake Angle)
  • Number of Hold Downs: 17
  • Backgauge Travel: 36″
  • Motor HP: 7.5HP
  • Electrical: 440V / 3PH

Equipped With

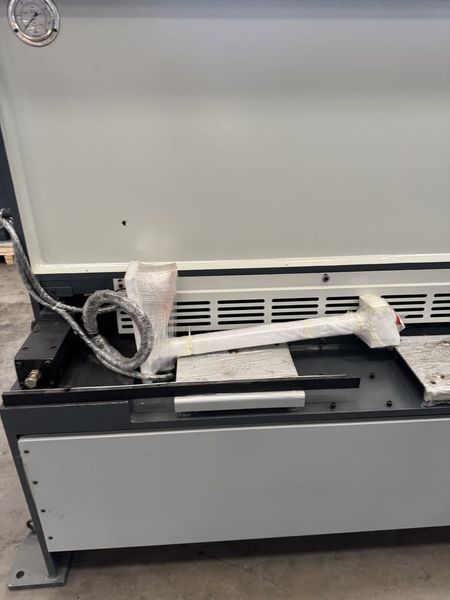

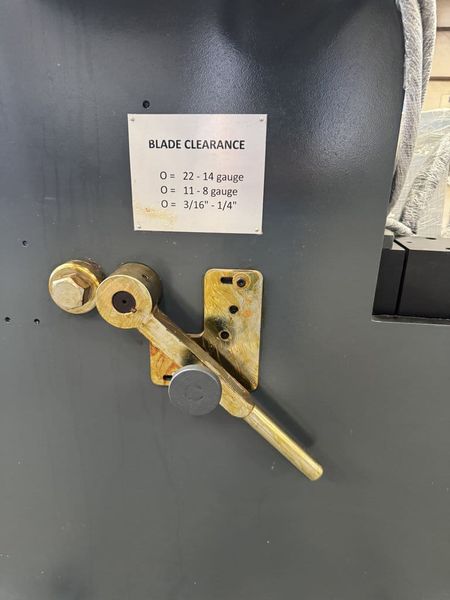

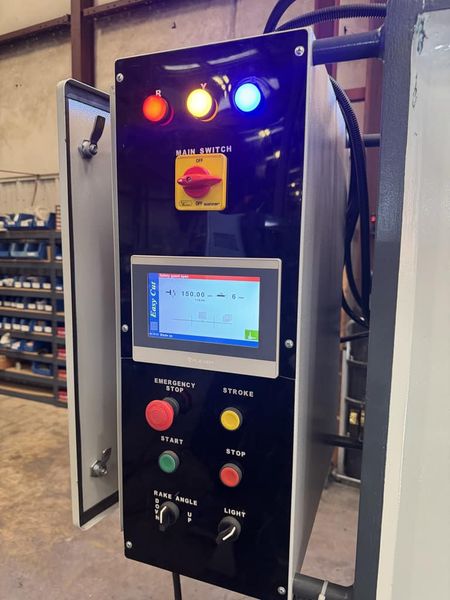

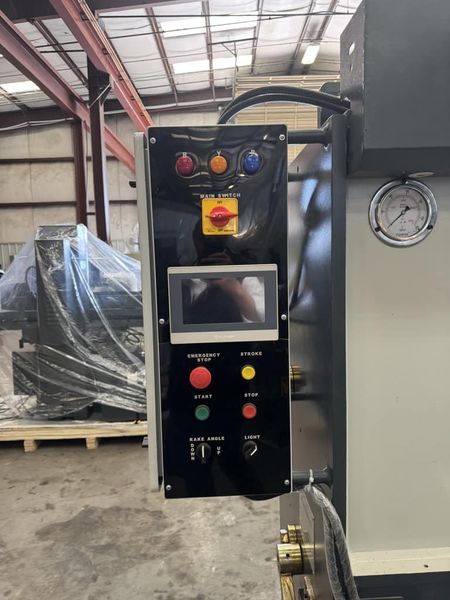

Delta Numerically Controlled Back Gauge, 4-edge Cutting Blades, Fine Stroke Adjust Rod with Limit Switch, Front Side Sheet Support Arms, Front Side Ball Transfer Mounting Plate, 36″ Motorized Back Gauge, 39″ Squaring Arm on Left Side of Machine w/ Inlaid Scale, Guillotine style design with adjustable rake angle, Installed drop chute on the rear of the machine, Name brand electronics and hydraulic equipment, Hydraulic Hold Downs with Adjustable Pressure for Varying Applications, Adjustable Blade Gap for Varying Material Thicknesses
