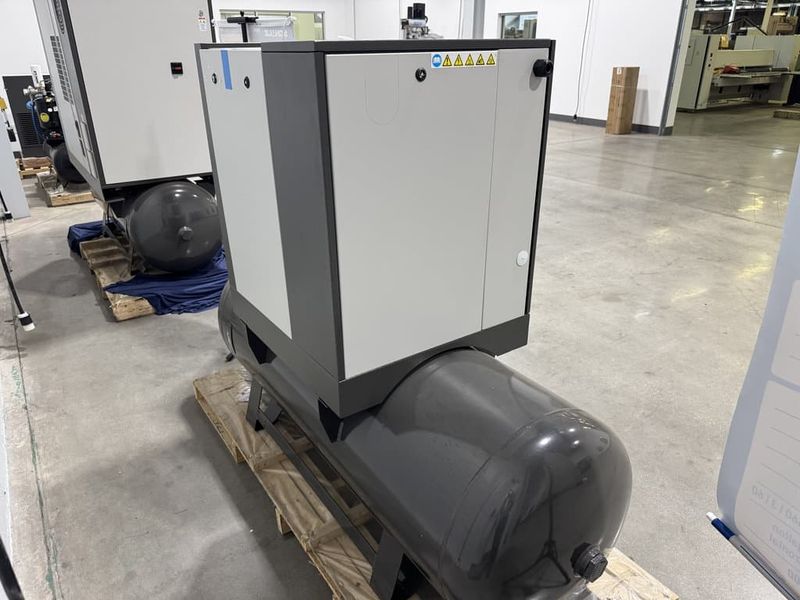

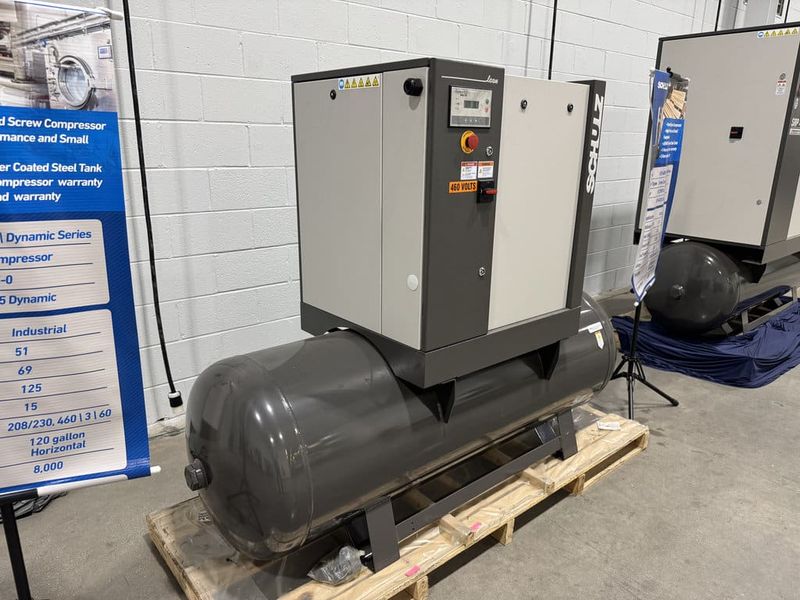

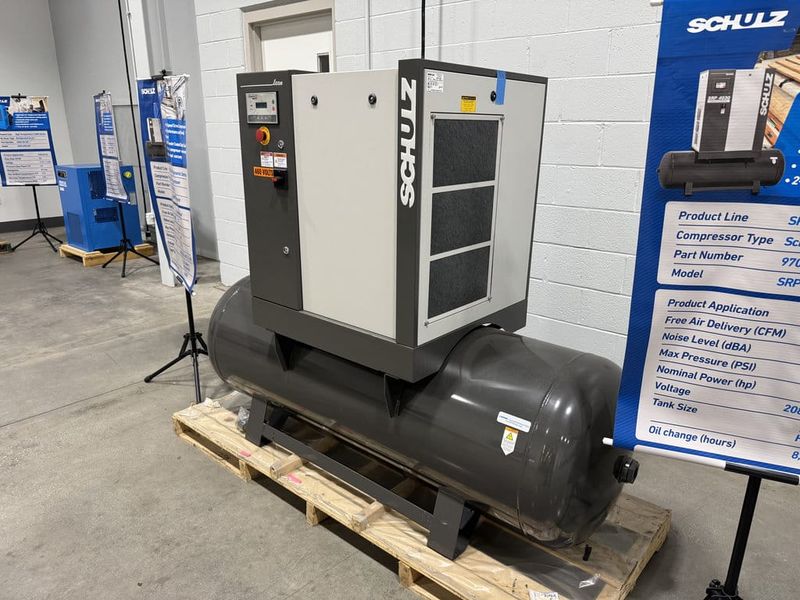

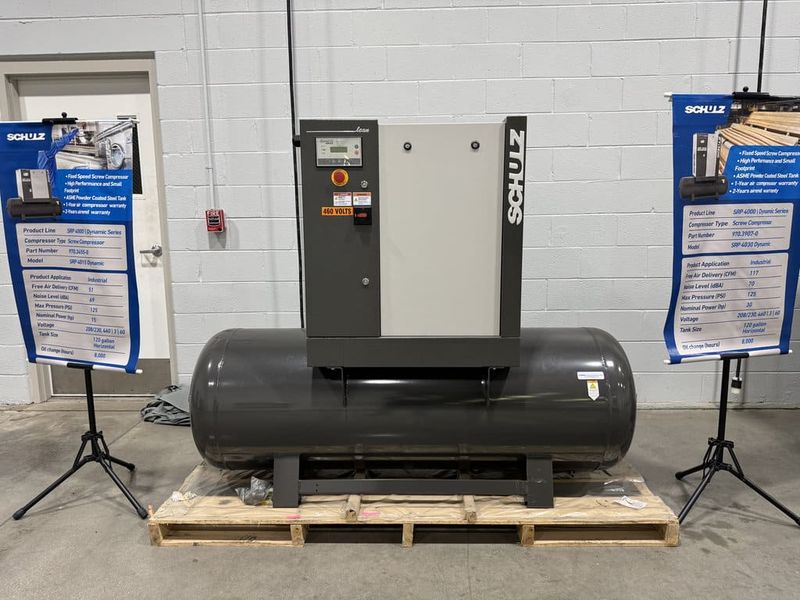

Schulz SRP 4015E Dynamic 15 HP Rotary Screw Air Compressor (New)

Manufacturer

Schulz

Category

Air Compressors

Type

AIR COMPRESSORS, PARTS, TOOLING & ACCESSORIES

Stock

970-3455-0

Model

SRP 4015E -Dynamic

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: Schulz-SRP-4015-E
  • Brand: Schulz
  • Model: SRP 4015E -Dynamic
  • Approx. Shipping Weight: 959 lbs. / 435 Kg
  • Approx. Shipping Dimensions: 59.9″ x 75.5″ x 29.2″ / 1.52m x 1.92m x 0.74m

Specifications

  • Motor Horsepower: 15 HP / 11 KW
  • Voltage: 208-230/460 V / Three Phase
  • Max Operating Pressure: 125 PSI / 8.6 bar
  • Free Air Delivery @ 125 PSI: 51 CFM / 1444 L/min
  • Theoretical Displacement: N/A
  • Number of Stages: 1
  • Tank Capacity: 120 Gallons / 454 L
  • Tank Type: Horizontal
  • Lubrication: Oil-Lubricated
  • Pump Material: Steel

Equipped With

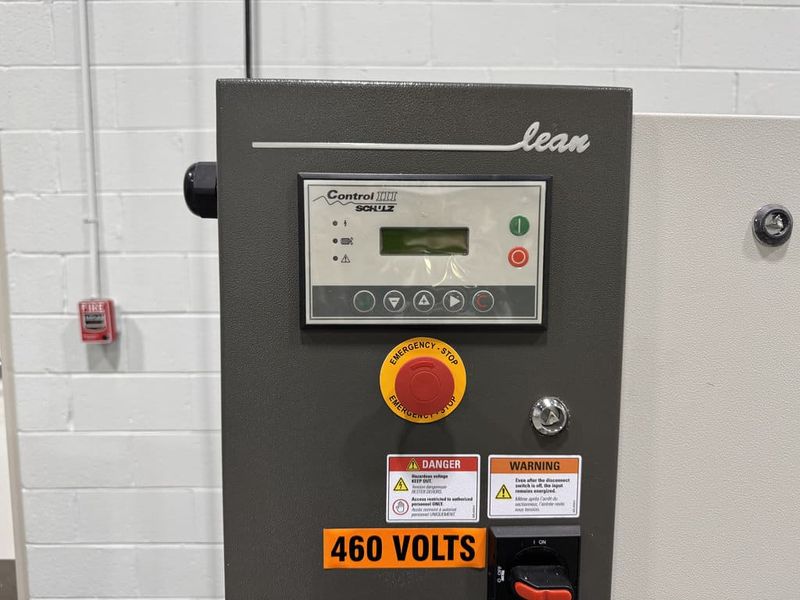

Standard Accessories: TEFC IP55 electric motors, High efficiency electric motors, Automatic starters with phase and sequence failure detection, Lubricated air-end, Thermostatic valve for working temperature control, Coolers updraft for heat recovery, Low maintenance costs design, Low oil consumption, Modern design components, Variable frequency drive for speed control, Two-stage high-efficiency inlet filters, Disconnect switch in the protection cabin, Protection for hot and rotating parts, ASME certified air/oil tank, ControlNet electronic controller for monitoring warning indications maintenance scheduling and operating conditions, Microprocessed electric control panel

Additional Info

This is a new unit on our showroom floor. The sale includes the standard Schulz 2-year compressor pump warranty. We have heavily discounted this machine to move it off the showroom floor and make room for different inventory.
