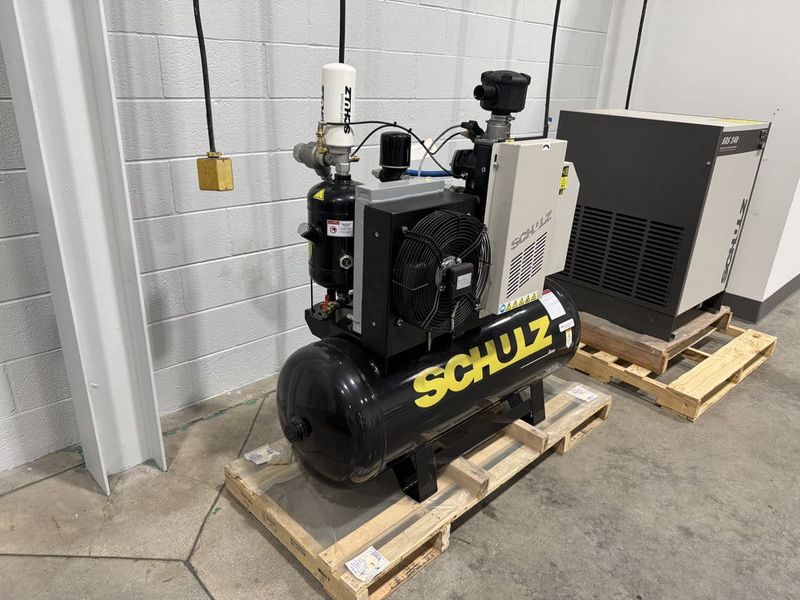

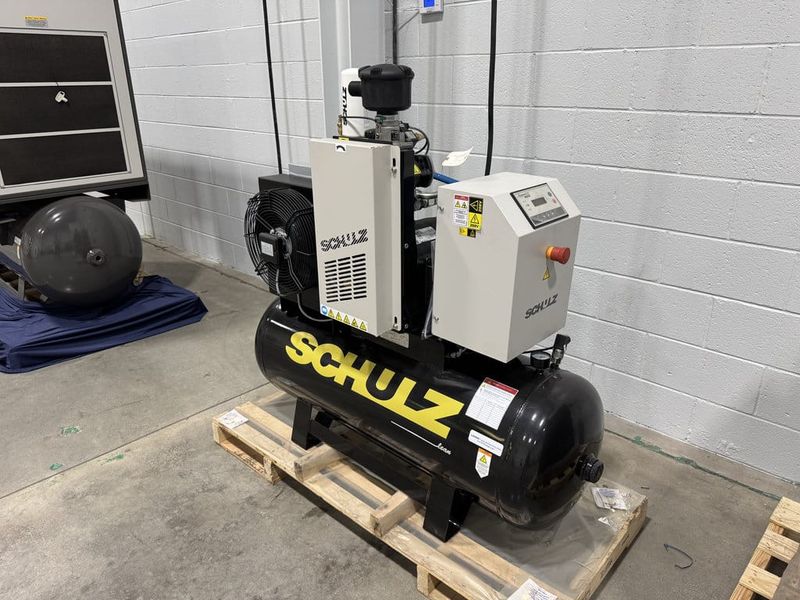

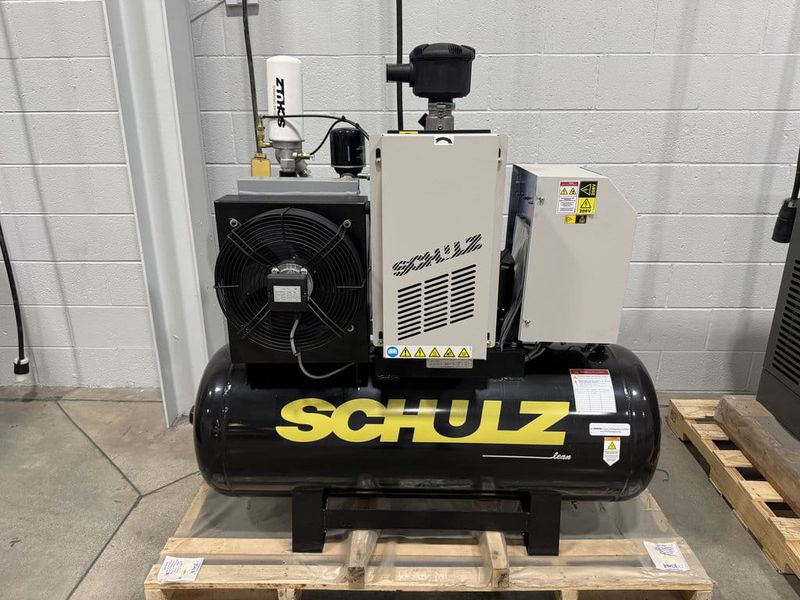

Schulz SRP 3015 Compact 15 HP Rotary Screw Air Compressor (New)

Stock

970.3891-0

Model

SRP 3015 Compact

Dealer Location

Georgia

Spec Sheet

  • Stock #: 970.4384-0
  • Brand: Schulz

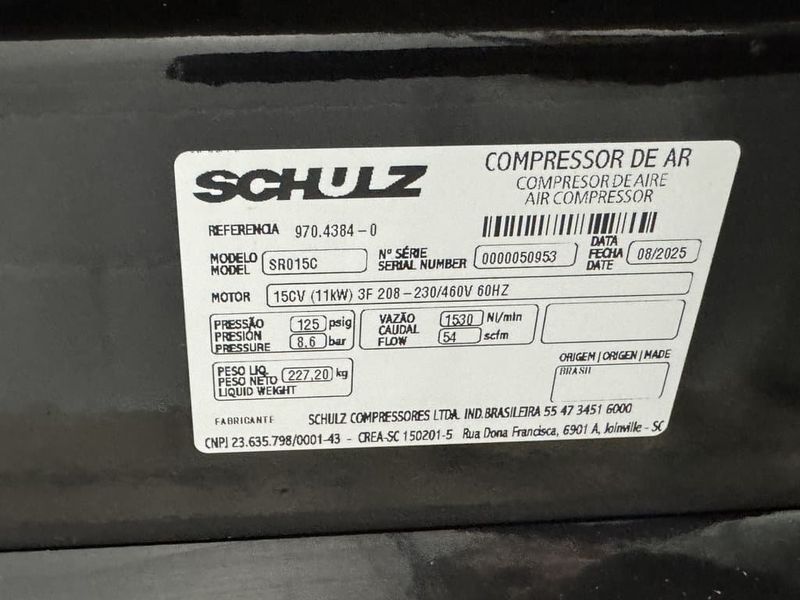

  • Model: SRP 3015 Compact
  • Approx. Shipping Weight: 463 Lbs.
  • Approx. Shipping Dimensions: 53″ (L/W) x 24″ (D) x 55″ (H)

Specifications

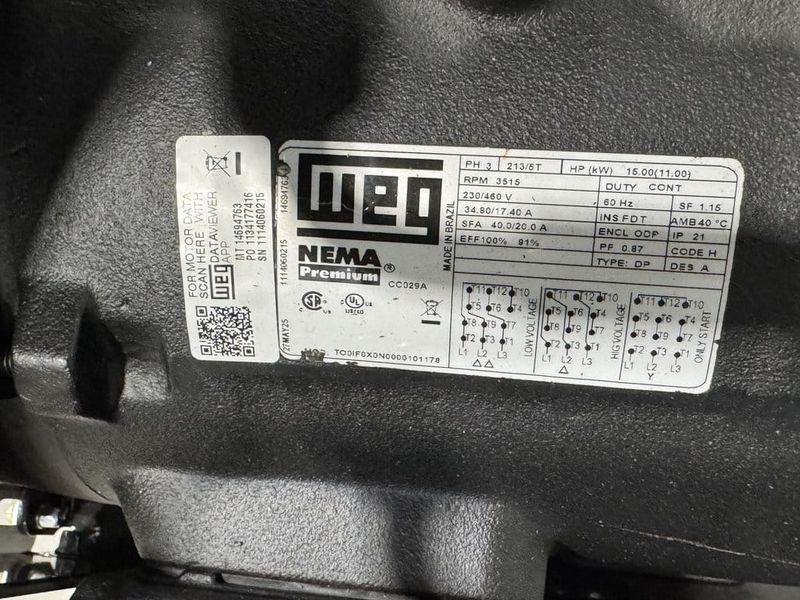

  • Motor Horsepower: 15 HP
  • Voltage: 208-230/460 V / Three Phase
  • Max Operating Pressure: 125 PSI / 8.62 bar
  • Free Air Delivery @ 125 PSI: 51 CFM
  • Tank Capacity: 60 Gallons / 227 L
  • Tank Type: Horizontal
  • Lubrication: Oil-Lubricated
  • Pump Material: Steel

Equipped With

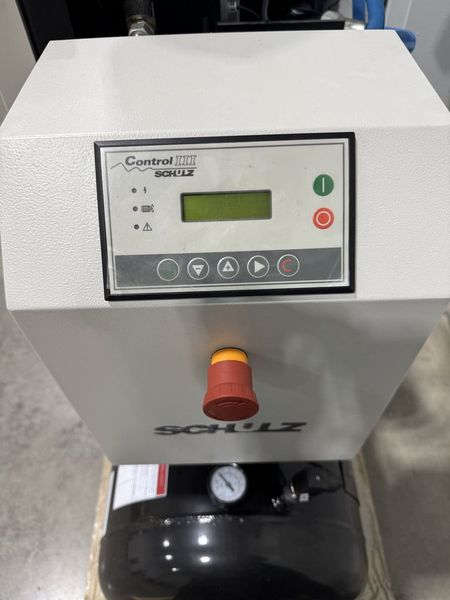

Standard Accessories: Compact open cabinet design, 100% continuous duty cycle, Rotary screw air end, Oil-injected belt-driven pump, 15 HP TEFC IP55 electric motor, Automatic starters with phase and sequence failure detection, 24V microprocessor controller, ASME certified horizontal air receiver, Oil sight glass, Air filter, Belt guard, Pressure gauge, Manual condensate drain
