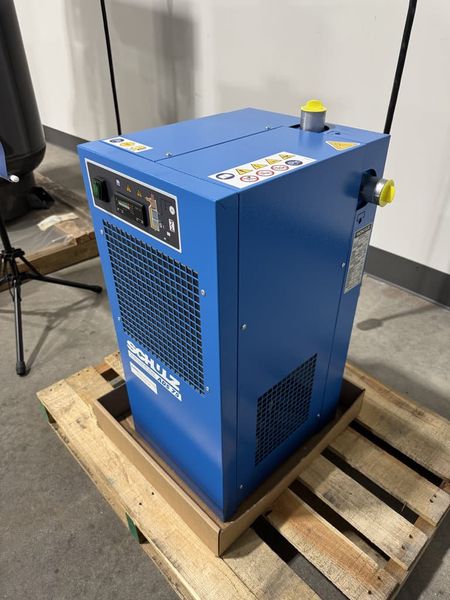

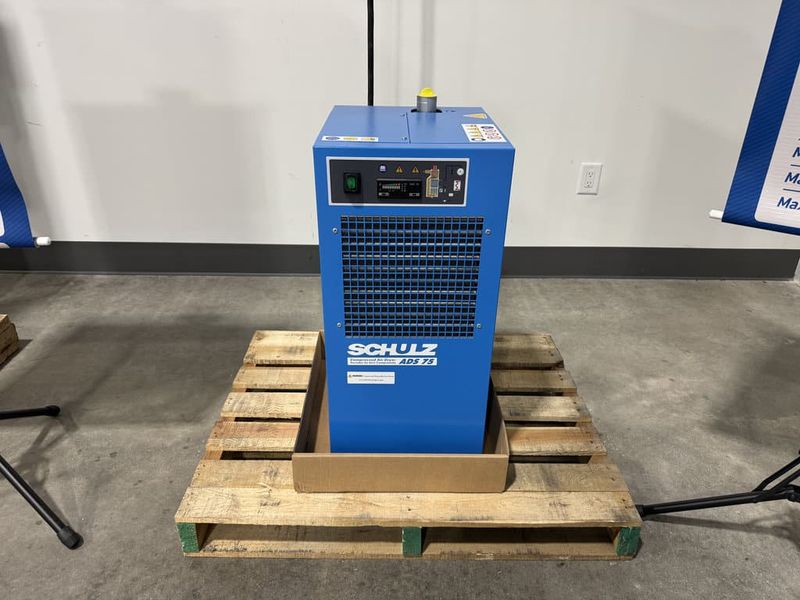

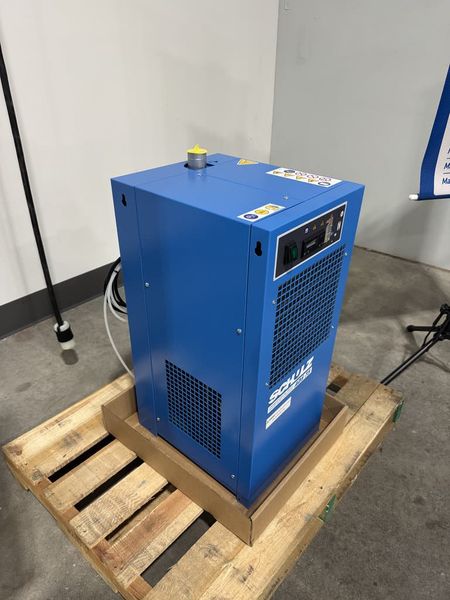

Schulz ADS-75-UP 75 CFM Refrigerated Air Dryer (New)

Manufacturer

Schulz of America

Category

Air Compressors

Type

AIR COMPRESSORS, PARTS, TOOLING & ACCESSORIES

Stock

ADS75-UP

Model

ADS-75

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: ADS75-UP
  • Brand: Schulz of America
  • Model: ADS-75
  • Approx. Shipping Weight: 75 lbs. / 34 Kg
  • Approx. Shipping Dimensions: 30″ x 14″ x 16″ / 0.76m x 0.36m x 0.41m

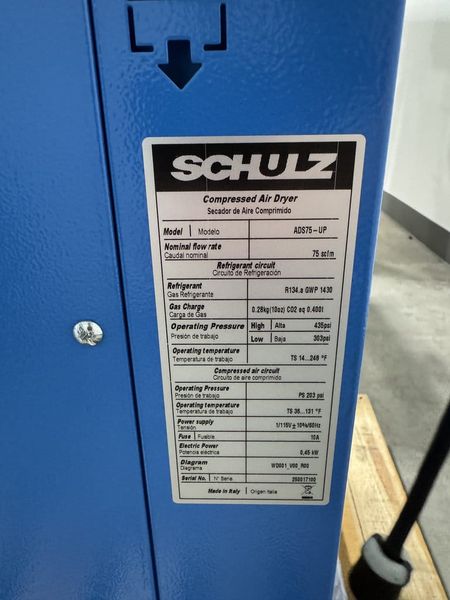

Specifications

  • Capacity: 75 CFM / 2124 L/min
  • Voltage: 115 V / Single Phase
  • Rated Pressure: 100 PSI / 6.9 bar
  • Maximum Pressure: 203 PSI / 14 bar
  • Dryer Type: Non-Cycling Refrigerated
  • Refrigerant: R134a
  • Inlet/Outlet Connection: 1″ NPTF
  • Power Consumption: Approx. 5.1 A
  • Frequency: 60 Hz

Equipped With

Standard Accessories: Electronic controller with LED indicators for temperature and dew point monitoring, Quick-connected electronic automatic drain valve (timer-controlled, easy to clean without special tools), High-efficiency refrigerant compressor, Removable panels for easy maintenance access, Advanced refrigeration technology for consistent dry air supply, Designed for high ambient/inlet temperatures up to 100°F, Energy-efficient operation matching compressor displacement, Digital display for temperature and dew point, Non-cycling design for reliable performance in sensitive applications

Additional Info

This is a new unit on our showroom floor. The sale includes the standard Schulz new compressor and dryer warranty. We have heavily discounted this machine to move it off the showroom floor and make room for different inventory.
