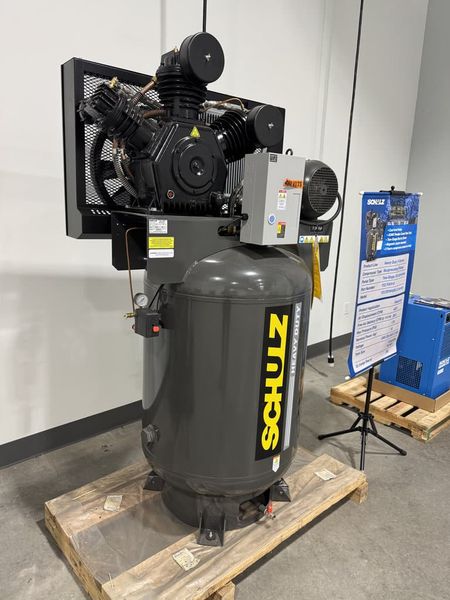

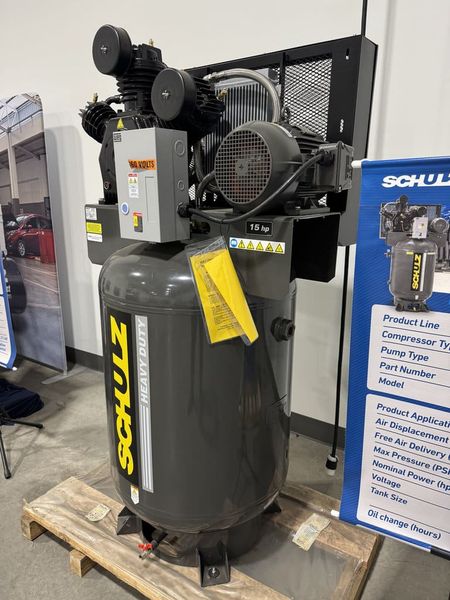

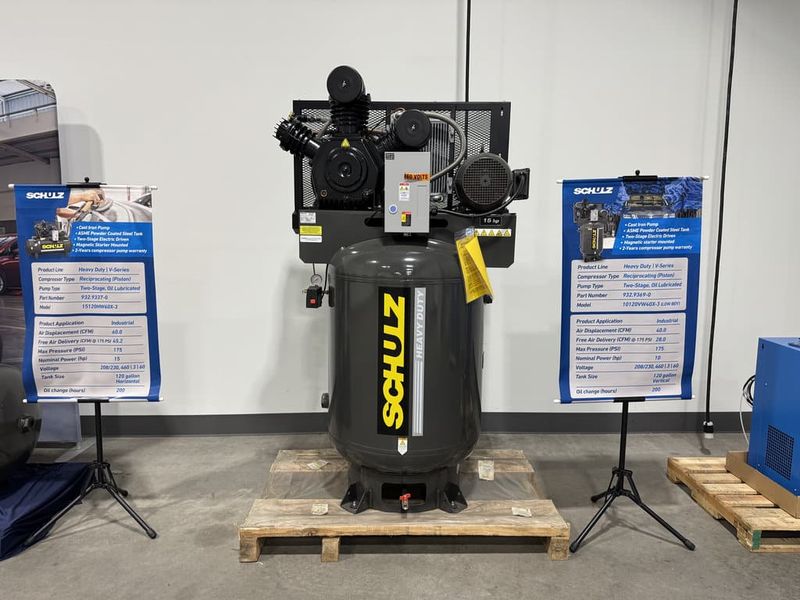

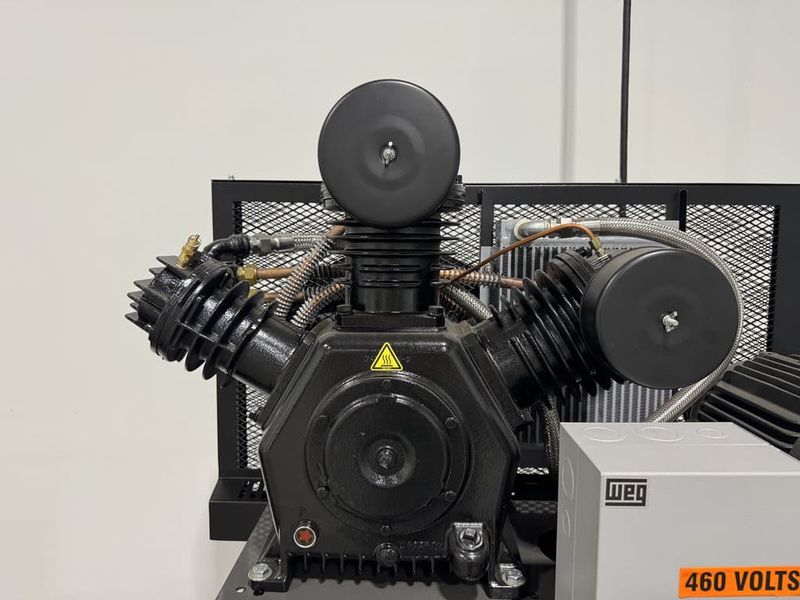

Schulz 15120VW60X-3 15 HP Piston Air Compressor (New)

Manufacturer

Schulz

Category

Air Compressors

Type

AIR COMPRESSORS, PARTS, TOOLING & ACCESSORIES

Stock

932.9368-0

Model

15120VW60X-3

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 932.9368-0
  • Brand: Schulz
  • Model: 15120VW60X-3
  • Approx. Shipping Weight: 1100 lbs. / 499 Kg
  • Approx. Shipping Dimensions: 49″ x 30″ x 79″ / 1.24m x 0.76m x 2.01m

Specifications

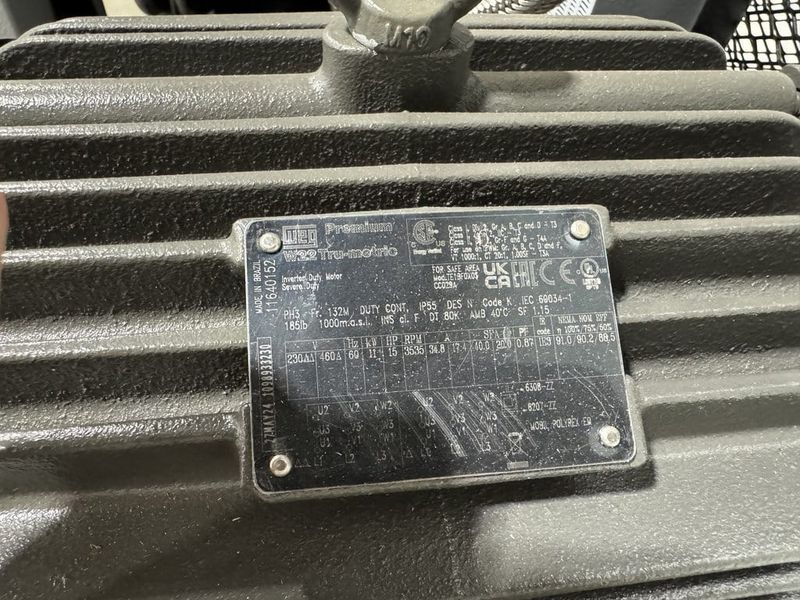

  • Motor Horsepower: 15 HP / 11.19 KW
  • Voltage: 208-230/460 V / Three Phase
  • Max Operating Pressure: 175 PSI / 12.07 bar
  • Free Air Delivery @ 175 PSI: 45.2 CFM / 1280 L/min
  • Theoretical Displacement: 60 CFM / 1699 L/min
  • Number of Stages: 2
  • Number of Pistons: 2-V
  • Tank Capacity: 120 Gallons / 454 L
  • Tank Type: Vertical
  • Lubrication: Oil-Lubricated
  • Pump Material: Cast Iron

Equipped With

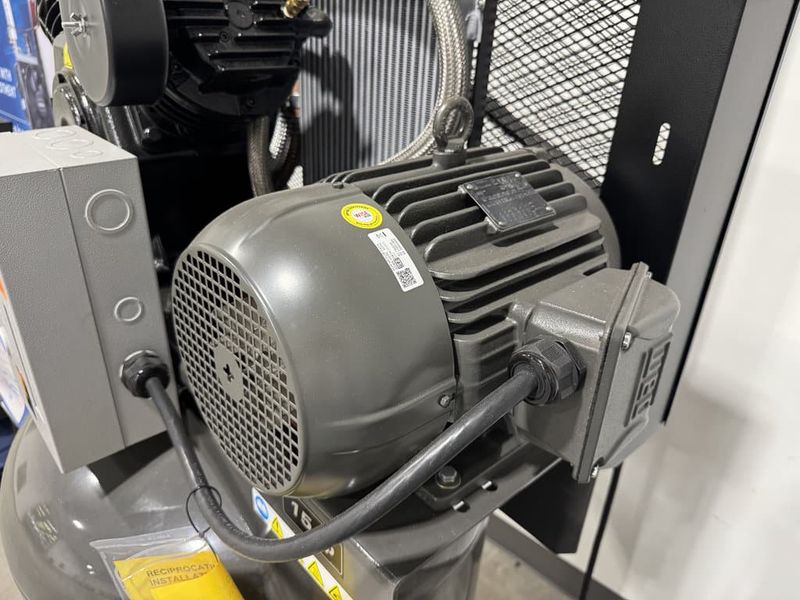

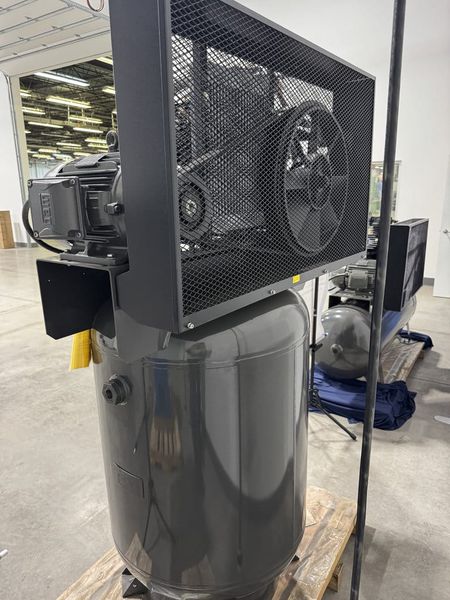

Standard Accessories: Cast iron construction, Low RPM two piston V design, High-quality cast iron blocks, V-cylinder design for superior cooling and increased efficiency, Mounted and prewired magnetic starters for safe operation, TEFC high efficiency motors, Auto start/stop pressure switch operation, Powder coated ASME certified receivers, Enclosed metal belt guard, Easy access to adjust belt tension, Balanced drive pulleys, Oversized check valves, ASME safety relief valves, Pressure gauge, Manual condensate drain, Swedish stainless steel reed valves, Deeper cylinder fins for heat dissipation, Oil sight glass

Additional Info

This is a new unit on our showroom floor. The sale includes the standard Schulz 2-year compressor pump warranty. We have heavily discounted this machine to move it off the showroom floor and make room for different inventory.
