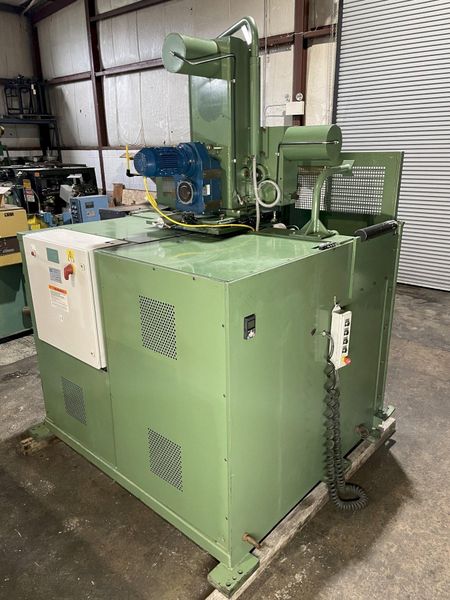

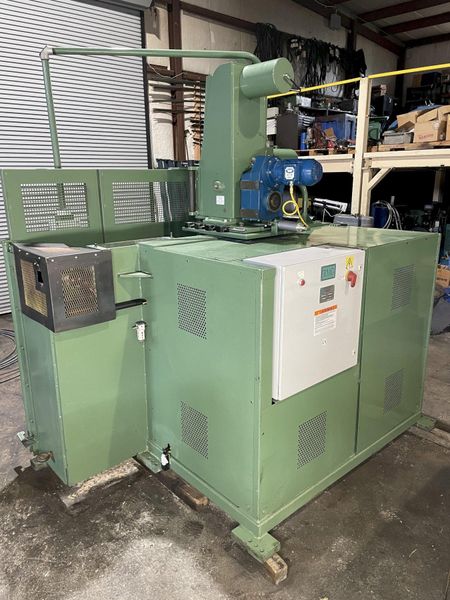

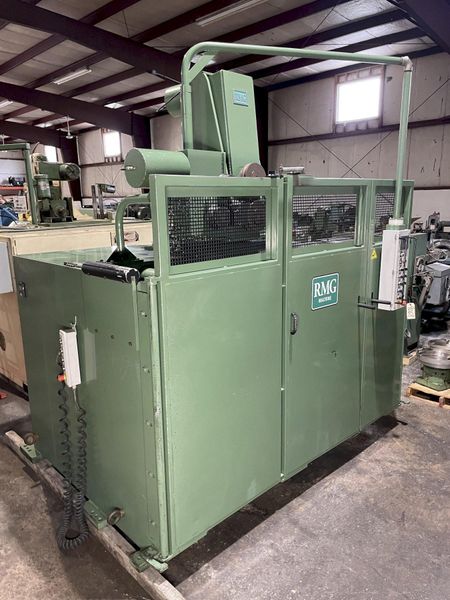

RMG Model 1416-4073-87 Wire Drawer, 52" Capstan "LIKE NEW"

RMG Model 1416-4073-87 Wire Drawer, 52" Capstan "LIKE NEW"

Name: RMG Model 1416-4073-87 Wire Drawer, 52" Capstan "LIKE NEW"
Brand: RMG
SKU: 9068

Manufacturer

RMG

Spec Sheet

Capstan Diameter - 52"
Maximum Wire Diameter (Mild Steel) - 1.00" (25.4 mm)
Maximum Wire Diameter (Alloy) - .875" (22.0mm)
Speed Range - 73 FPM
Electrics - 460V / 3 Phase / 60 Volts
Horsepower - 40 HP
Approx. Weight - 14,000 lbs.
Approx. Floor Size - 111"L x 84"W x 117"H

Model 1416-4073-87 Autodraw II IN-line wire drawing machine capable of drawing 28mm (1.102") with a Maximum tensile of 550N/mm2 (80000 PSI) down to a finished diameter of 27mm (1.063"). This machine can generally provide 7,100 kg (15,640lbs) of draw force at 20.4 Meters Per Minute (67 Feet Per Minute) wire speed.

Unit includes:
-IN STOCK READY TO SHIP

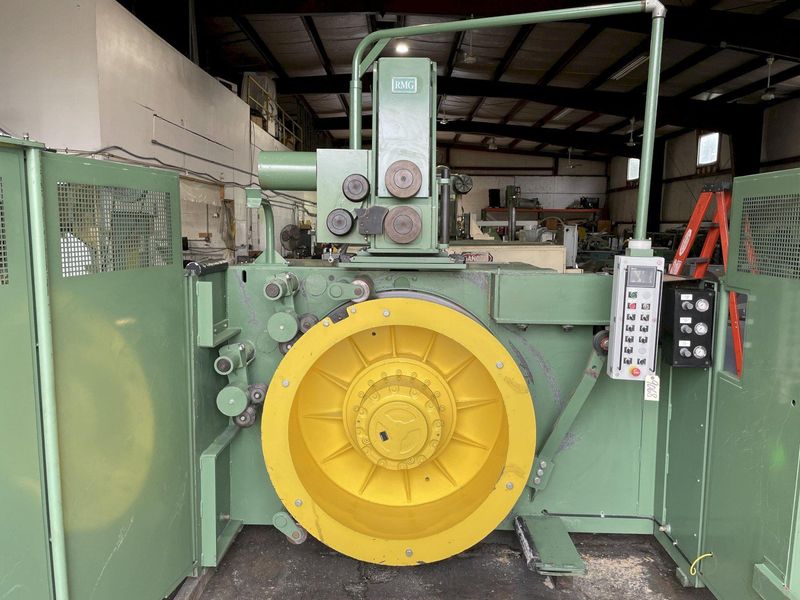

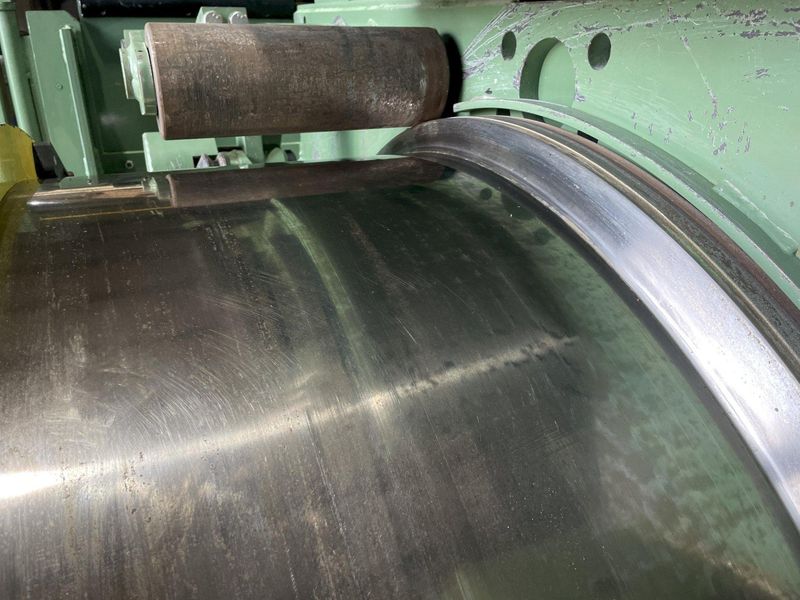

-1300mm (52") diameter. Hardened, D2 tool steel capstan.
-Heavy duty planetary gearbox
-Standard hand frame with horizontal draw with horizontal draw box (right to left wire flow0
-Entrance wire guide (annular) rollers for draw box

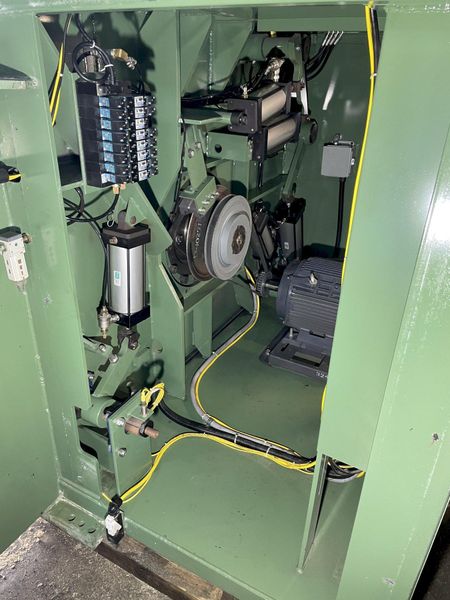

-Full capstan enclosure with Space Saving, Tri-Fold doors and electrical interlocks. Allows for SAFE, full access to capstan during set up.
-Through Door, Pneumatic Controls for operator convenience and safety.

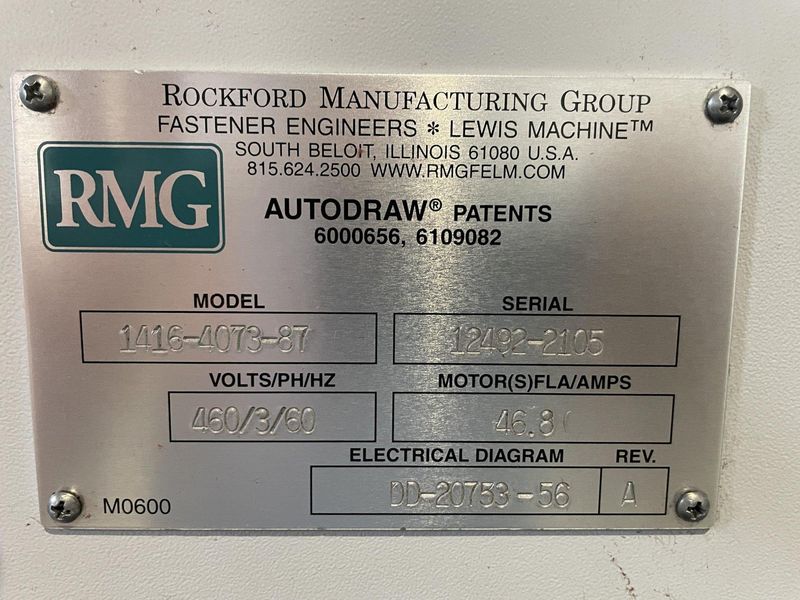

-"CE 2006/42/EC" plate

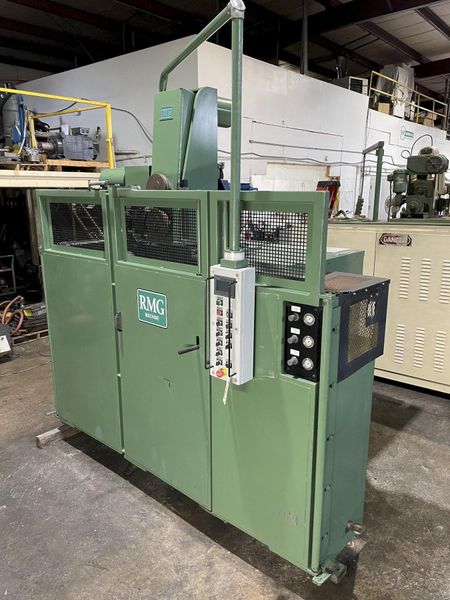

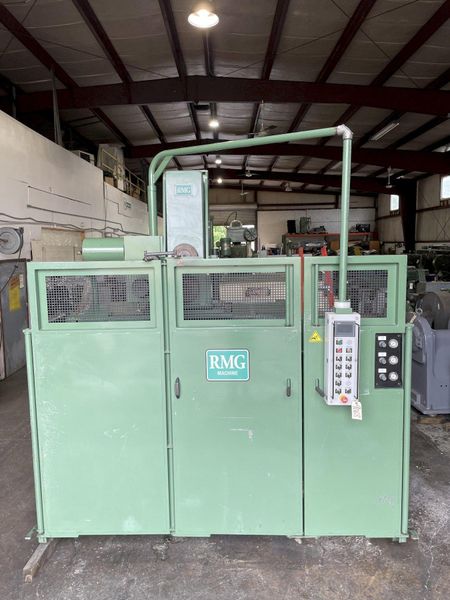

-Full machine enclosure for reduced maintenance costs and Safety.
-Non-Contact, End of coil detector assembly
-Pneumatic 12 o'clock capstan roller assembly activated by End of Coil Detector (assists in containing wire at the end of the coil
-Pneumatic 7 o'clock capstan roller assembly activated by End of Coil Detector (assists in containing wire at the end of the coil)
-Pneumatic compensator with 130mm (5") steel wheel and wire retaining clip
-Pneumatic WIRE RELAXER with four, Patented One Way Clutch, V-grooved 130mm (5") rollers - D3416 11SS (prevents more tractive force by preventing slipping of the last wrap of wire)
-Wire relaxer anti-reverse electrical interlock
-Remote grease points for ease of preventative maintenance
-1.5 kW (2hp) Retractable feedhead and pre-straightener for set-up with one set of V-grooved feed rolls (P0101.11)
-Walk-along remote control to assist operator during set-up

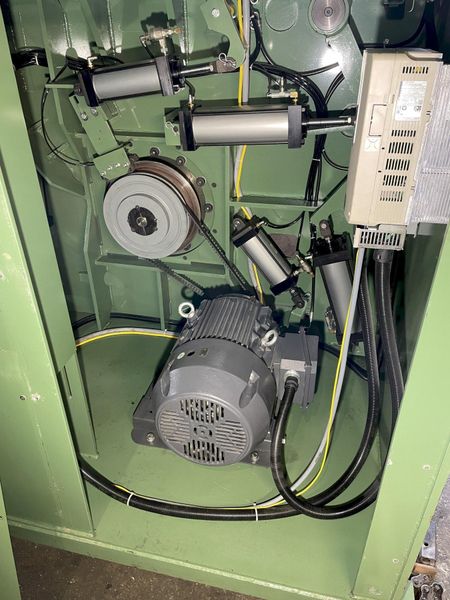

-"Energy Efficient" Variable Frequency Drive with 29.8 kW (40 hp) Premium Efficiency Motor
-Infinitely variable speed 4.9 to 67 fpm
-Wiring for 460 volt, 3 phase, 60 hz electrics with 24v DC control voltage
-EC electrical controls

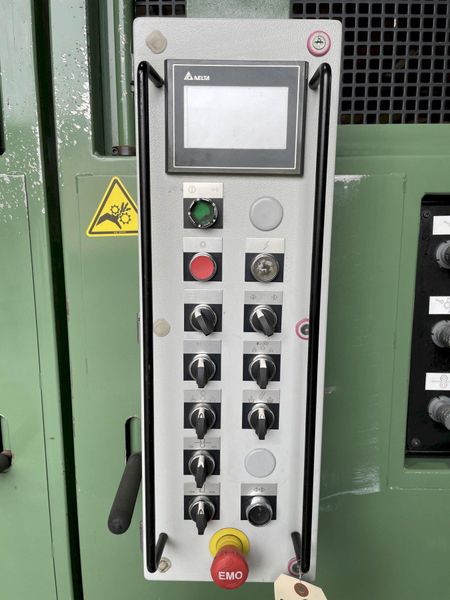

-Operator pendant control includes control , emergency stop and tow hand jog (slowfast). Allows for greater flexibility during setup.

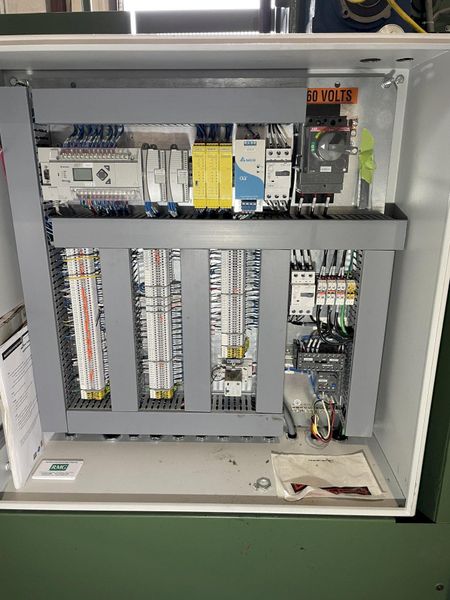

-PLC with Interactive Diagnostic Screen Display
-Disconnect with short circuit protection
-STARTGARD (production machine interlock)
-SLIPGARD (forward compensator over travel switch)
-25mm (1") screw self storing gripper chain assembly)
-Vista Green Paint
-Operation and Service Manual in English
