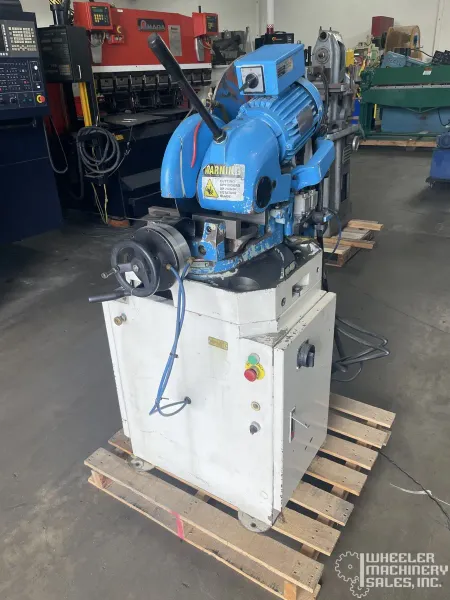

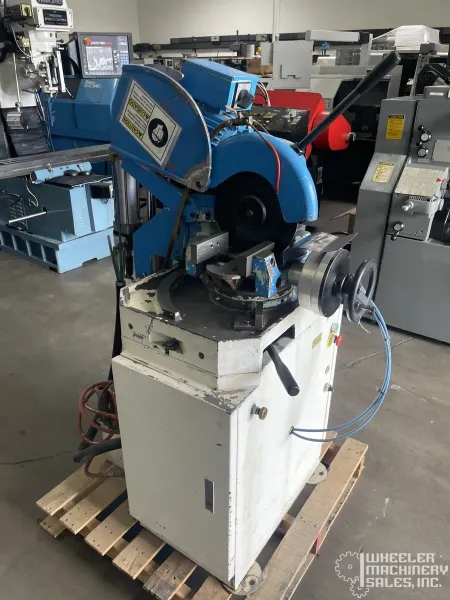

2000 SOCO MC-275AC Semi Automatic Cold Saw #8238 #1

Manufacturer

SOCO

Category

Saws

Type

SAWS, COLD & CARBIDE

Stock

8238

Model

MC-275AC

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
SAWS, COLD & CARBIDE
Manufacturer:
SOCO
Model:
MC-275AC
Year:
2000
Stock #:
8238
Status:
For Sale
Serial #:
00FM4225203
Country:
United States

Description

2000 SOCO MC-275AC Cold Saw, used. Features a 12" blade, with various cutting capacities for round, square, and rectangular materials. Semi-automatic with automatic clamping and equipped with in-feed/out-feed roller conveyors.

2000 SOCO MC-275AC Semi Automatic Cold Saw #8238 #1

SPECIFICATIONS:
SAW BLADE: Maximum Diameter 12″ (300mm)
CUTTING CAPACITY at 90 degrees Round, Tube at 90º straight up to 3.25″
(81mm) at 45º mitre up to 2.5″
(63.5mm) Round, Solid at 90º straight up to 2.5″
(63.5mm) Square, Tube at 90º straight up to 3″ x 3″ (75 x 75mm) at 45º mitre up to 2.0″
(50mm) Square, Solid at 90º straight up to 1⅝” x 1⅝”
(41 x 41mm) Rectangle Tube, at 90º straight up to 3.25″ x 3”
(81 x 75mm) at 45º mitre up to 2.5” x 2″ (63.5 x 50mm)
VISE OPENING 4″ (100mm)

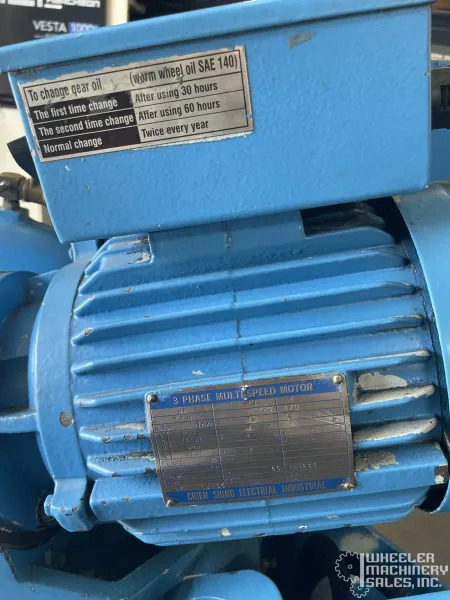

SAW HEAD DOWN FEED: Automatic by Pneumatic Cylinder and Manually by Hand DRIVES: Wired 220 volts, 3- Phase Motor to Direct Drive Gear Box 1.4 hp / 1hp (1.5 / 0.74 kw/) 220v, 3-Phase Coolant Pump 1/8 hp, (092kw) 2230v, 3-Phase
CONTROLS: Controls Wired 115 volts Power On/Off Buttons.

EQUIPPED WITH:
Semi-Automatic Operations
Automatic Clamping
Coolant Pump an Tank Material Support Block
In-Feed Roller Conveyors Size 10″ wide x 59″ Long 1-section
Out-Feed Roller Conveyor Size 10″ wide x 129″ long with Adjustable Stop

COMPLETE FACTORY SAFETY GUARDS

Dimensions: 28″ Wide x 39″ F-B x 65″ Height (711.2 W x 990.6 FB x 1,651mm Ht) Approximate Weight 900 lbs.
