7612522
HI31-120
Kentucky

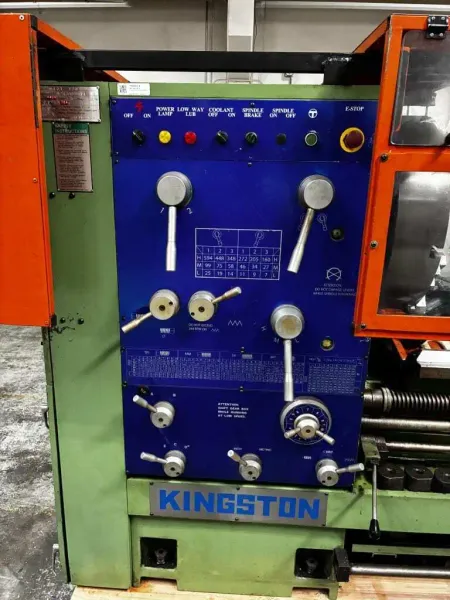

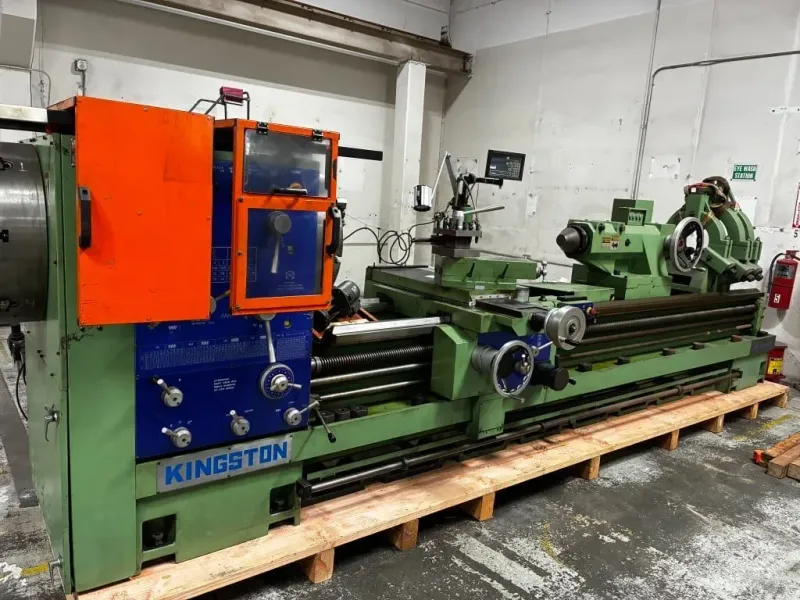

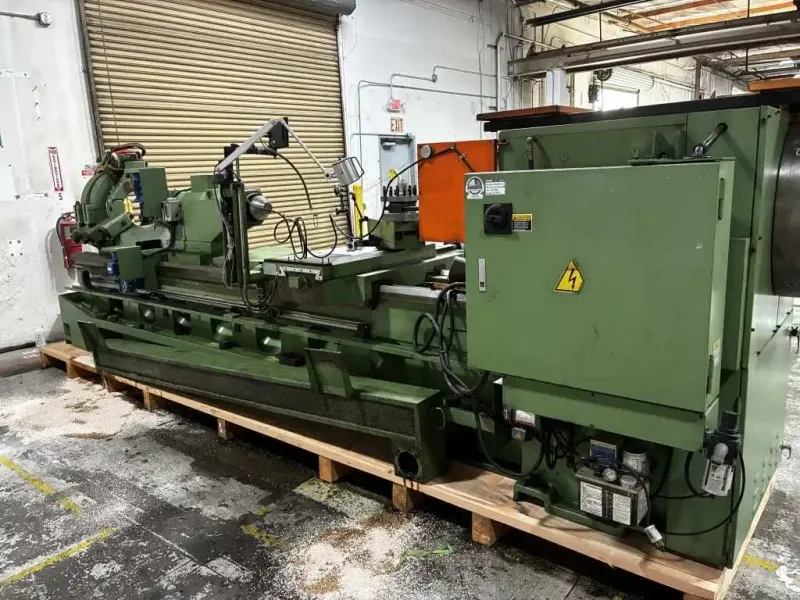

Heavy-duty 2010 Kingston HI31-120 engine lathe with 31 in. swing over bed and 120 in. distance between centers. Equipped with a removable gap, totally enclosed gearbox, broad threading capability, and 20 HP main motor. Contact Machine Tool Emporium for availability, inspection details, rigging, and freight support.
| Swing | 31" | 787.4 mm |
| Centers | 120" | 3,048 mm |
| Spindle Bore | 9.125" | 231.77 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 800 RPM | 800 RPM |
Swing Over Bed: 31 in.
Distance Between Centers: 120 in.
Spindle Bore: approx. 4 in. to 4.125 in.
Main Motor: 20 HP
Spindle Speeds: 16 speeds, approx. 8 to 800 RPM

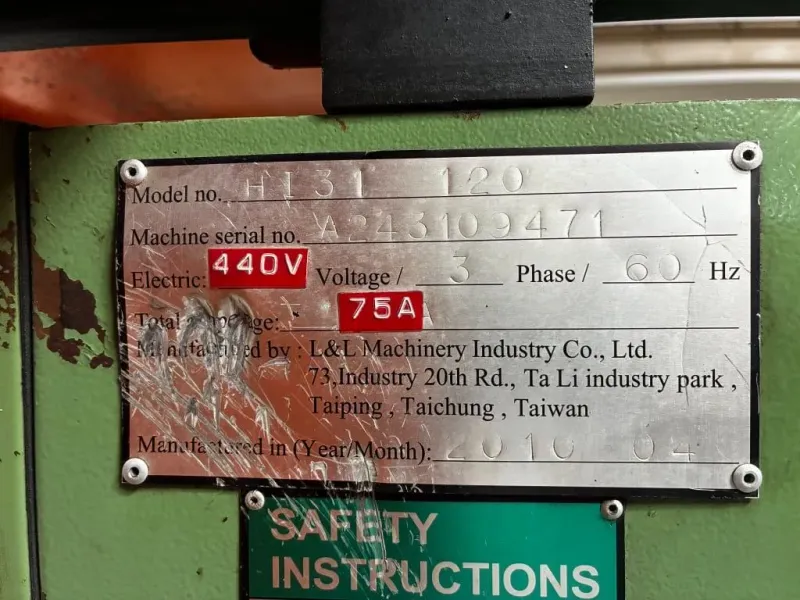

Electrical: 440V / 3 Phase / 60 Hz / 75 Amp
Approximate Weight: 15,500 to 17,700 lbs depending on configuration
Bedways: hardened and precision-ground
Gap: removable gap
Threading: English, metric, module, and diametral pitch capability
