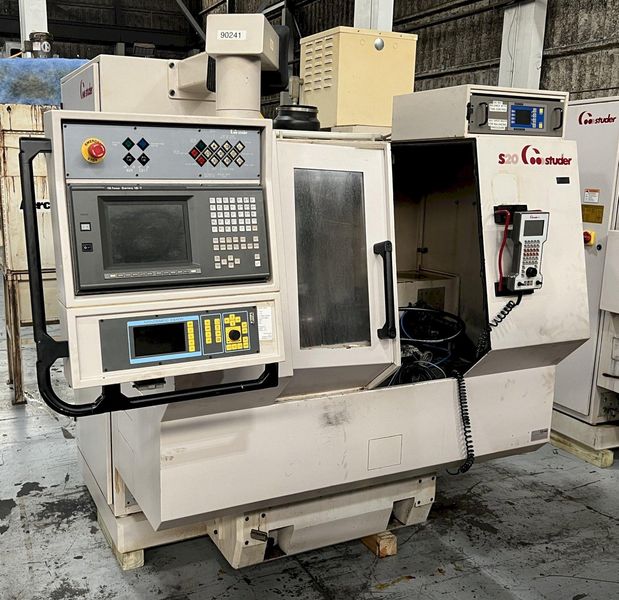

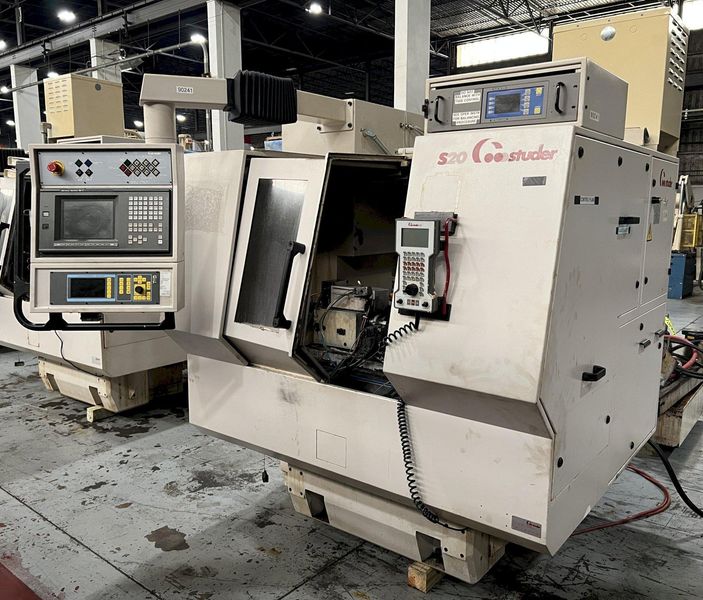

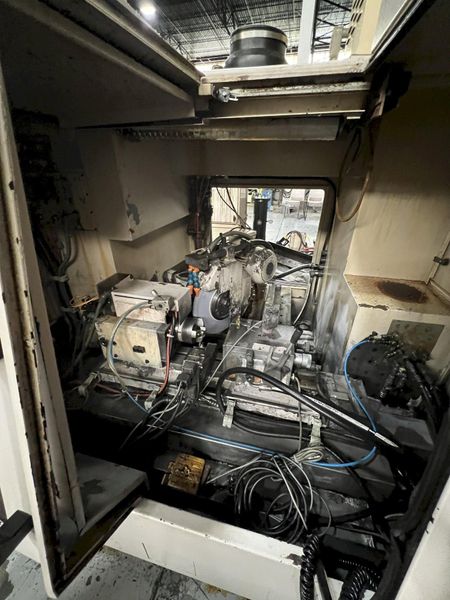

Studer S20 CNC Plain Cylindrical Grinder with Combination Plain/Angle Wheel Head.

Manufacturer

STUDER

Category

Grinding Machines

Type

GRINDERS, CYLINDRICAL, CNC

Stock

GS202MT

Model

S20 CNC Plain / Angle Head

Dealer Location

Illinois

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Swing Over Bed - 7.87 inches
Distance Between Centers - 15.75 inches
Max Table Travel Longitudinal Slide - 16.54 inches
Max Grinding Length - 15.75 inches
Longitudinal Table Slide Speed - 0.001 - 10,000 mm/min
Max Swivel of Table - 15 Grad (13.5 deg.)
Wheel Head Slide Max. Travel - 6.06 inches
Wheel Head Slide Speed - .001 - 10,000 mm/min
Wheel Size Diameter X Width X Bore - 13.75" X 2" X 5"
Work Head Taper - Morse #4
Tailstock Taper - Morse #2
Maximum Weight between Centers - 44 pounds

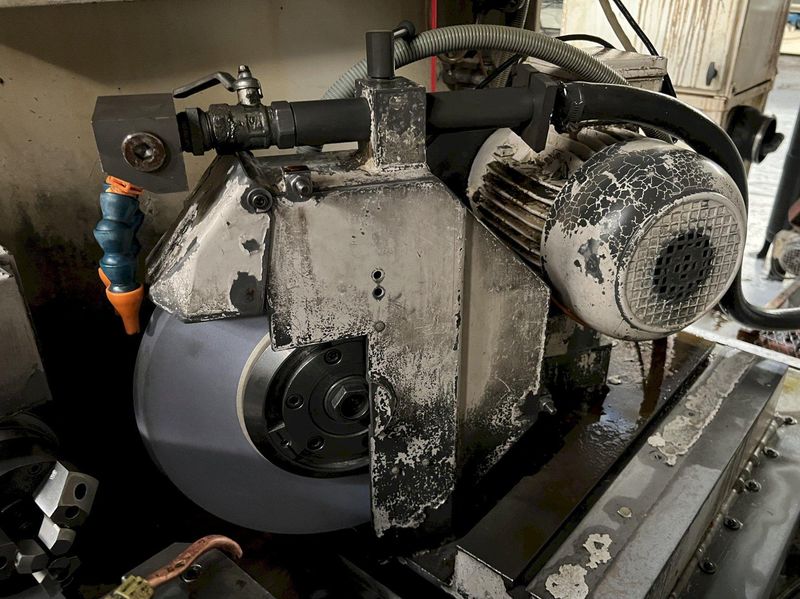

Straight or 30 deg. Wheel Head. (Manually adjusted).

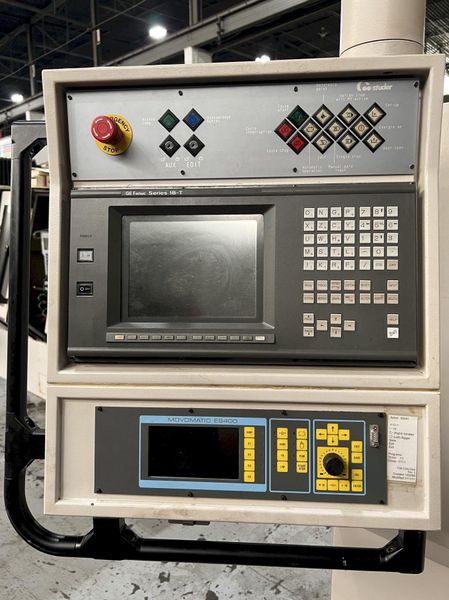

Fanuc 18-T CNC Controls.
Movomatic ES400 Edge Locator and In Process Gauging.

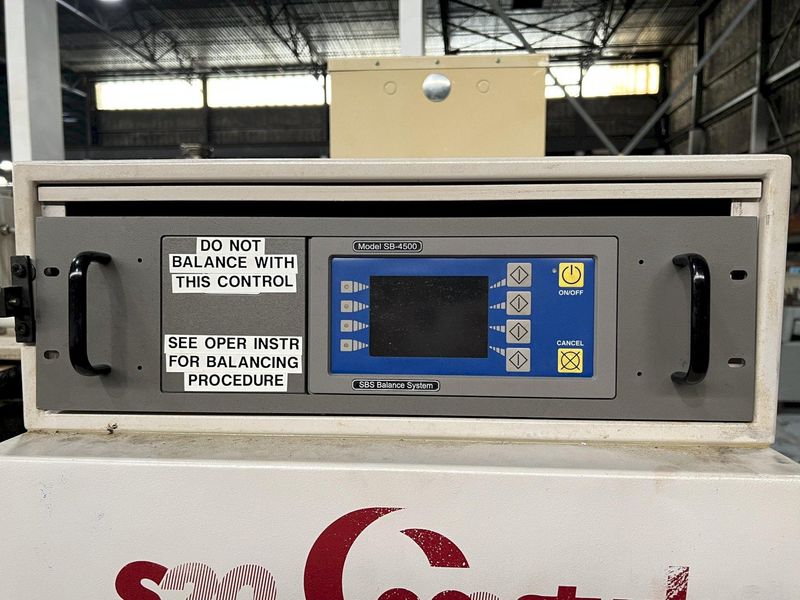

SBS Model SB-4500 Wheel Balancer.

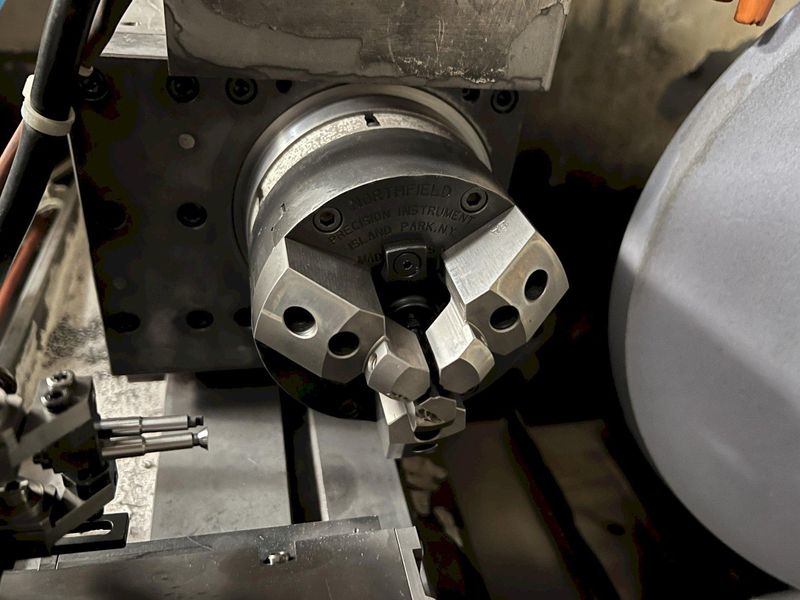

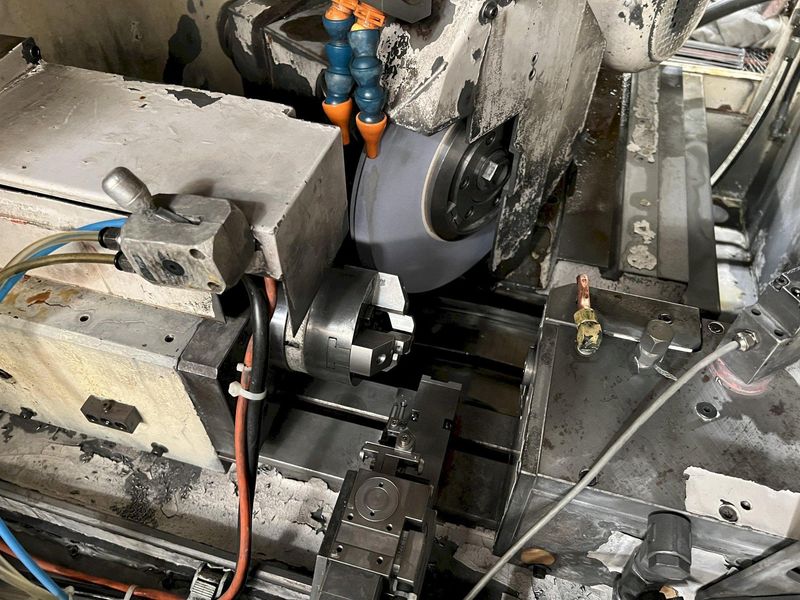

4" 3-Jaw Chuck.

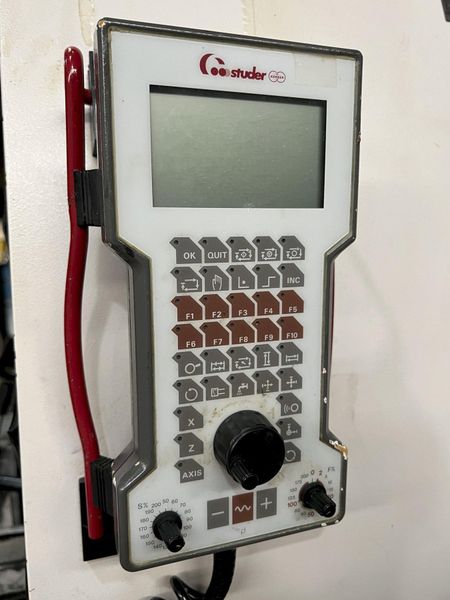

Operators hand held remote control station with M.P.G.

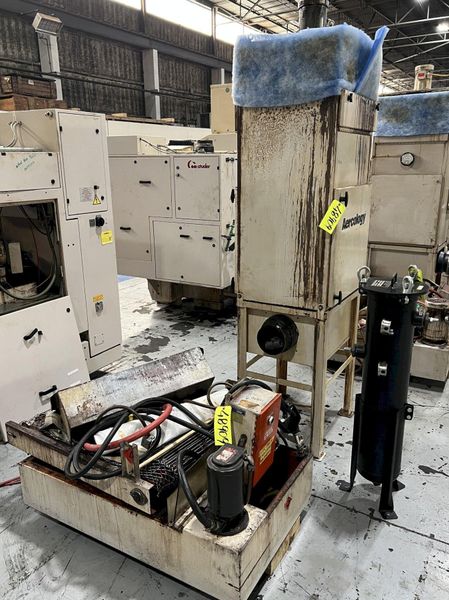

Aerocology Mist Collector.
Cyclotron Paper drag out coolant filtration system.
