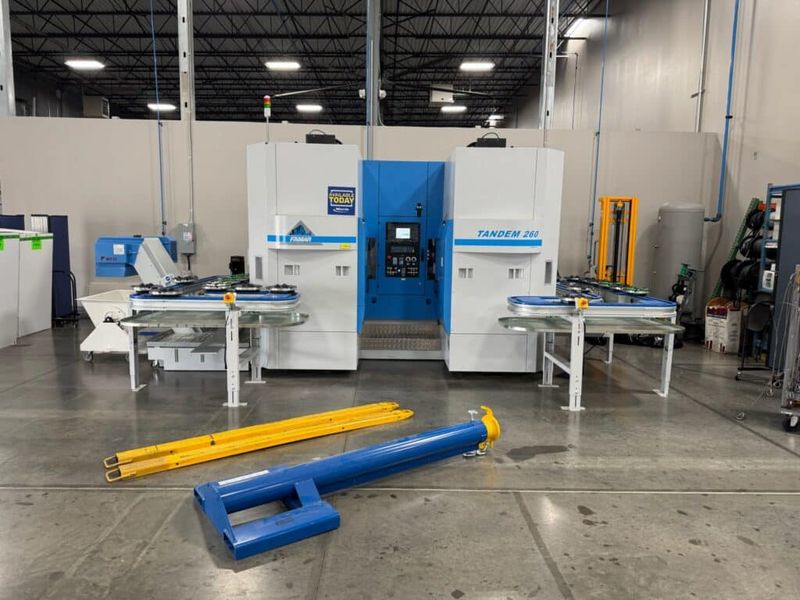

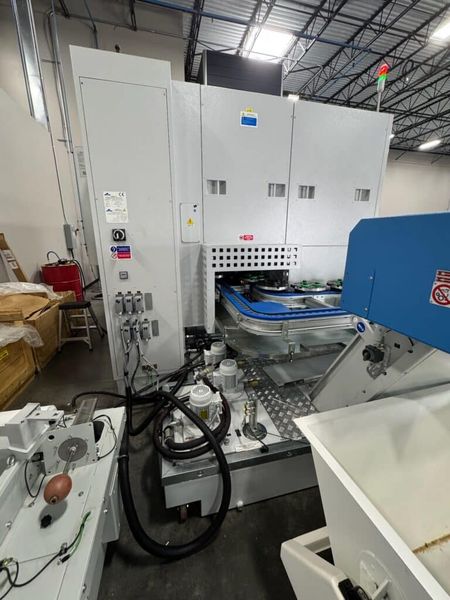

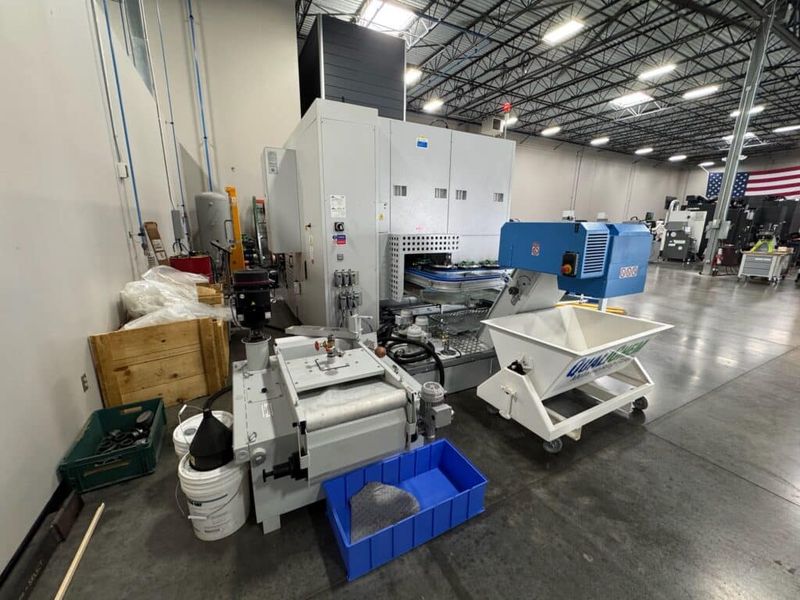

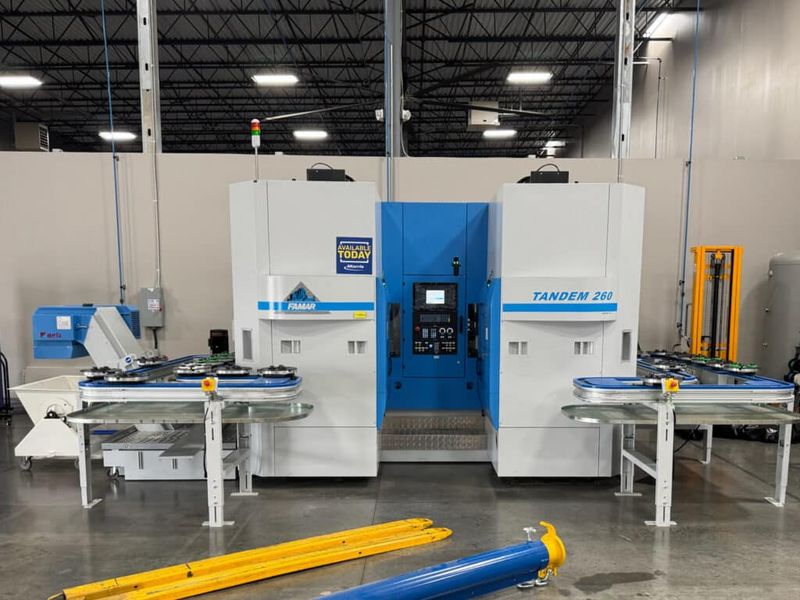

Famar Tandem 260 CNC Twin Spindle Turning Center (Demo Machine, 2024)

Manufacturer

Famar

Category

Lathes

Type

LATHES, CNC

Stock

111260009

Model

Tandem 260

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 111260009
  • Location: NC
  • Brand: Famar
  • Model: Tandem 260
  • Year: 2024

Specifications

  • Standard chuck diameter [mm]: 260
  • Max chuck diameter [mm]: 260
  • Nominal turning diameter [mm]: 180
  • Max turning diameter [mm]: 250
  • Max swing diameter [mm]: 400
  • Max turning length [mm]: 240
  • Toolholders type [VDI]: 40
  • Toolholders [N°]: 12
  • Max power [kW] (turret): 12,5
  • Max torque [Nm] (turret): 88
  • Max speed [Rpm] (turret): 8000/10000
  • Max tools length [mm]: 220
  • Indexing time [sec]: 0,25
  • Machine Weight [kg]: 18000
  • Conveyor height [mm]: 1050
  • Compressed air [bar]: 5
  • Loading/Unloading time [sec]: 6 – 10
  • Spindle nose ISO 702-1 [Size No.]: 6
  • Front bearing ø [mm]: 110
  • Spindle nominal power [kW] S1 100%: 23,6
  • Spindle nominal torque [Nm] S1 100%: 146
  • Spindle max torque [Nm]: 196
  • Spindle max speed [Rpm]: 5300
  • Pipe diameter [Inch]: 1 ¼
  • Pressure [bar]: 5
  • Average consumption [l/min]: 200
  • Electrical connection – Rated output [kW]: 75
  • Voltage [V]: 400
  • Frequency [Hz]: 50
  • Rated current [A]: 110
  • Min. feeding cable section [mm²]: 35
  • Mist extraction – Suction pipe diameter [mm]: 100
  • Suction capacity [m³/h]: 2100

Equipped With

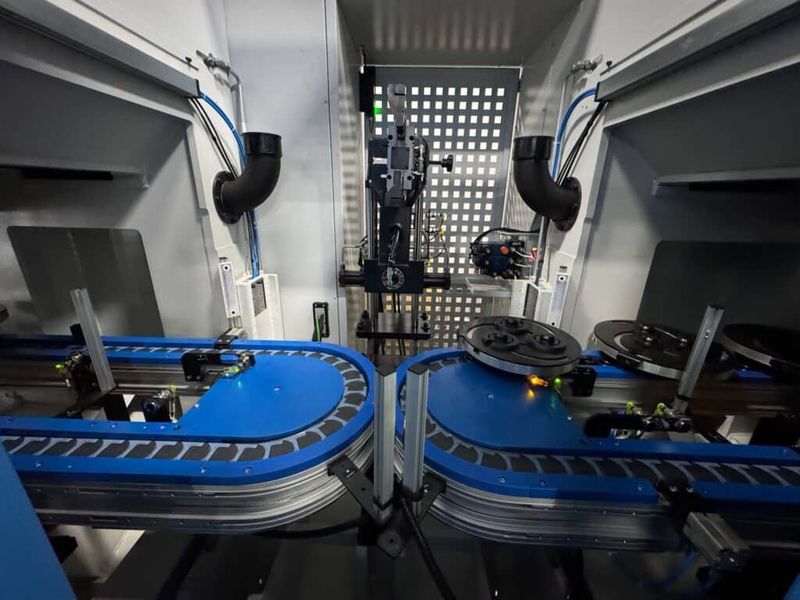

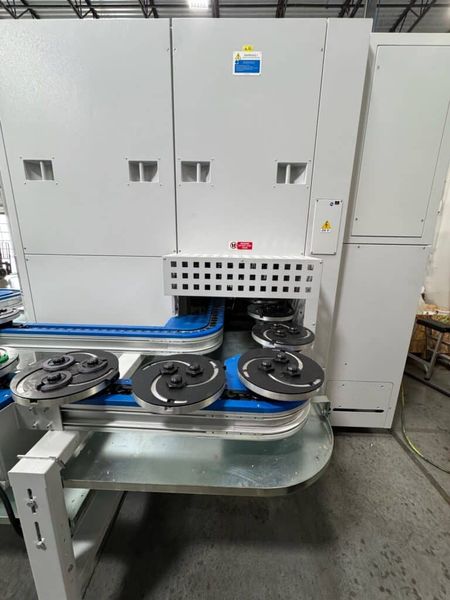

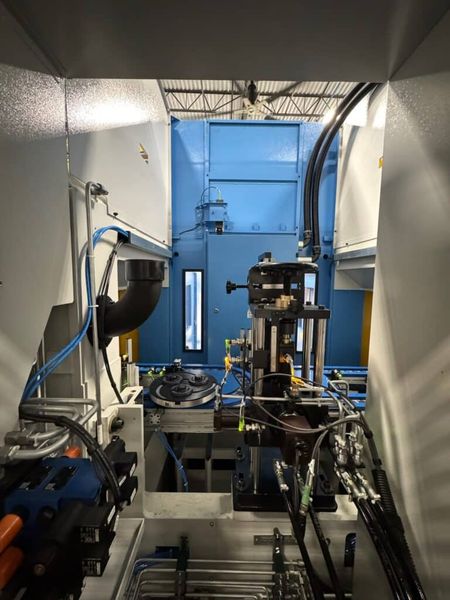

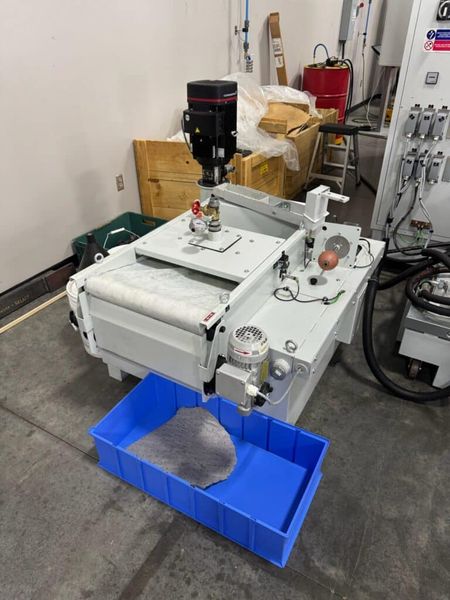

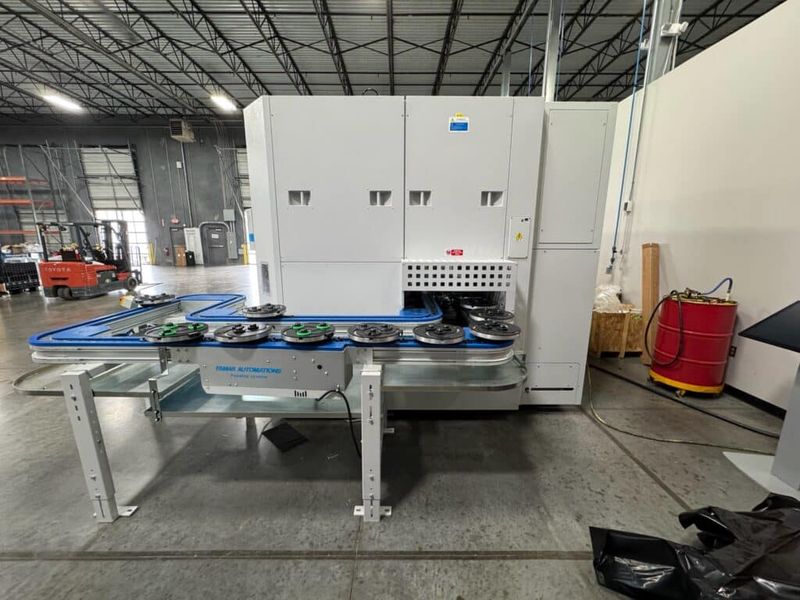

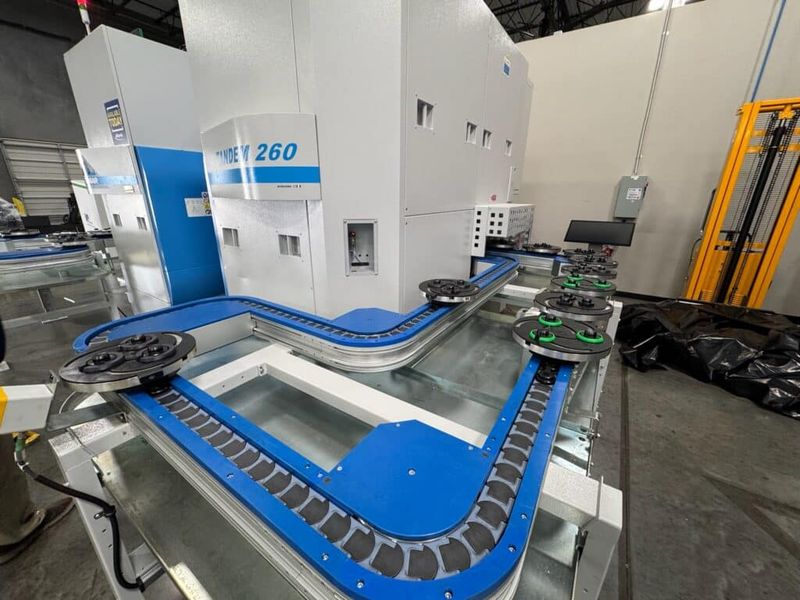

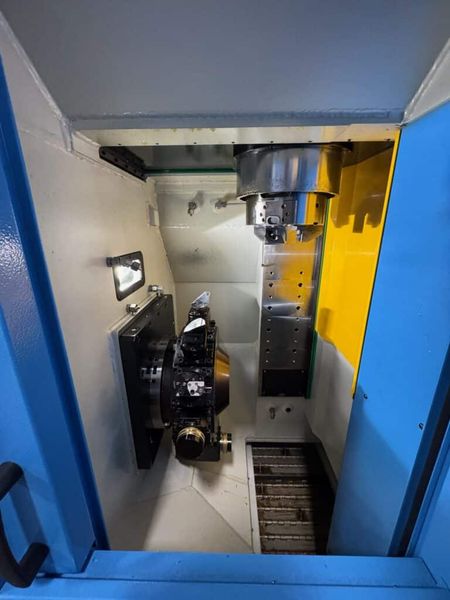

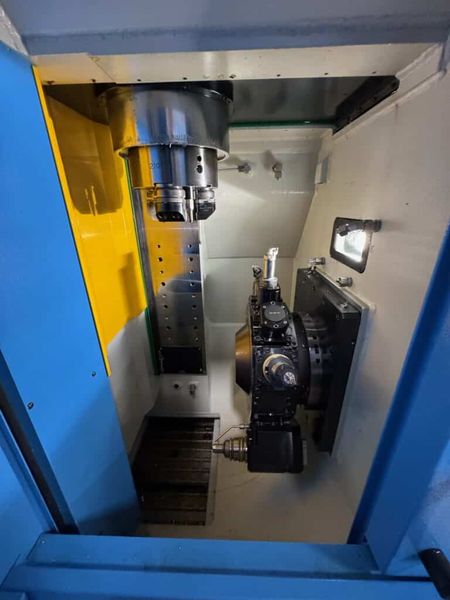

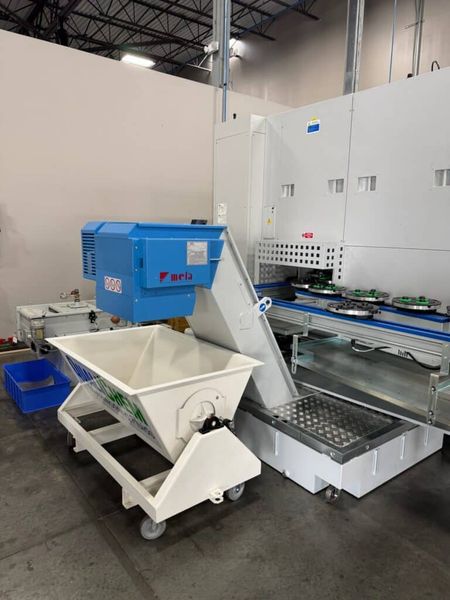

High Pressure Pump 20 Bar 40L/min, Paper Filter 30 micron with 400 L-Tank, Chip Conveyor Belt Type – Closed Chain, Coolant Tank, (2) Driven Tools Turret Famar 40, (2) Famar FIT 70 Tools Disc for Driven Tools with 12 Attachments, (8) FIT 70 Cover for Empty Tool Attachment, (2) Arrangement for Clamping System Size 260, Clamping Position Checked by Air (Air Clamping Control), (2) Customer Fixture Assembly and Testing, (2) Hydraulic Lower Spindle Brake, (2) Standard In Process Measuring Device, Automation Line with Pallets (Part Weight 10kg Max x Nr. Pallets 20×2 Max), (40) Selfcentering Pallet, (2) Z Axis Linear Scale
