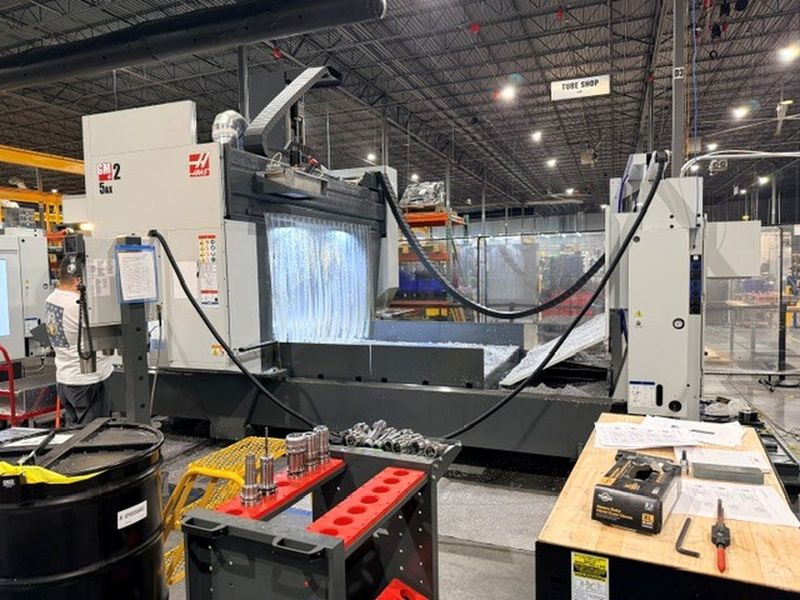

Haas GM-2-5AX 5-Axis CNC Gantry Mill (2024)

Manufacturer

Haas

Stock

141260012

Model

GM-2-5AX

Dealer Location

Georgia

Spec Sheet

  • Stock #: 141260012
  • Location: Atlanta, Georgia
  • Brand: Haas
  • Model: GM-2-5AX
  • Year: 2024
  • Approx. Shipping Weight: 22,000 LBS.
  • Approx. Shipping Dimensions: 226.0″L x 143.0″W x 137.0″H
  • Skidding Fee: Skidding Unavailable
  • Loading Fee: Rigging Required

Specifications

  • X-Axis Travel: 145″
  • Y-Axis Travel: 87.5″
  • Z-Axis Travel: 39.30″
  • Spindle Nose to Table (Max – Min): 37″ – 5″
  • Maximum Spindle HP: 16 HP
  • Maximum Spindle Speed: 20,000 RPM
  • Spindle Taper: HSK-A63
  • B-Axis Tilt Range: 120+ degrees to 120- degrees
  • C-Axis Rotation Range: 245+ degrees to 245- degrees
  • Table L x W: 144″ x 72″
  • Max Workpiece Weight (Evenly Distributed): 6,000 LBS.
  • Maximum Cutting Feedrate: 472 IPM
  • Rapids (X ,Y, & Z): X: 472 IPM, Y: 1,889 IPM, Z: 1,181 IPM

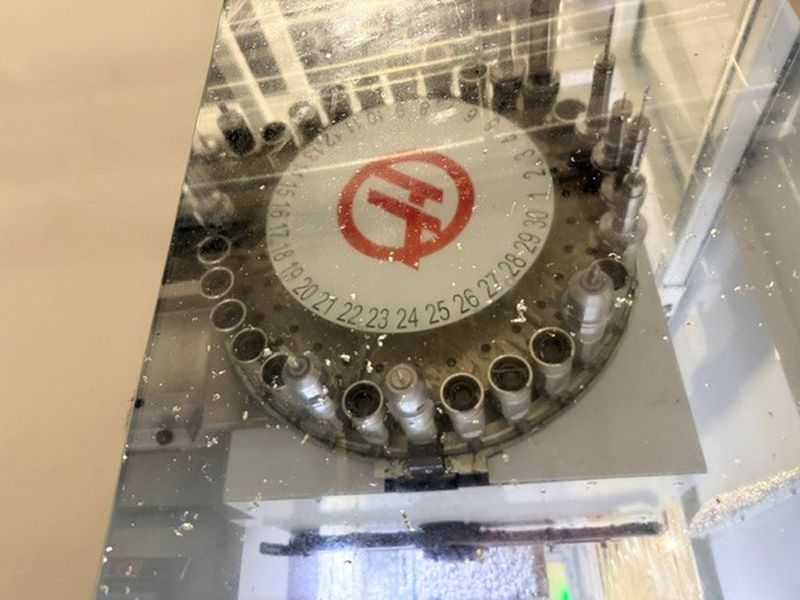

  • Tool Changer Type & Capacity: SMTC, 30+1
  • Coolant Capacity: 95 Gallons
  • Electrical: 220V / 3PH / 40 FLA

Equipped With

Haas NGC Control, 64GB Expanded Memory, High Speed Machining, Dynamic Work Offset & Tool Center Point Control, Early Power Failure Detection Module, Ethernet Interface, Haas Connect, Haas Drop, Second Home Position, Media Display, Large Touchscreen Remote Jog Handle, Rigid Tapping, Power Surge Protection, Control Touch Screen, Wi-Fi Connection, Wireless Intuitive Probing System (WIPS), 20K RPM HSK-A63 Spindle, 30+1 Side-Mount Tool Changer, Coolant System, Chip Auger, Control Cabinet Cooler, Steel Table (Inch)

Additional Info

Machine can be demoed upon request

No Video Available
