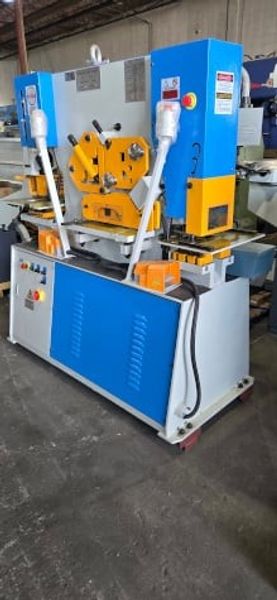

New Ficom IW-66 66 Ton Ironworker

Manufacturer

Ficom

Category

Punches

Type

IRONWORKERS

Stock

193260002

Model

IW-66

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 193260002
  • Location: Lithia, FL 33547
  • Brand: Ficom
  • Model: IW-66
  • Approx. Shipping Weight: 3,527 Lbs
  • Approx. Shipping Dimensions: 65” X 32” X 70”

Specifications

  • Tonnage: 66 Tons
  • Throat: 11-13/16”
  • Capacity: 1” Hole Thru ⅝” Plate
  • Stroke: 3-⅛”
  • Cutting Capacity – Max. Width: 5/16” X 15-¾”
  • Max. Thickness: ⅝” X 10”
  • Round – Solid: 1-¾”
  • Square Solid: 1-9/16”
  • Channel: ½”
  • Angle: 4-59/64” X ½”
  • Max. Cut: 2-¼” X 3-15/16” X 25/64”
  • Motor Power: 5.3 HP
  • Electrics – Standard: 230 / 460 / 3 / 60

Equipped With

Dual Operator Stations With (2) Movable Foot Pedals, Five Workstations (Punch, Plate Shear, Angle Shear, Rod Shear & Notcher), Punch Station Has Large Two Piece Gauging Table With Fence, Punch Station For Channel & I – Beam, Electrical Backgauge, Electrically Interlocked Safety Guard For Notching Station, Movable Workstation Light W/ Magnetic Base And 12” Press Brake Attachment
