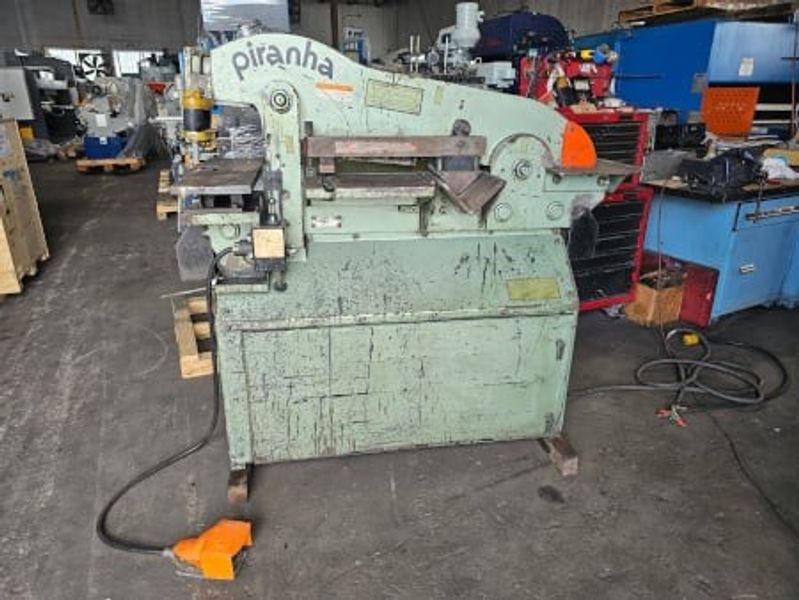

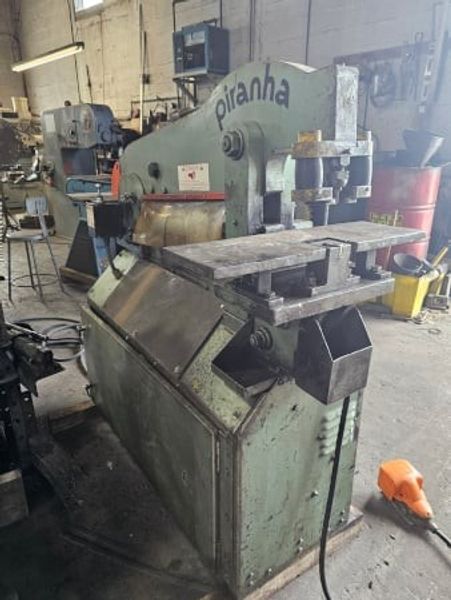

Piranha P3 50 ton Iron Worker

Manufacturer

Piranha

Category

Punches

Type

IRONWORKERS

Stock

193260001

Model

P3

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 193260001
  • Location: Lithia, FL 33547
  • Brand: Piranha
  • Model: P3
  • Year: 1991

Specifications

  • Tonnage: 50 Tons
  • Throat: 8”
  • Maximum Punch: 13/16” Thru ¾” Plate
  • Table Size: 8” X 10”
  • Cutting Length – Max Length: 14” X ⅝” – 10” X ¾”
  • Max. Thickness: 4” X 1”
  • Max. Angle @ 90°: 5” X 5” X ⅜”
  • Coper: 2-¾” X 4” X ¼”
  • Motor Power: 10 HP
  • Electrics – Standard: 230 / 460 / 3 / 60
  • Overall Dimensions: 70” X 30” X 60”
  • Net Weight: 2,600 Lbs

Equipped With

Coper Blades, Hold Down Assembly, Angle Blades, Punching Attachment With Automatic Urethane Punch Stripper, Shear Blades, 72” Material Stop And 8” Press Brake Attachment
