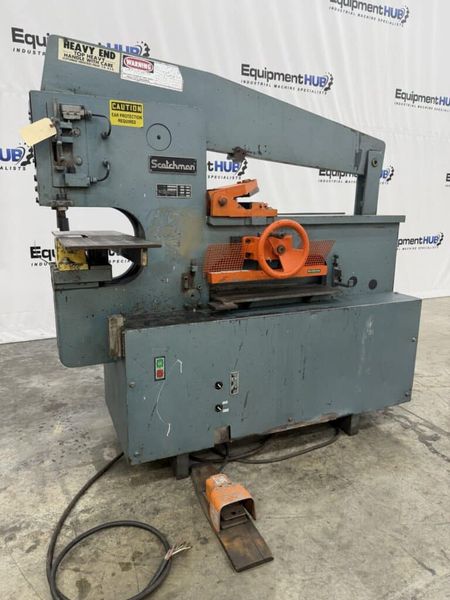

Scotchman 9012 90 Ton Hydraulic Ironworker

Manufacturer

Scotchman

Category

Punches

Stock

210260015

Model

9012

Dealer Location

Georgia

Spec Sheet

  • Stock #: 210260015
  • Location: Stone Mountain, GA
  • Brand: Scotchman
  • Model: 9012
  • Serial #: 200190884R
  • Approx. Shipping Weight: 4,500 Lbs.
  • Approx. Shipping Dimensions: 84″ L x 50″ W x 80″ H
  • Skidding Fee: Skidding Unavailable

Specifications

  • Punching Capacity: 90 Ton
  • Punching Capacity: 1-1/16″ Thru 1″
  • Capacity Rounds: 1-1/4″
  • Capacity Flats: 1/4″ x 24″, 1/2″ x 16″, 3/4″ x 10″, 1″ x 8″
  • Length Of Blade: 24″
  • Depth Of Throat: 12″
  • Strokes Per Minute: 56 @ 1/4″ 19 @ 3/4″
  • Motor HP: 7.5
  • Electrical: 230V/3PH

Equipped With

Foot Pedal Operation, Punch / Shear Stations, Shear Backstop Fence, Corner Notcher Attachment, (2) Speed Operation

Additional Info

Machine can be demoed upon request. Check out the video on the listing to see it in operation.
