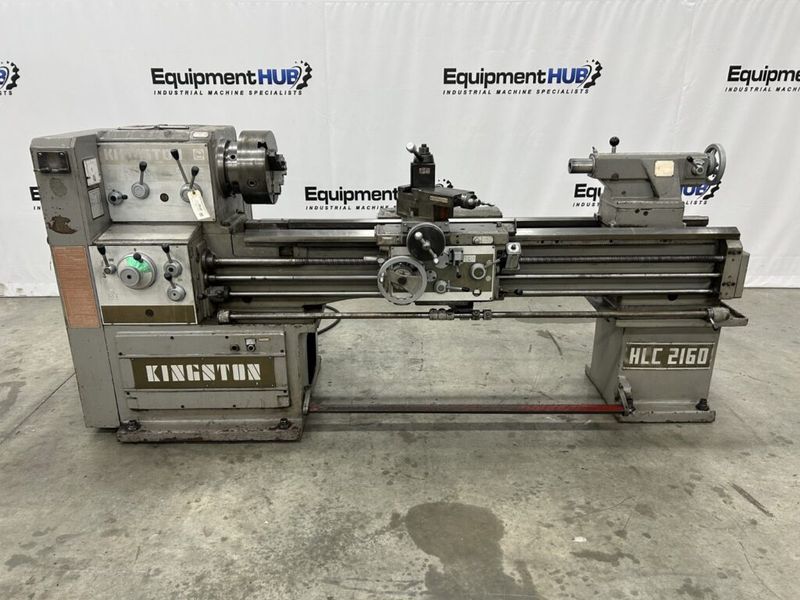

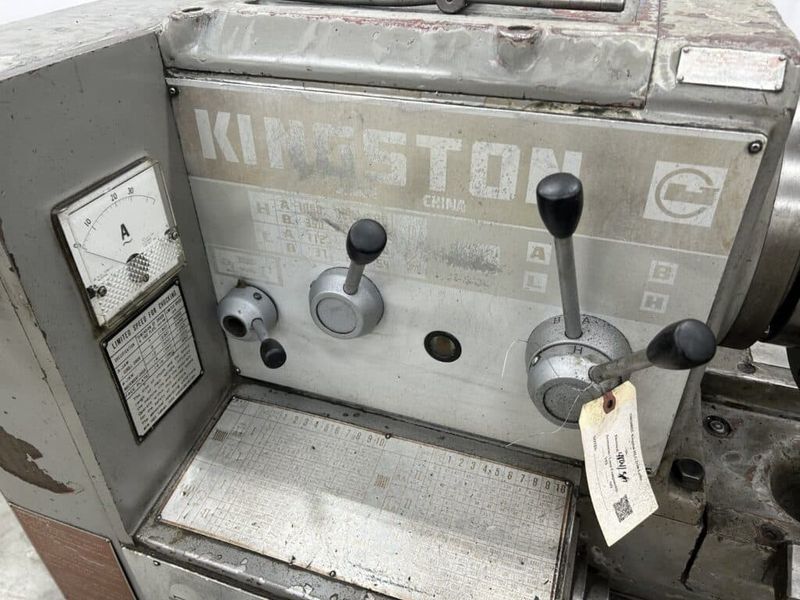

Kingston HCL 2160 21″ x 60″ Gap Bed Engine Lathe

Manufacturer

Kingston

Category

Lathes

Stock

190260022

Model

HLC 2160

Dealer Location

Georgia

Spec Sheet

  • Stock #: 190260022
  • Location: Stone Mountain, GA
  • Brand: Kingston
  • Model: HLC 2160
  • Serial #: 530843
  • Year:
  • Approx. Shipping Weight: 6,000 Lbs
  • Approx. Shipping Dimensions: 8′ L x 4′ W x 5′ H
  • Skidding Fee: Skidding Unavailable

Specifications

  • Swing Over Bed: 21″
  • Swing In Gap: 28″
  • Distance Between Centers: 60″
  • Spindle Nose: D1-8
  • Number Of Spindle Speeds: 18
  • Range Of Spindle Speeds: 25 – 1800 RPM

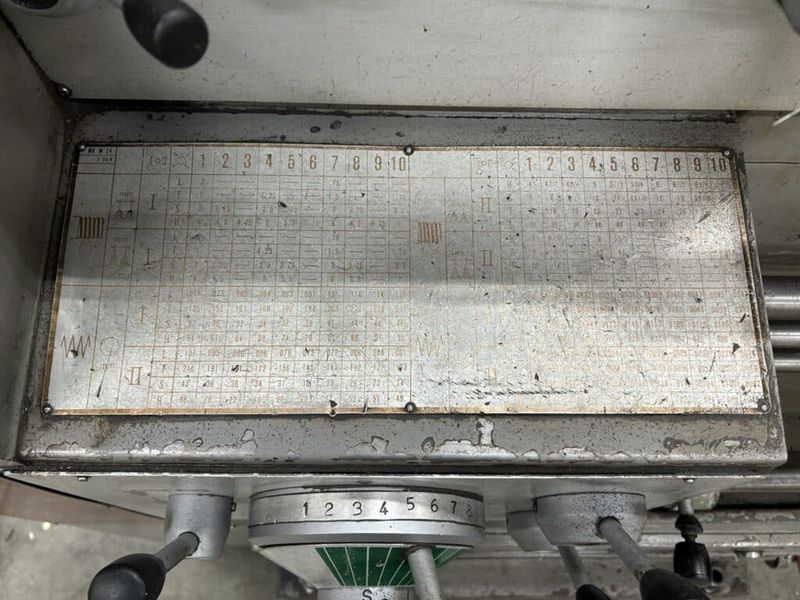

  • Threading: Inch (TPI), Metric (mm), Module & Diametral Pitch
  • Electrical: 440V/3PH

Equipped With

Foot Brake, 3 Jaw Chuck, Aloris Quick-Change Tool Post, Motor Amp Draw Reading Gauge

Additional Info

The Kingston Lathe can be demoed upon request. Check out the video on the listing to see it in operation. Comes as pictured.
