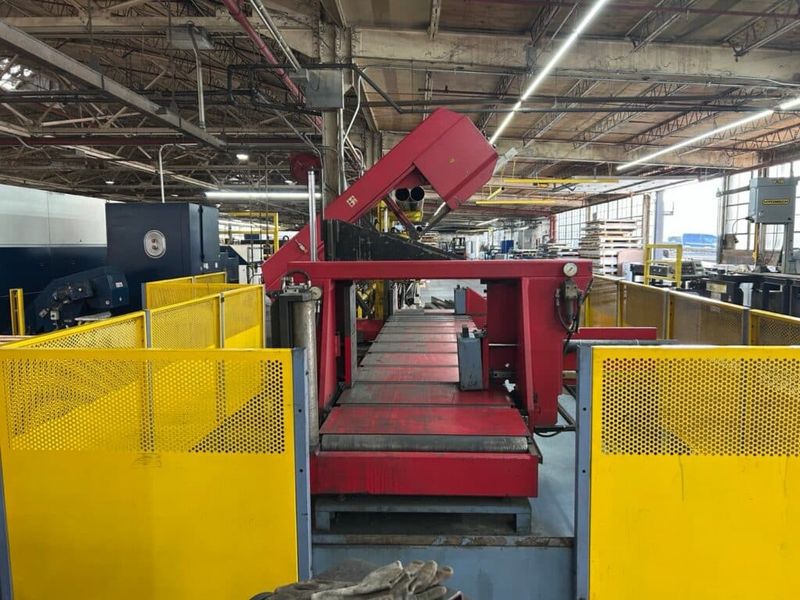

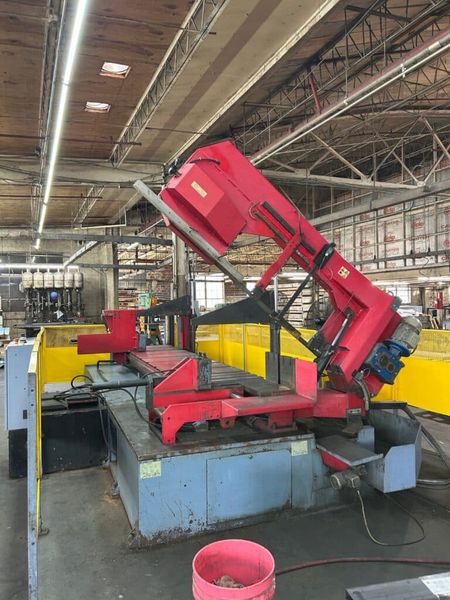

BTM 71.51 ADS 20″ x 28″ Automatic CNC Horizontal Bandsaw

Manufacturer

Btm

Category

Saws

Type

SAWS, GENERAL

Stock

190260010

Model

71.51 ADS

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 190260010
  • Location: Decatur, GA
  • Brand: Btm
  • Model: 71.51 ADS
  • Serial #: 105302
  • Year: 2008
  • Approx. Shipping Weight: 11,000 Lbs.
  • Approx. Shipping Dimensions: 20′ L x 8′ W x 7′ H
  • Skidding Fee: Skidding Unavailable

Specifications

  • Rectangular Cutting Capacity (90°): 28″ x 20″
  • Round Cutting Capacity (90°): 20″
  • Rectangular Cutting Capacity (45°): 22″ x 12.6″
  • Round Cutting Capacity (45°): 19.7″
  • Rectangular Cutting Capacity (60°): 15.7″ x 9.4″
  • Round Cutting Capacity (60°): 15″
  • Blade Size: 5800mm x 41mm x 1.3mm, Bimetal M42
  • Miter Capability: 60° Left & Right
  • Blade Speed: 22 – 100 m/min (Variable, Inverter Driven)
  • Carriage Feed Travel: 118″
  • Max Cutting Length (With Repeats): 39′
  • Electrical: 230V/3PH

Equipped With

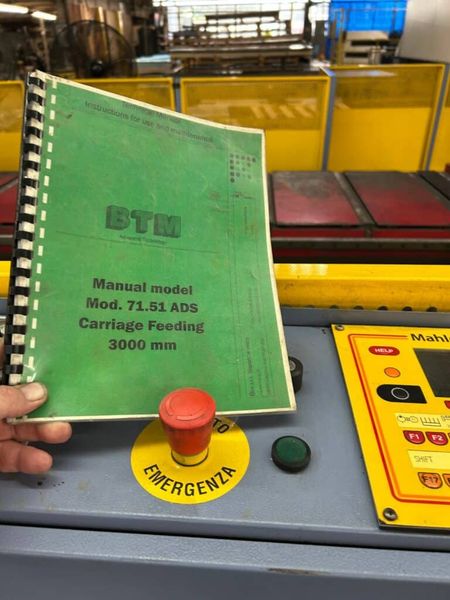

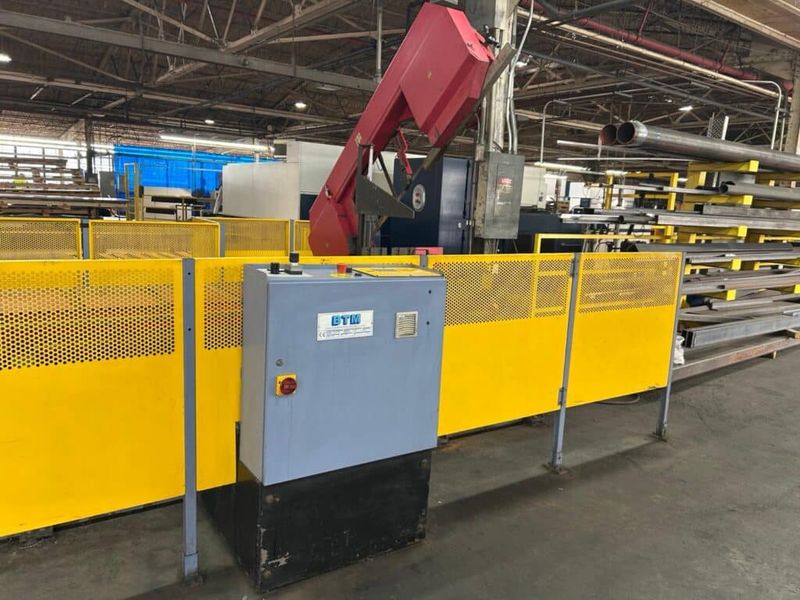

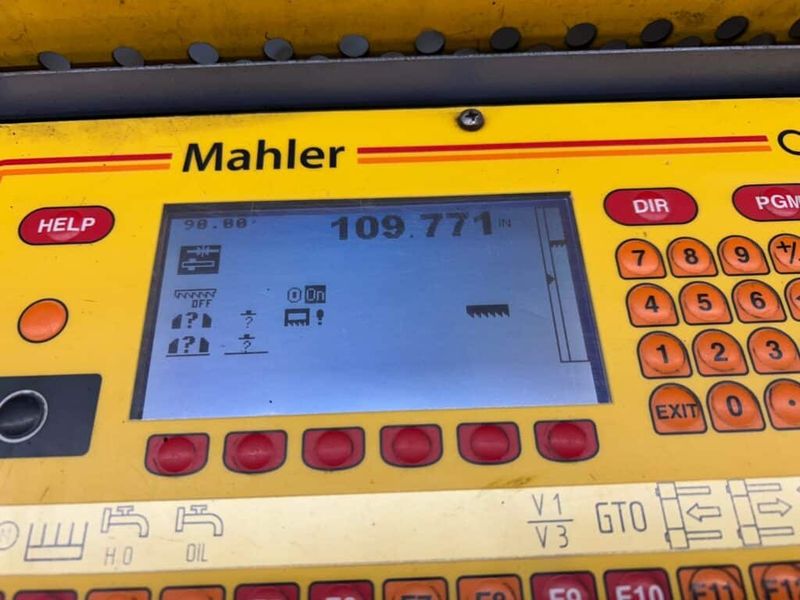

Mahler Ceb CNC Controller (Graphical LCD Display, 99 Program Memory, Programmable Cut Length & Miter Angle), Automatic CNC Carriage Feeding System (3000Mm Travel, Ball Guide Ways, Inverter Driven Motor), Hydraulic Head Rotation To 60° Left & Right (CNC Controlled Via DC Motor), Automatic Hydraulic Blade Tensioning With Auto-Release, Variable Speed Inverter Drive, Hydraulic Full-Stroke Vises, Workpiece Height Sensor, Automatic Feed Rate Correction Based On Cutting Resistance, Carbide (Widia) Blade Guides, Chip Auger, Coolant System, Yellow Perforated Safety Fencing, Emergency Stop Buttons, Btm Technical Manual, Made In Italy

Additional Info

The BTM 71.51 ADS 20″ x 28″ Automatic CNC Horizontal Bandsaw can be demoed upon request, check out the video on the listing to see it in operation.
