AIDA NC1-11(1) Gap Frame Press #8254 #1

Manufacturer

AIDA

Category

Presses

Stock

8254

Model

NC1-11(1)

Dealer Location

California

Spec Sheet

Overview

Type:
PRESSES, GAP FRAME, SINGLE CRANK
Manufacturer:
AIDA
Model:
NC1-11(1)
Stock #:
8254
Status:
For Sale
Serial #:
00211-5527
Country:
United States

Description

AIDA NC1-11(1) Gap Frame Press, 110 US tons capacity, 70 SPM, 4.33" stroke. Features air clutch & brake, T-slotted bolster, dual palm buttons, and control panel. Used condition, ideal for various pressing needs.

AIDA NC1-11(1) Gap Frame Press #8254 #1

Specification Details:
Press Capacity: 110 US Tons
Blanking Capacity: 88 US Tons
Stroke Length: 4.33"
Strokes Per Minute (SPM): 70 SPM
Slide Adjustment: 3.54"
Die/Shut Height: 12.6"
Bed Area (L-R x F-B): 42.1" x 20.4"
Slide Area (L-R x F-B): 24.8" x 20.4"
Motor Requirements: 15 HP Main Motor

Equipped With:
Air Clutch & Brake

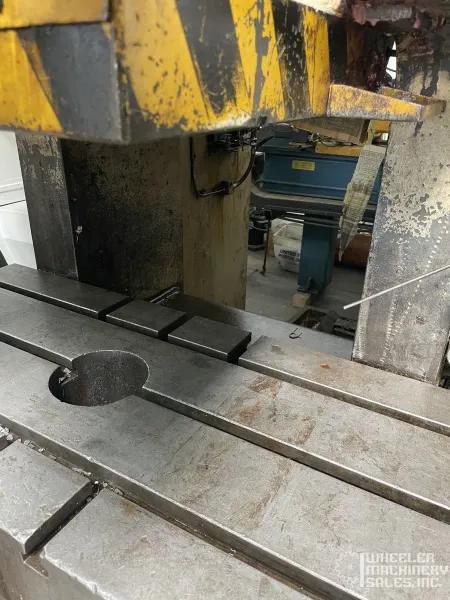

T-Slotted Bolster
Dual Palm Buttons
Control Panel
