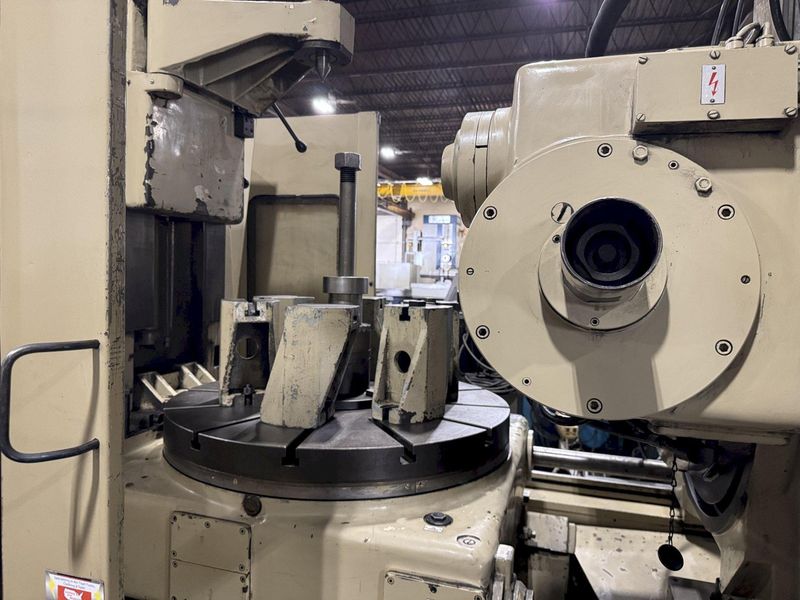

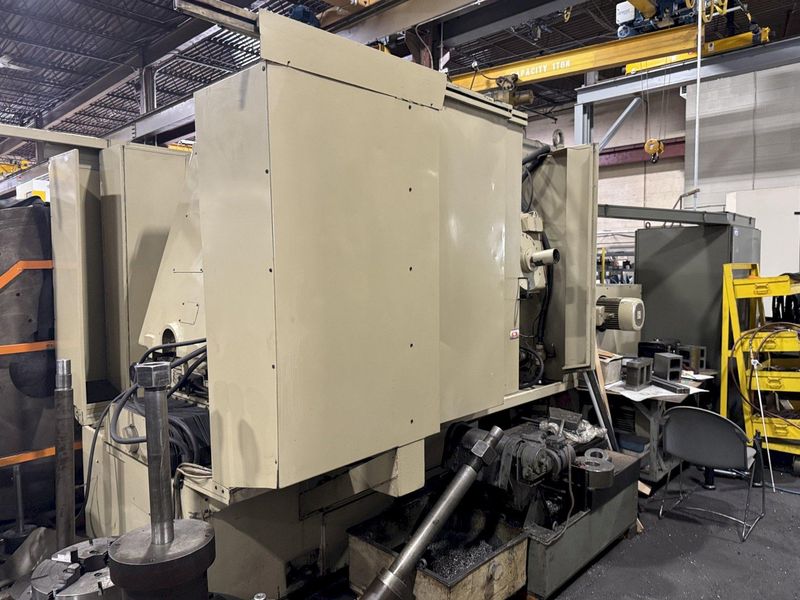

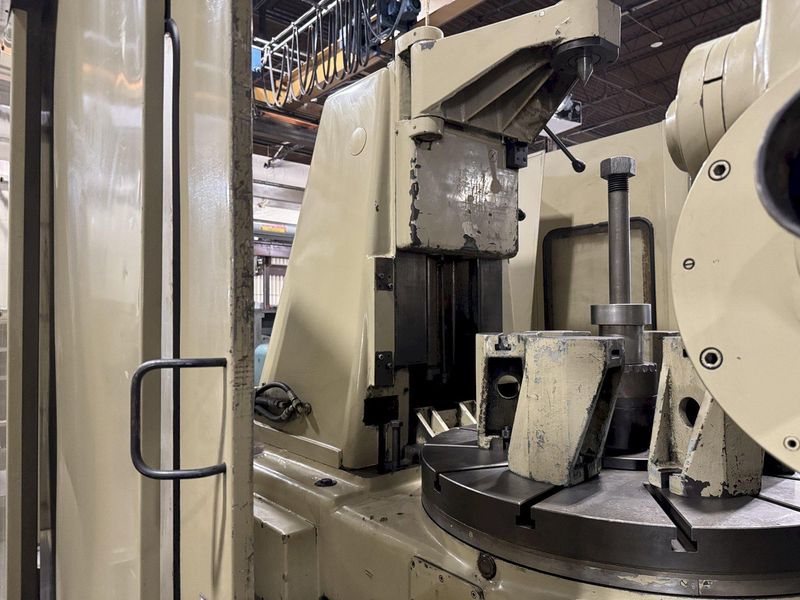

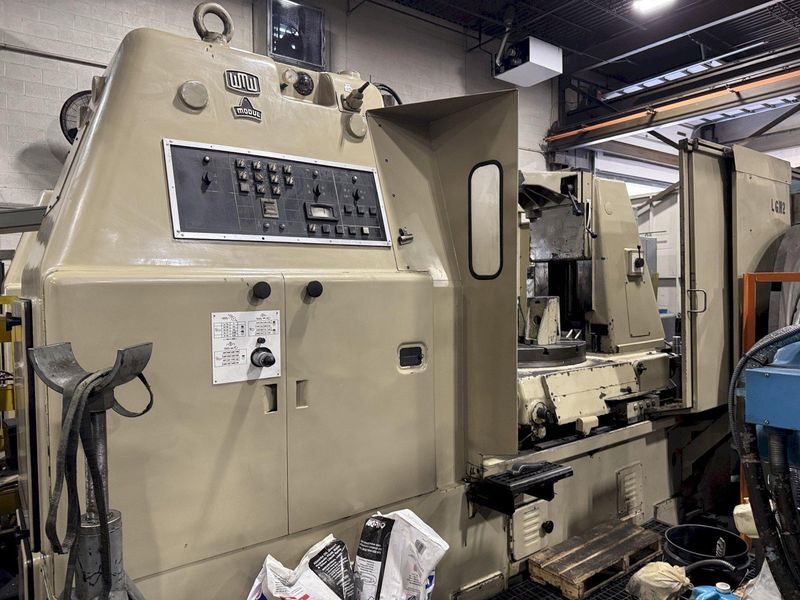

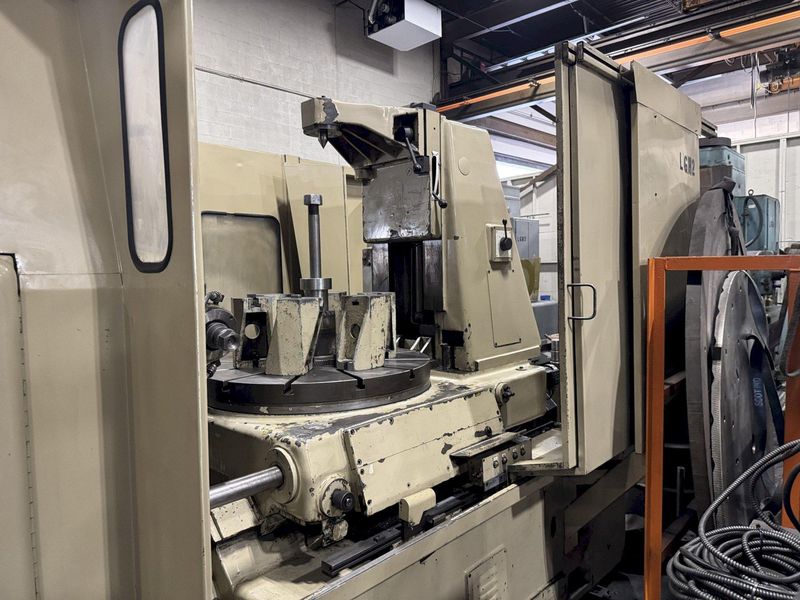

1250mm WMW Modul ZFWZ 1250/3 Vertical Gear Hobbing Machine

Manufacturer

WMW MODUL

Category

Gear Machines

Type

GEAR HOBBERS, VERTICAL, CNC

Stock

M8646

Model

ZFWZ 1250/3

Dealer Location

Illinois

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Max Dia. Gear - 1250 millimeters
Max Diametral Pitch - 1.5
Horz/Vert - vertical
Max Cutting Dia - 1250 mm/ 49.2"
Max Cutting Length - 600mm/23.62
Max Module - 16
Min Module - 2
Max Size of Hob - 240mm x 280mm
Table Diameter - 1020mm/40.15"
Speed - 28-200 rpm
Axial Feed Rate - 0.28-8 mm/min
Radial Feed Rate - 0.1- 2mm/mim
Tangential Feed Rate - 0.16- 4 mm/min
Hob Slide Tilt (left/right) - +/- 45 degrees
Main Motor - 12.5 kW
Approx Height - 102"
Approx Shipping Width - 96"
Catalog Dimensions - 4.5 x2.1x 3.3 ht mm
Total Power - 19.5 kW
Max Dia with Tailstock - 1250mm/49.2"
Max Dia With Tailstock - 800mm/ 31.94"

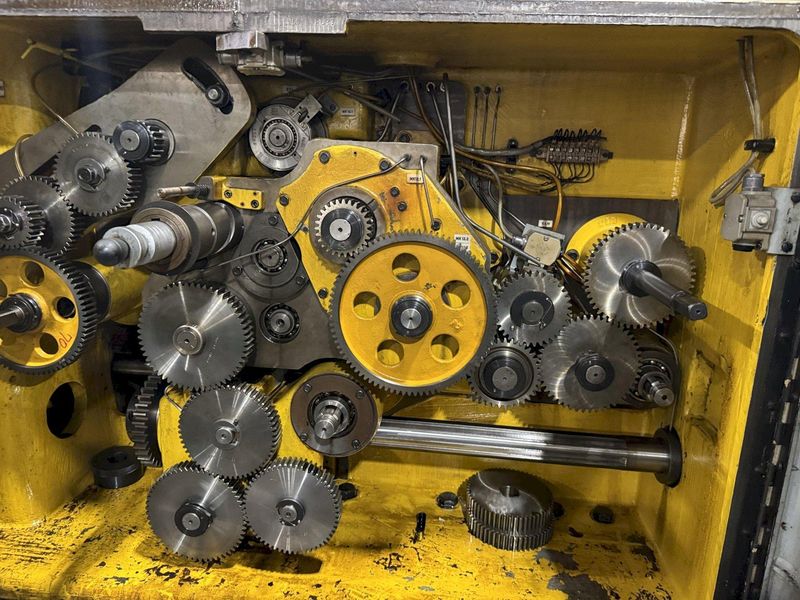

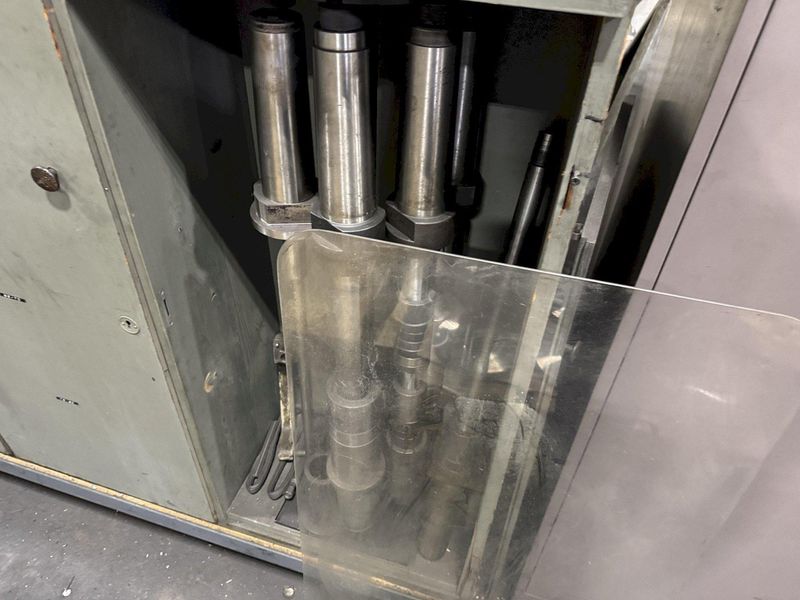

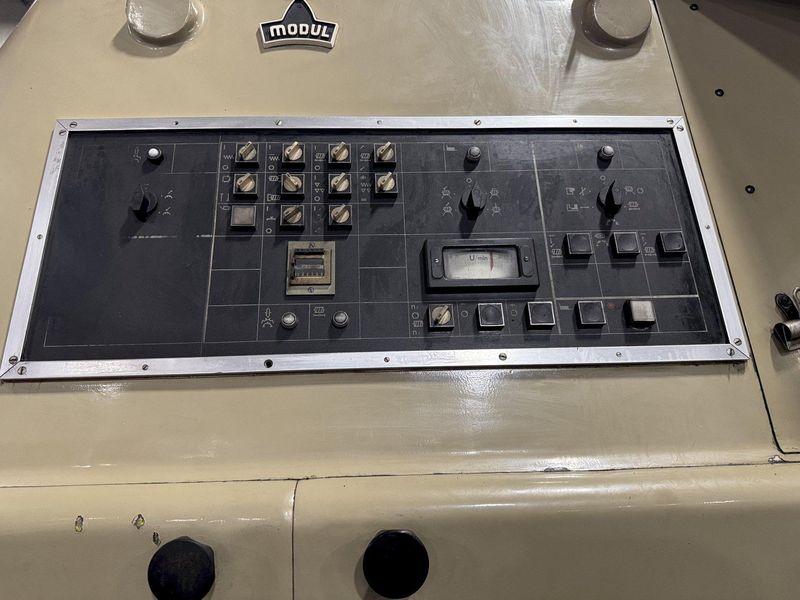

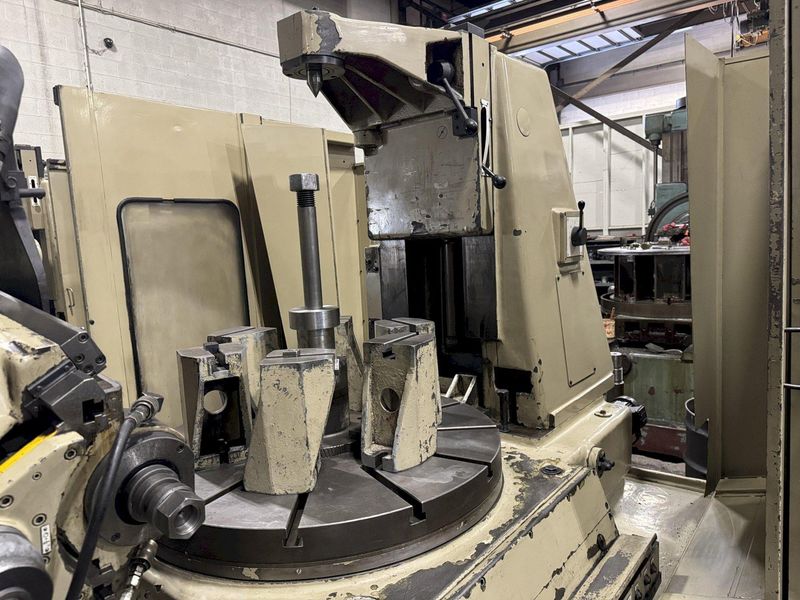

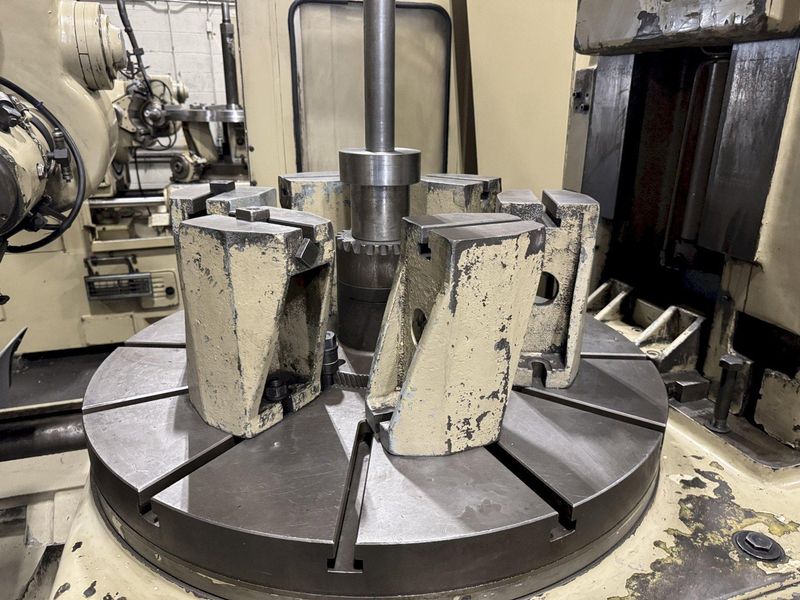

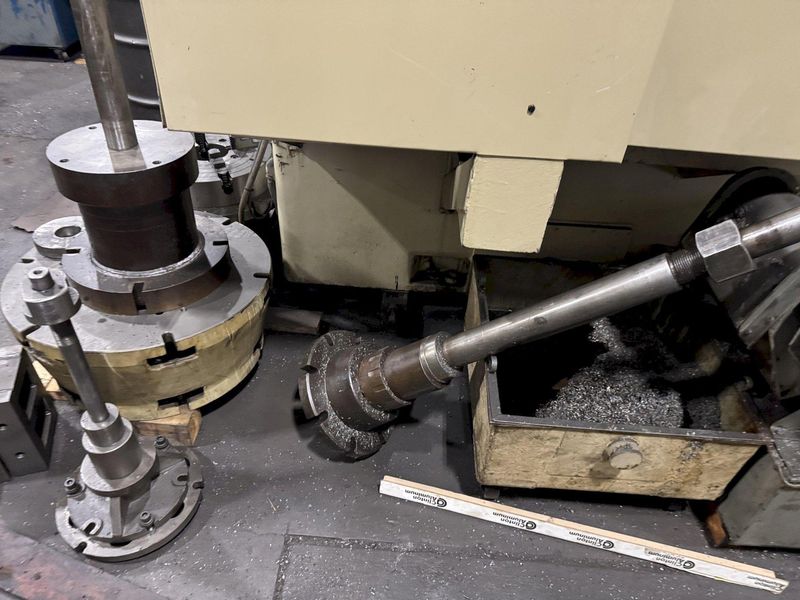

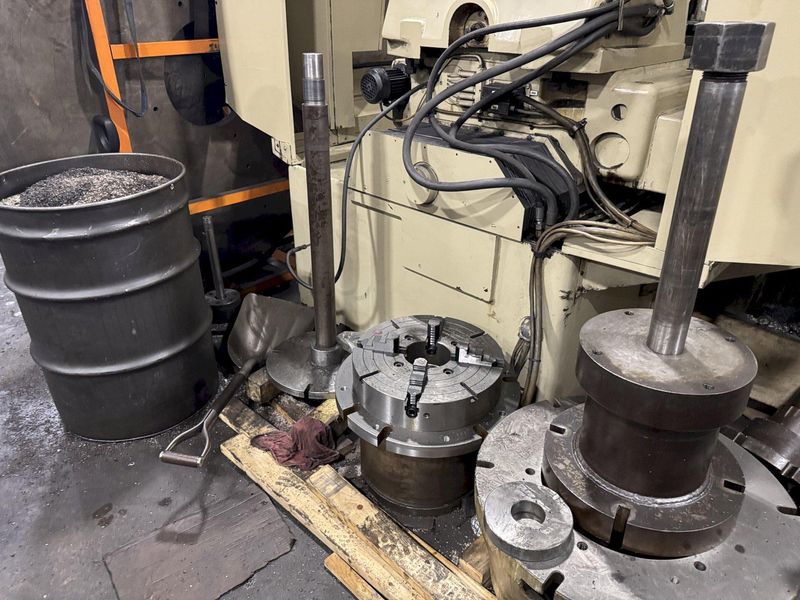

Equipped With: Operators Control.  Work Arbors.  Hob Arbors.  Change Gears.  Swing Away Tailstock. Work Fixturing.  Coolant System with Magnetic Separator.  Free Standing Electrical Control.  Work Enclosure.
