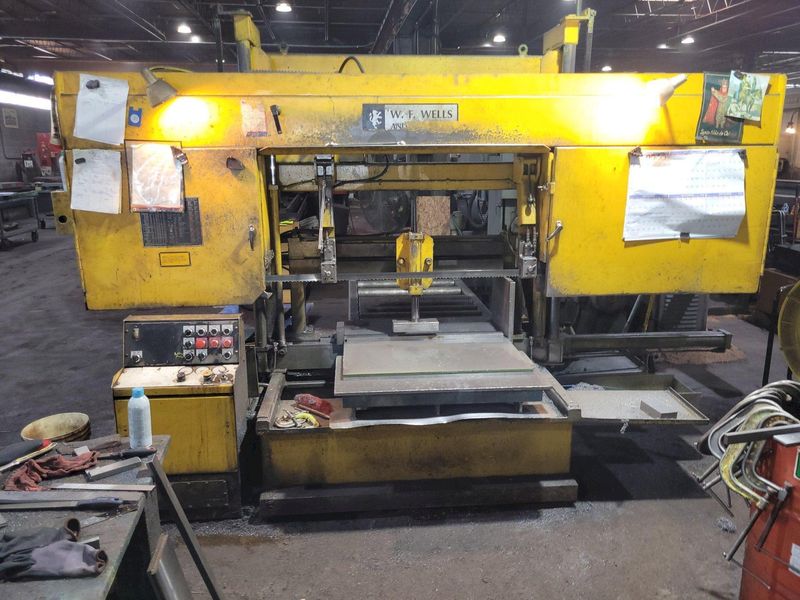

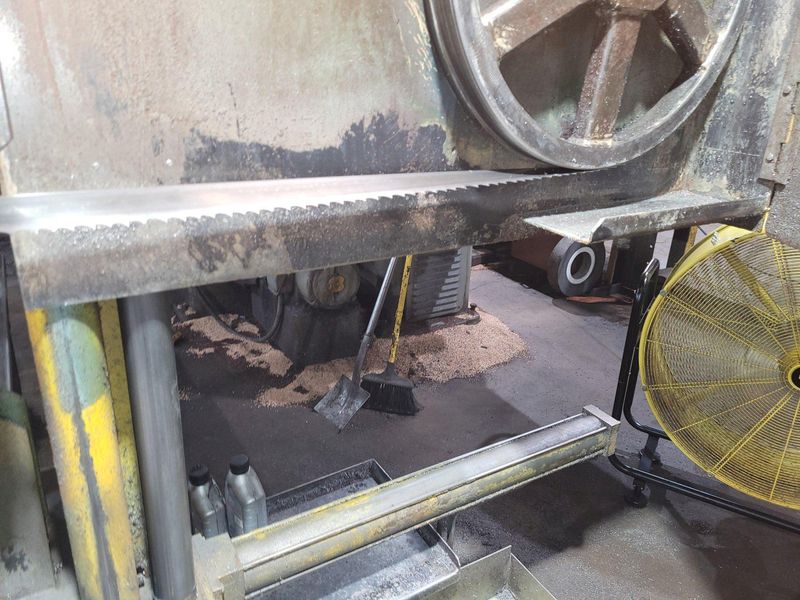

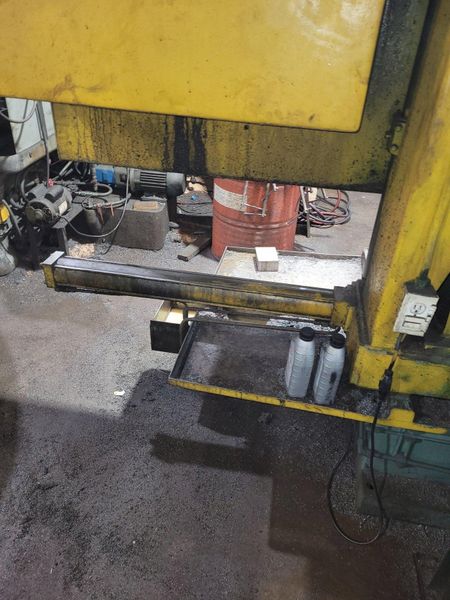

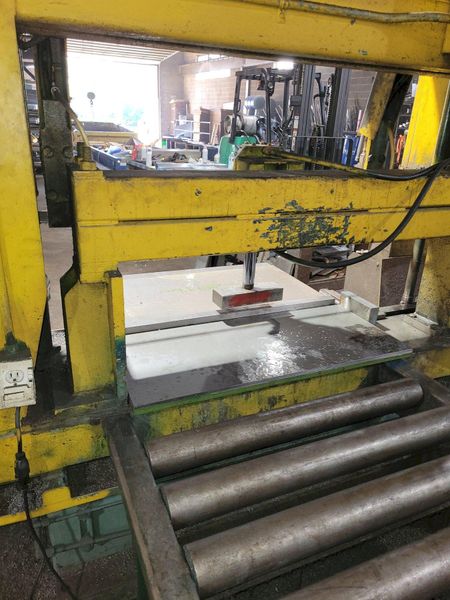

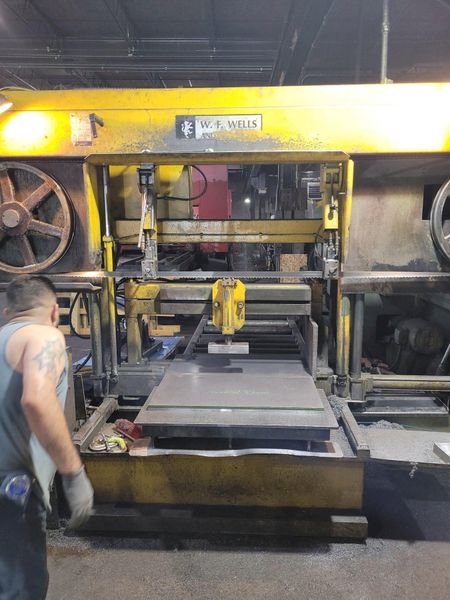

WF WELLS MODEL B-25-II HORIZONTAL BAND SAW

Manufacturer

W.F. WELLS

Category

Saws

Type

SAWS, BAND, HORIZONTAL

Stock

MT282

Model

B-25-II

Dealer Location

Illinois

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet




CAPACITIES
Round 25"
Rectangular H x W 25" x 36"
At 45 degrees 25" x 24"
Maximum Clearance under Blade 26"
BLADE
Speed, Infinitely Variable 75 - 500 FPM
Blade Cutting Force Control 30 - 200 lbs
Blade Tension Hydraulic
Size: Width x Length x Thickness 1.25" x 19'8" x .042"
FEED DOWN, BY HYDRAULIC DRIVE Infinitely Variable

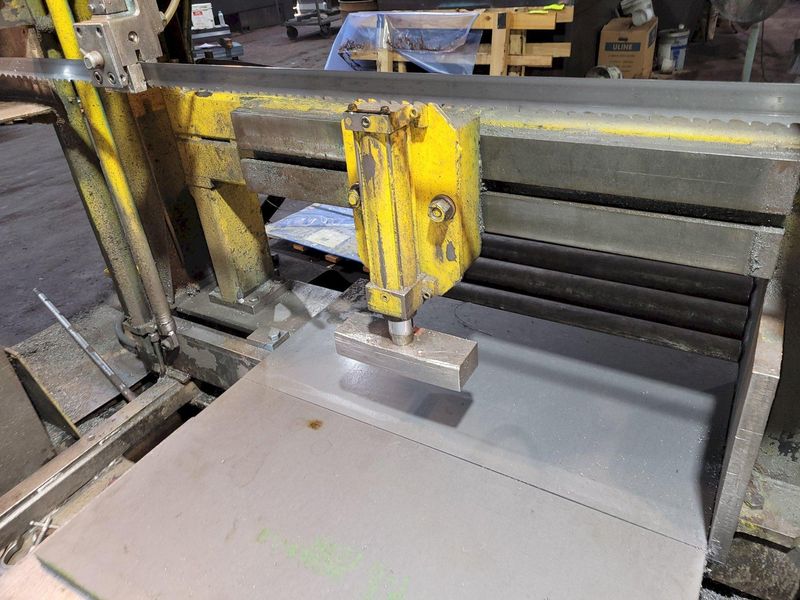

SAW VISE CONTROL, HYDRAULIC
Clamping Force 4500 lbs
Optional Pressure Reducer Yes
WORK LOAD CAPACITY, maximum 9,000 lbs
MOTOR DRIVES WIRED FOR 460 Volts, 3 phase
Blade Drive 5 H.P. 208-230/460 volts
Hydraulic Pump 1� H.P. 208-230/460 volts
Floor Space 133" x 44" x 95"
Approximate Weight 6,000 lbs

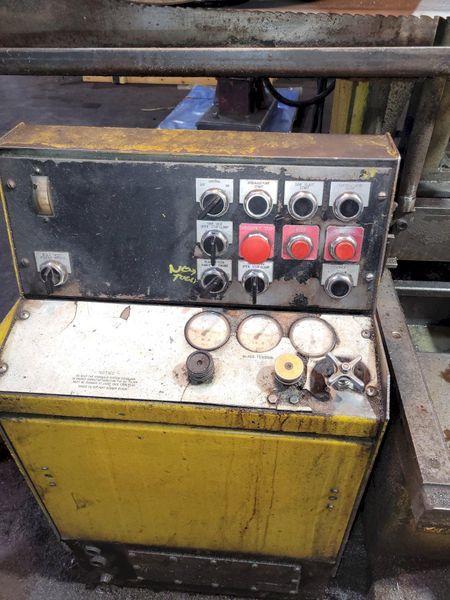

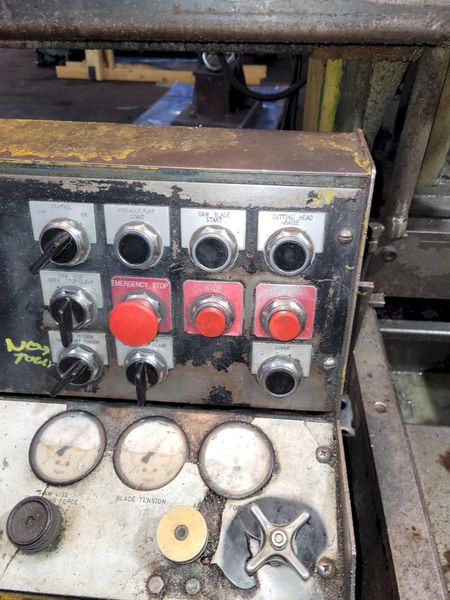

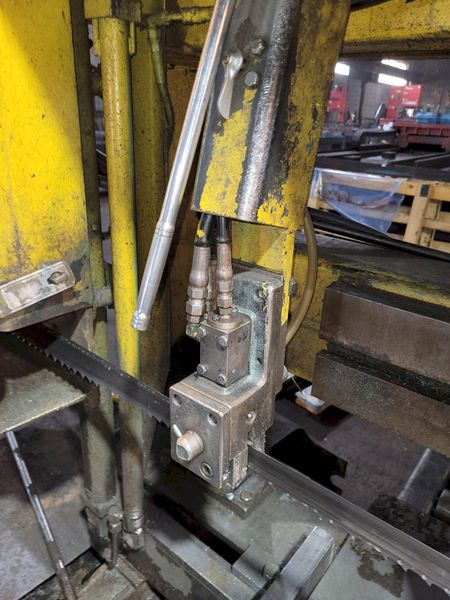

Hydraulic Vise. Manual Guide Arm Positioning. Hydraulic Blade Brush. Broken Blade Shut Off. Roller Guides. Blade Tension Indicator. Hydraulic Band Tension. Coolant Pump.CONTROLS: Controls Wired 115 volts. Blade Start/Stop Buttons. Hydraulic Pump Start/Stop Buttons. Blade Speed Control. Blade Speed Indicator. Blade Tension Gage. Blade: Tension / Off / Change Lever. Vise Clamp / Open Lever. Cutting Force Adjustment Valve. Cutting Force Pressure Gauge. Cutting Head Return Button. Cutting Head Stop Button. Feed Button. DC Milliampers Meter. Coolant Start/Stop & On with Blade Switch
