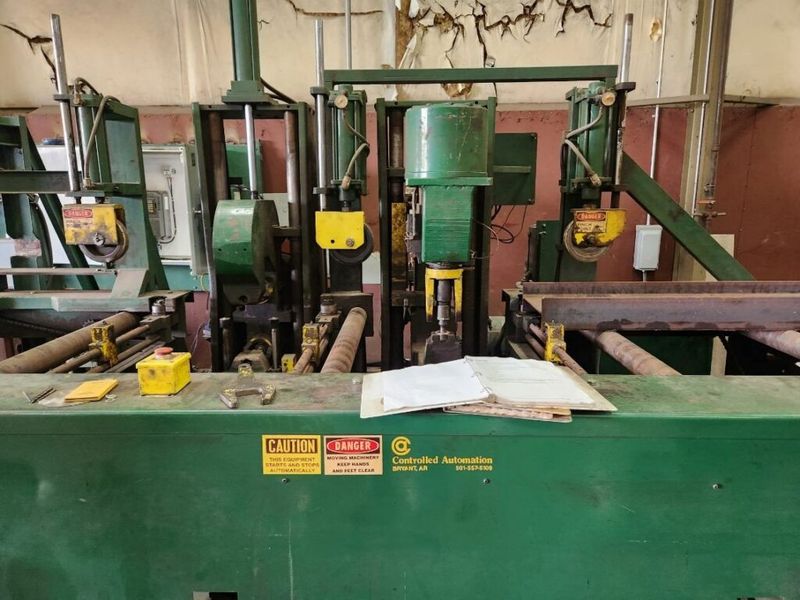

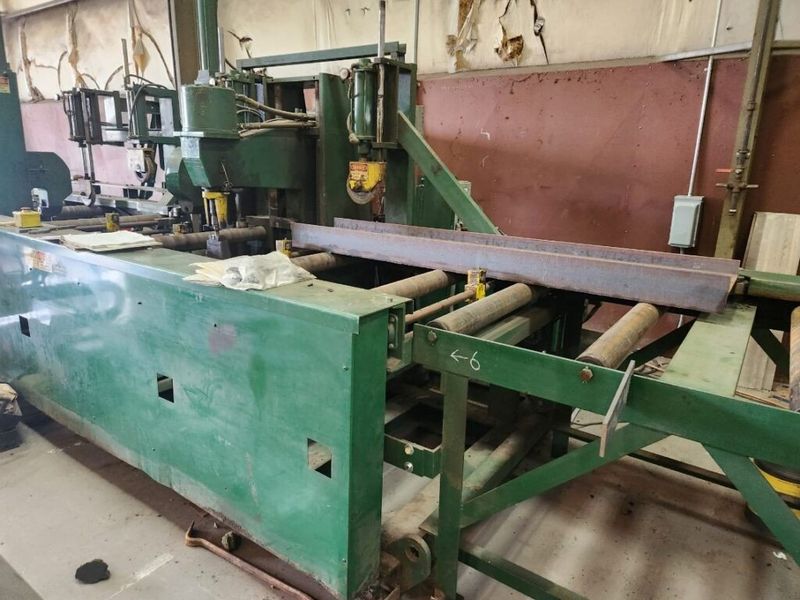

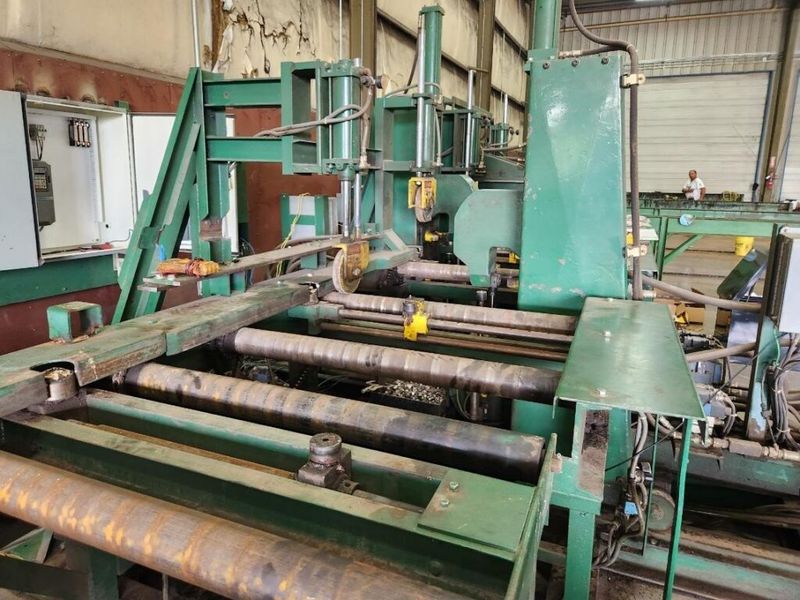

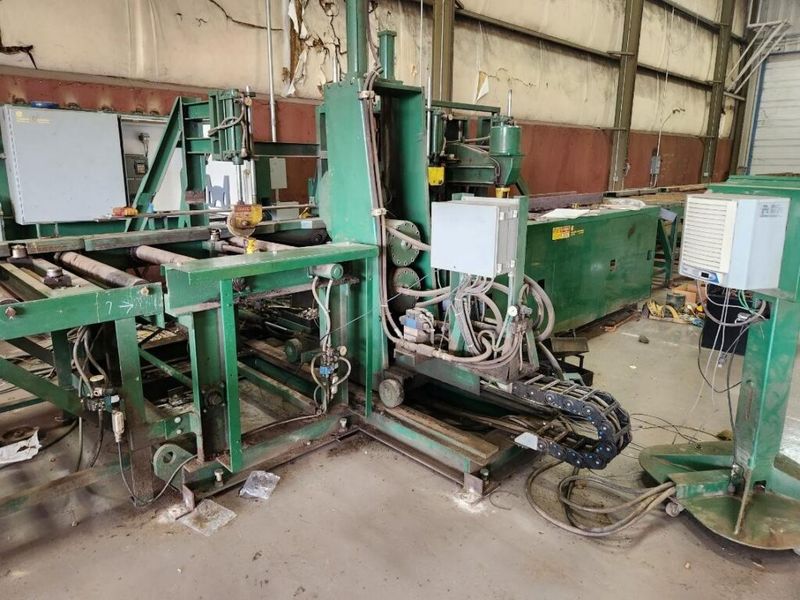

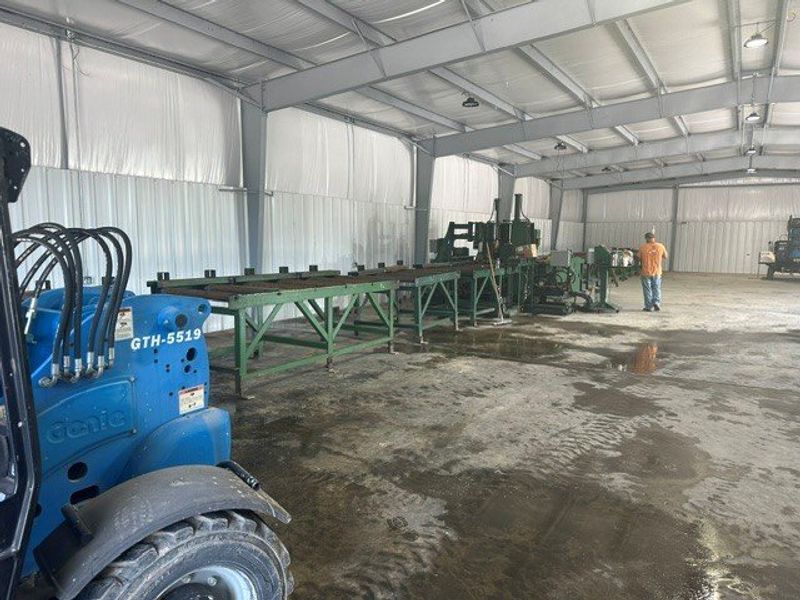

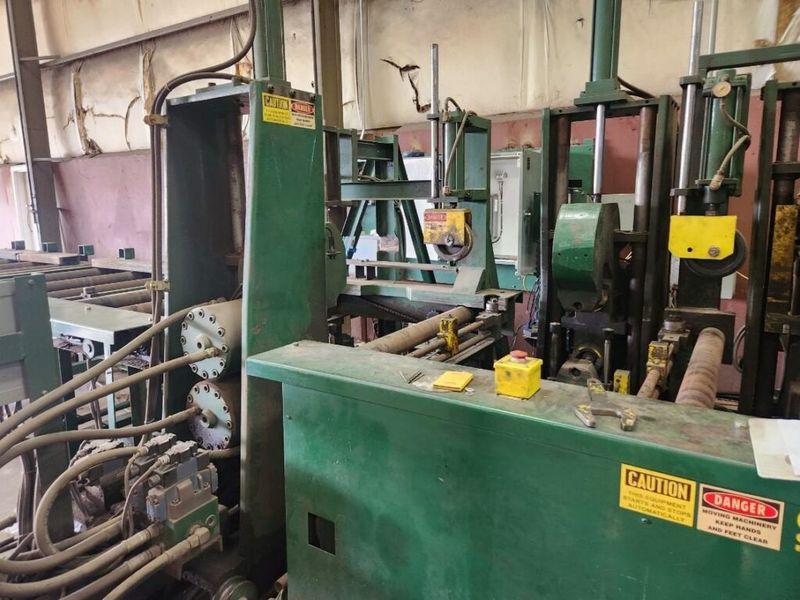

Controlled Automation BFC-530 Beam Punch Line

Stock

191260020

Model

BFC-530

Dealer Location

Georgia

Spec Sheet

  • Stock #: 191260020
  • Brand: Controlled Automation
  • Model: BFC-530

Specifications

  • Maximum Material Lbs/Ft: 300 lbs/ft (41.5kg/m)
  • Maximum Material Thickness: 1" (25.4 mm)
  • Maximum Material Width: 36" (914mm)
  • Maximum Hole Size: 1-9/16" (40mm)
  • Flange And Web Capacity: 115 tons (standard)
  • Web Throat Depth: 30” (762mm)
  • Positioning Speed: 0 to 183ft/min (56m/min)
  • Material Types: W, HP, C, MC, L, PL, FB

Additional Info

Machine is located in KY and can be dismantled and loaded at no additional cost. Video of machine operating available upon request.
