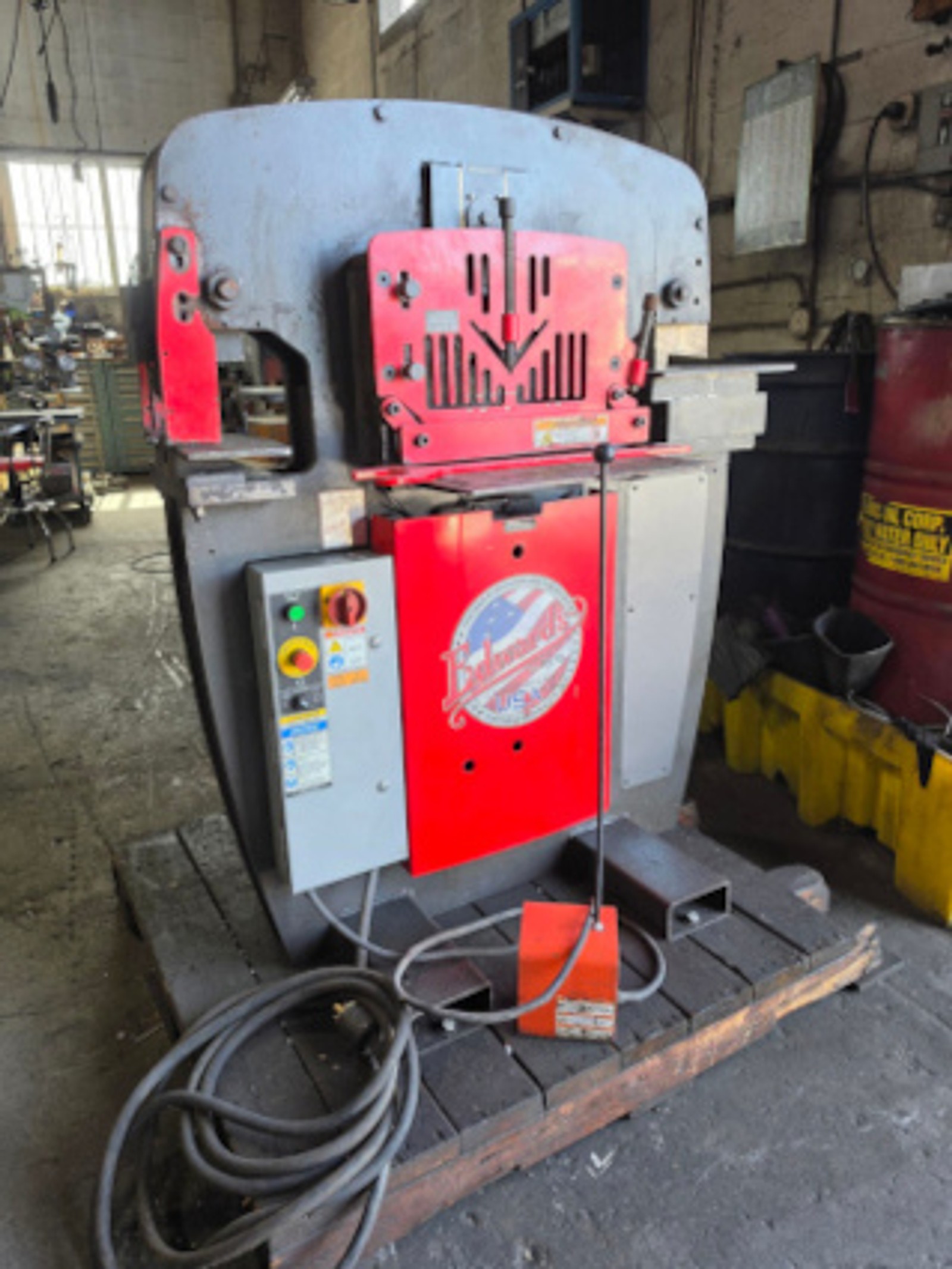

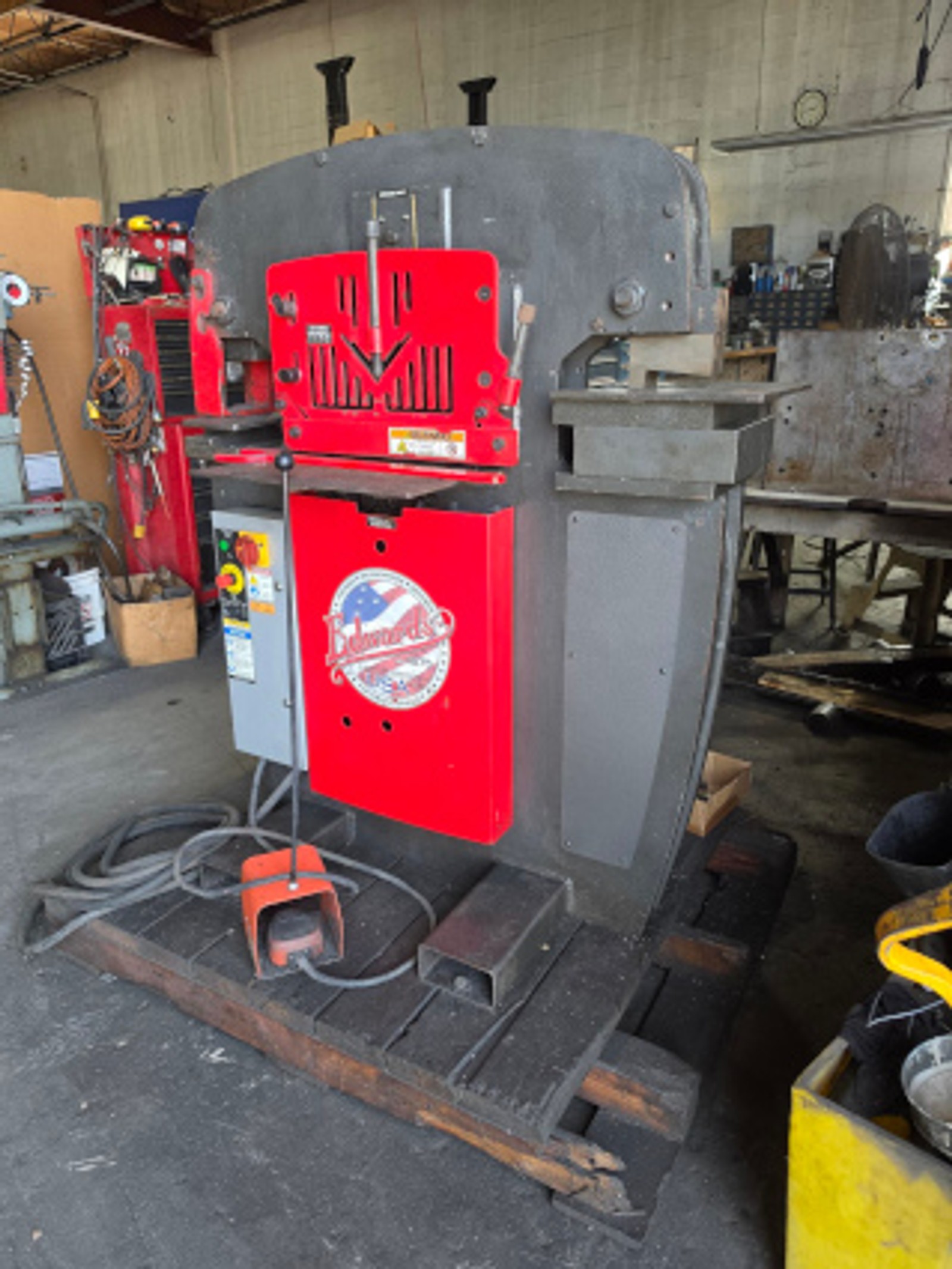

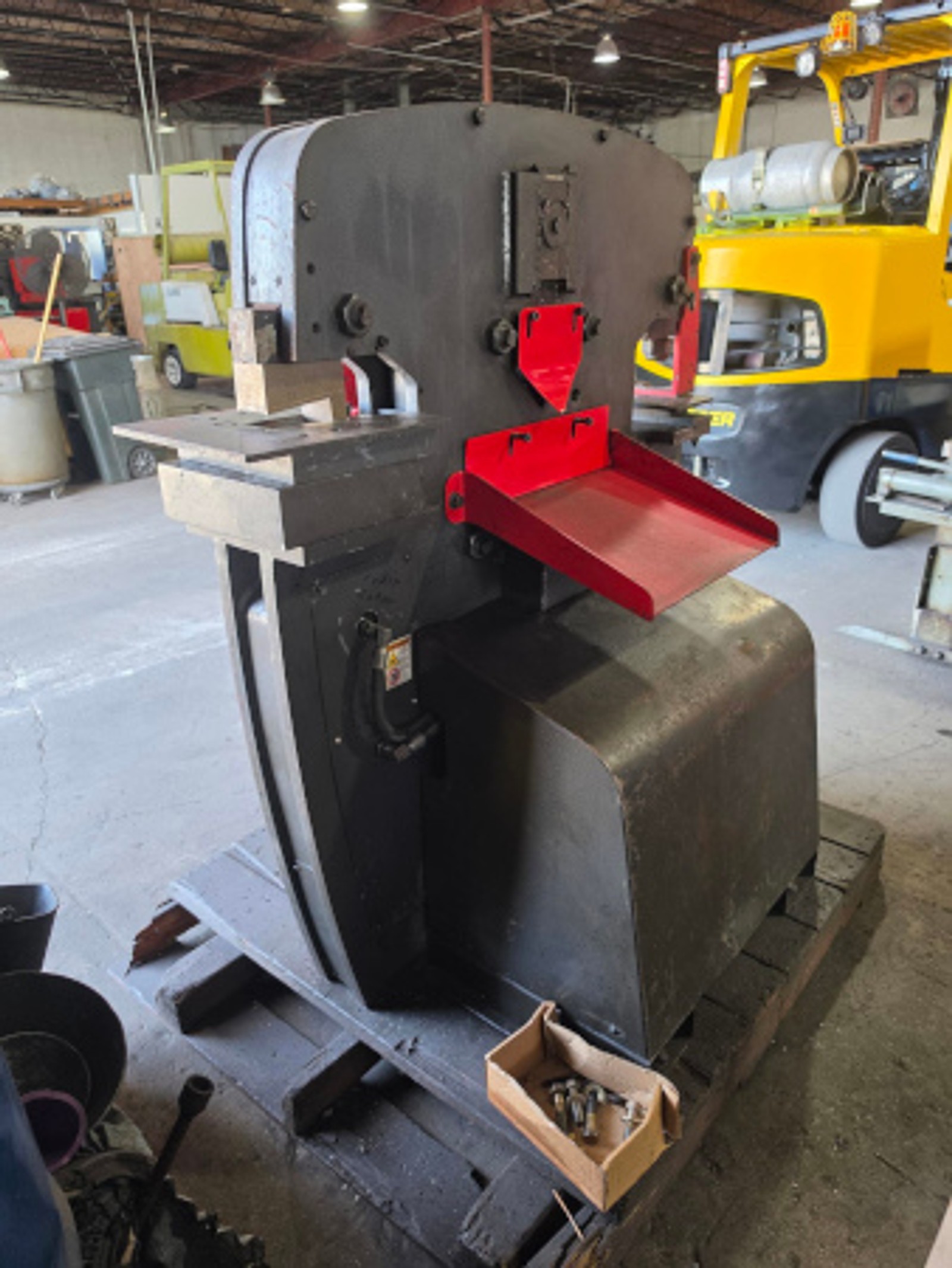

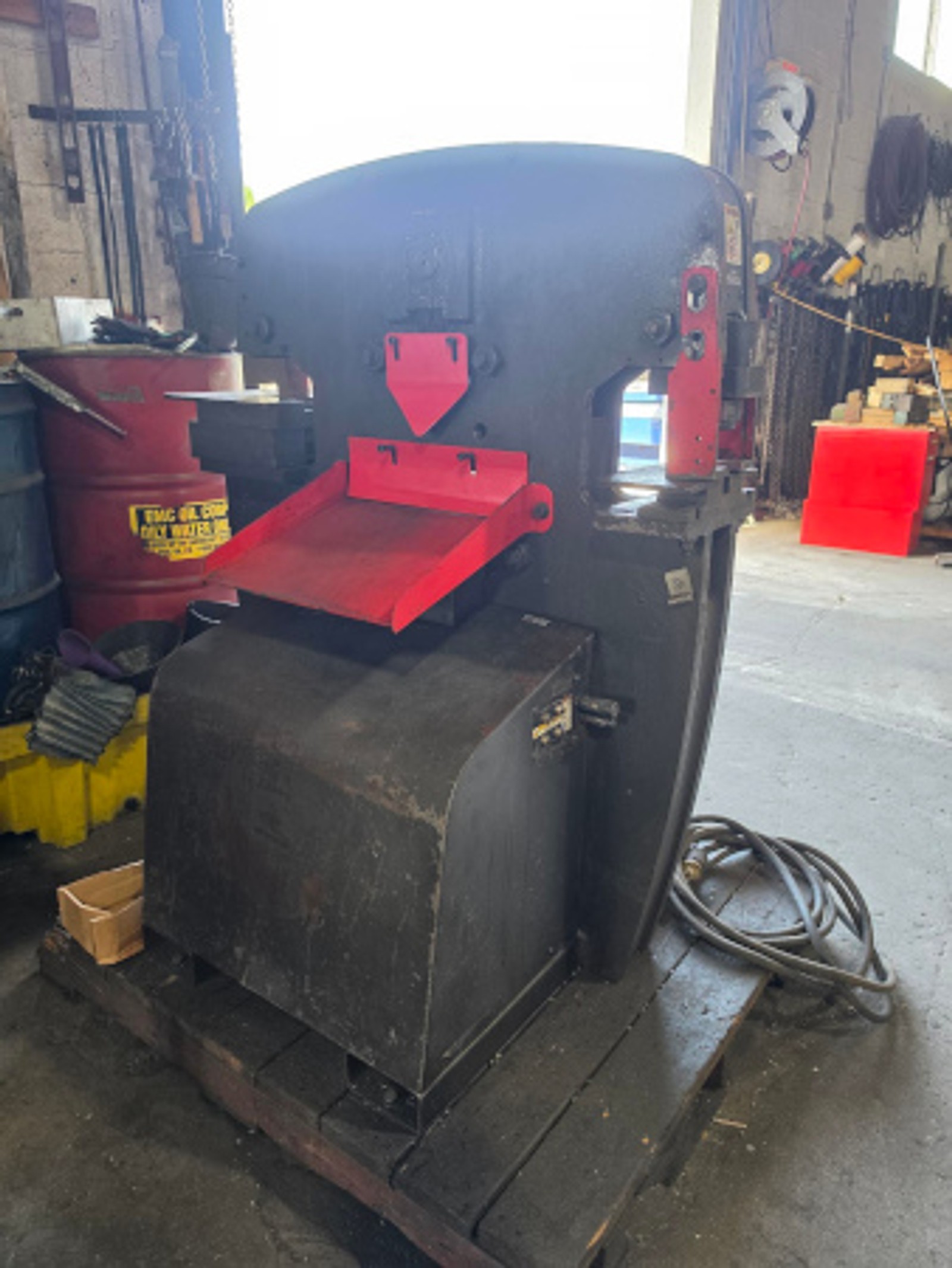

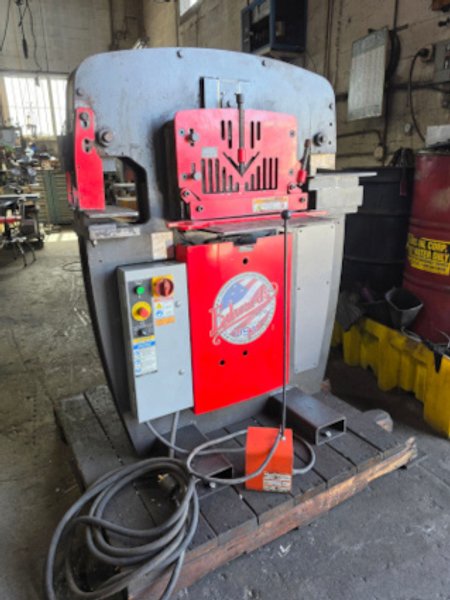

4" x 4" x 1/4", EDWARDS, 55 Ton, Hydraulic, 5 HP, 3 phase, notcher, 2014

Manufacturer

EDWARDS

Category

Punches

Type

PUNCH-SHEARS, IRONWORKERS

Stock

7218

Model

55 Ton

Dealer Location

Florida

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Tonnage 55
Throat 7-1/2"
Capacity 1-1/16" thru 5/8"
Largest punch accepted with
--standard punch holder 1-1/16"
--oversized punch holder 1-9/16"
Open station open height 8-1/8"
Open station Shut height 6-7/8"
Stroke 1-1/4"
Maximum cutting length 14"
Cutting capacity--maximum width 3/8" x 14"
--max. thickness 3/4" x 4"
Maximum angle @ 90 degree 3" x 3" x 3/8" or 4" x 4" x 1/4"
Motor power 5 HP
Electrics 230/3/60

Dimensions (L x W x H) 46" x 36" x 57"
Net weight 2,430 lbs.

EQUIPPED WITH:
Electric foot pedal, Electric stroke limiters
Coper notcher on open station

Assorted punches and dies
