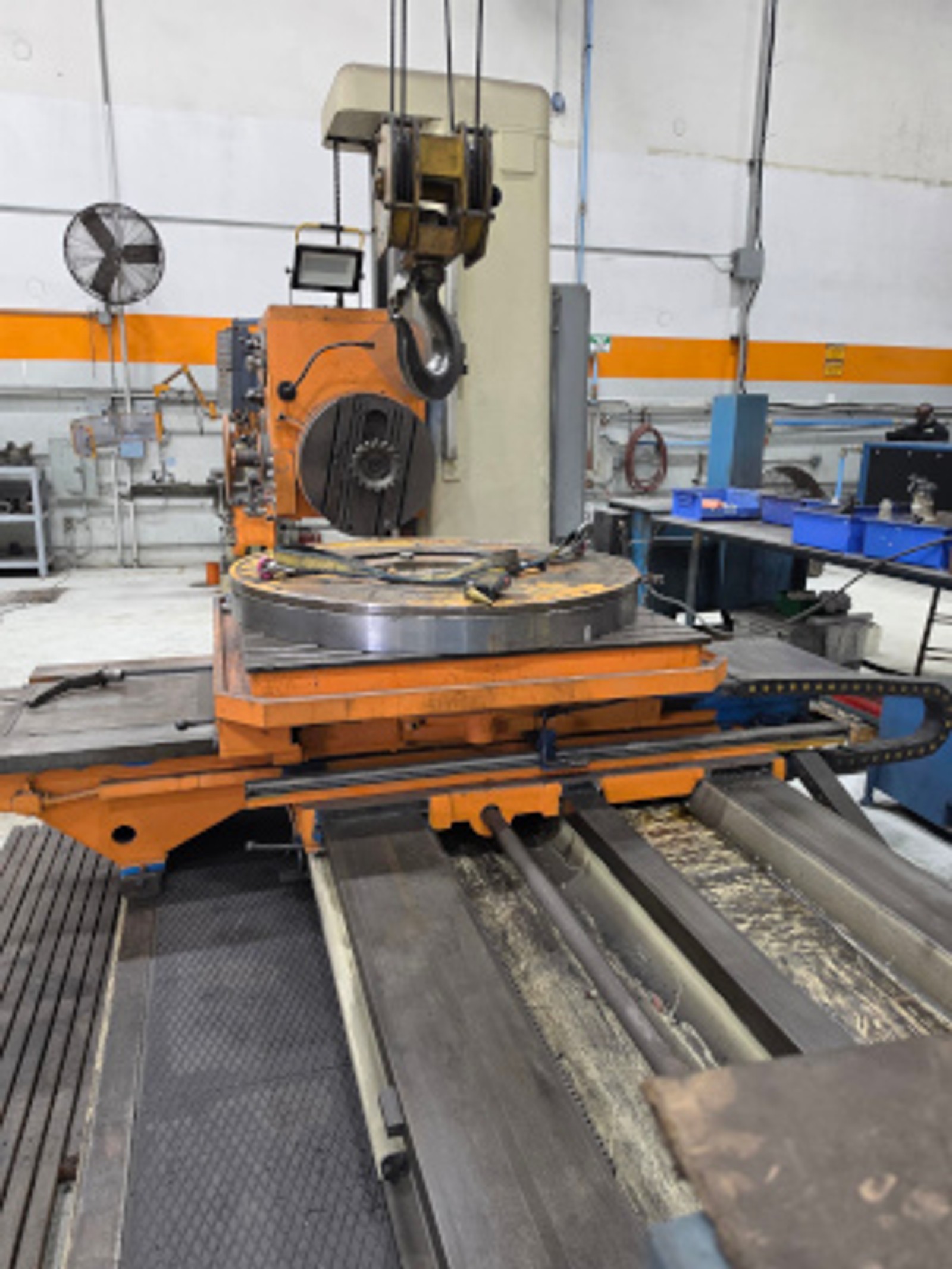

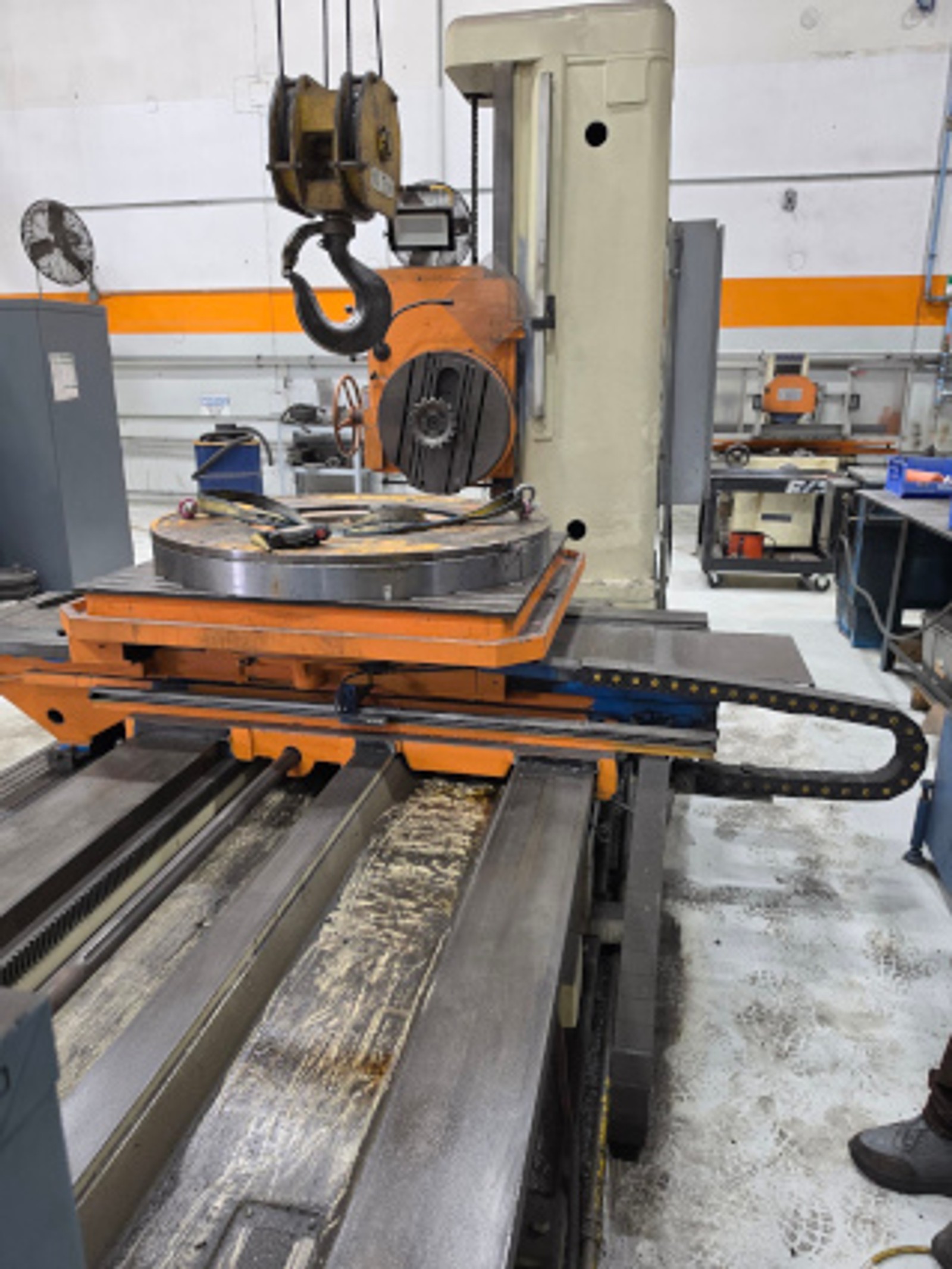

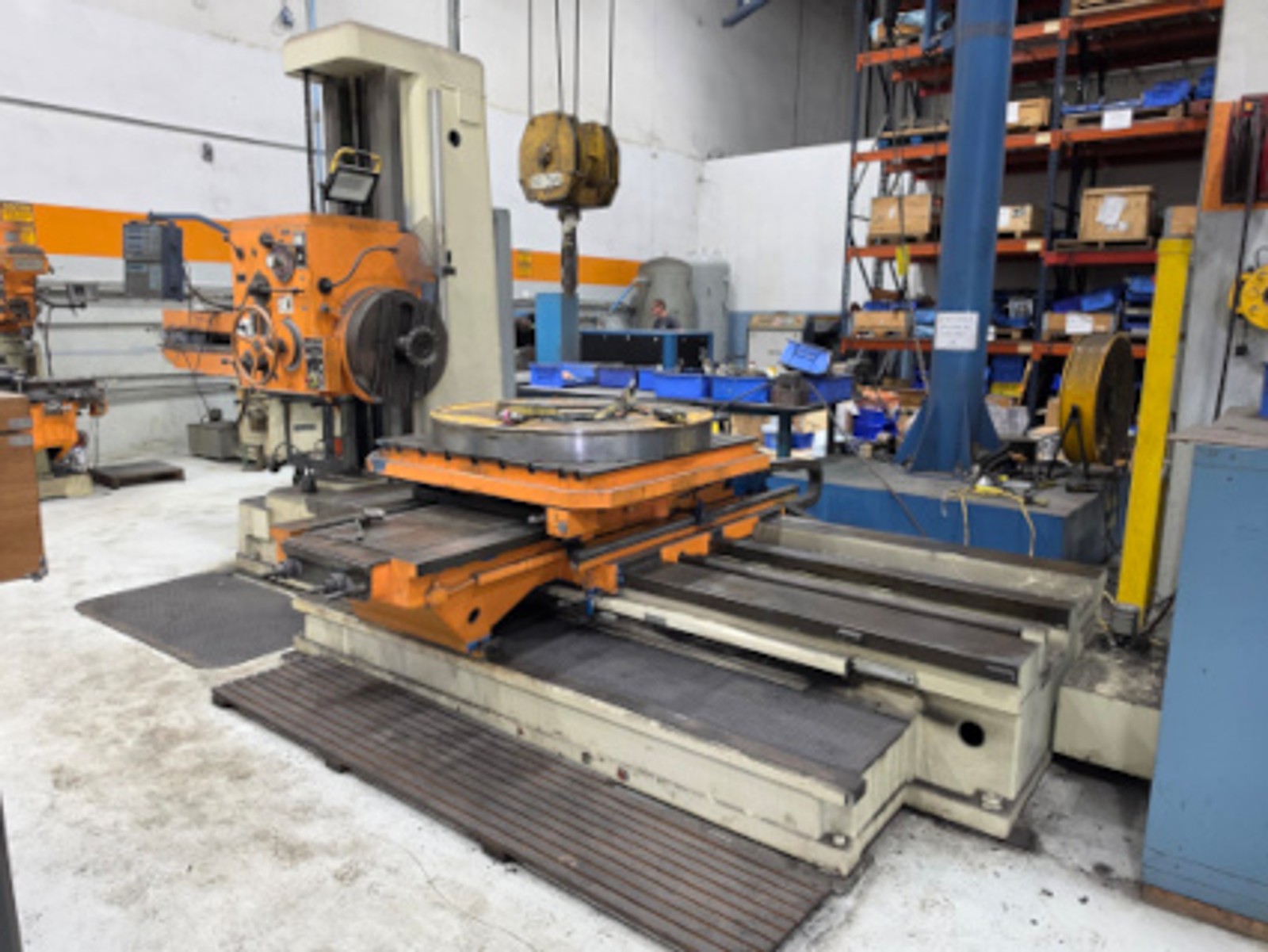

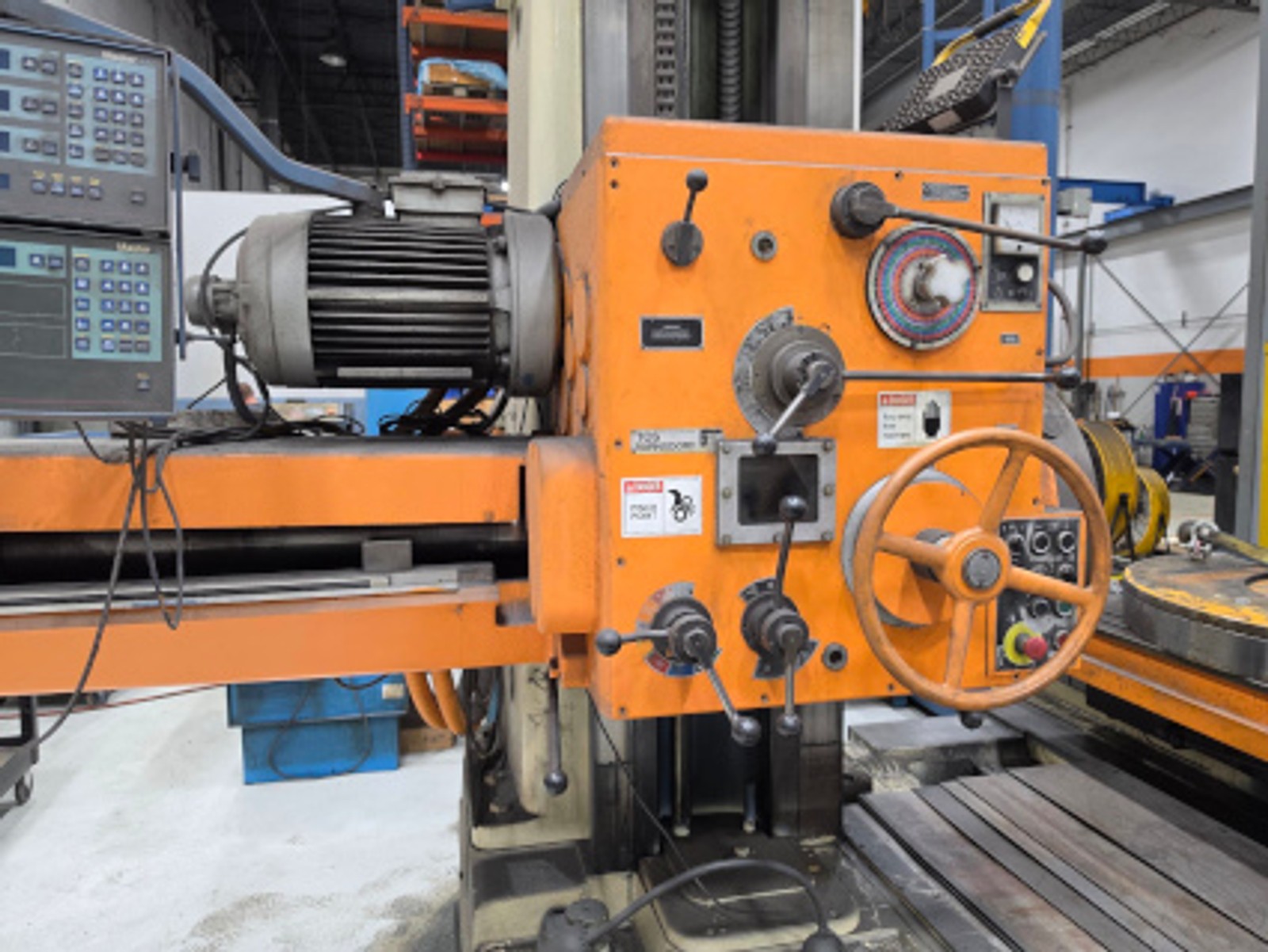

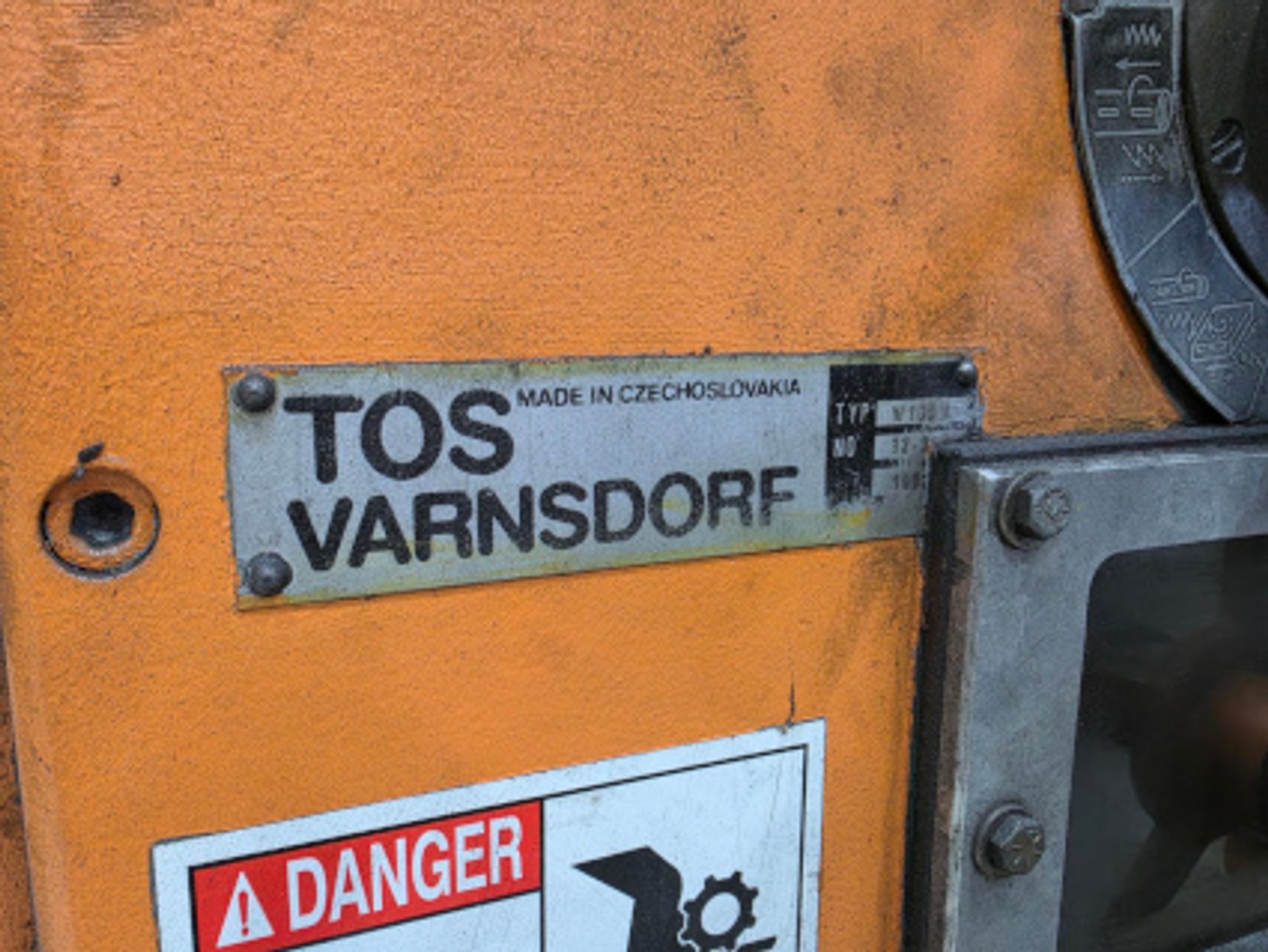

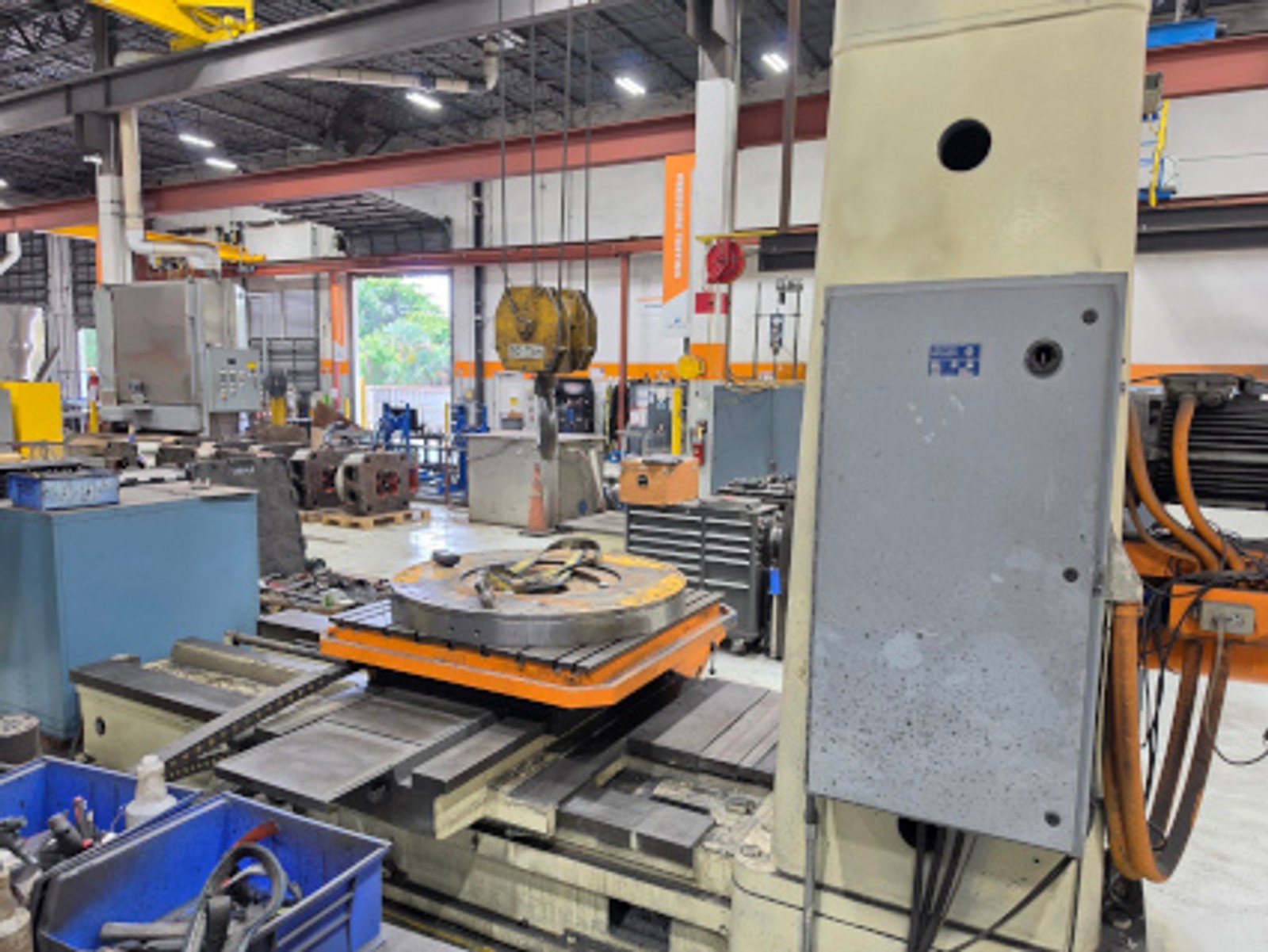

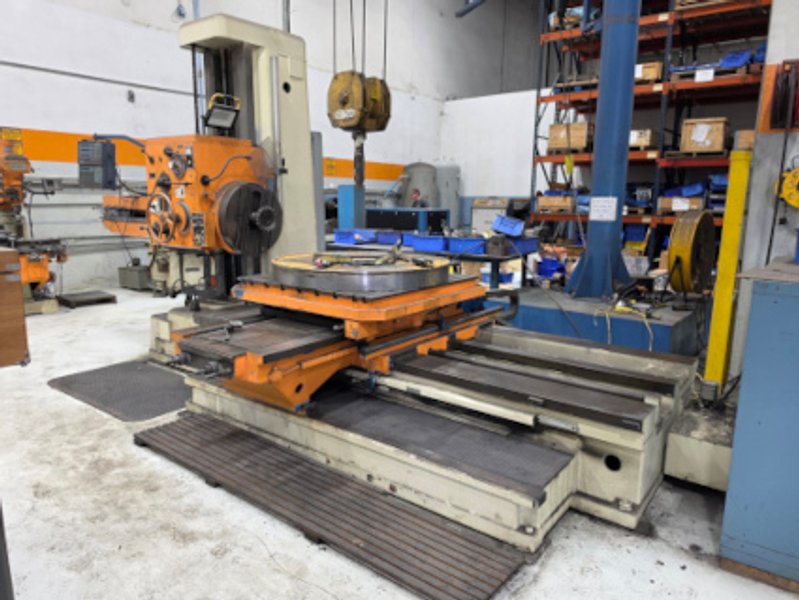

4" TOS, No. W100A, 49" X 49" rotab, 63" L X 44" cross, ISO 50, FH, 1997

Manufacturer

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Rotary table size 49" x 49" (1250mm x 1250mm)
Table capacity 6,620 lbs (3000 kgs)
Travels--X-Axis 63" (1600mm)
--Y-Axis 44" (1120mm)
--Z-Axis 49" (1250mm)
--W-Axis 35.43" (900mm)
Feeds--boring--number 32
--range 0.02mm to 12mm / rev
--milling--number 18
--range 18mm to 900mm / min
Rapid travers (all axes) 2800mm / min
Threading--inch--number 18
--range 2.5 to 120 tpi
--metric--number 18
--range 0.25 to 12 tpmm
Spindle speed--range I (8) 7.1 to 35.5 rpm
--range II (8) 45 to 224 rpm
--range III (8) 224 to 1120 rpm
Diameter of spindle 3.93" (100mm)
Morse taper of spindle ISO 50
Main motor 11 KW 3 phase, 60 Hz
Electrics 480/3/60
Weight approximate 31,000 lbs

EQUIPPED WITH:

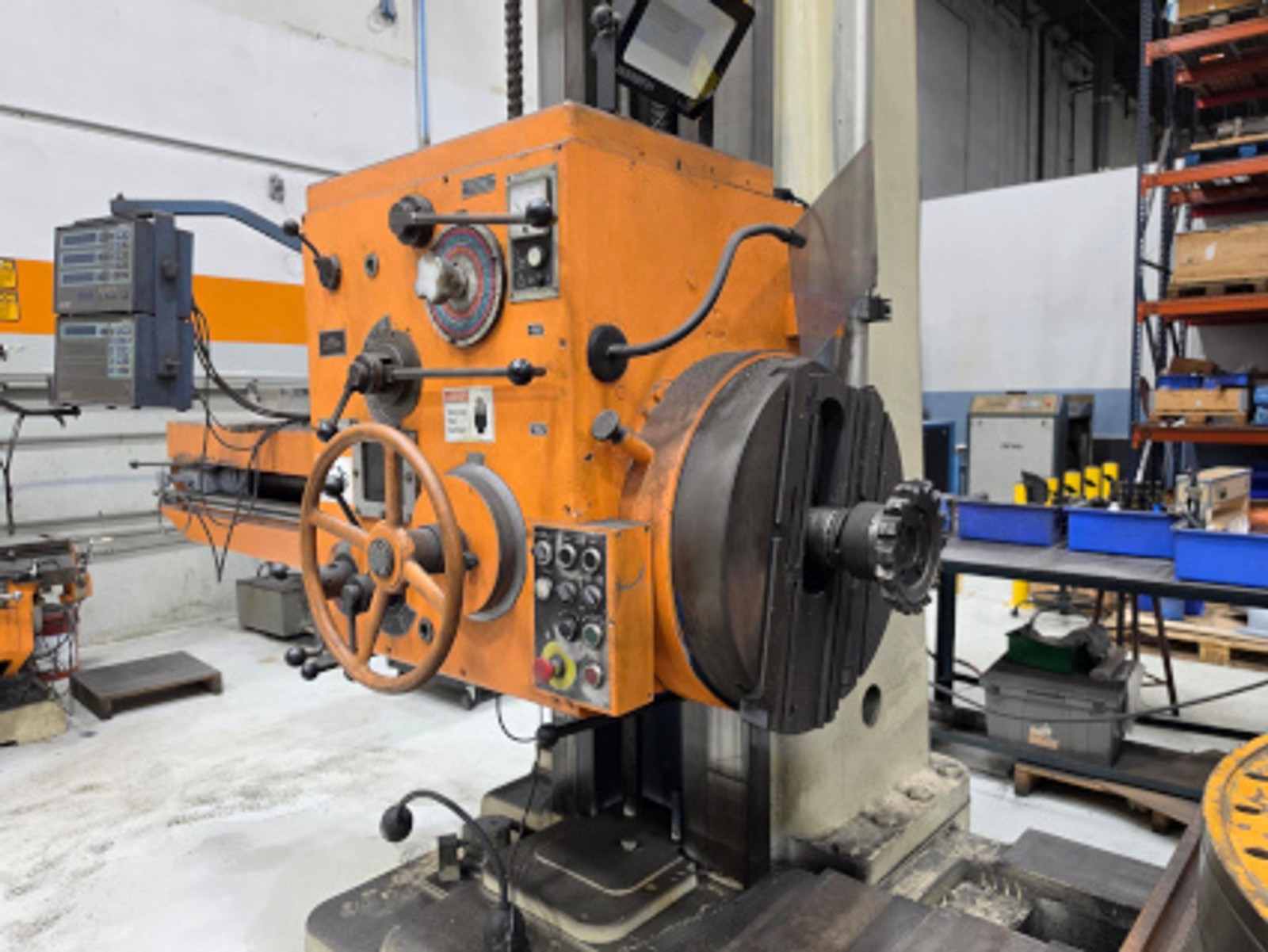

Rapids in all directions, Facing head, Built-in rotary table
