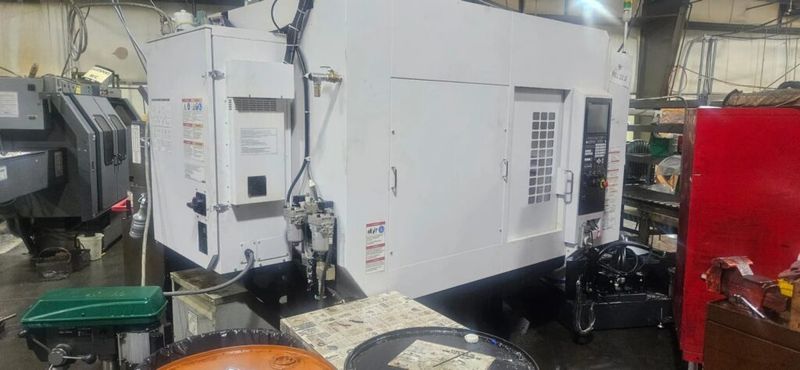

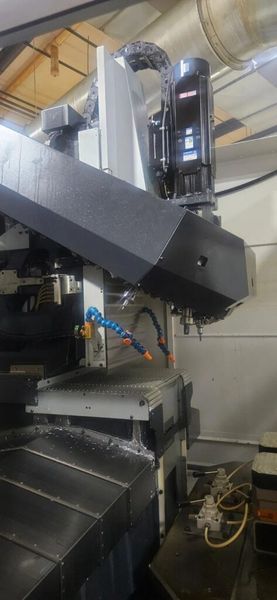

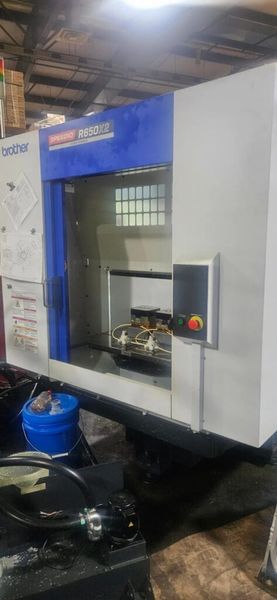

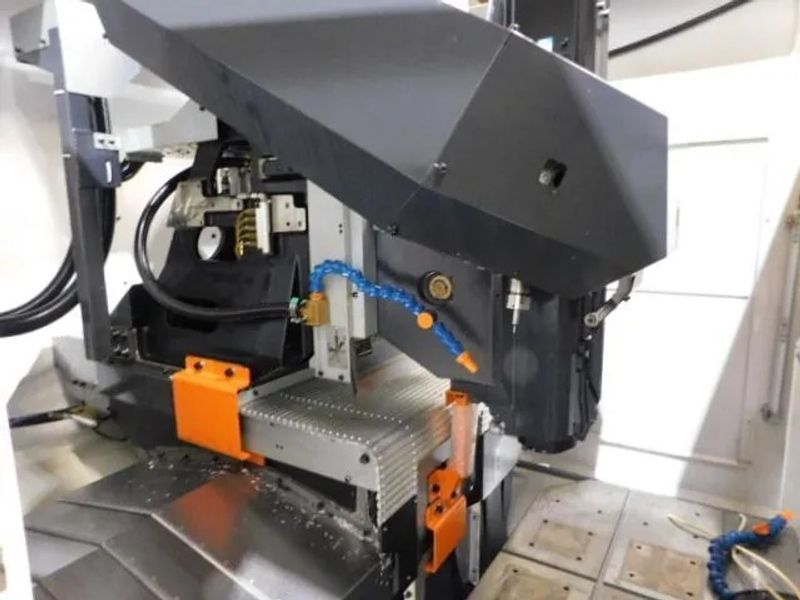

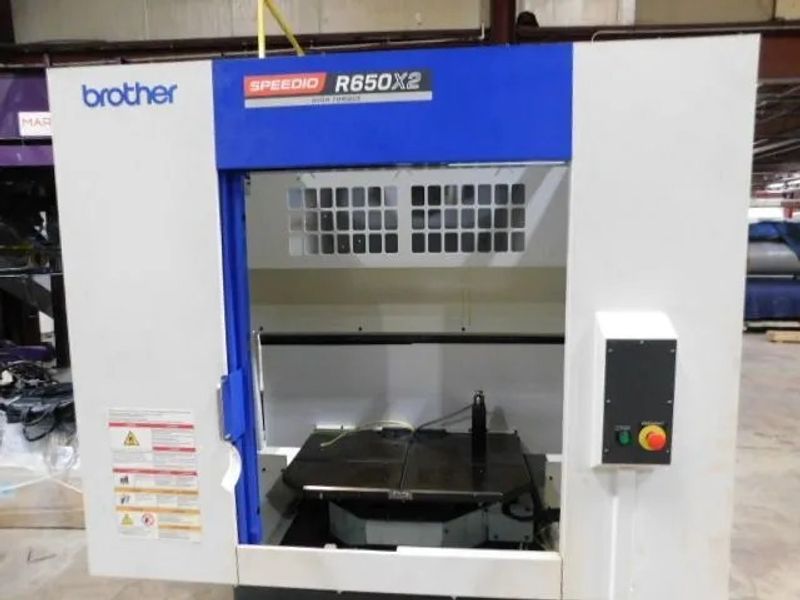

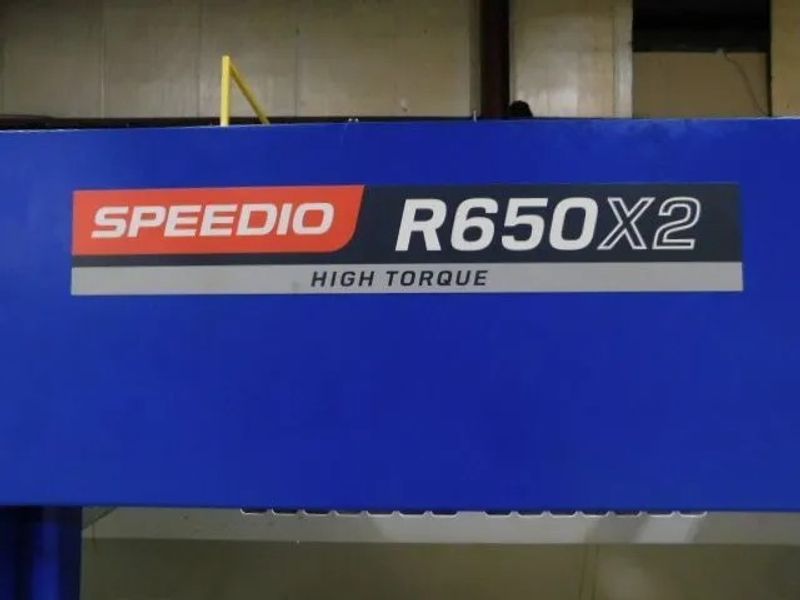

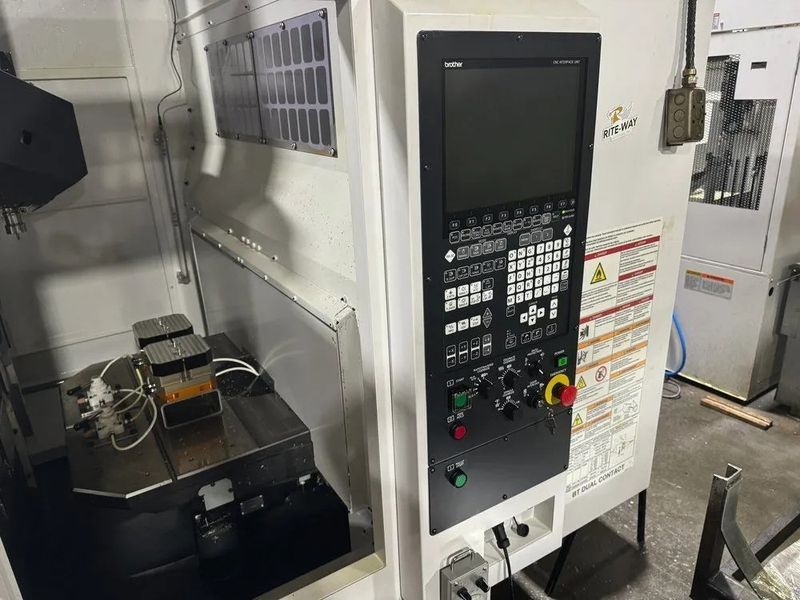

Brother Speedio R650X2 High Torque CNC VMC Drilling and Tapping Machine

Manufacturer

Brother

Stock

163260023

Model

Speedio R650X2

Dealer Location

Georgia

Spec Sheet

  • Stock #: 163260023
  • Location: Lake Zurich, IL, United States
  • Brand: Brother
  • Model: Speedio R650X2
  • Year: 2022
  • Approx. Shipping Weight: 7,750 lbs.
  • Approx. Shipping Dimensions: Machine: 75" x 120" x 88" high; Coolant pan: 66" x 34" x 28" high; Chip pan: 35" x 60" x 27" high

Specifications

  • X: 25.6"
  • Y: 16.7"
  • Z: 17.1"
  • Power: 17 hp
  • RPM: 10,000 RPM
  • # ATC: 22
  • Taper: Cat 30 Big Plus

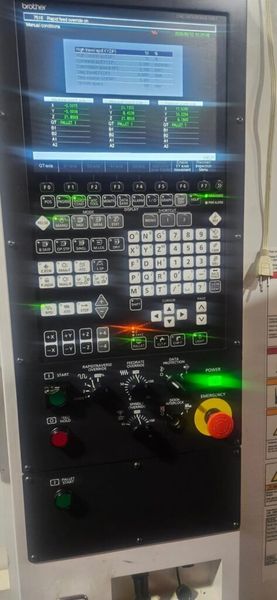

  • Control: CNC (CNC-COO)
  • Dimensions: 75" x 136" x 106" high
  • Weight: 7,750 lbs.

Equipped With

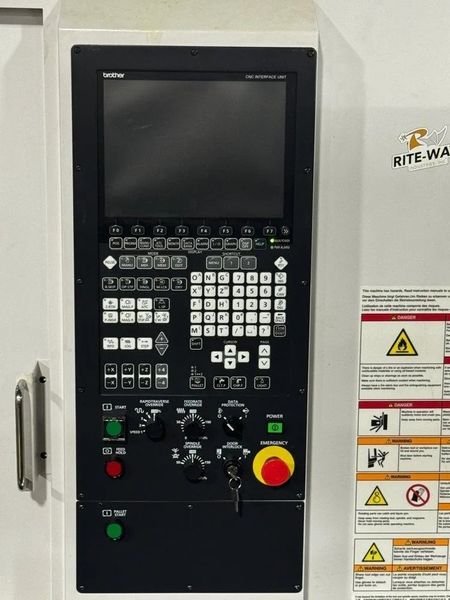

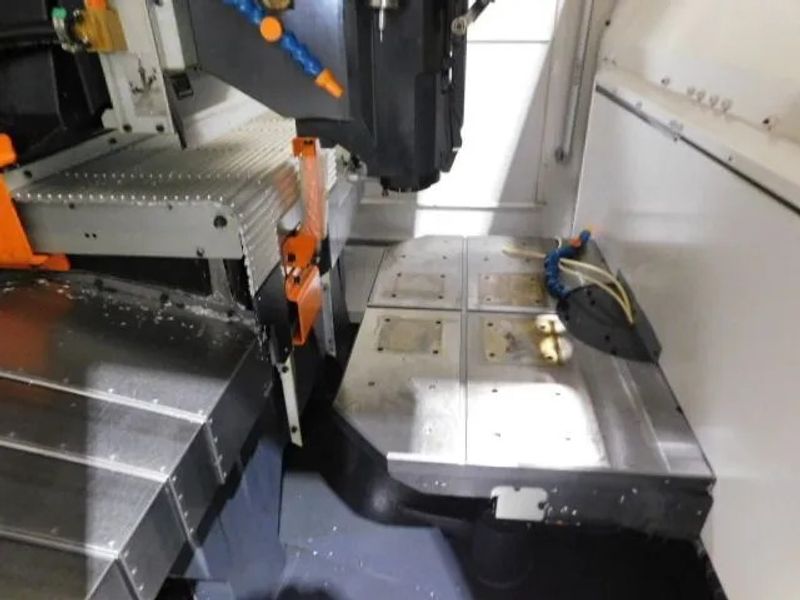

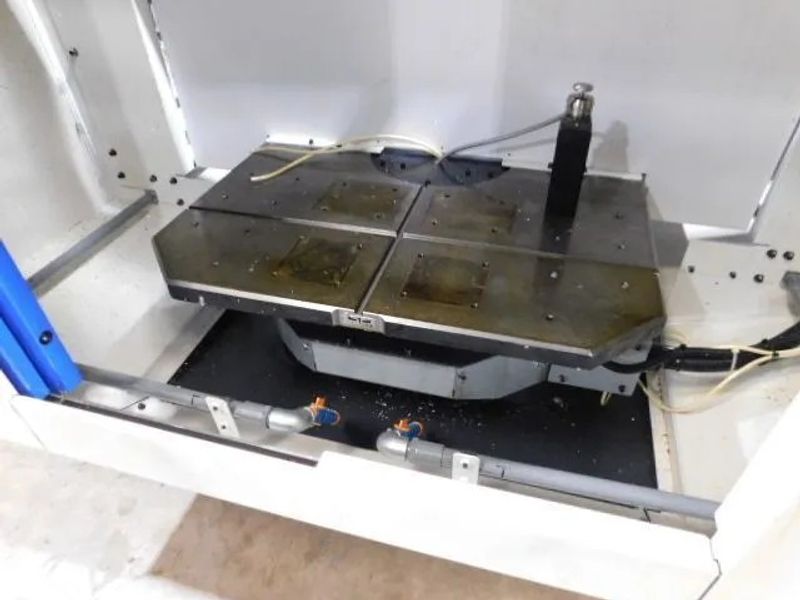

CNC – C00 Control With Plc, Manual Pulse Generator, 3-Stage Light, Work Light, Spindle Speed Override, Shower Gun, Coolant System W/200L Tank, Cts Prepped, Top Cover, Door Interlock, Blum Zx Speed Wired W/150Mm Riser, Dual Pallets Rotary Type, 16) CAT 30 Big Plus Tool Holders, 6) Er32, 10) Straight Shank From 5/16” To 1”, Original Shipping Brackets Installed

Additional Info

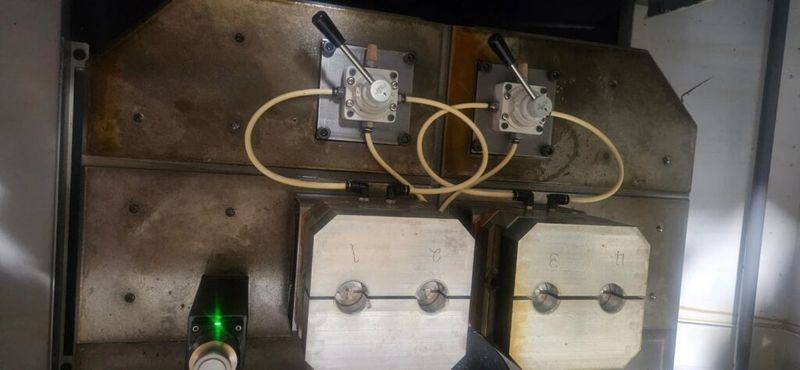

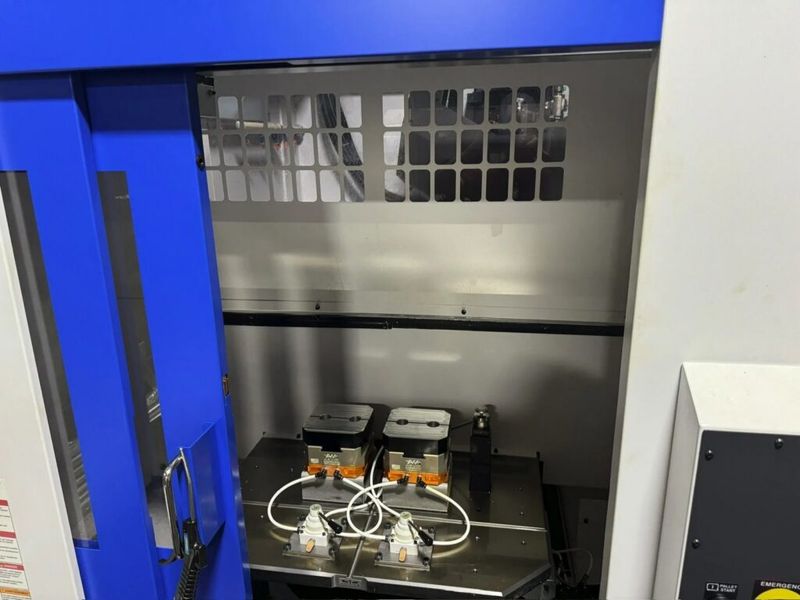

Machine Hours as of June 16, 2026: On Hours 2,190, Operation Hours 629:27:40; Fixtures in photos included
