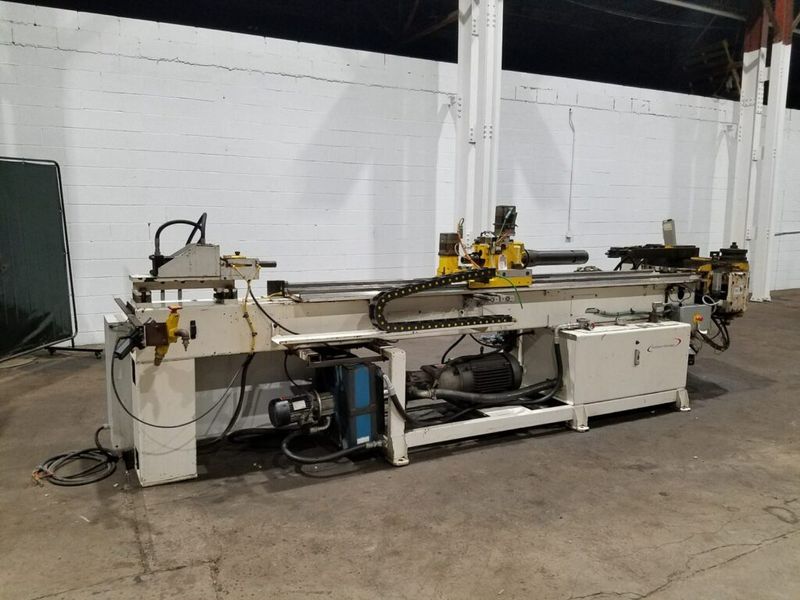

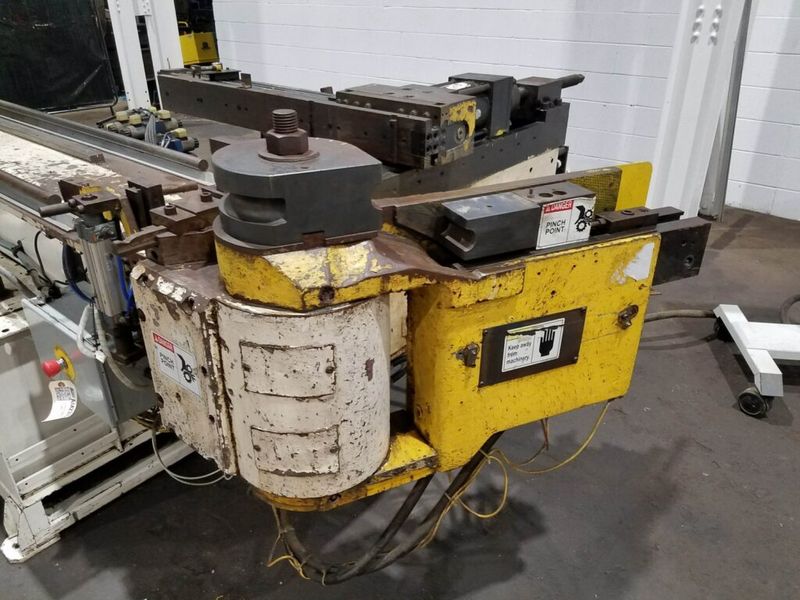

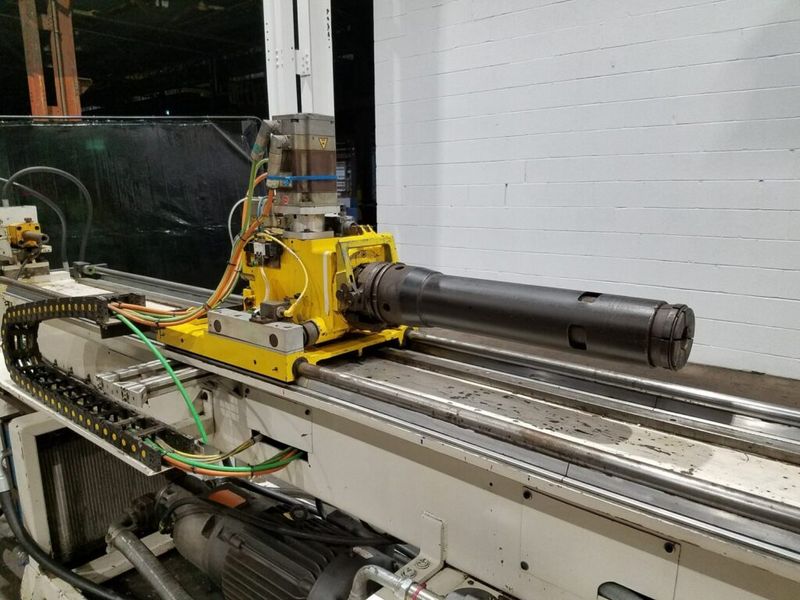

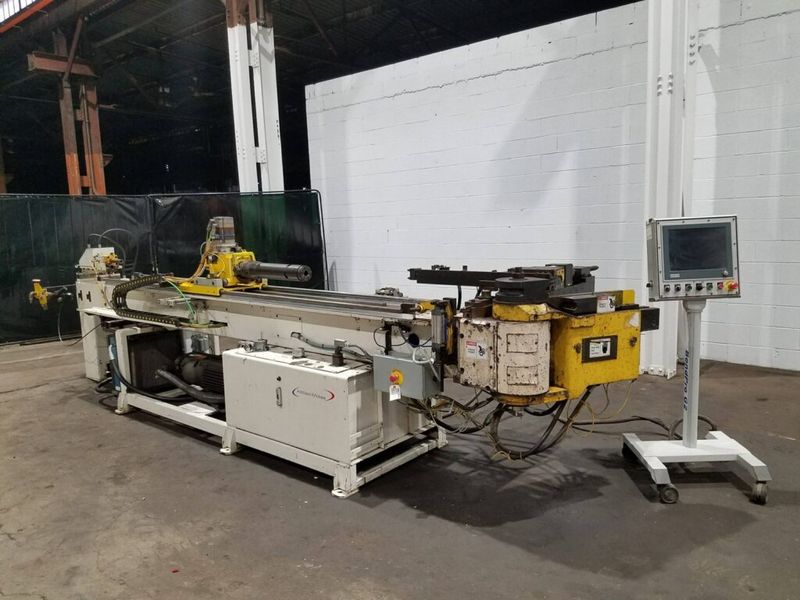

3″ Addison McKee 3-Axis CNC Tube Bender

Manufacturer

Addison Mckee

Category

Benders

Stock

163260020

Model

EL300/DB76

Dealer Location

Georgia

Spec Sheet

  • Stock #: 163260020
  • Brand: Addison Mckee
  • Model: EL300/DB76
  • Location: OH
  • Loading Fee: Free Loading

Specifications

  • Minimum Tube Diameter: 3/8″ OD (approx.)
  • Maximum Tube Diameter: 3” OD x .120” wall (Mild Steel)
  • Maximum Pipe: 2″ sch 80
  • Maximum Degree Of Bend: 180° + springback
  • Maximum Bend Centerline Radius: 12”
  • Maximum Tube Length Over Mandrel: 144”
  • Bending Rotation: Right-hand (clockwise)

Equipped With

Bendpro G2 Control, Hydraulic Mandrel Extractor, Hydraulic Pressure Die Assist, Direct Acting Pressure Die, Drop Away Type Clamp Die, Pneumatic Collet Closer – OD Type, Automatic Lubrication System, Fan-Powered Hydraulic Oil Cooler

Additional Info

This machine can be inspected under power upon request.
