REDIN 72 - Gear Chamfering & Deburring

Manufacturer

REDIN

Category

Gear Machines

Type

GEAR DEBURRERS

Stock

25893

Model

72

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • 36" Diameter Tri-Base

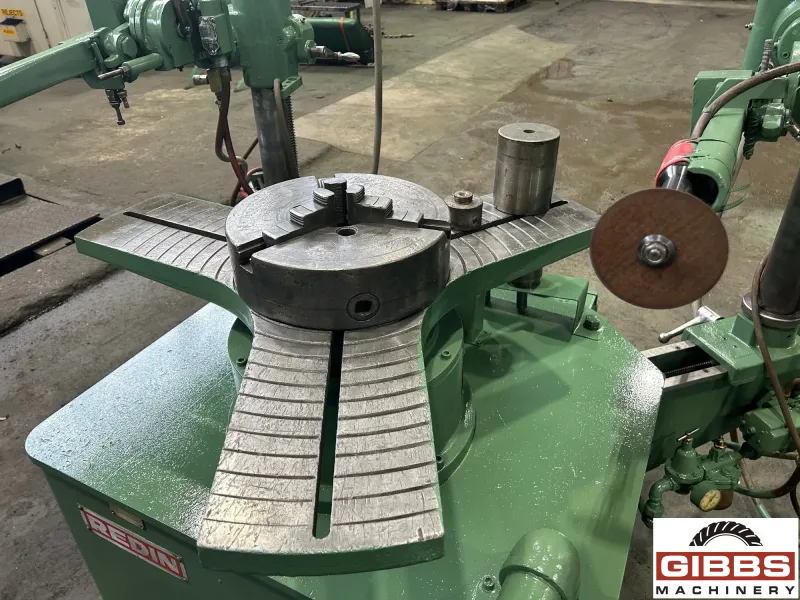

  • 12" 3-Jaw Chuck
  • Variable Drive Work Table
  • Power Elevation
  • (2) Adjustable Arms

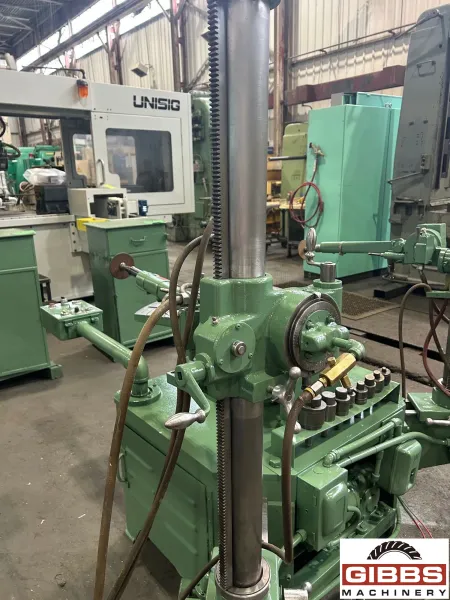

  • (2) Adjustable Columns
  • Pendant Controller
  • Pneumatic System
,

Machine Specifications :

  • Year
  • Manufacturer REDIN
  • Maximum Workpiece Diameter 72.0"
  • Maximum Face Width 16.0"
  • Diametral Pitch 34.0
  • Maximum Internal Pitch Diameter 68.0"
  • Wheel Speed 4,000 RPM
  • Maximum Wheel Diameter 4.0"
  • Control Manufacturer Conventional
,

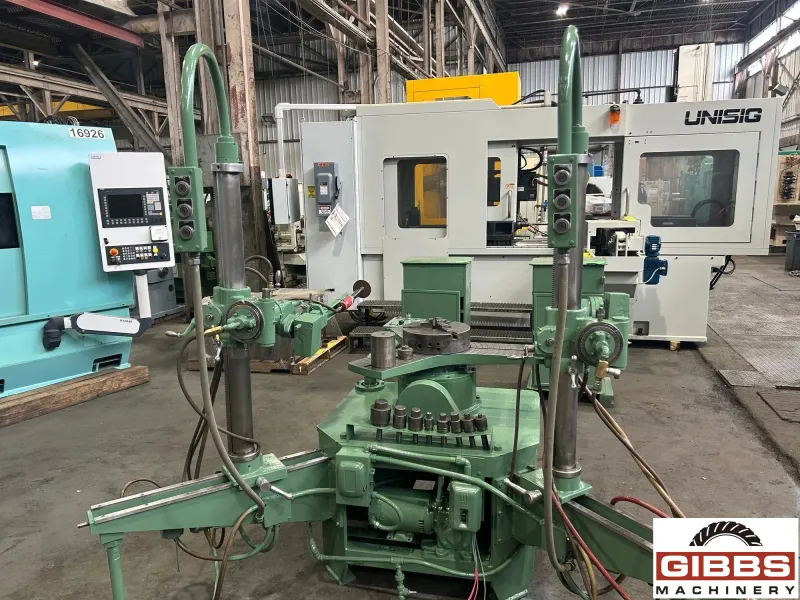

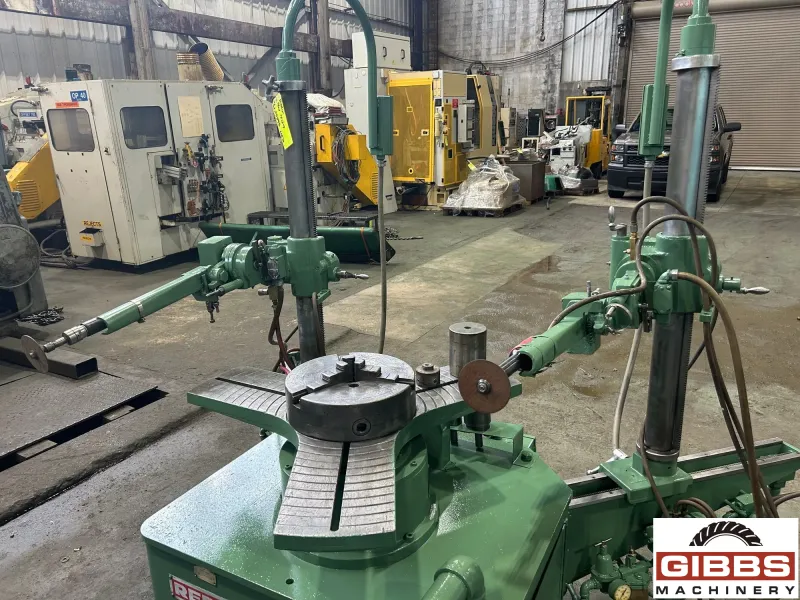

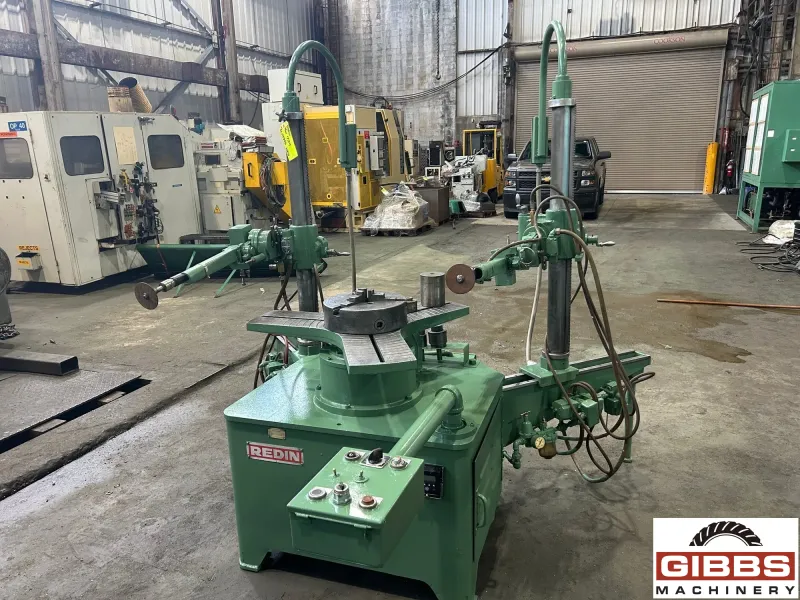

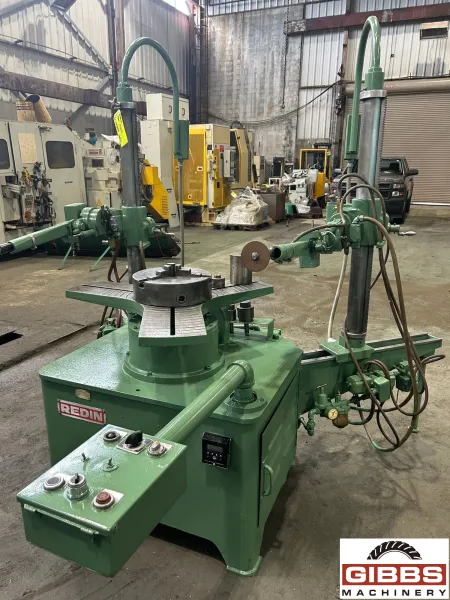

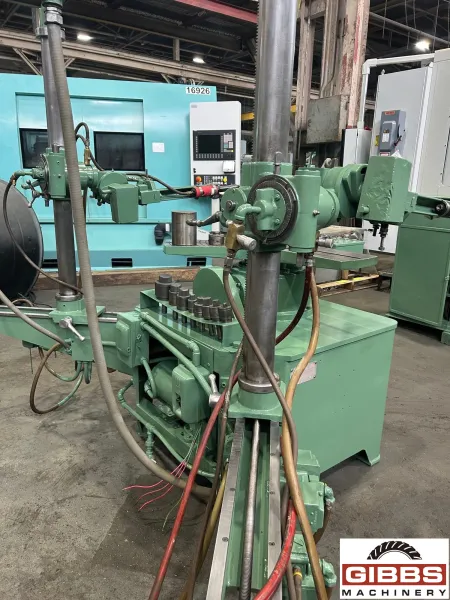

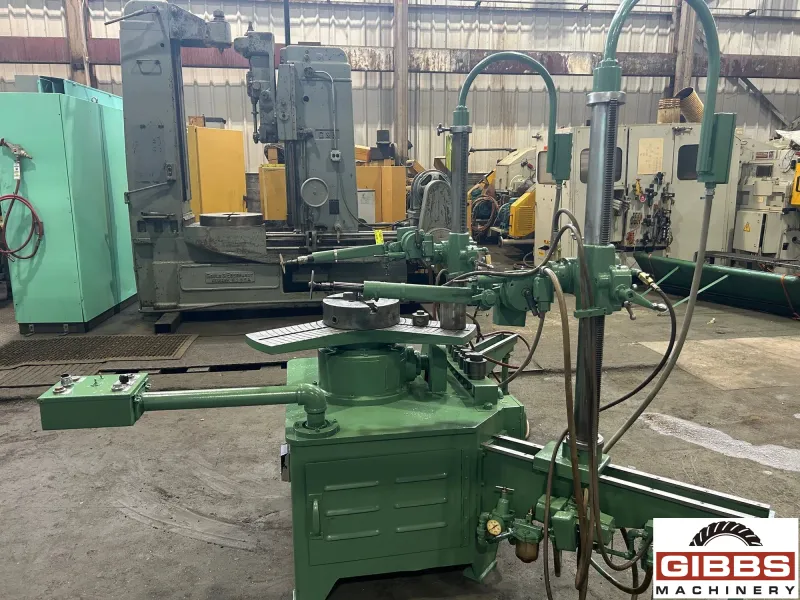

The Redin Model 72 is a heavy-duty, universal dual-arm gear deburring machine designed for the automatic deburring and brushing of internal and external gears. It is widely used in heavy manufacturing for precision finishing of spur and helical gears.

    Specifications:

  • Work Table Diameter: 36" (915 mm)
  • Work Spindle Thru-Bore Diameter: 4" (101.6 mm)
  • Work Spindle Speed Range: .5 - 8 RPM
  • Work Spindle Motor Drive (Reversible): 3/4 HP DC
  • Maximum Work-piece Weight: 7,000# (3,182 kg)
  • Minimum Pitch Diameter External: 0" (00.0 mm)
  • Maximum Pitch Diameter Internal 68" (1727 mm)
  • Maximum Face Width: 16" (406.4 mm)
  • Minimum D.P.: 20 DP (1.27 Module)
  • Maximum Grinding Wheel Speed: 13,000 RPM
  • Grinding Spindle Speed (Full Load): 4,000 RPM
  • Maximum Diameter Work-piece (Nominal) W/Work Table Extension
  • Brackets Deployed: 72" (1829 mm)
  • Pneumatic Controls (Approximate): 90 PSI, 36 C.F.M
  • Overall Dimensions (LxWxH): 88" x 80" x 80"
  • Approximate Net Weight: 4,000 Lbs (1818 kg)
