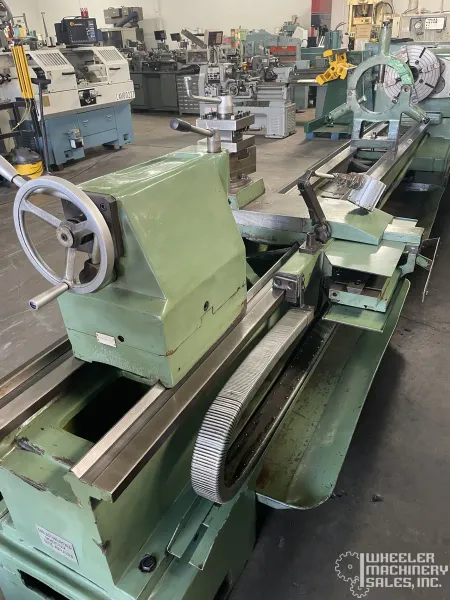

VICTOR 32160HD Heavy Duty Engine Lathe #8288

Manufacturer

VICTOR

Category

Lathes

Type

LATHES, ENGINE

Stock

8288

Model

None listed

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
LATHES, ENGINE
Manufacturer:
VICTOR
Model:
32160HD
Stock #:
8288
Status:
For Sale
Country:
United States

Description

VICTOR 32160HD Engine Lathe by VICTOR, used. Ideal for precision machining operations with robust construction. Enhance your workshop's capabilities with this reliable lathe model. Contact for more details and availability.

VICTOR 32160HD Heavy Duty Engine Lathe #8268

GENERAL SPECIFICATIONS:
Capacity
Swing Over Bed: 32"
Distance Between Centers: 157.48" (Nominally a 160" bed length)
Swing Over Cross Slide: 23.5"
Swing Over Gap: 44"
Bed Width: 18.125"

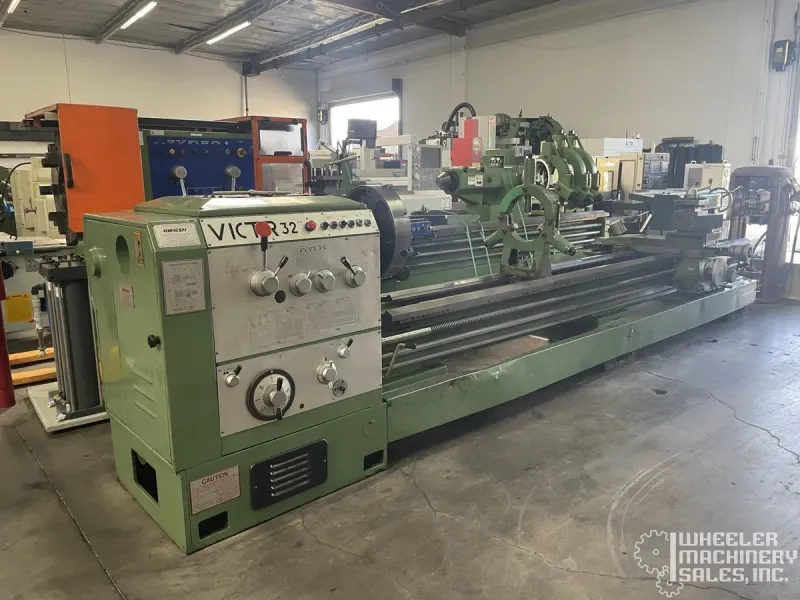

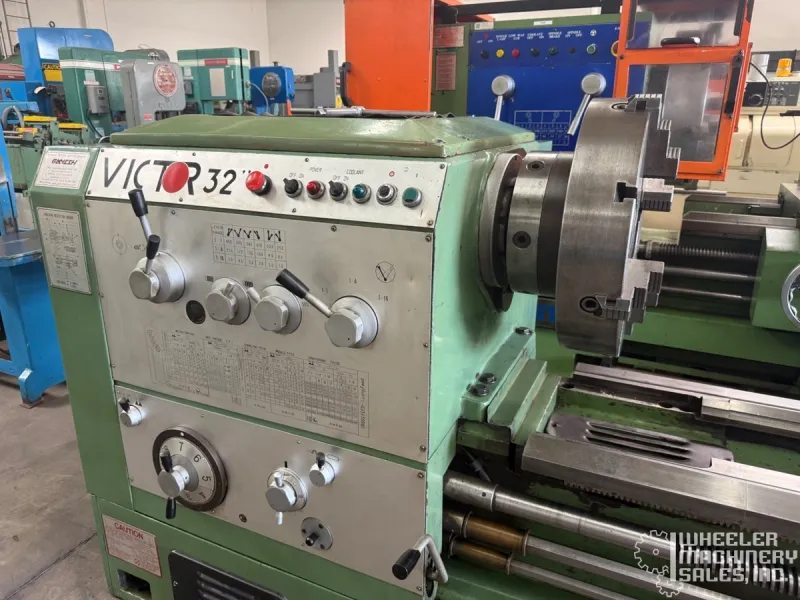

Headstock & Spindle
Spindle Bore Diameter: 4" (Standard)
Spindle Mount: A2-11
Spindle Speeds: 15 – 1,000 RPM (12 steps)

Threading & Feeds
Inch Threads: 2 – 28 TPI (36 Kinds)
Metric Threads: 0.8 – 14mm (38 Kinds)
Range of Longitudinal Feeds: 0.0020" – 0.0276"/rev
Range of Cross Feeds: 0.0010" – 0.0138"/rev

Motor & Machine Size
Main Motor: 30 HP 3-phase motor
Shipping Weight: Approximately 13,450 lbs.
Shipping Dimensions: 315" L x 52" W x 71" H

EQUIPPED WITH:

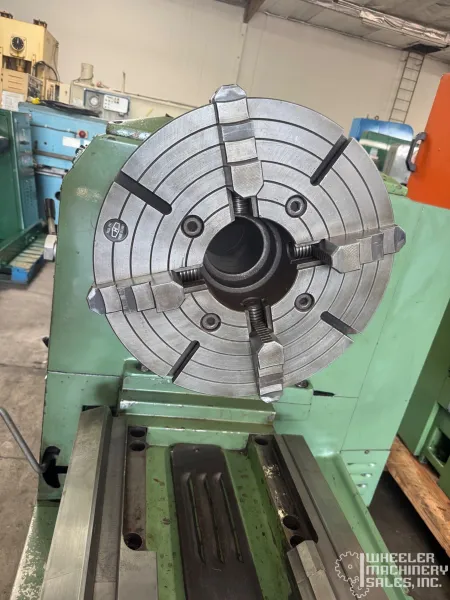

4-Jaw Chuck

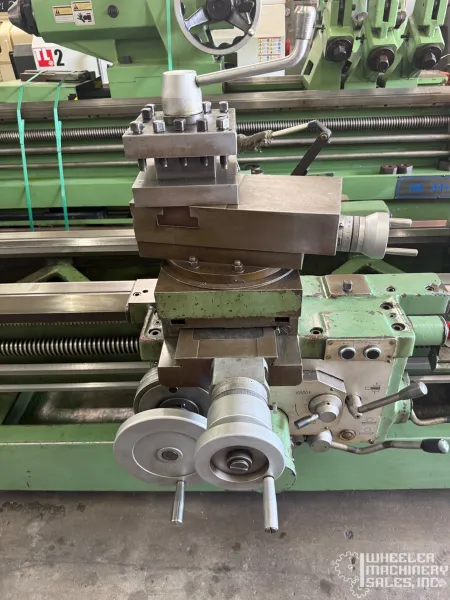

4-Way Tool Post

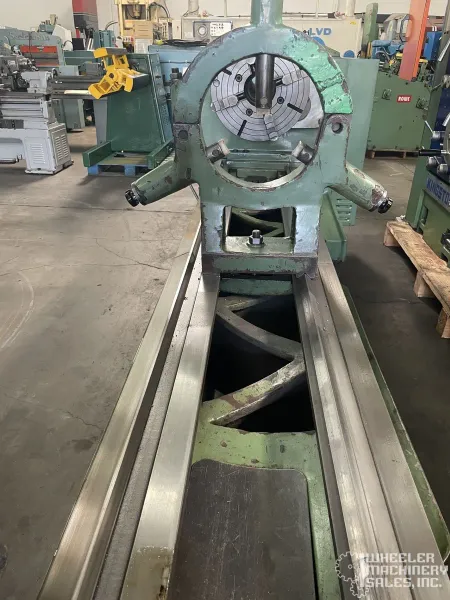

(2) Steady Rests
Tailstock
