IKEGAI AX 40N Long Bed CNC Lathe #8281

Manufacturer

IKEGAI

Category

Lathes

Stock

8281

Model

None listed

Dealer Location

California

Spec Sheet

Overview

Type:
LATHES, SLANT BED, N/C & CNC
Manufacturer:
IKEGAI
Model:
AX 40N
Stock #:
8281
Status:
For Sale
Serial #:
24718A
Country:
United States

Description

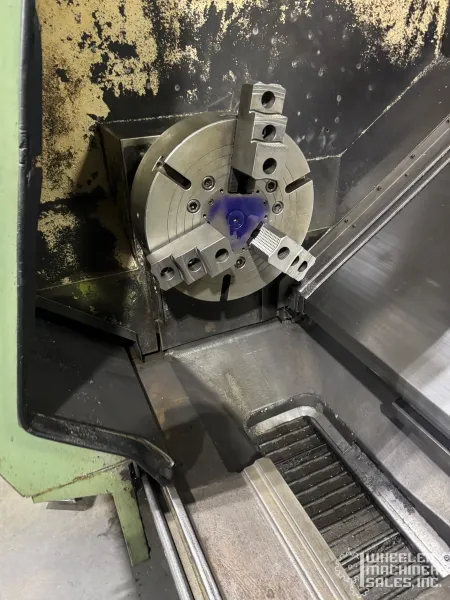

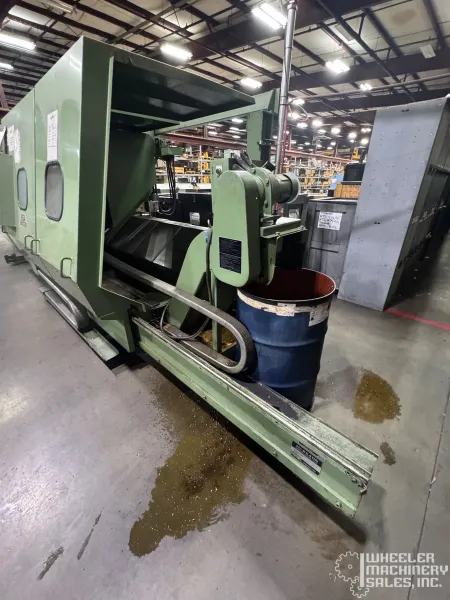

IKEGAI AX 40N Long Bed CNC Lathe #8281 offers a 32'' swing and 120'' machining length. Features FANUC 6TB CNC, 17.75'' hydraulic chuck, and chip conveyor. Ideal for precision tasks with 800 RPM max speed and 40 HP power. Equipped with RS232 port.

Swing32"812.8 mm
Machining Length120"3,048 mm
Chuck Size17.75"450.85 mm
Bar Capacity3.94"100.08 mm
Power40 hp29.8 kW
Max RPM800 RPM800 RPM

IKEGAI AX 40N Long Bed CNC Lathe #8281

Specifications:
Swing Over Bed: 32''
Max. Machining Diameter (shaft): 24 5/8''
Max Machining Length: 120''
Spindle Bore Diameter: 4.6''
Front Bearing Diameter: 6.29''
Spindle Nose : A2-15''
Spindle Speeds: 10-800 RPM
Number Of Turret Position: 12
Tool Size (Square Shank): 40 H.P.DC

Equipped With:
FANUC 6TB CNC Control with CRT
RS232 Port
17".75" Hydraulic Chuck
Follow Rest
Tailstock
Chip Conveyor
