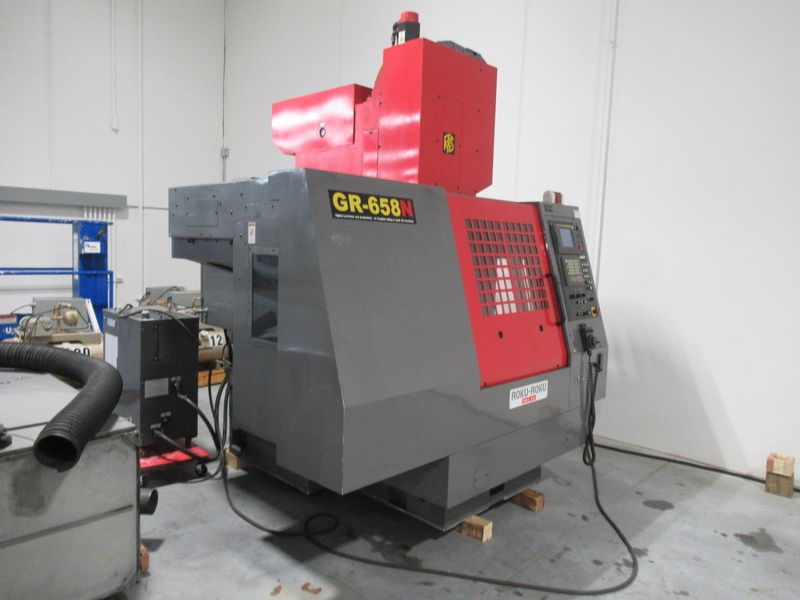

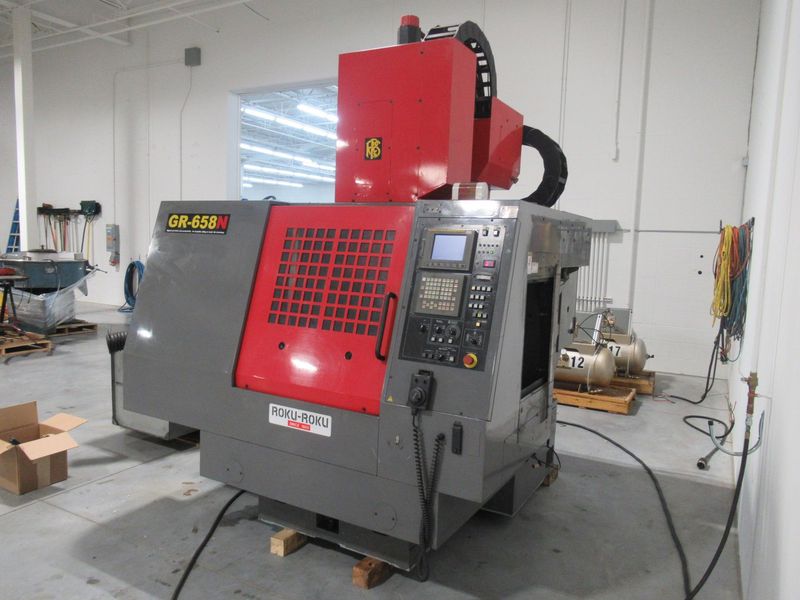

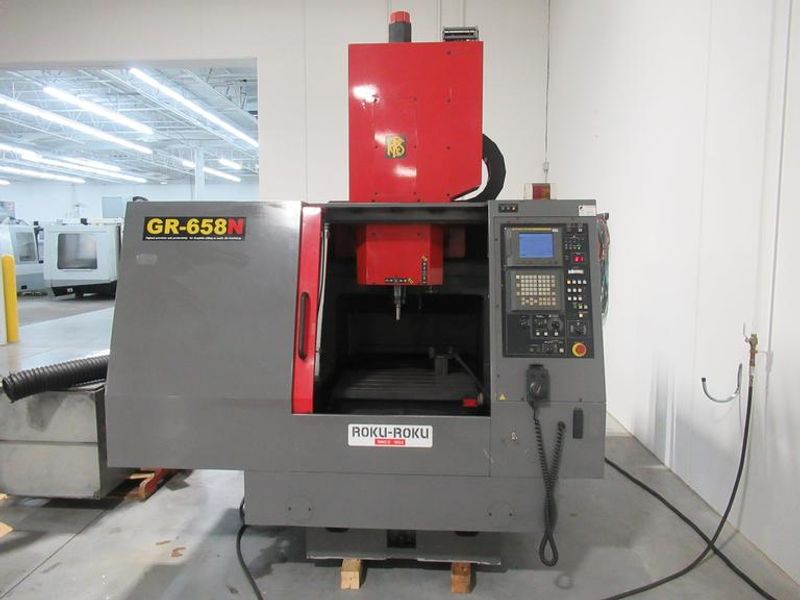

Roku-Roku GRM-658 CNC Vertical Machining Center, Fanuc 16i-M, 12 ATC, Renishaw NC3

Manufacturer

Roku-Roku

Category

Machining Centers

Type

MACHINING CENTERS, CNC, 5-AXIS or MORE

Stock

7390

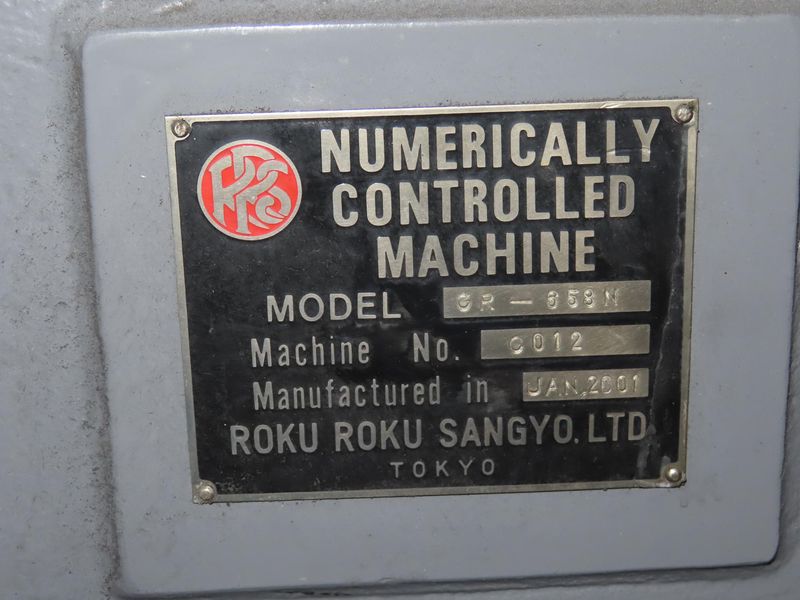

Model

GR-658N

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

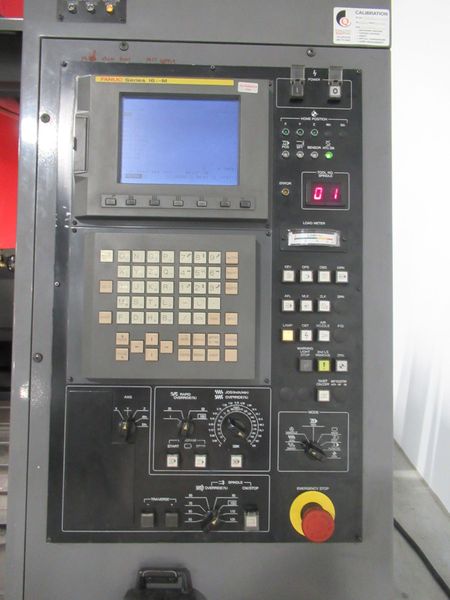

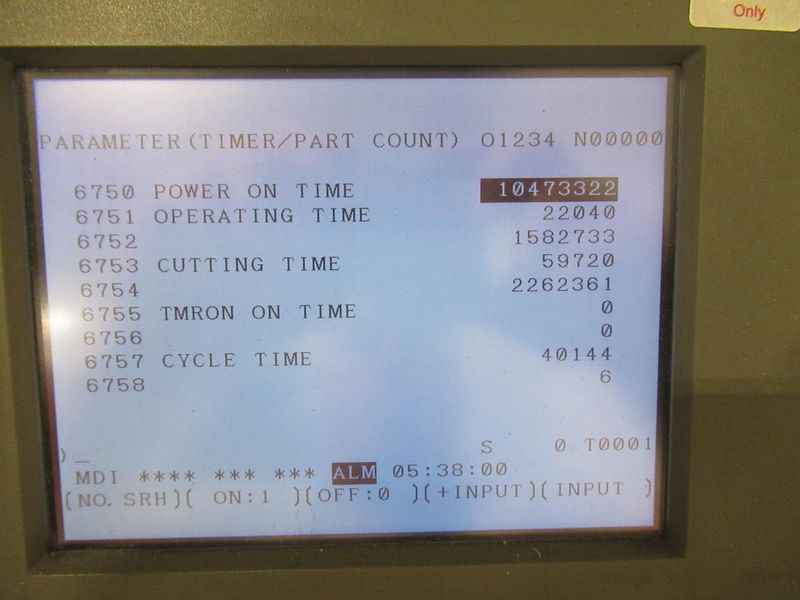

Machine Control: Fanuc 16i-M CNC Control

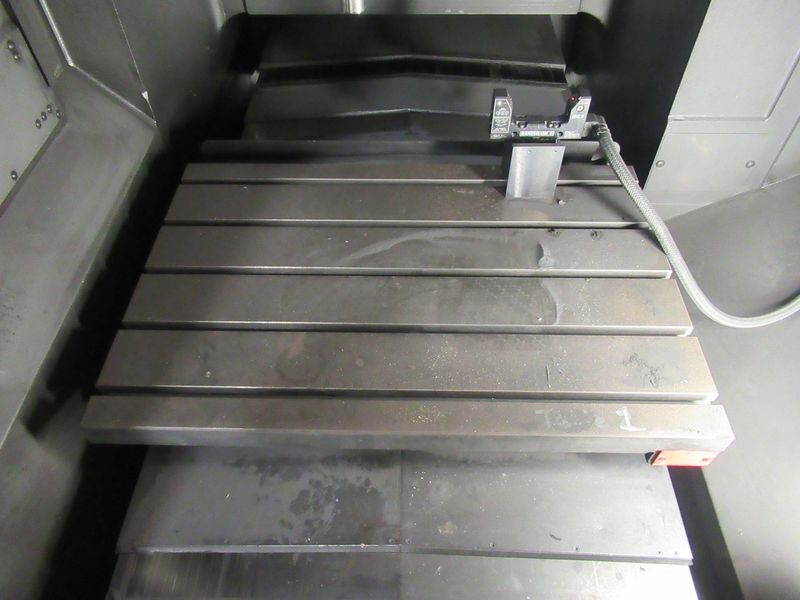

Table Size: 29.4" x 19.68"

Machine Travels (X/Y/Z): 23.6" / 19.6" / 15.7"

Spindle To Table Distance: 7.87" - 23.6"

Spindle Center to Column Distance: 29.5"

Table Capacity: 440 LBs

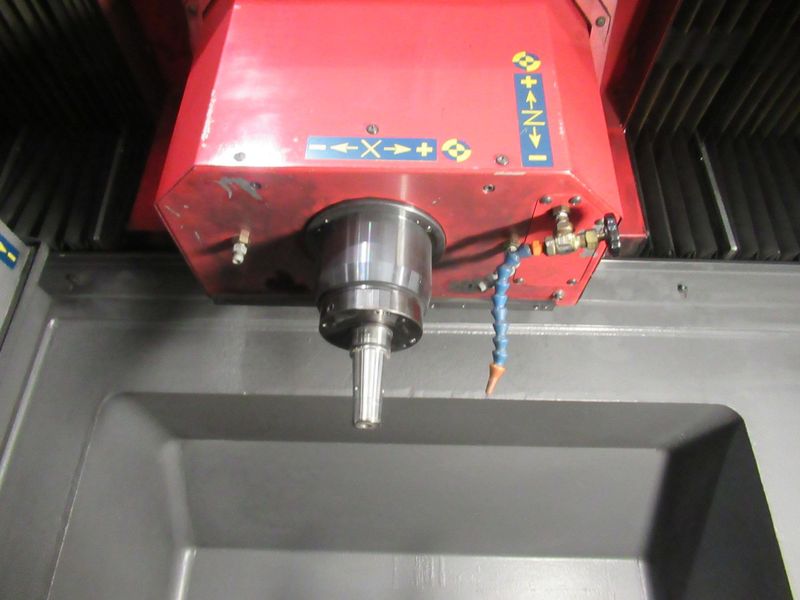

Spindle Taper: HSK-40E

Spindle Speeds: 200 - 32,000 RPM

Rapid Traverse Rate (X/Y/Z): 787 IPM

Maximum Cutting Feed Rate: 315 IPM

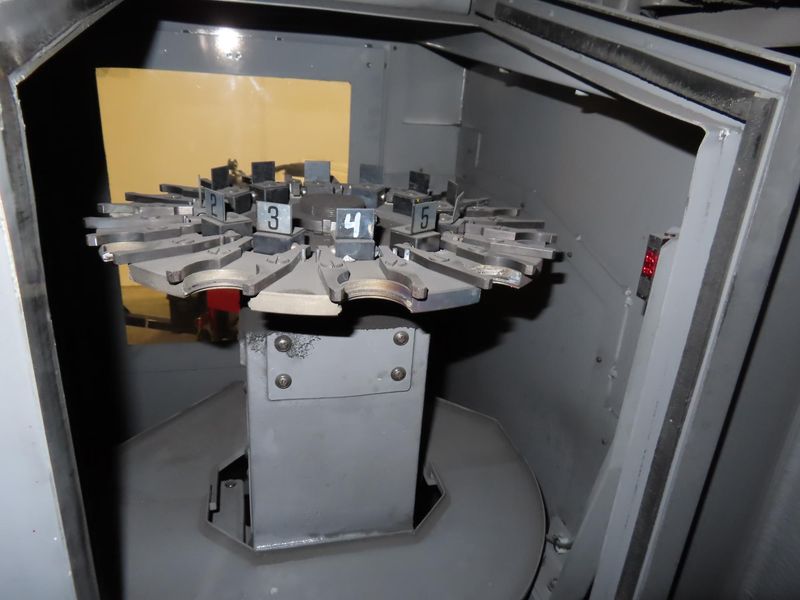

Tool Changer Style: Carousel

Tool Changer Capacity: 12 Tools

Tool Change Time: Approx. 15 Seconds (Chip to Chip)

Max Tool Length: 9.84"

Max Tool weight: 6.6 LBS

Spindle Drive: 8 HP

Equipped With:

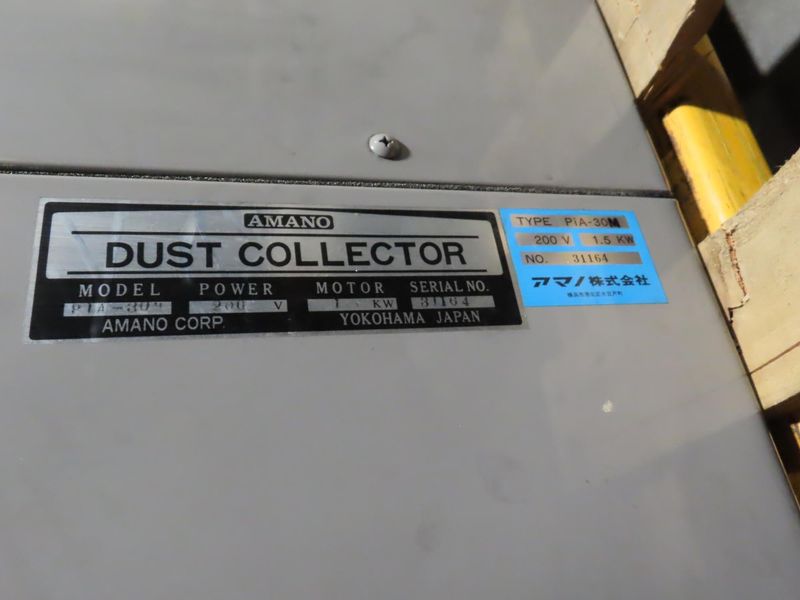

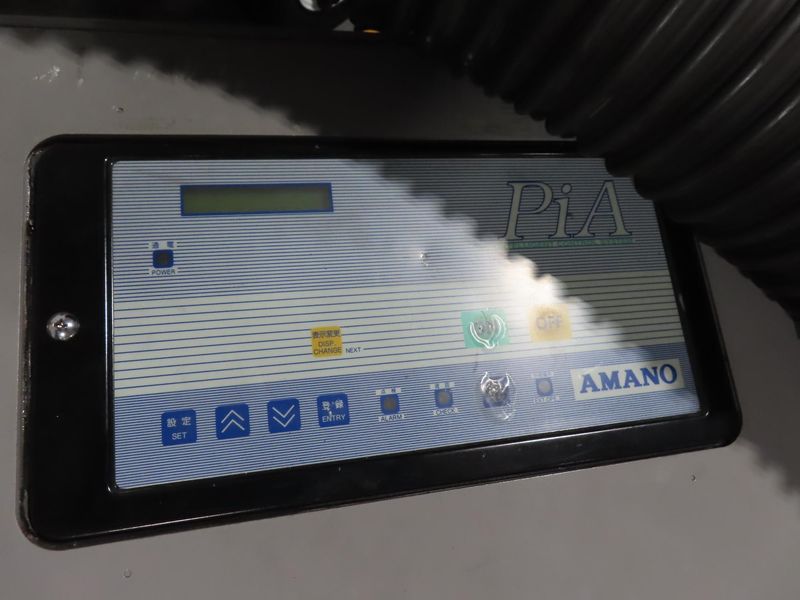

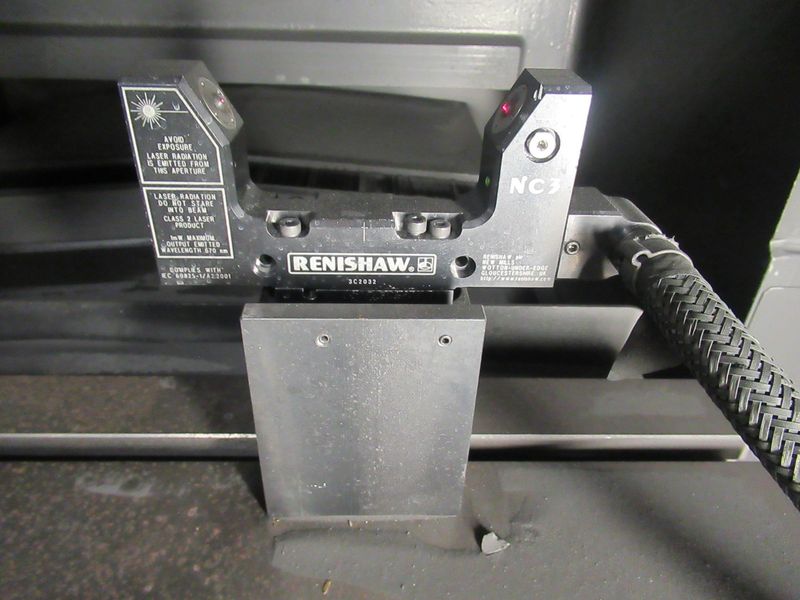

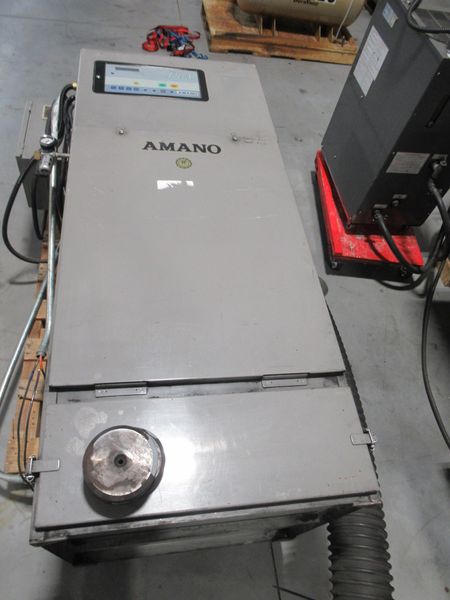

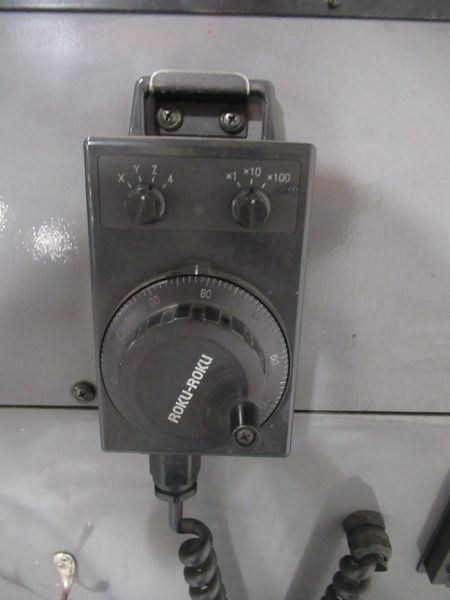

Fanuc 16i-M CNC Control, Renishaw NC3 Non-Contact Laser Tool Probe, Remote Jog Handwheel, 12-Station Automatic Tool Changer, HSK-40E Taper Spindle with Assorted Tool Holders, Work Light, Oilmatic Spindle Chiller, Amano PiA-30M Dust Collector, RS-232C Serial Port, Manuals and Documentation.

Electrics:

200/220 Volt, 3 Phase
