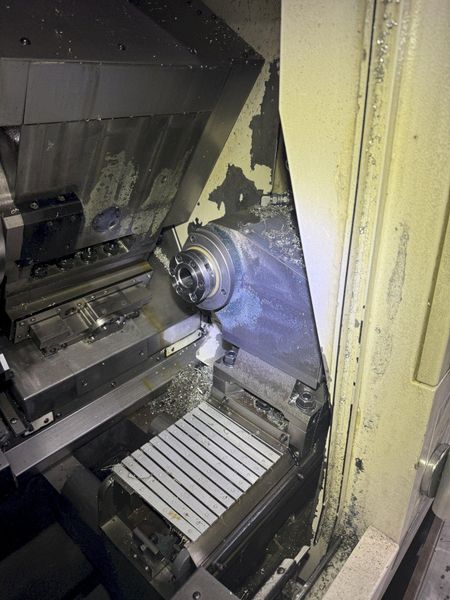

Nakamura-Tome AS-200Y Turning Center. Y-Axis. Live Milling. New-2015

Stock

15504MT

Model

AS-200MY

Dealer Location

Illinois

Spec Sheet

Swing - 15.8 inches
Maximum Turning Diameter - 13.4 inches
Distance Between Centers - 11.8 inches
Chuck Size - 8.5 inches
Bar Capacity - 2.6 inches
X-Axis Travel - 9 inches
Z-Axis Travel - 12.6 inches
Y-Axis Travel - 1.6 inches
C-Axis Indexing - 0.001 deg.
Rapid Traverse Rate (X,Y,Z) - 945/236/1418 ipm
Spindle Nose - A2-6
Spindle Speed - 4500 RPM
Main Motor - 20 HP
Live Tooling Speed - 6000 RPM
Live Tooling Motor - 7.5 HP
Turret Capacity - 12 Position
Approximate Machine Weight - 7716 pounds


Nakamura Fanuc Control.
8" 3-Jaw Chuck.
Live Tooling.
Y-Axis.
Tailstock.
ChipBlaster High Pressure Coolant.
Chip Conveyor.
Assorted live and static tooling.
