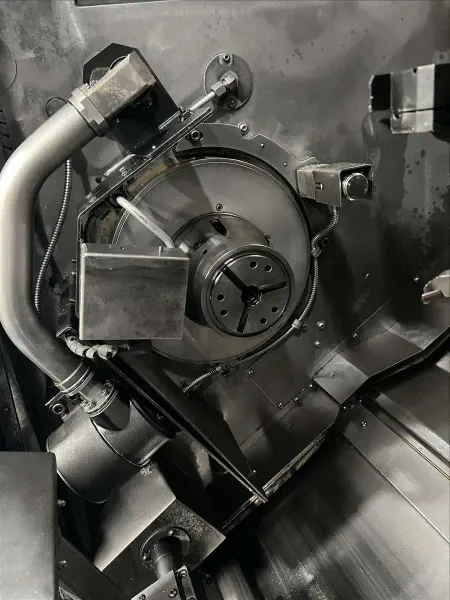

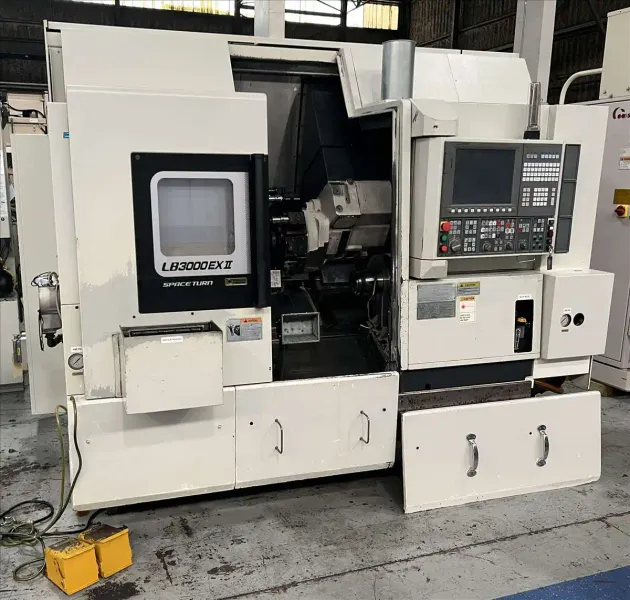

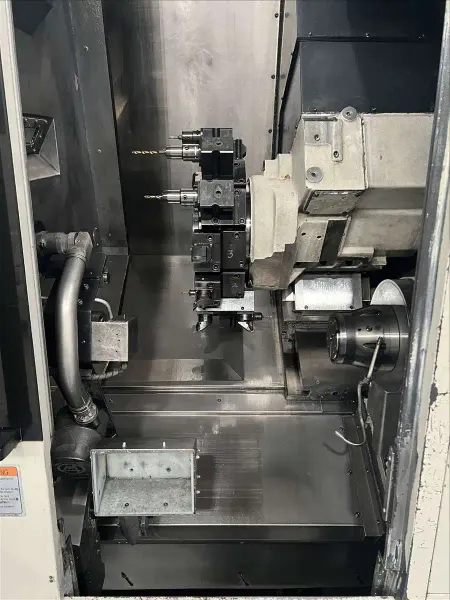

2017 OKUMA LB3000EXII-MYW/450 CNC Turning Center with SubSpindle Live Milling and Y Axis

Manufacturer

OKUMA

Stock

MT906

Model

LB3000EXII-MYW/450

Dealer Location

Illinois

Spec Sheet

DIST BETWEEN CENTERS - 17.7"
Distance Between Noses - 30.9"
Swing Over Bed - 22.8"
Swing over Carriage - 18.5"
Max Turning Diameter - 13.4"
Main Spindle Dia - 4.7"
Spindle Speeds - 5000 RPM
Spindle Nose - A2-6
Hole Thru Spindle - 3.14"
Hole Thru Actuator - 2.75"
Max Workpiece Weight - 396 lbs
Sub Spindle Diamater - 3.9"
Spindle Speed - 6000 RPM
Spindle Nose - 5.5" Flat
Hole Through Spindle - 2.4"
Max Workpiece Weight - 242 lbs
Main Motor - 30/20 HP
Number of Turret Positions - 12
X Axis Travel - 10.2"
Y Axis Travel - 4.5"
Z-Axis Travel - 20.1"
W Axis Travel - 23.4"
C Axis Index - 360 deg, (0.001 increments)
X Axis Feedrate - 984 ipm
Y Axis Feedrate - 492 ipm
Z Axis Feedrate - 1181 ipm
W Axis Feedrate - 1181 ipm


Equipped With:   Okuma OSP-P300LA CNC Control.  Swing Down Touch Probe. Kitagawa SR1670C Actuator.  Live & Static Tooling.  LNS Quick Six S2 Bar Feeder.  (2) Hardinge FLEXC 65 Collet Chucks.  ChipBlaster High Pressure Coolant System. LNS Chip Conveyor.  Absolent ODF-200S Mist Collector. Parts Catcher.  Foot Pedals.
