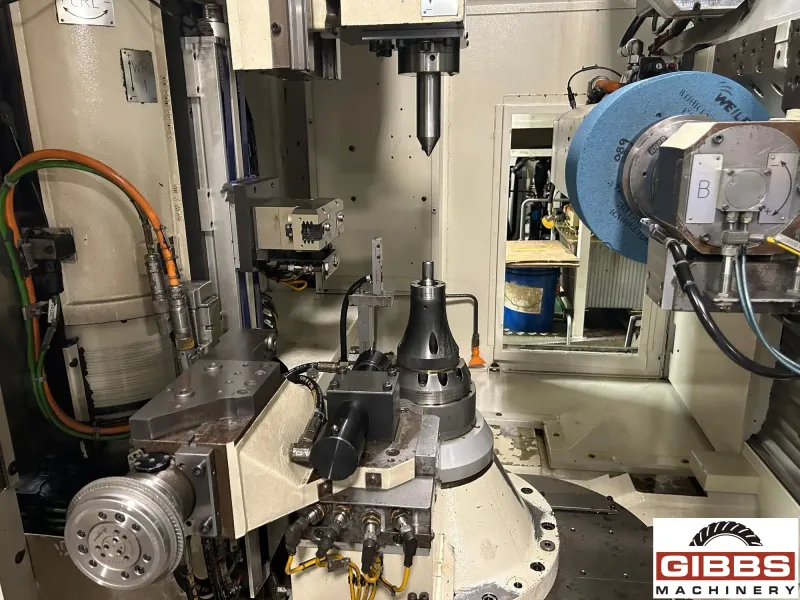

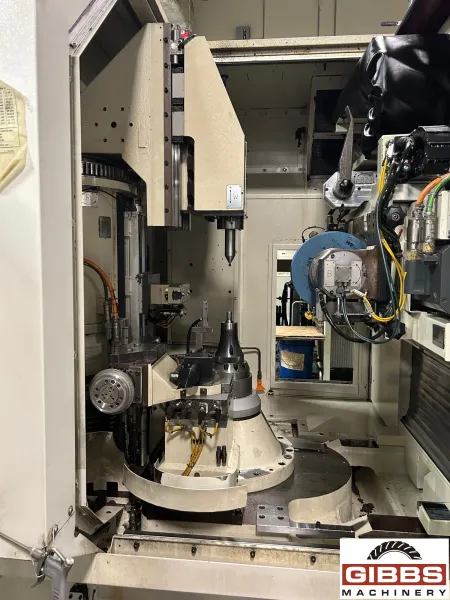

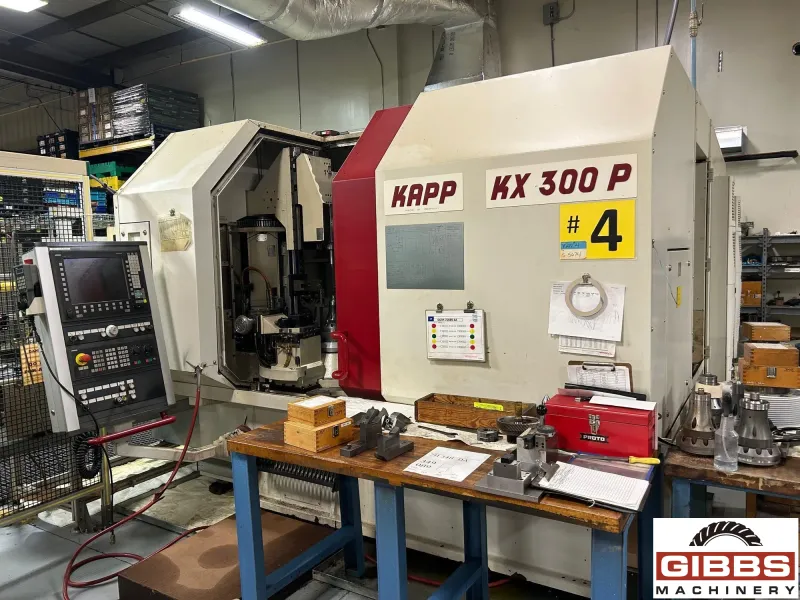

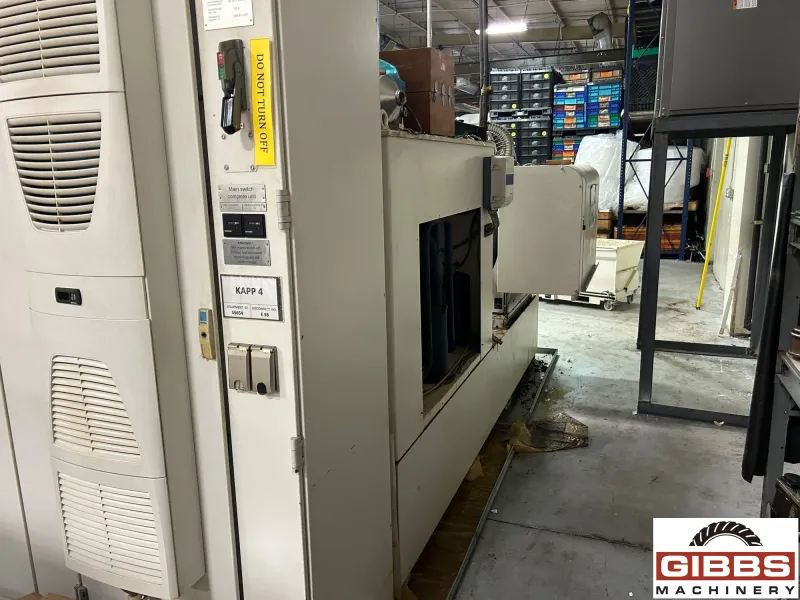

KAPP KX 300 P - Gear Grinder

Manufacturer

KAPP

Category

Gear Machines

Type

GEAR GRINDERS, CNC

Stock

25911

Model

KX 300 P

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:

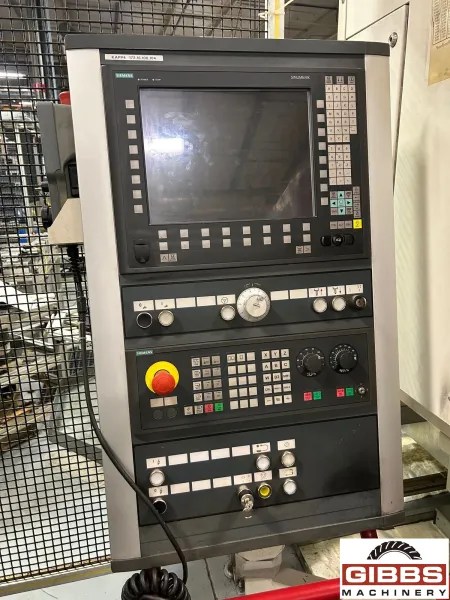

  • Siemens 840D Control
  • Rotary Dresser

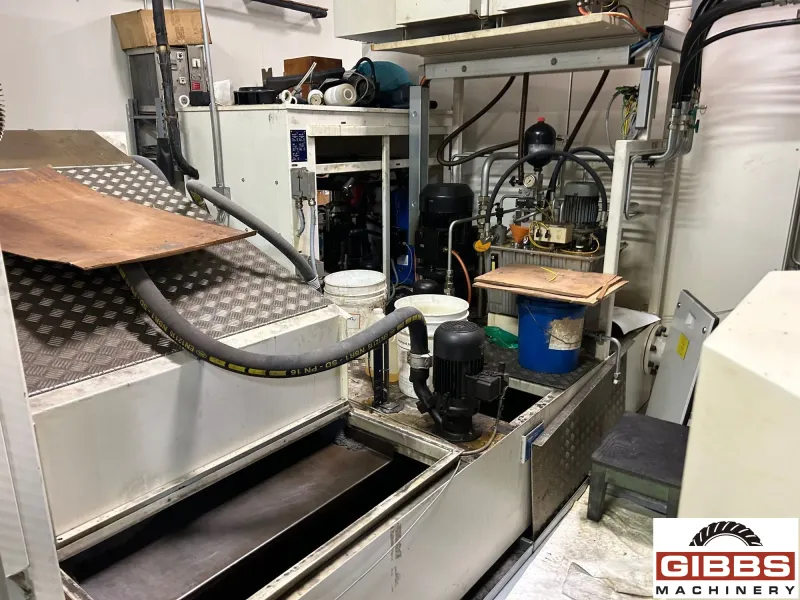

  • Hoffman Filter, S/N 01-07180
  • Tailstock
  • Load Table
  • 180 Degree Loader
  • Load Table Spinner

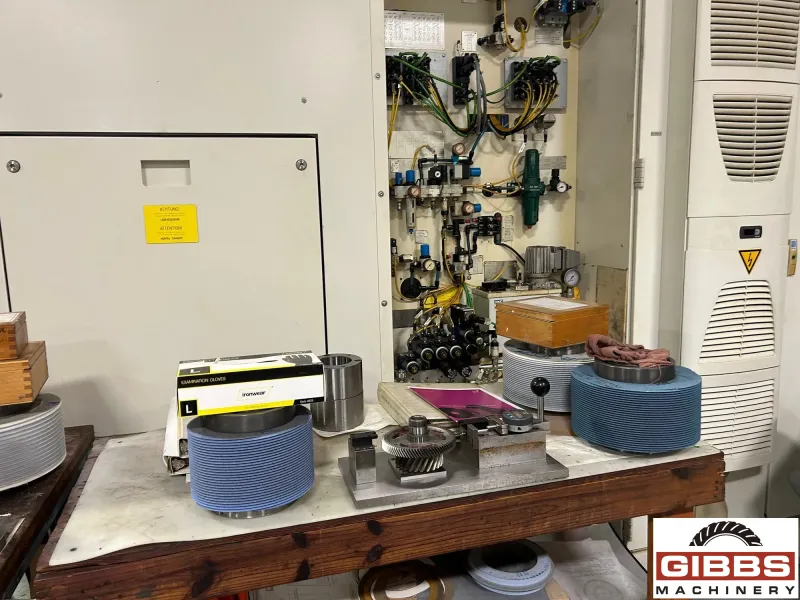

  • Wheel Mounts

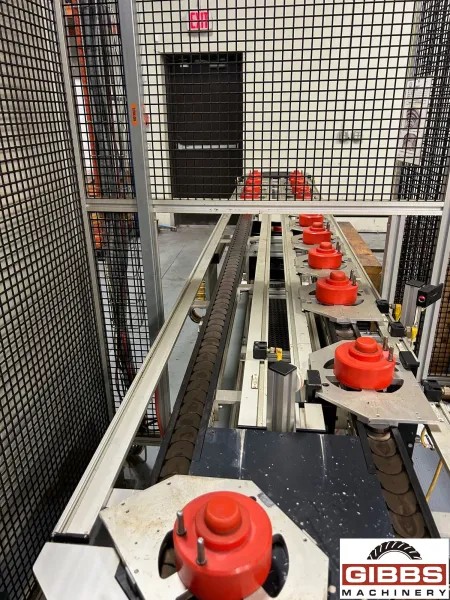

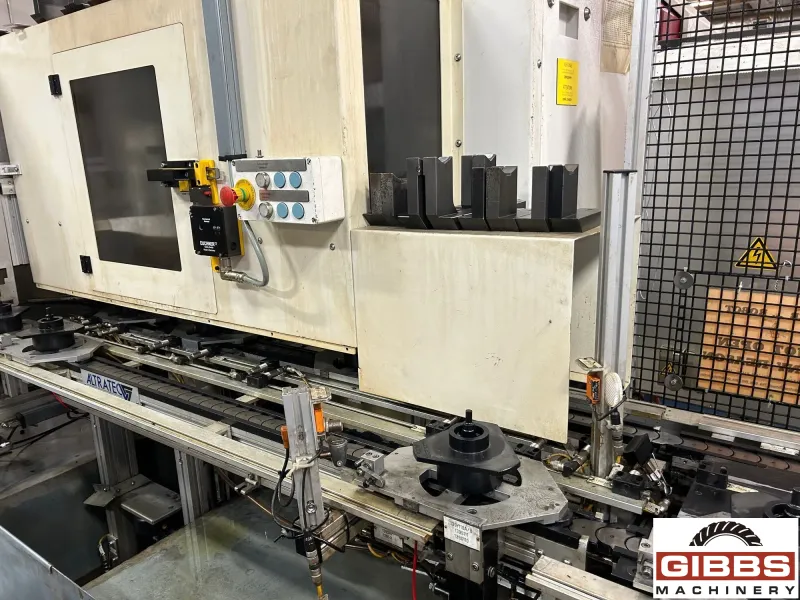

  • Creative Automation Cell:
  • ---Fanuc M-710i C 20L
  • ---Laser Marker
  • ---Packout Station
,

Machine Specifications :

  • Year 2010
  • Manufacturer KAPP
  • Generating Grinding YES
  • Profile Grinding NO
  • Internal Grinding NO
  • Worm Grinding NO
  • Workpiece Diameter (max.) 11.8"
  • Module 5
  • Grinding Wheel Speed (max.) 6,000 RPM
  • Axial Travel 21.7"
  • Diametral Pitch 5.08
  • Maximum Workpiece Length 21.7"
  • Grinding Spindle 33.5 HP
  • Table Rotation Speed (max.) 600 RPM
  • Control Manufacturer Siemens
,

KAPP Model KX 300 P CNC Gear Grinder, manufactured in 2010. Features 300 mm max wheel diameter, Siemens 840D control, rotary dresser. Perfect for precise gear grinding needs.

    Specifications:

  • Maximum Wheel Diameter: 300 mm
  • Gear Width: 320 mm
  • Minimum/Maximum Module: 0,5/10
  • Maximum Helix Angle: 45 Degree
  • Frequency: 50 Hz
  • Voltage; 400 V
  • Main Fuse: 125 A
  • X-Axis: 270 mm
  • Y-Axis: 250 mm
  • Z-Axis: 320 mm
  • A-Axis: +/- 45 Degrees
  • B-Axis: 360 Degrees
  • C-Axis: 360 Degrees
  • Total Power Requirement: 89 kW
  • Machine Weight: 23,5 T
  • Machine Dimensions: 11,2 x 5,5 x 2,9 m
  • Cell Floor Space: 45' x 44'
