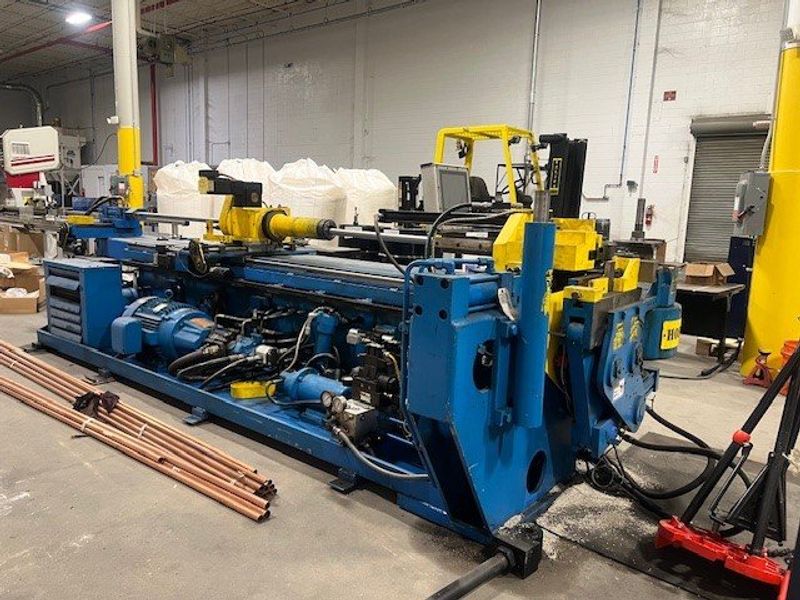

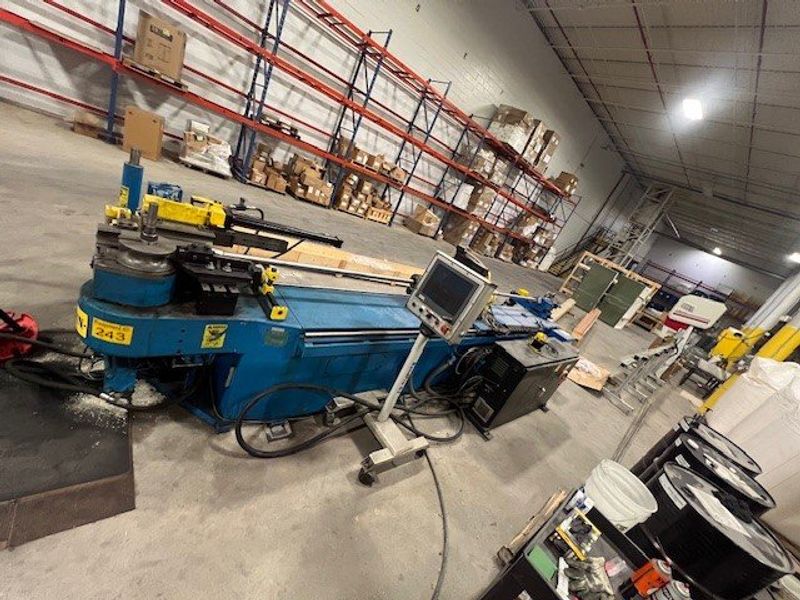

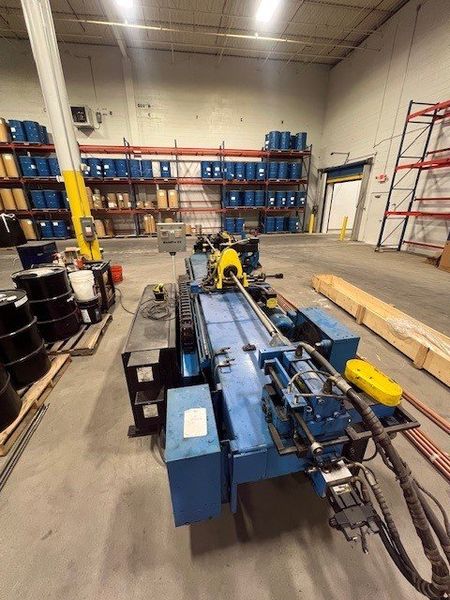

Horn Machine Tools 2LCNC 3″ CNC Tube Bender

Manufacturer

Horn Machine Tools

Category

Tube Machinery

Type

TUBE MACHINERY, (Miscellaneous)

Stock

121260026

Model

2L CNCCapacity: 3"

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 121260026
  • Brand: Horn Machine Tools
  • Model: 2L CNC
  • Capacity: 3"

Specifications

  • Minimum Tube OD: 1/4" (approx.)
  • Round Tube: 3" OD
  • Square Tube: 2" OD
  • Steel Pipe (Schedule 80): 2" IPS
  • Maximum Tube Length Over Mandrel: 168" (approx.)
  • Maximum Degree Of Bend: 180° + springback
  • Bending Rotation: Left hand (counter clockwise)

Equipped With

Bendpro G2 CNC Control , Pedestal Mounted Operator Control, Hydraulic Mandrel Extractor, Hydraulic Pressure Die Assist, Wiper Die Holder, Direct Acting Pressure Die, Drop Away Type Clamp Die, Fully Integrated Hydraulics, Assortment Of Tooling: 2.625”OD X .050”Wt X 4.00” Clr, 2.125”OD X .050”Wt X 4.00” Clr, 1.625”OD X .050”Wt X 3.00” Clr, 1.375”OD X .050”Wt X 3.00” Clr, 1.125”OD X .050”Wt X 3.00” Clr, 0.875”OD X .050”Wt X 3.00” Clr

Additional Info

Can be inspected upon request

No Video Available
