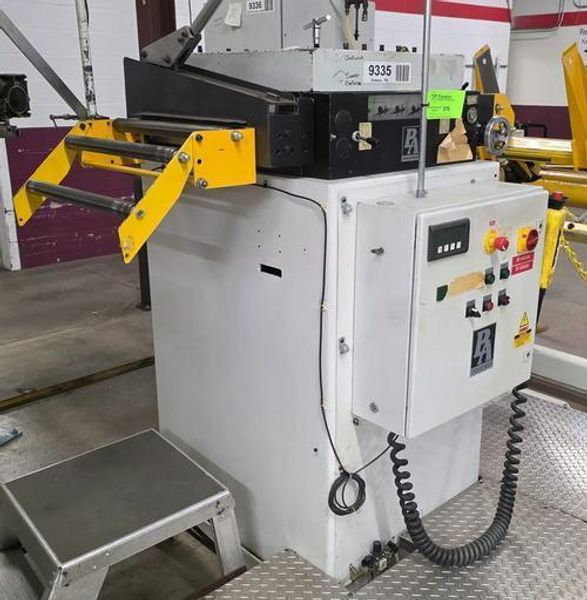

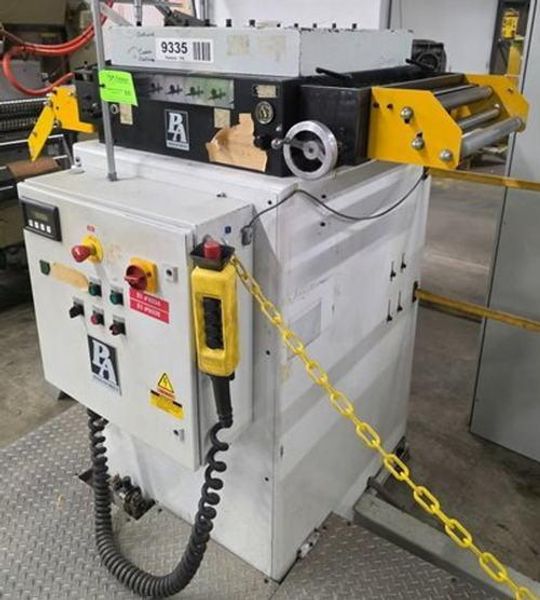

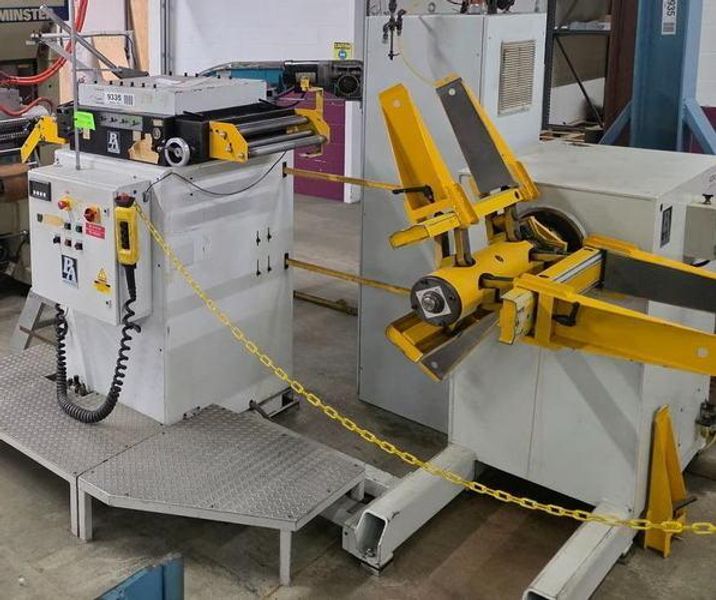

6500 LBS X 20" X .090 PA UNCOILER AND STRAIGHTENER

Manufacturer

Category

Coil Processing Equipment

Type

COIL PREFEEDERS

Stock

Z26027C

Model

SRH-6524

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

order - 6500


AGE: 2007

CONSISTING OF:

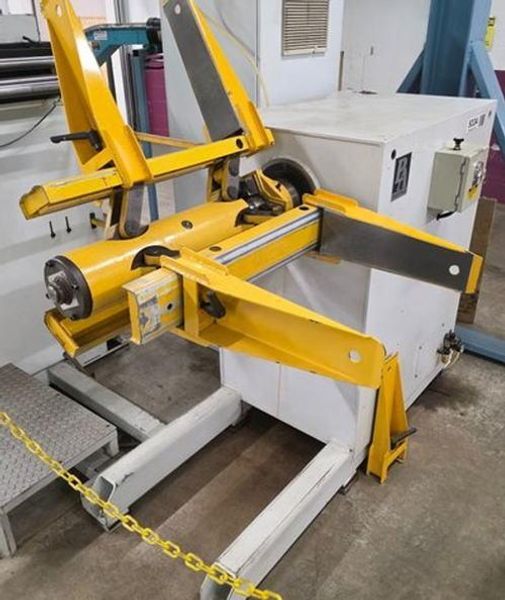

6500 x 26 PA Uncoiler
Model RS2011-65S-SP Reel:
Serial Number: 200704-03697
Coil Weight: 6,500 Lbs.
Coil I.D.: 15.35" to 20.7"
Coil O.D.: 60"
Coil Width: 26"
Mandrel Overall Length: 32"

Hydraulic Expansion

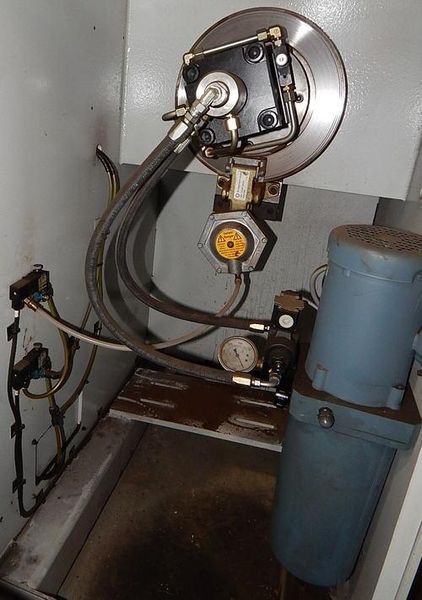

Pneumatic Disc Brake
3-Leaf Type, 32" Long Leaves
(3) Inner and Outer Keepers, 3" Each

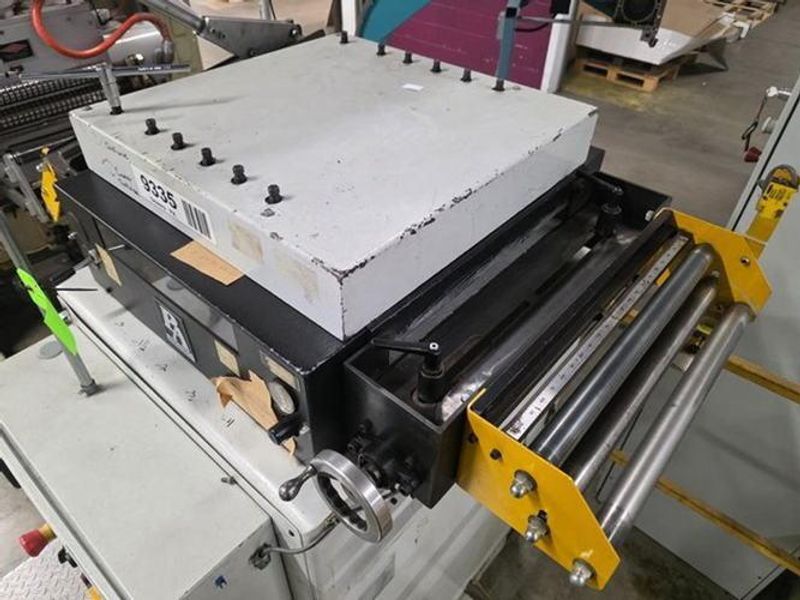

20" x .071 PA Straightener
Model RS2011-65S-SP Straightener:
Serial Number: 200704-03697

11-Roll straightener, 5 Over 6
Capacity: .015" - .071" x 20"
.118" x 11.8"
Roll Diameter: 60mm with (2) Sets of
60mm Driven Pinch Rolls
Adjustable Width Entry Guide Rolls
Air Operated Quick Opening
Manual Shear at Exit Point
Pendent Control For Coil Thread-Up
Electric Brake On / Off
Exit and Entry Coil Support Cascade Rolls
SM Vector Frequency Inverter

Complete with Manuals and Drawings
