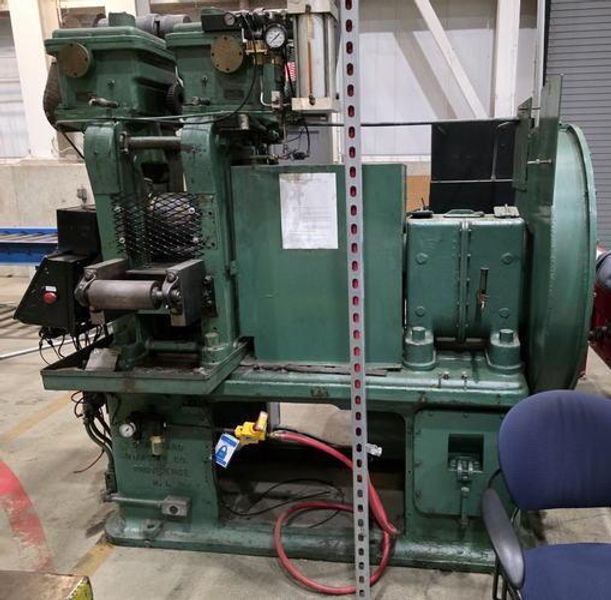

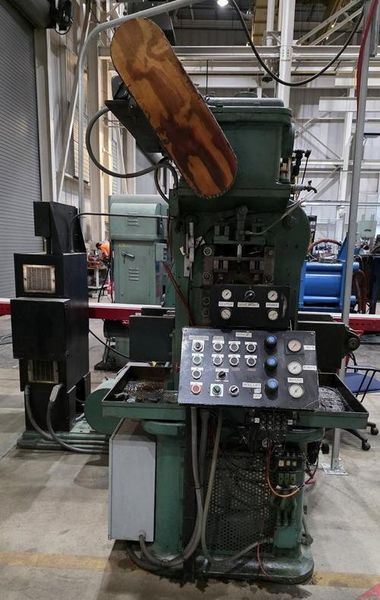

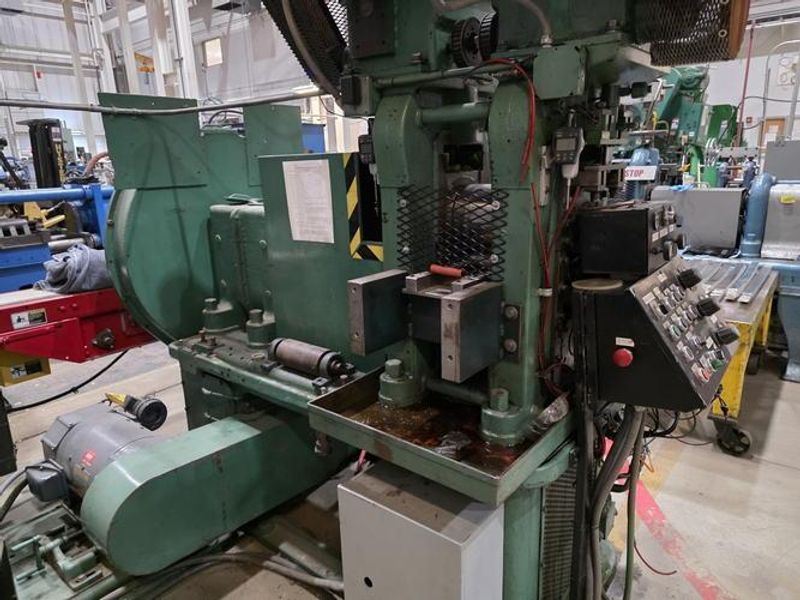

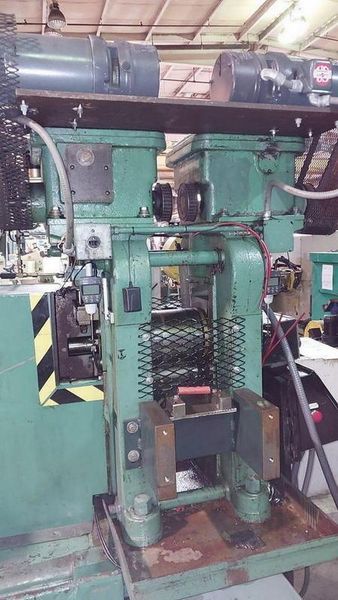

2-1/2" x 8" x 7-1/2 STANDARD FENN Rolling Mill

Manufacturer

FENN

Category

Milling Machines

Stock

Z26021A

Model

None listed

Dealer Location

Ohio

Spec Sheet



 Type: 2/4 High
      Roll Width: 7.5"

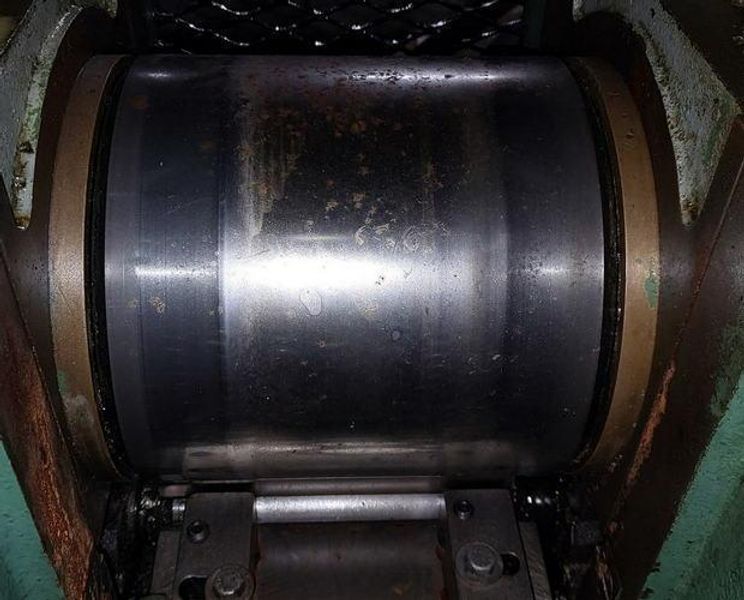

      Driven Work Rolls: 2.5" Diameter w/2" Bearing Journal
      Idle Back-Up Rolls: 8" Diameter w/4" Bearing Journal

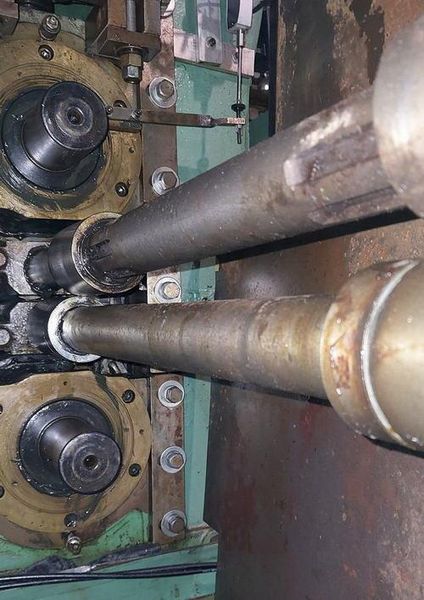

      Gear Box Output Shafts for all Four Rolls

      Frame Size: 4.5" x 6.5" Each
      Total Column Area: ~117 Sq. In.
Passline: 44.5" Floor to Top of Lower 2.5" Roll

EQUIPPED WITH:

      Bronze Bearings
      Herringbone Gears
      Gear Box Output Shafts for all Four Rolls
      Digital Mitutoyo Roll Position Readouts
      Entry and Exit Material Support Rolls (Only One Installed
            Currently, but is Included)
      Five Vee-Belt Gear Box Input Drive Sheeve
      Air over Oil Upper Roll Counter Balance w/ On/Off Switch

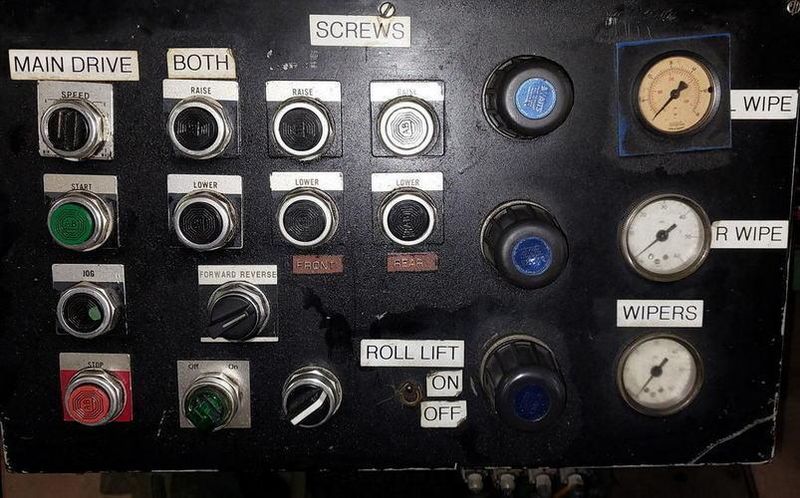

      Twin Motor Screw Downs for Roll Gap Adjustment
            Adjustments can be Front, Rear, or Both
      Forward/Reverse Direction Switch

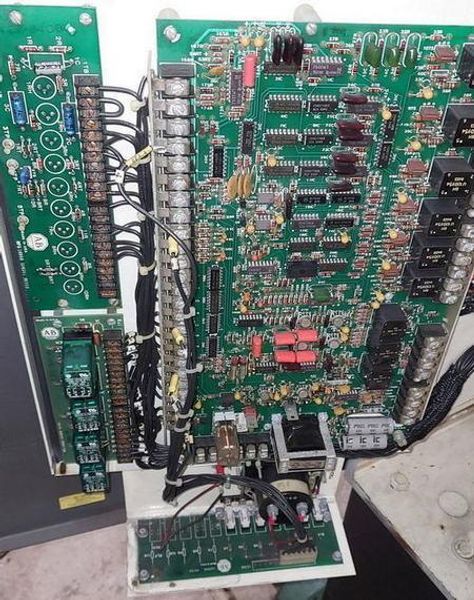

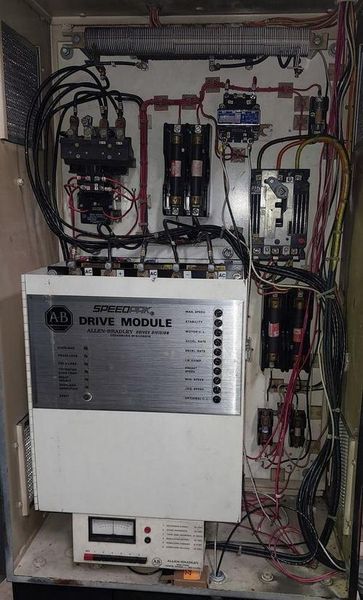

      Variable Speed D.C. Drive, Allen-Bradley SpeedPak DC Drive
      Has Roll Wipe Pressure Controls
      Clutch & Brake Adjustable Pressure

MOTORS: 20 HP DC, Two 2 HP Screw Adjustment Motors

WEIGHT:  15,000 Lbs. (Approximate)
