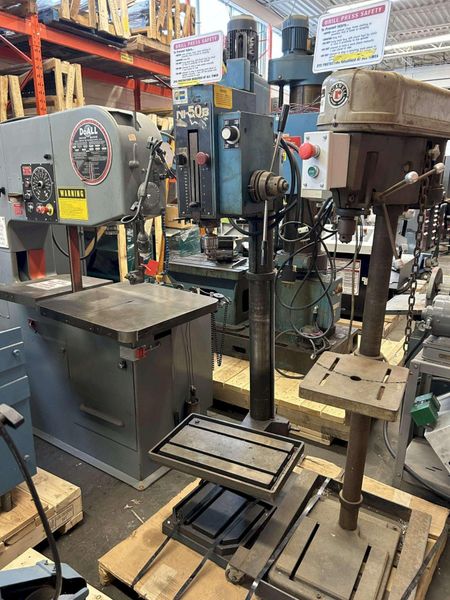

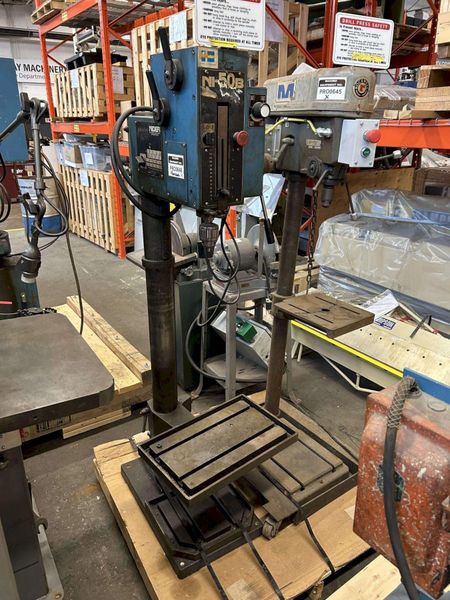

NIDER GEARED HEAD DRILL PRESS

Manufacturer

NIDER

Category

Drilling Machines

Type

DRILLS, MISCELLANEOUS

Stock

Z24019Q

Model

150B

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



MODEL: N1-50B

SERIAL NO.: N/A

Maximum Drilling Diameter 2” STEEL

Maximum Travel of Spindle 5 1/4″

Taper of Spindle Hole Morse # 4



Distance – Center of Spindle to Vertical Column 12 5/8″

Spindle nose to table surface 33 1/4” max.

Spindle nose to base plate surface 47″ max.



Dimension of working table 21″ X 13″

Swivel of table 45º

Dimensions of base 14 1/2” X 13”

Diameter of Column 4″

Speeds (8) 100 to 2200 RPM

Feed Speeds (8) “/rev 0.004 – 0.300

Two-Speed Motor: 1.5/1.1 HP

Weight: 1,000 lbs

Dimensions (LxWxH): 38″ x 25″ x 78″

FOB Point: Mississauga, ON
