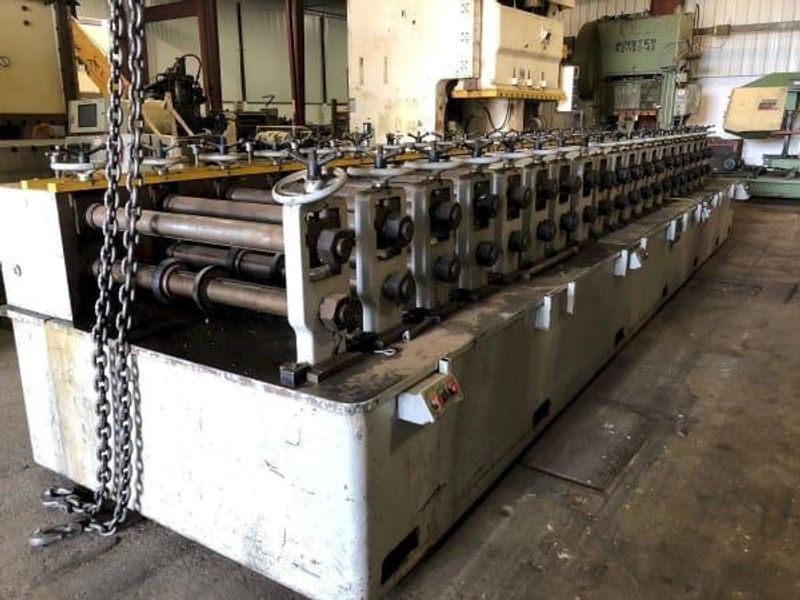

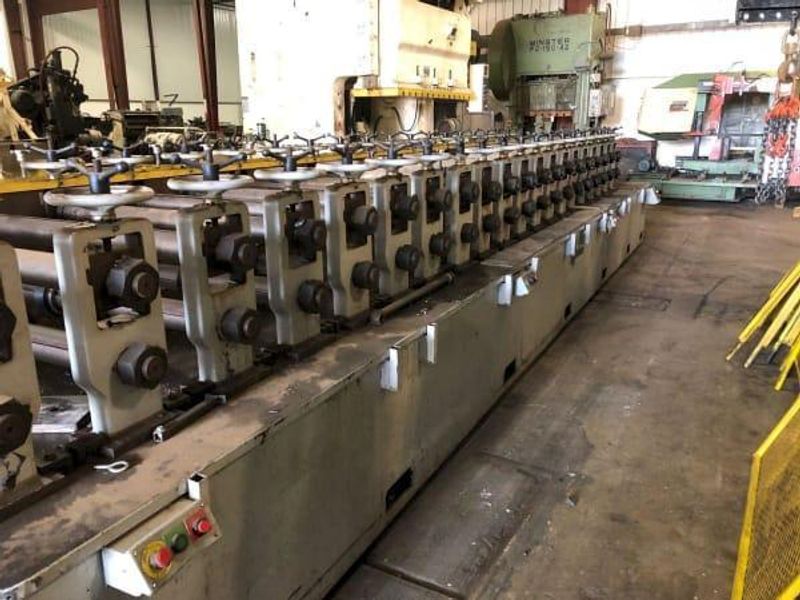

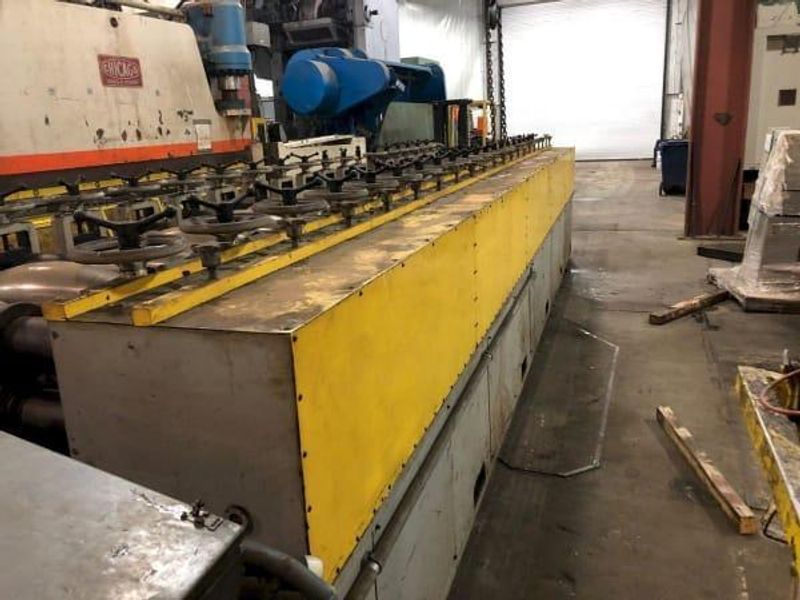

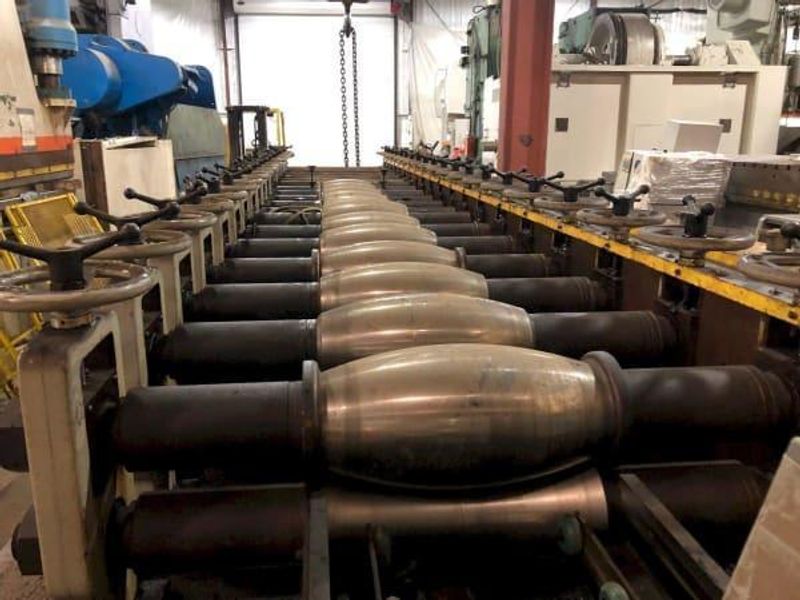

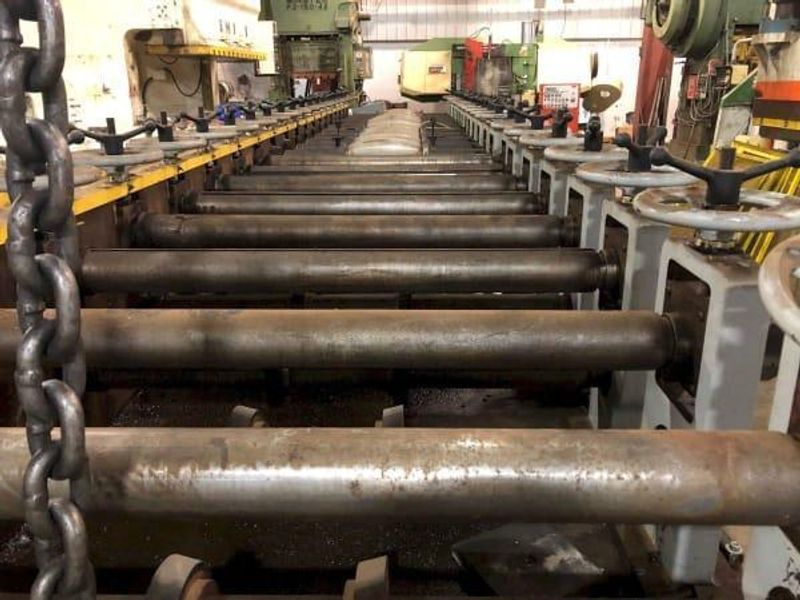

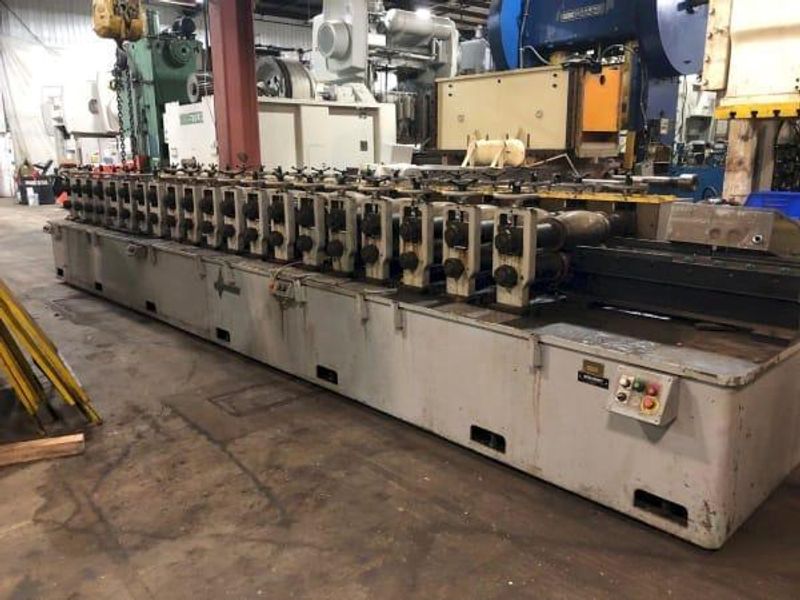

20 STAND ASC ROLL FORMER

Name: 20 STAND ASC ROLL FORMER
SKU: 19077T

Manufacturer

Spec Sheet

ASC 20 STAND ROLL FORMER

MODEL NUMBER: 20 HM-3 1/2

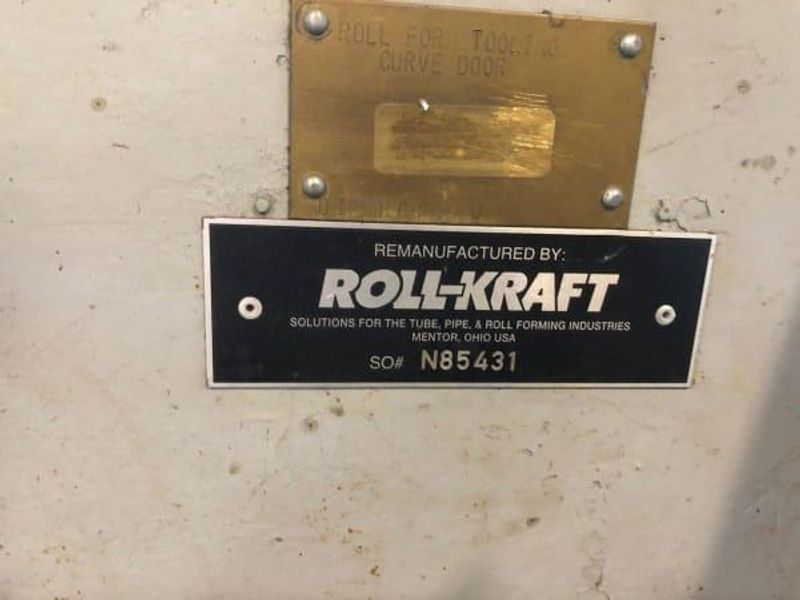

S/N: 85431
ROLLSPACE: 40"
HORIZONTAL CENTERS: 14"
VERTICAL ADJUSTMENT: 6.375" - 8.750"
SHAFT DIAMETER: 3.5"
LINE DIRECTION: R-L
BASE TOP TO CENTER LOWER SPINDLE: 7.625"
MILL BED TO FLOOR 28.5"
EQUIPPED WITH:
ENTRY GUIDE

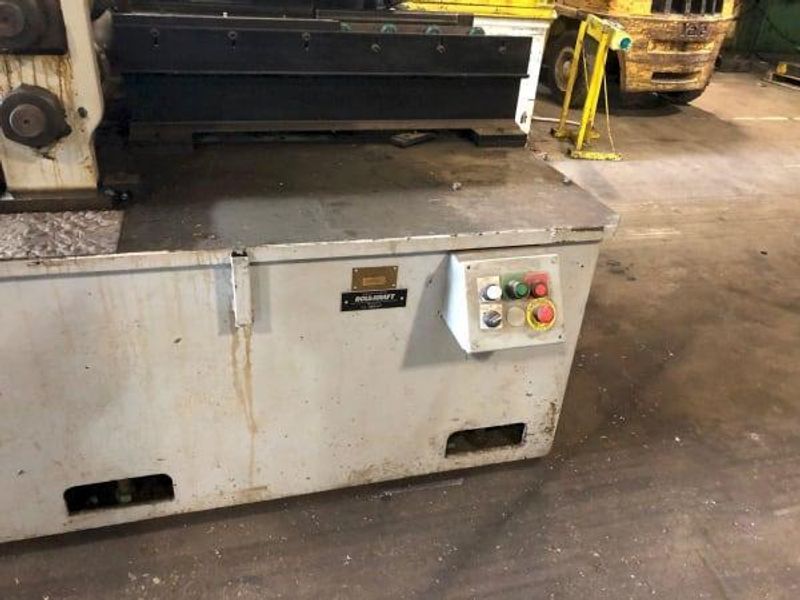

ELECTRICAL PANEL
MOTOR: 40 HP 480 VAC
EQUAL GEARING
OVERALL DIMENSIONS: 30' x 6' x 5'
APPROXIMATE WEIGHT: 30,000 Lbs
