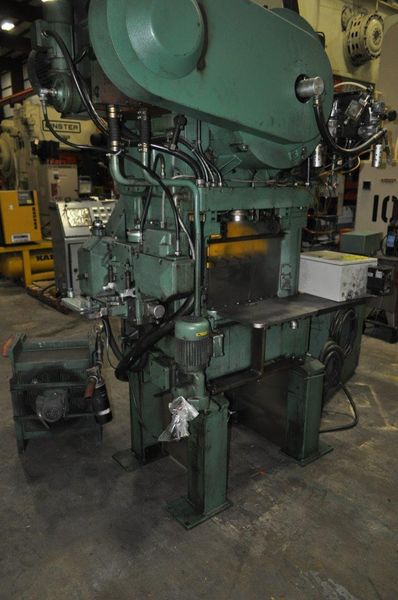

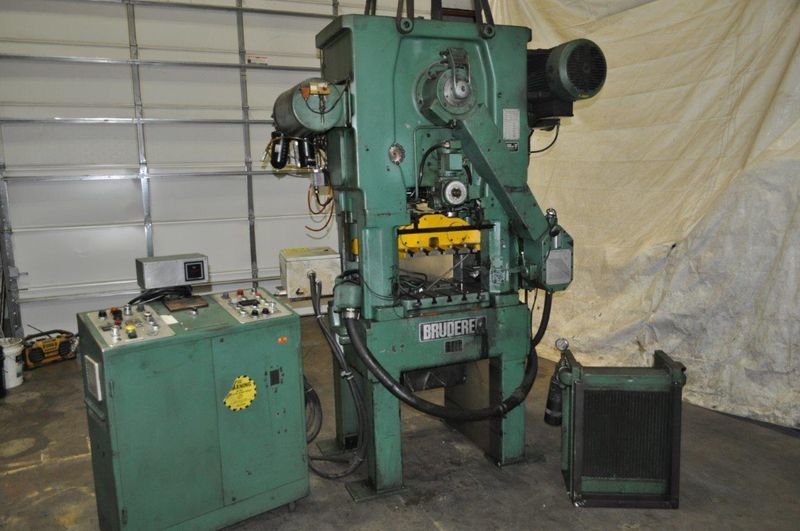

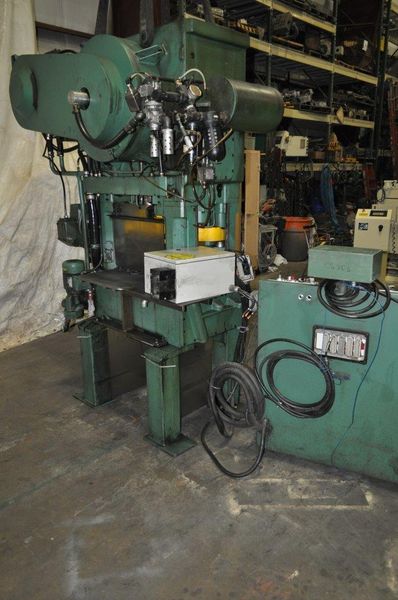

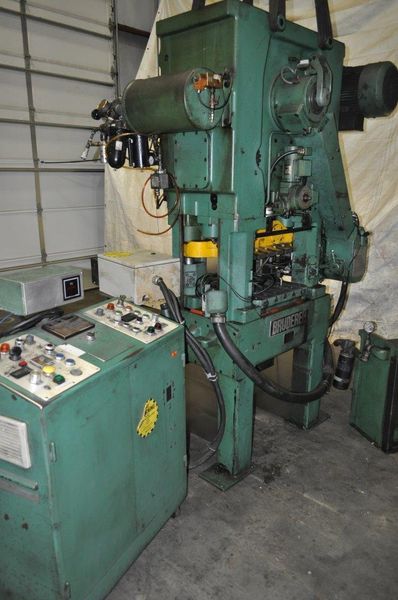

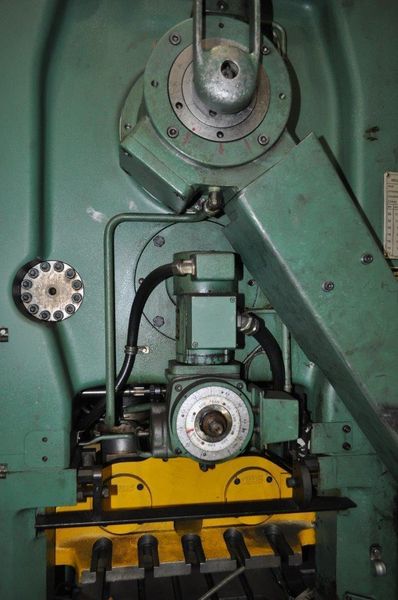

30 Ton Bruderer High Speed Press

Manufacturer

BRUDERER

Category

Presses

Stock

Z20050A

Model

BTSA 30 II

Dealer Location

Ohio

Spec Sheet

Tonnage - 30 tons
Stroke - 1/2" -1 1/2"
Shut Height - 9.17 inches
Ram Adjustment - 0" -2"
Ram Size - 18" x 14 1/2"

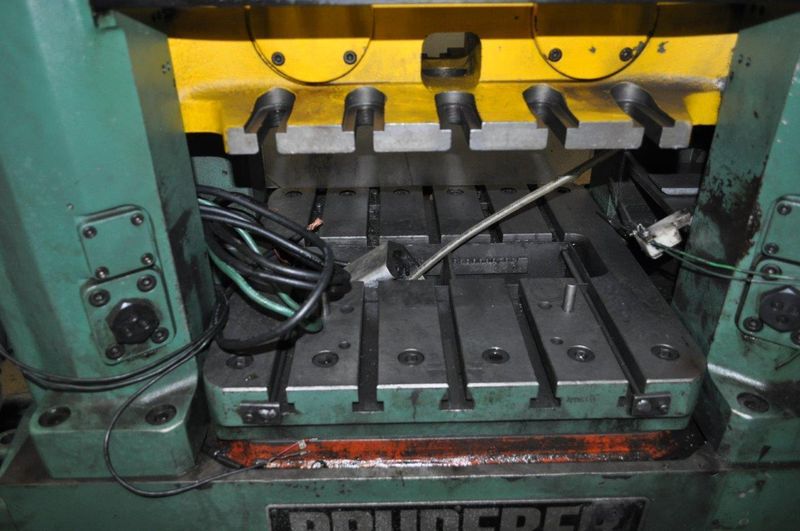

Bed Size - 21" x 20 1/2"

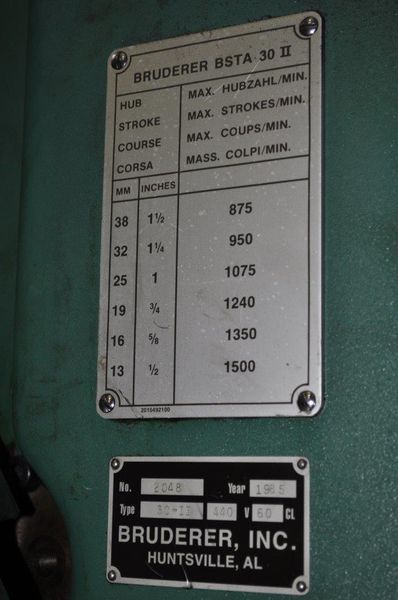

SPM - 875 - 1500
Windows - 9 1/2" Wide
Air Clutch - yes
Air Brake - yes
Motor HP / Electrics - 25 HP /230/460/3/60
Dimensions - 111" LR x52" FB x 98" Tall
order - 30

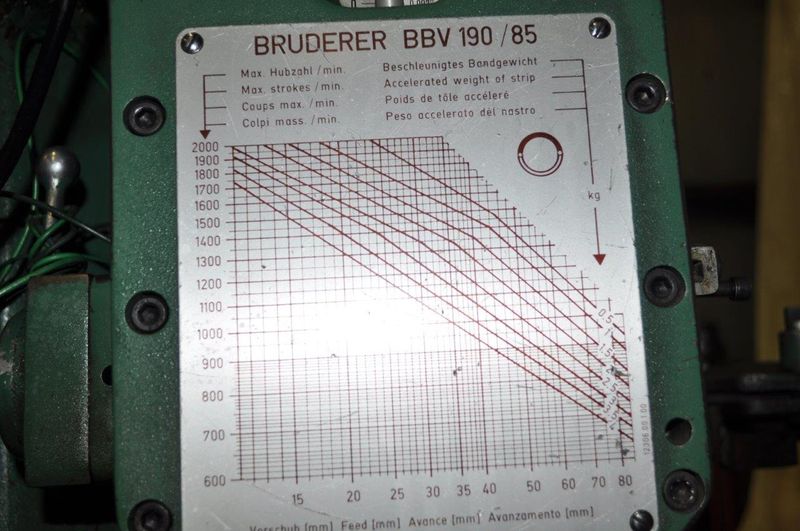

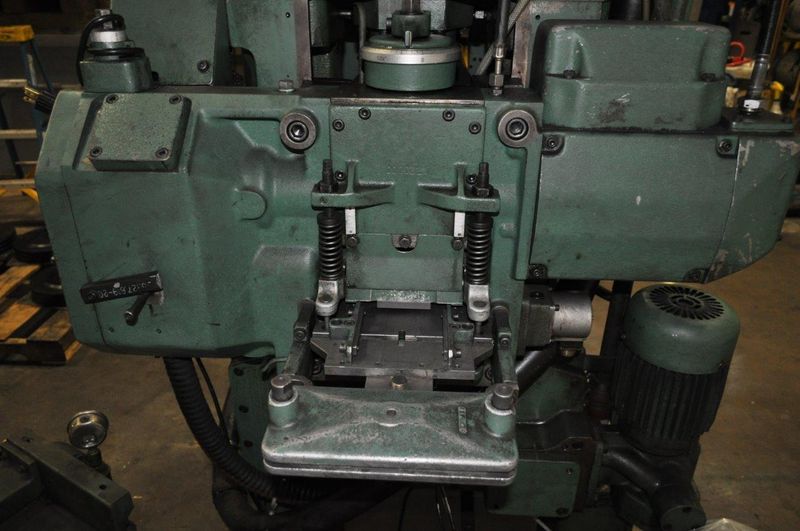

6.3" BBU 190/85 Feeder
.16" Strip Thickness
0 - 3.35" feed lengths
Top Driven Press
Behr Oil Cooler
