20,000 LB x 50" x .040" Minster Servo Feed Line

Manufacturer

MINSTER

Category

Presses

Type

PRESSES, FEED EQUIPMENT

Stock

19077D

Model

None listed

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

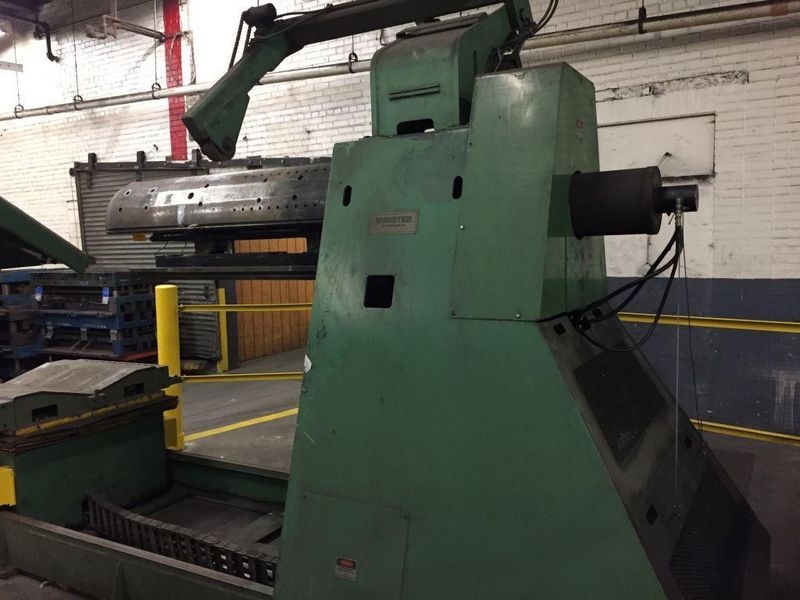

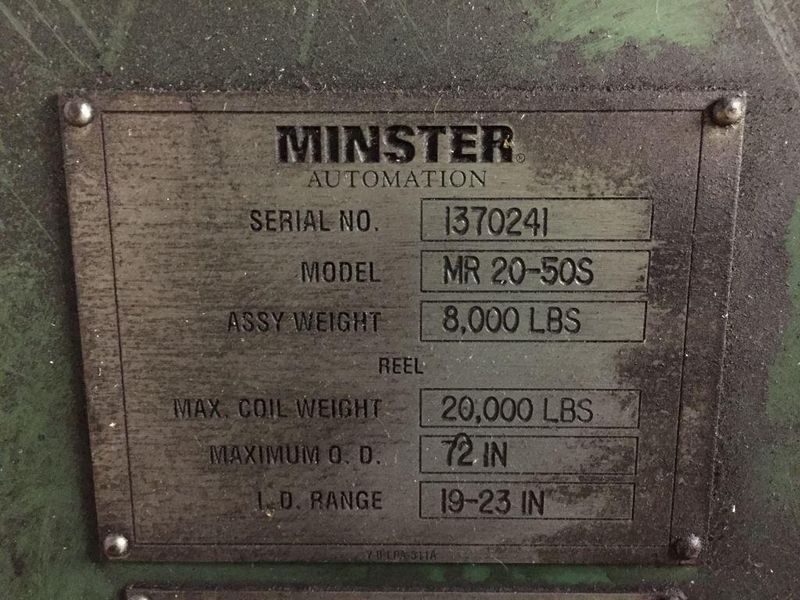

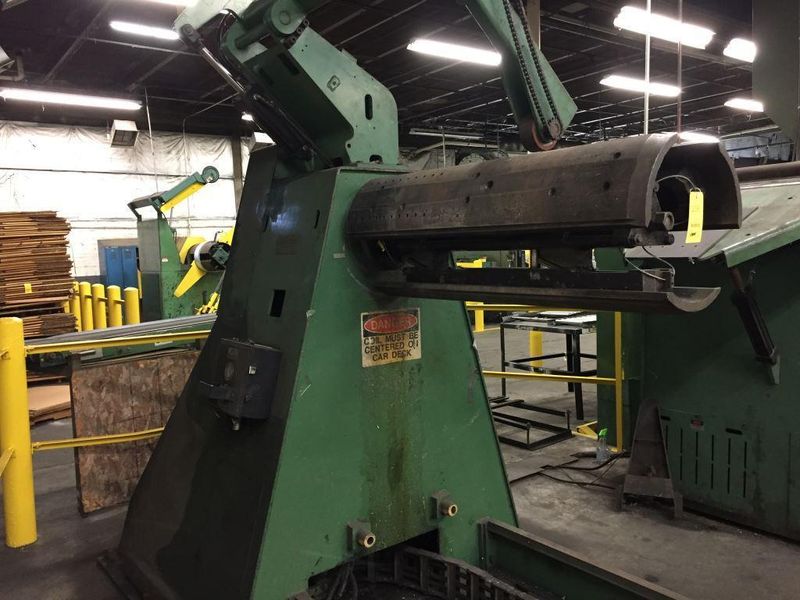

Uncoiler - 20,000 LB x 50" x .040" Minster Motorized Uncoiler
Model - 20-50S
Serial Number - 137070B
Mandrel Length - 54"
ID Capacity - 18.5" - 22.5" ID
OD Capacity - 72"
Expansion - Hydraulic
Motorized - yes
Hold Down Arm - yes
Coil Car - 35,000 LB Coil Car MDL# LC-2H S/N 12-500-24

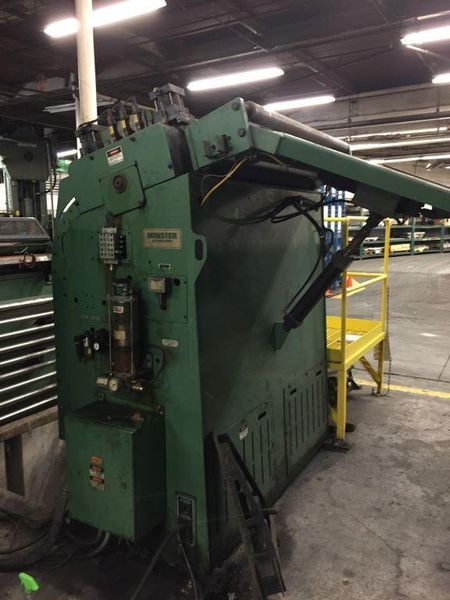

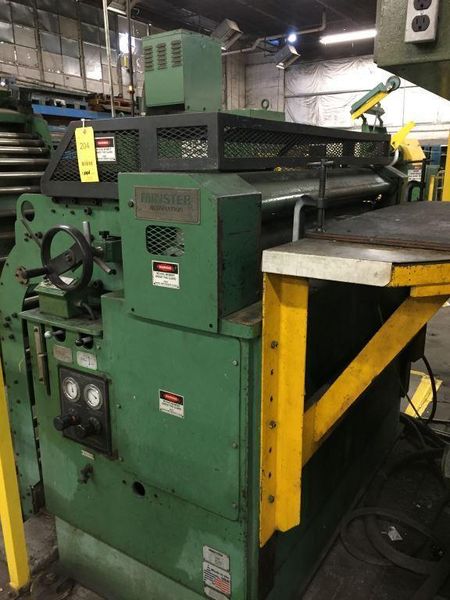

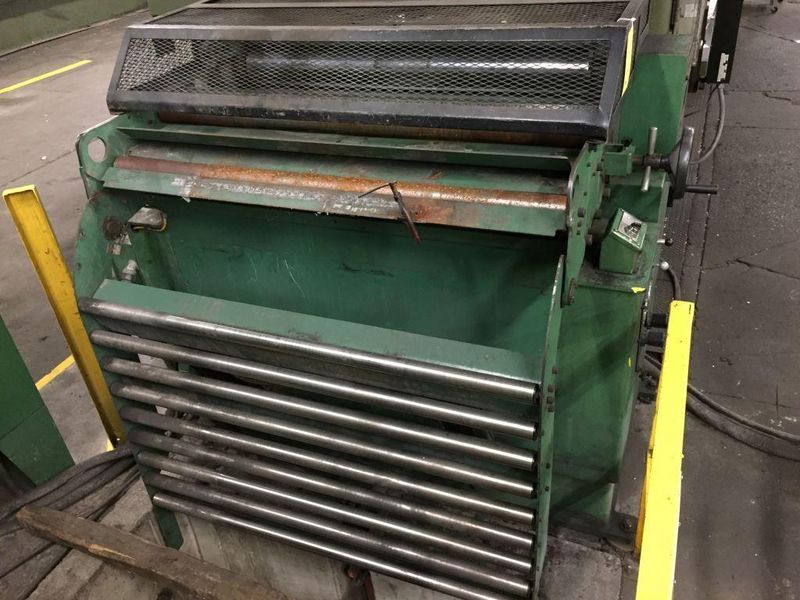

Straightener - 50" x .040" Minster Straightener
Model - MS-20-50-7
Serial Number - 1350094
Maximum Width Capacity - 50"
Thickness Capacity - .010" - .040"
Line Speed - 1200 IPM
Pendant For Jogging - Yes
Cascade Rolls - Yes
Pinch Rolls - Entry And Exit With Air Lift
Peeler - yes
Feeder - 50" x .040" Minster Servo Feeder
Model - MFFS-50MS
Serial Number - 1850207
Maximum Width Capacity - 50"
Thickness Capacity - .010" - .040"
Pilot Release - yes
Feed Lengths - 0-999.99
Adjustable Height Base - Yes
order - 20000
