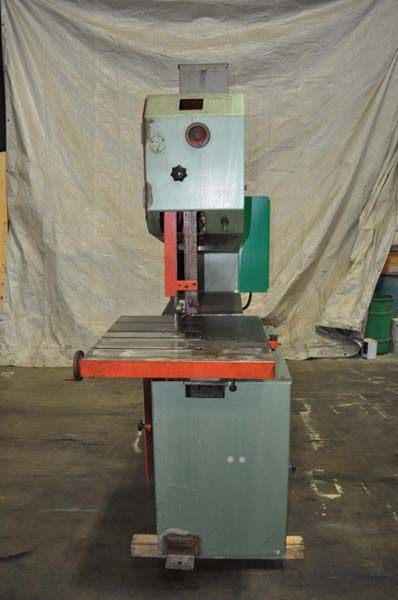

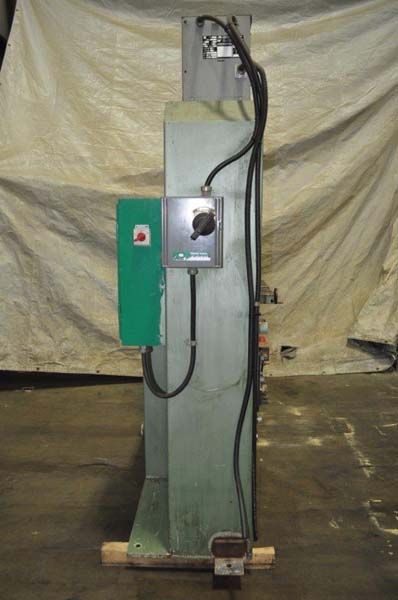

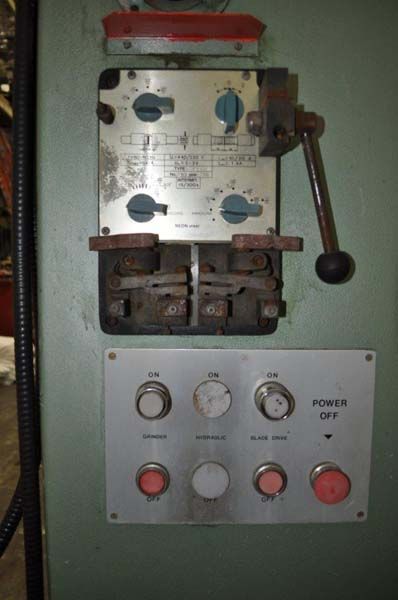

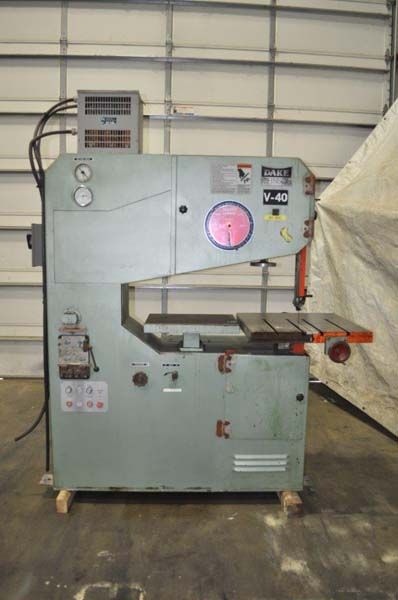

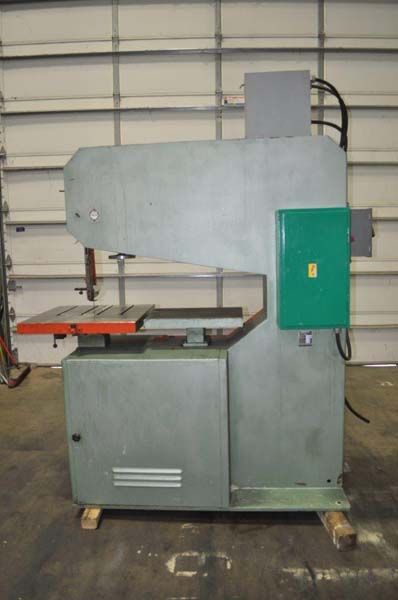

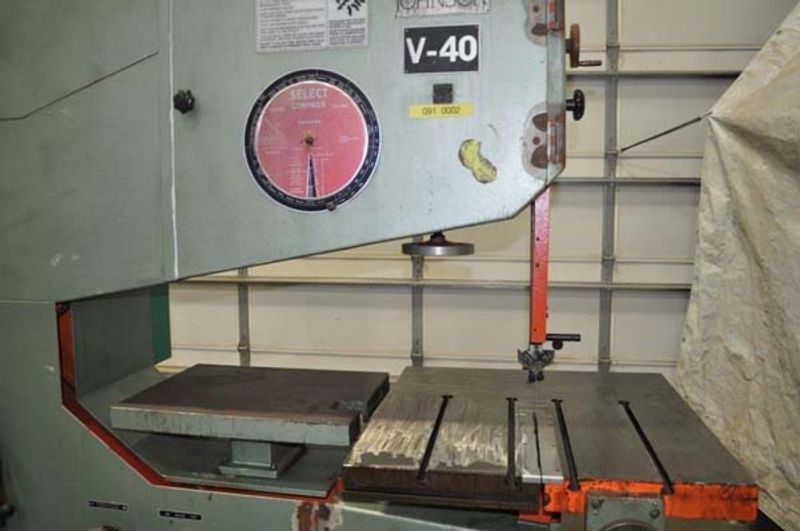

40" DAKE AND JOHNSON VERTICAL BAND SAW

Manufacturer

DAKE JOHNSON

Category

Saws

Type

SAWS, BAND, VERTICAL

Stock

16050E

Model

V-40

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

order - 40


MODEL #:  V-40
SERIAL #:  188630
41" THROAT
13" MAXIMUM WORK HEIGHT
5/16" - 3/4" BLADE WIDTH
26-3/8" x 26-3/8" T SLOTTED TILTING TABLE
10 DEGREES LEFT / 30 DEGREES RIGHT WORK TABLE TILT
50 - 500 FEET PER MINUTE LOW RANGE SPEED
425 - 5000 FEET PER MINUTE HIGH RANGE SPEED
BLADE WELDER
BLADE TENSION INDICATOR
188" BLADE LENGTH
41" WORK TABLE HEIGHT
MANUFACTURED 1987
MOTOR:  2.2 HP
APPROXIMATE DIMENSIONS:  38" LR x 72" FB x 92" TALL
2500 LBS ESTIMATED WEIGHT
GOOD CONDITION
