40,000 x 60" AMERICAN STEEL LINE UNCOILER STRAIGHTENER COMBINATION

40,000 x 60" AMERICAN STEEL LINE UNCOILER STRAIGHTENER COMBINATION

Name: 40,000 x 60" AMERICAN STEEL LINE UNCOILER STRAIGHTENER COMBINATION
Brand: AMERICAN STEEL LINE
SKU: 16011A

Manufacturer

AMERICAN STEEL LINE

Spec Sheet

order - 40000

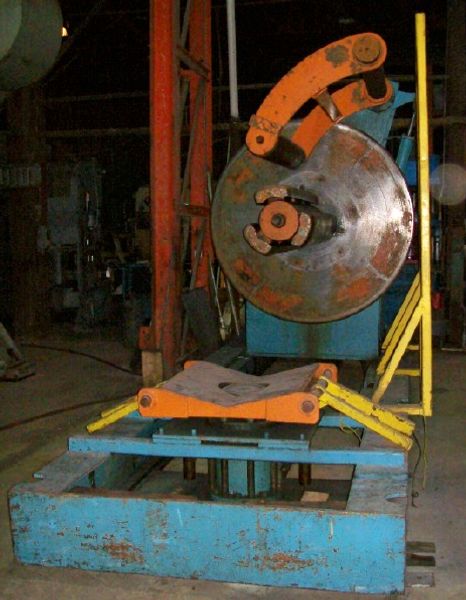

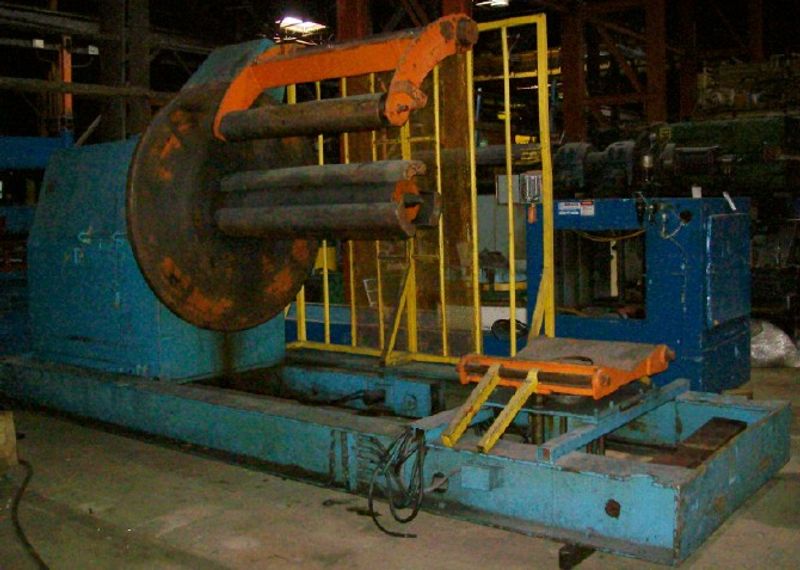

UNCOILER:
MODEL #: 1000
SERIAL #: 5867
19"-24" ID
72" OD
60" MANDREL LENGTH
TRAVELING REEL WITH COIL LIFT
HYDRAULIC EXPANSION
MOTORIZED WITH AIR CLUTCH AND BRAKE
FULL BACKER PLATE
60" SNUBBER ROLL

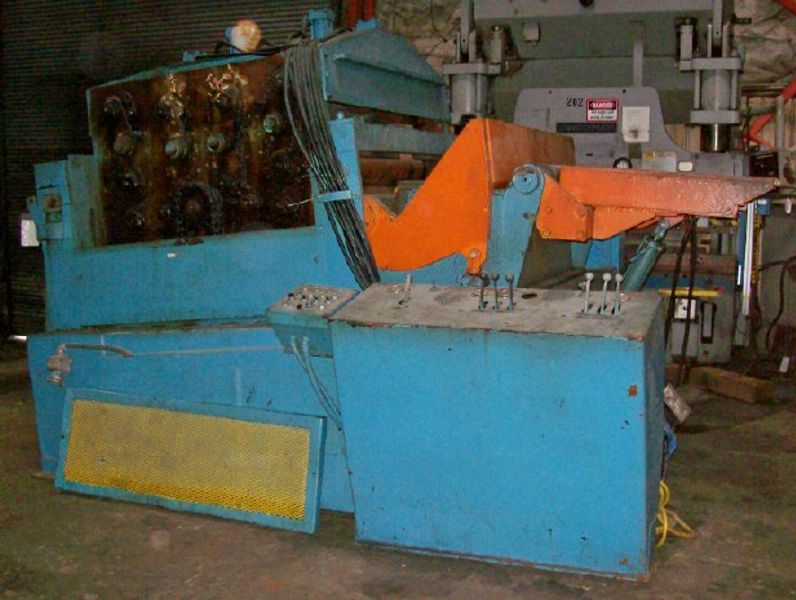

STRAIGHTENER:
MODEL #: 5-5
SERIAL #: 5917
.120" - .200" CAPACITY AT 60" WIDTH
.120" - .260" CAPACITY AT 36" WIDTH

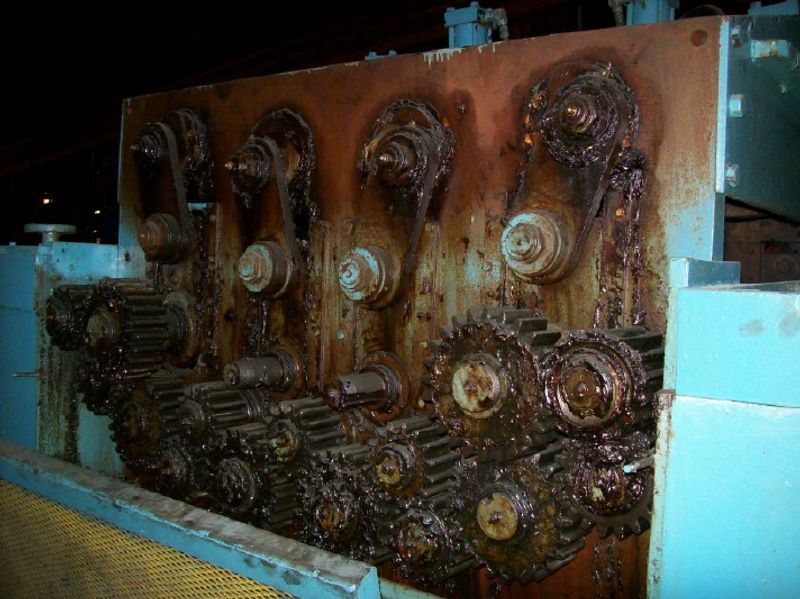

(5) 5" DIAMETER STRAIGHTENING ROLLS
HYDRAULIC ADJUSTMENT ON UPPER ROLLS
8" POWERED DIAMETER ENTRY AND EXIT PINCH ROLLS
BOTTOM AND PINCH ROLLS POWERED
END DE-BENDER

** A NEW SERVO FEEDER CAN BE SOURCED TO MAKE THIS A COMPLETE SERVO FEED LINE
PEELER TABLE

40 HP MOTOR AND CONTROLS

FOR ADDITIONAL $100,000
