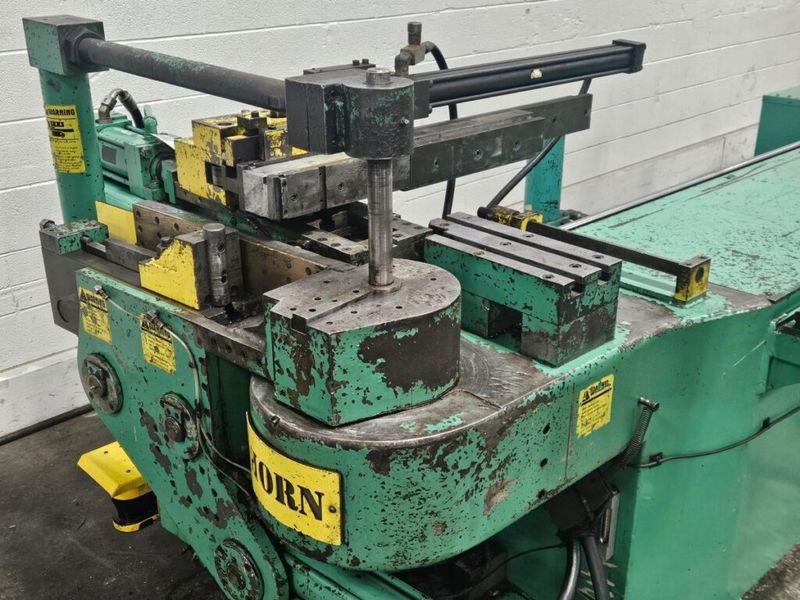

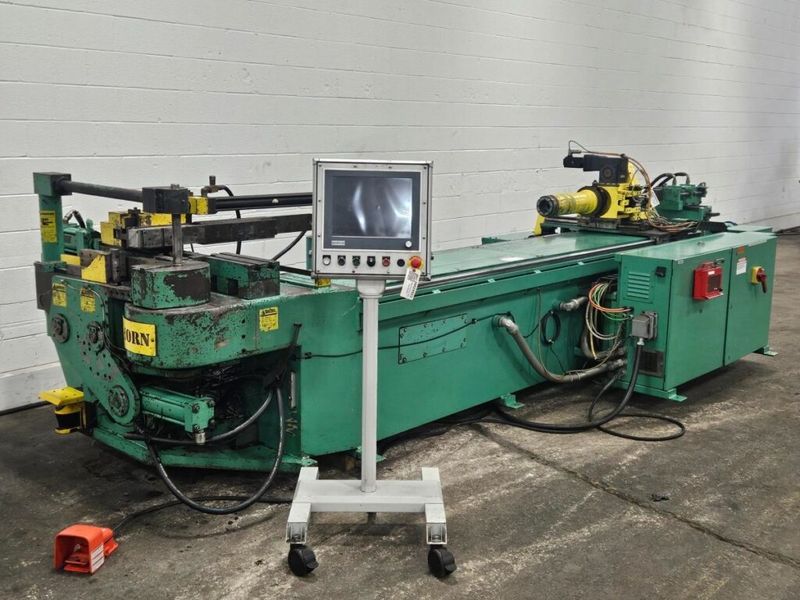

Horn Machine Tools 2LCNC 3″ CNC Tube Bender

Manufacturer

Horn Machine Tools

Category

Benders

Type

BENDERS, HYDRAULIC

Stock

121260028

Model

2L CNCCapacity: 3"

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 121260028
  • Brand: Horn Machine Tools
  • Model: 2L CNC
  • Capacity: 3"

Specifications

  • Minimum Tube OD: 1/4" (approx.)
  • Round Tube: 3" OD
  • Square Tube: 2" x 2" x .195" WT
  • Steel Pipe (Schedule 80): 2" IPS
  • Maximum Tube Length Over Mandrel: 168" (approx.)
  • Maximum Degree Of Bend: 180° + springback
  • Bending Rotation: Left hand (counter clockwise)

Equipped With

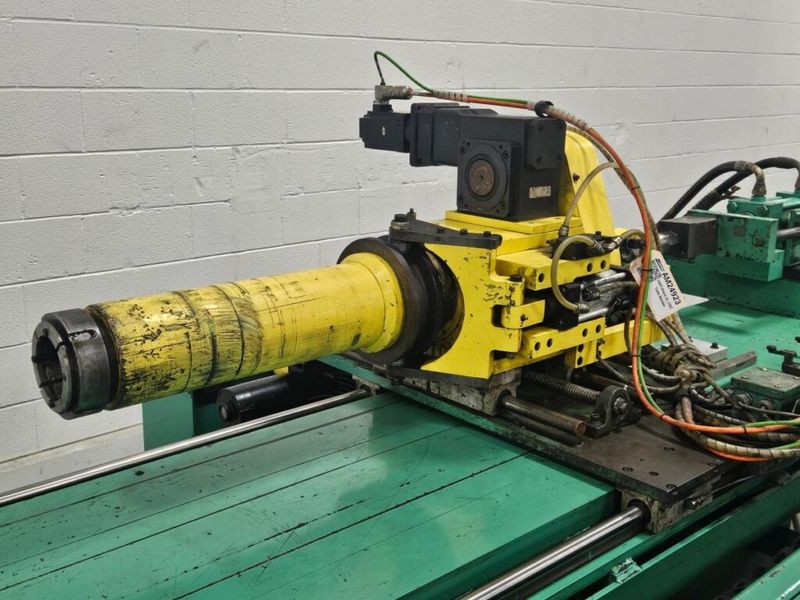

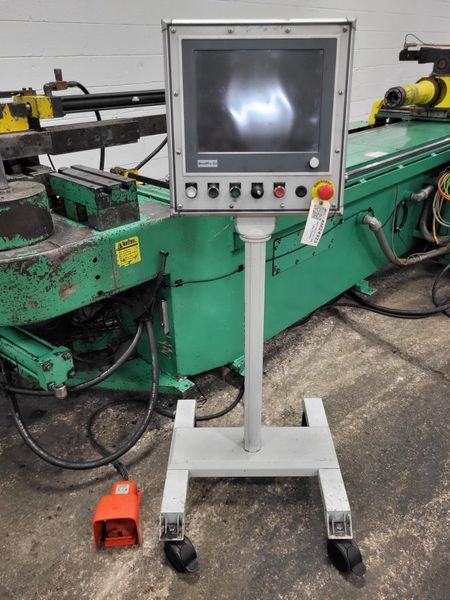

Bendpro G2 CNC Control, Pedestal Mounted Operator Control, Yaskawa Servos, Hydraulic Mandrel Extractor, Hydraulic Pressure Die Assist, Wiper Die Holder, Direct Acting Pressure Die, Drop Away Type Clamp Die, Fully Integrated Hydraulics, Parker Cylinder & Valves, Oil Cooler

Additional Info

Can be inspected upon request
