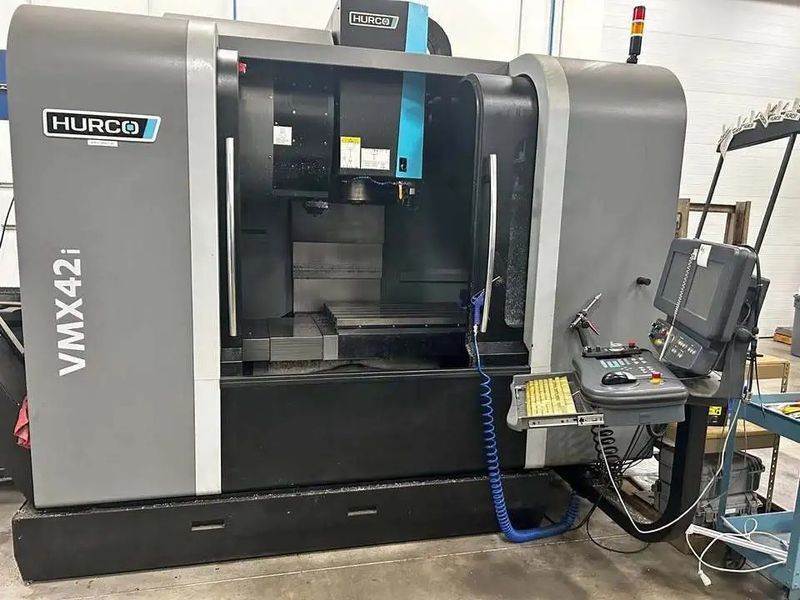

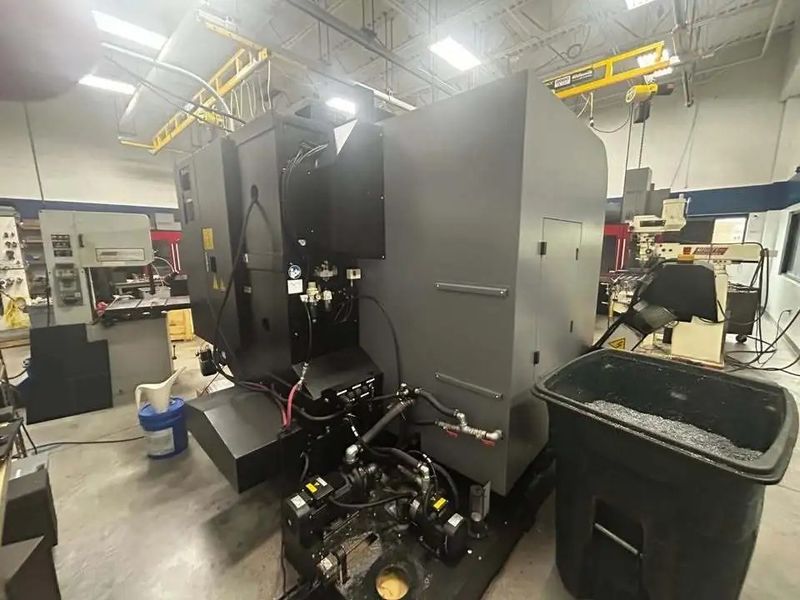

Hurco VMX42i CNC Vertical Machining Center, VMC (2015)

Manufacturer

Hurco

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

143260014

Model

VMX42i

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 143260014
  • Brand: Hurco
  • Model: VMX42i
  • Year: 2015
  • Approx. Shipping Weight: 12,000 LBS.
  • Approx. Shipping Dimensions: 192"L x 102"W x 115"H

Specifications

  • X Travel: 42"
  • Y Travel: 24"
  • Z Travel: 24"
  • Spindle Nose To Table: 6.0 in (152 mm)
  • Table Size: 50 x 24 in (1,270 x 610 mm)
  • T-Slot Size: 5 x .71 in (5 x 18 mm)
  • Max. Weight On Table: 3,850 lb (1,750 kg)
  • Spindle Speed: 12,000 rpm
  • Spindle HP: 24 hp (18 kW)
  • Spindle Torque: 175 ft. lbs @ 1450 rpm (237 Nm @ 1450 rpm)
  • Max RPM: 12,000 RPM
  • Taper: 40
  • # ATC: 30
  • Tool Type: CAT 40 / Big Plus®
  • Rapid Traverse X,Y,Z Axis: 1,181 / 1,181 / 787 in/min (30, 30, 20 m/min)
  • Max Programmable Feedrate: 787 in/min (20 m/min)
  • Max. Operating Floor Space: 152.1 x 146.4 in (3,864 x 3,719 mm)
  • Machine Height: 114.8 in (2,917 mm)

Equipped With

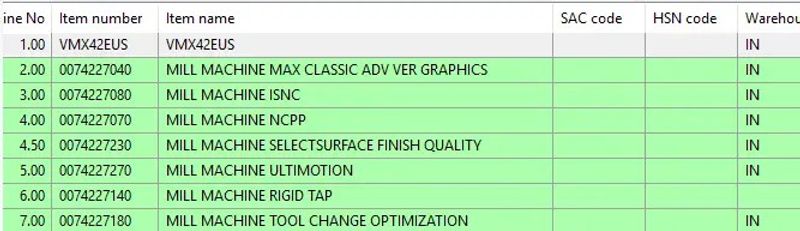

Dual-Monitor Hurco Max 4 Console, Max Classic Adv Ver Graphics, Isnc, Ncpp, Selectsurface Finish Quality, Ultimotion, Rigid Tap, Tool Change Optimization, Through Spindle Coolant, Chip Conveyor
