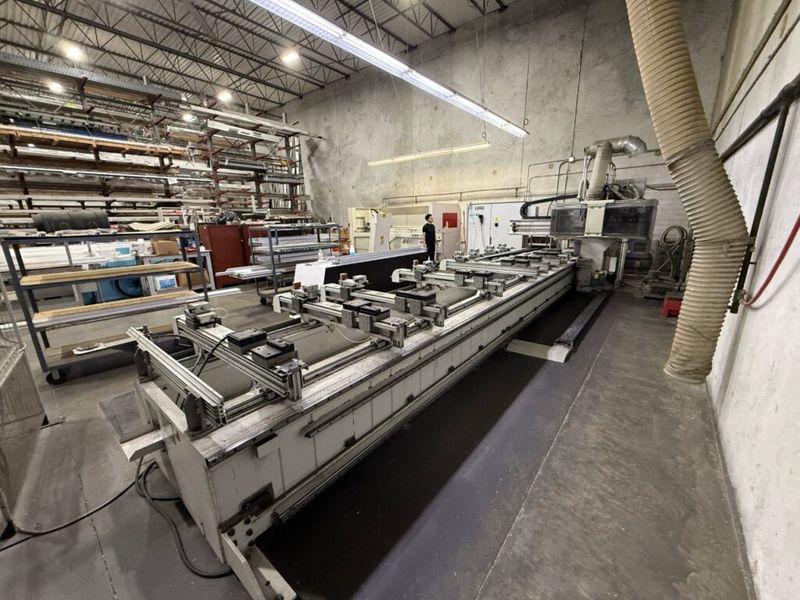

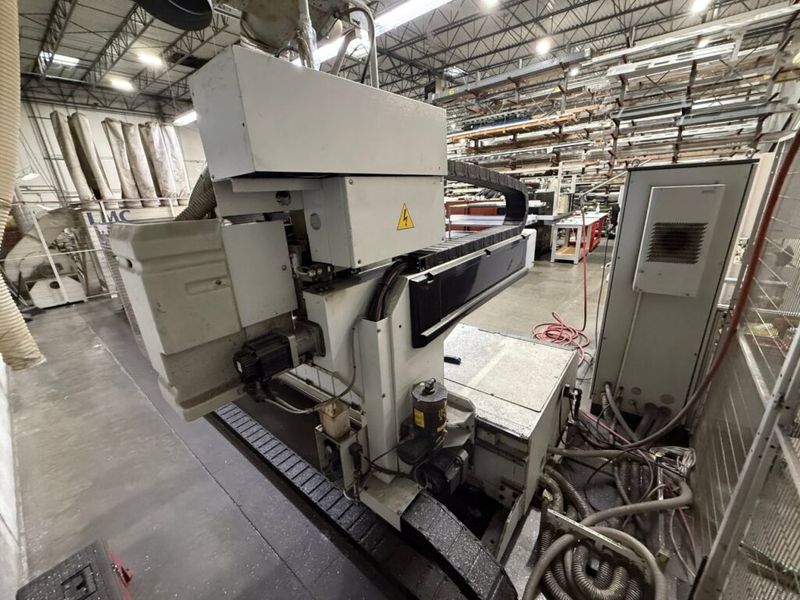

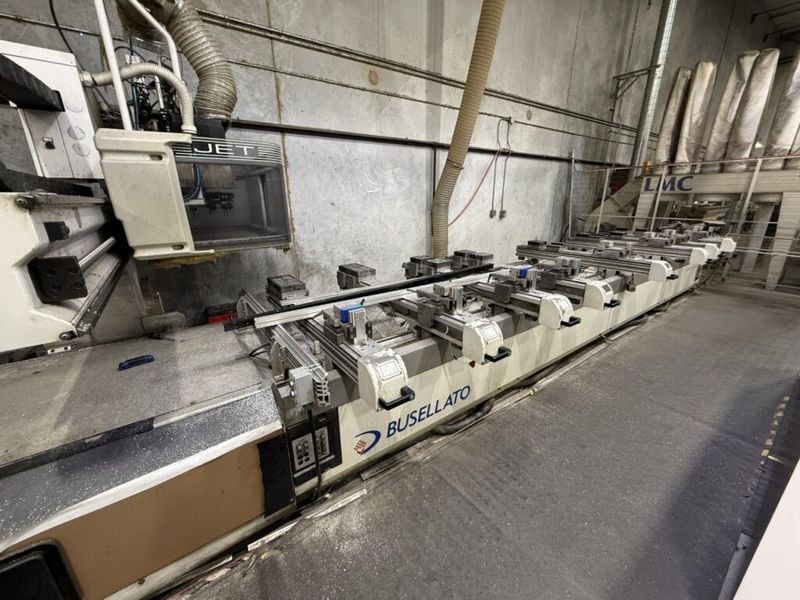

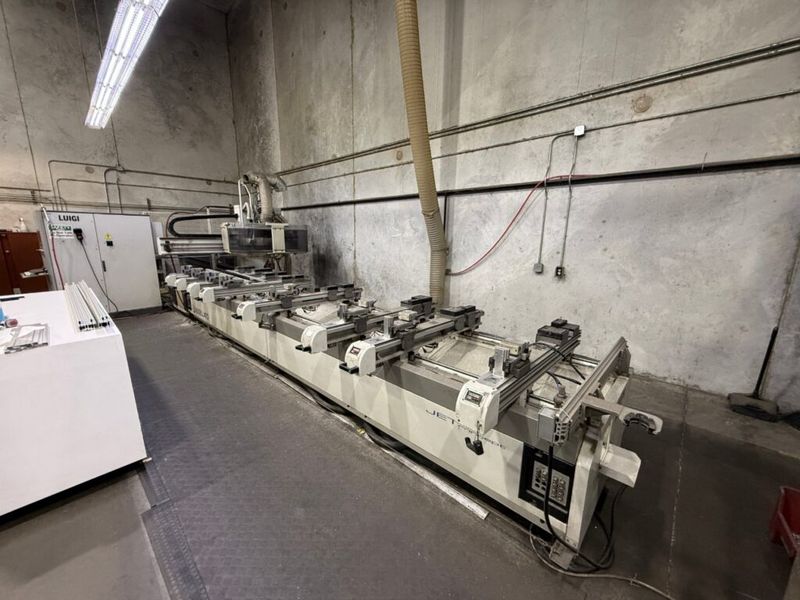

Busellato Jet Concept XXL CNC Machining Center

Manufacturer

Busellato

Category

Woodworking Machines

Type

WOODWORKING MACHINERY

Stock

191260027

Model

Jet Concept XXL

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 191260027
  • Brand: Busellato
  • Model: Jet Concept XXL
  • Serial #: 6409
  • Year: 2008
  • Approx. Shipping Weight: 13,000 lbs
  • Approx. Shipping Dimensions: 21′ L x 7′ W x 6′ H
  • Location: Lithia Springs, GA
  • Loading Fee: Rigging Required

Specifications

  • X Axis: 236″
  • Router Table Length: 120.1″
  • Pod And Rail Table Length: 110.2″
  • Y Axis: 53″
  • Max Panel Thickness: 3.94″
  • Total X Axis Stroke: 256.4″
  • Total Y Axis Stroke: 63.8″
  • Total Z Axis Stroke: 8.1″
  • Max X Axis Positioning Speed: 70mt/min
  • Max Y Axis Positioning Speed: 50mt/min
  • Max Z Axis Positioning Speed: 15mt/min
  • Operating Pressure: 6 bar/90 PSI
  • Dust Hood Diamter: 250mm or 9.84252″
  • Dust Extraction: 3100 CFM
  • Air Fitting: 1/2″
  • Mft Panel Supports: 6
  • Boring Head: TFR27

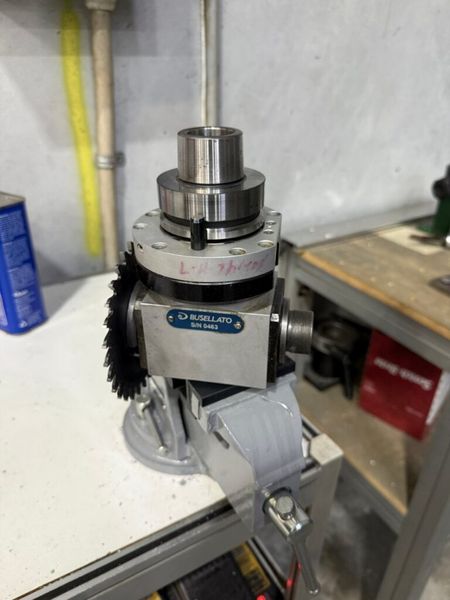

  • Integrated Saw Unit: Yes
  • Spindles: 19 total w/ vertical outlets @ 32mm pitch
  • X Axis Spindles: 11
  • Y Axis Spindles: 8
  • Drilling Force: 65 Kg per spindle
  • Rotational Motor: 3 kW
  • Router Spindle: HSK F63 (16 HP)
  • Rotation Speed: 1000-18000 RPM
  • Tool Attachment: HSK F63 cone
  • Tool Position: 15 (rotary style)
  • Collet: ERG32
  • Unloading Table: 13′

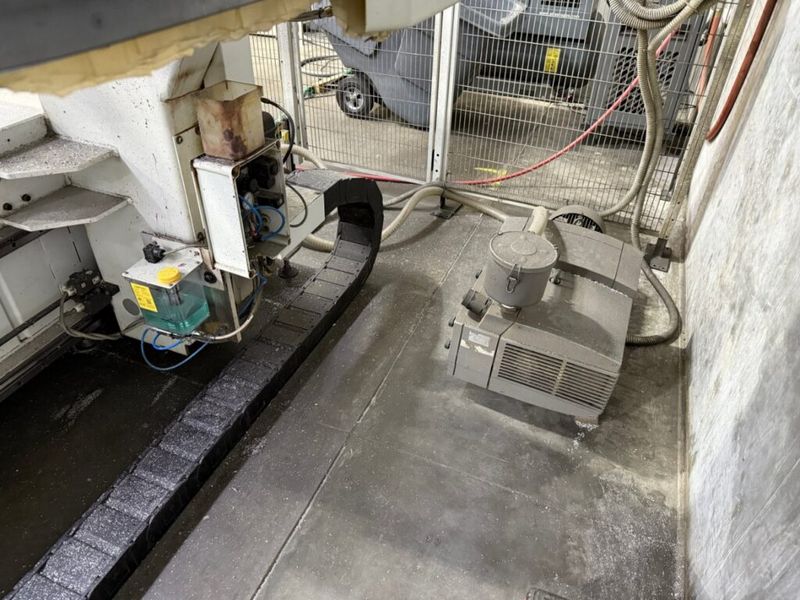

  • Pod & Rail Vacuum Pump: 100 m3/hr rotating vane pump
  • Main Vacuum Pump: 300 CFM / 20HP
  • Main Vacuum Pump Dimensions: 70″L x 30″W x 60″H
  • Voltage: 220/480/60/3PH

Equipped With

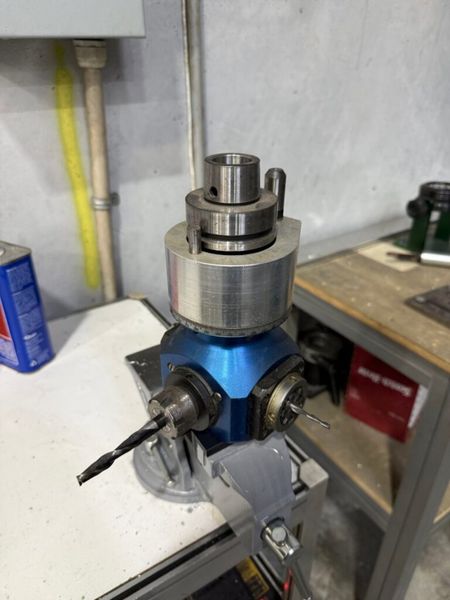

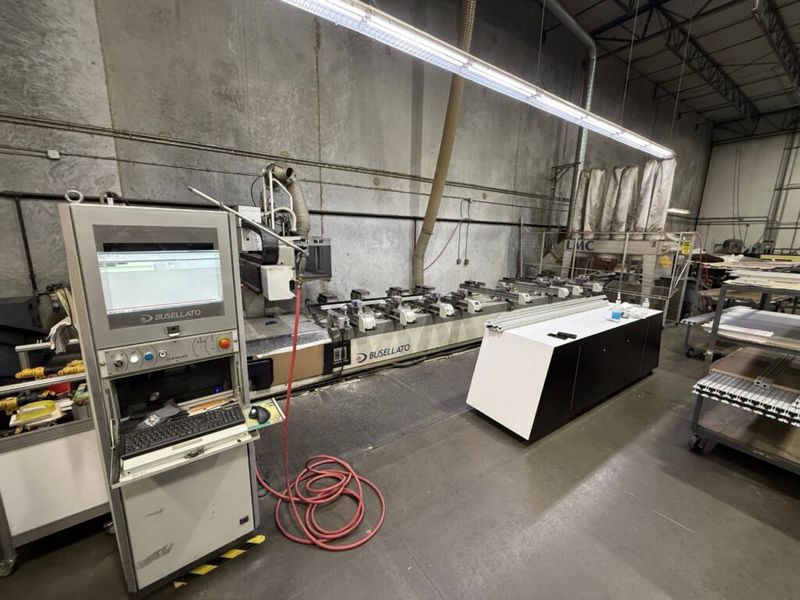

Dual Work Zones, Pod/Rail System, Plenum Table, Aggregate Head For 4Th Axis Machining, 2 Vacuum Pumps, Autolink Conversion Program And Bussellato Controller

Additional Info

Machine is under power and can be demoed upon request. This machine is currently in production and is due to be replaced. This machine is being sold from our client’s facility in GA.
