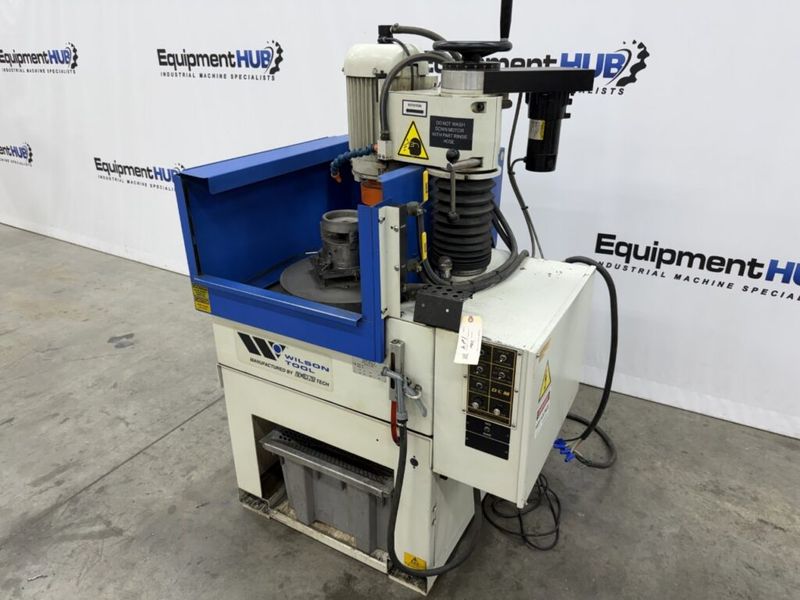

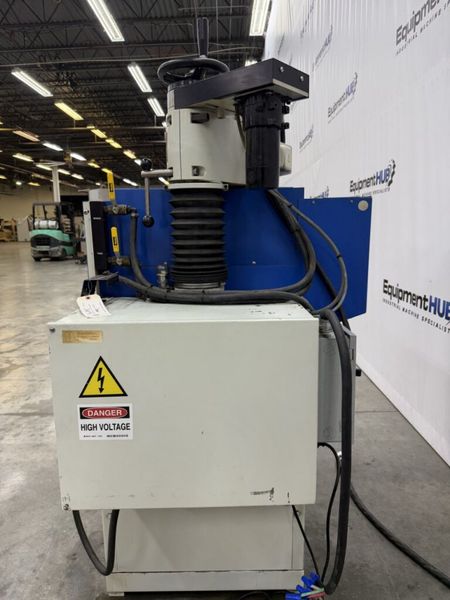

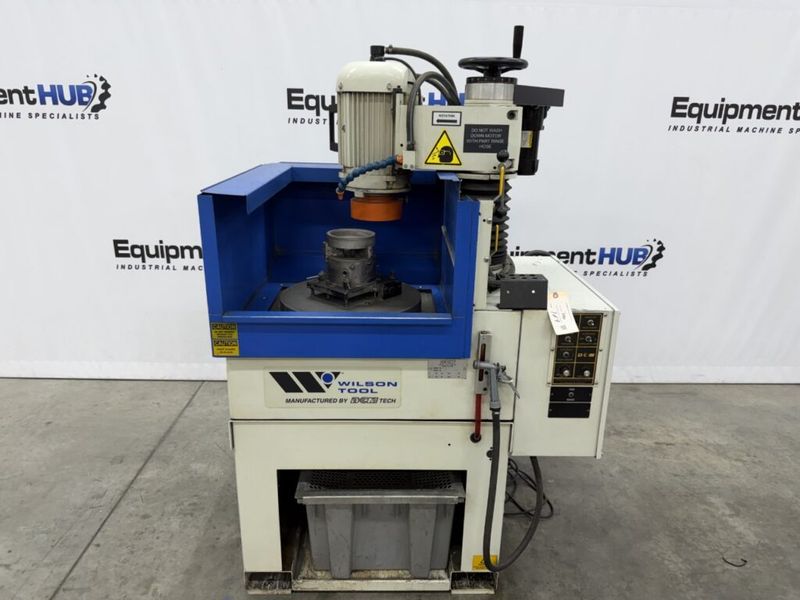

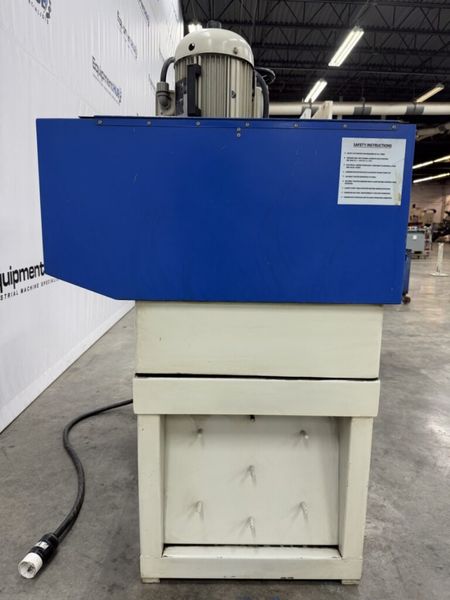

DCM Wilson Tool PDG-5-3 DCAF Automatic Rotary Surface Punch and Die Grinder

Manufacturer

Dcm

Stock

130260060

Model

PDG-5-3 DCAF

Dealer Location

Georgia

Spec Sheet

  • Stock #: 130260060
  • Location: Decatur, GA
  • Brand: Dcm
  • Model: PDG-5-3 DCAF

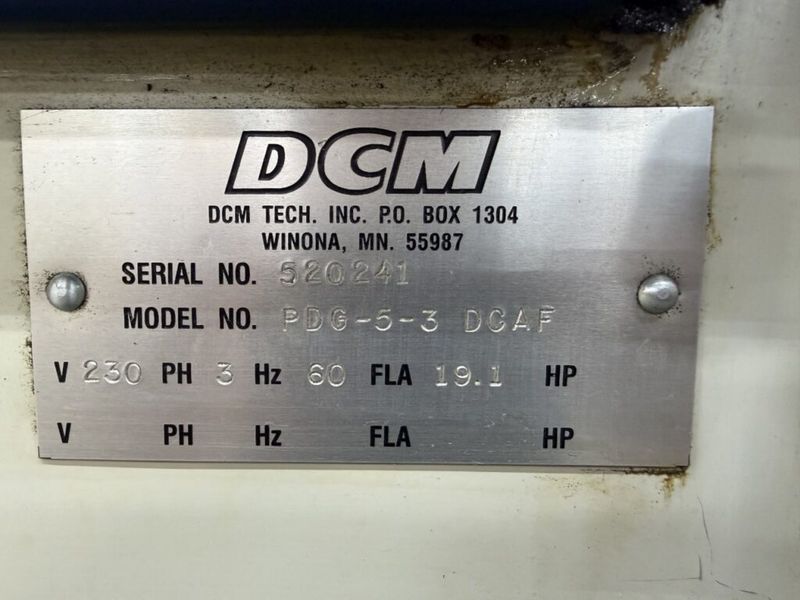

  • Serial Number: 520241
  • Approx. Shipping Weight: 2,000 lbs
  • Approx. Shipping Dimensions: 4′ L x 4′ W x 6′ H
  • Skidding Fee: $150

Specifications

  • Diameter: 18"
  • Maximum: 10"
  • Speed: 3,600 RPM

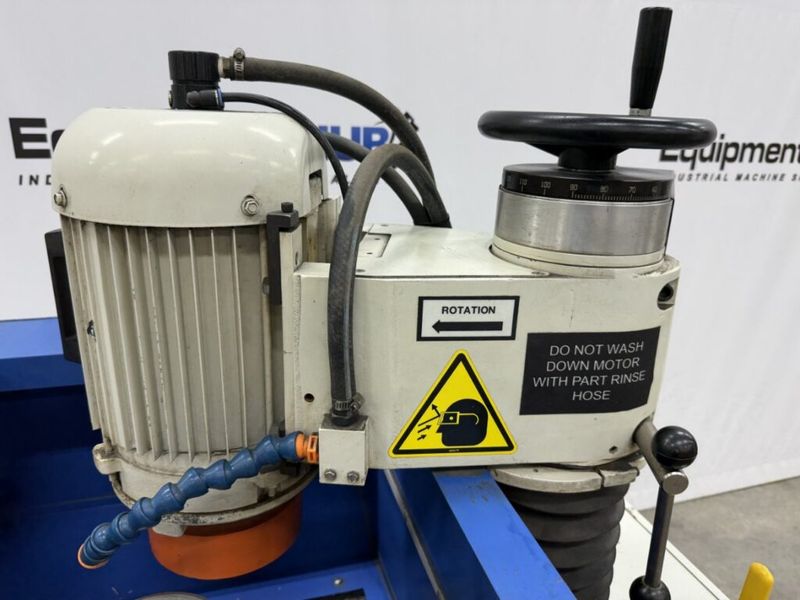

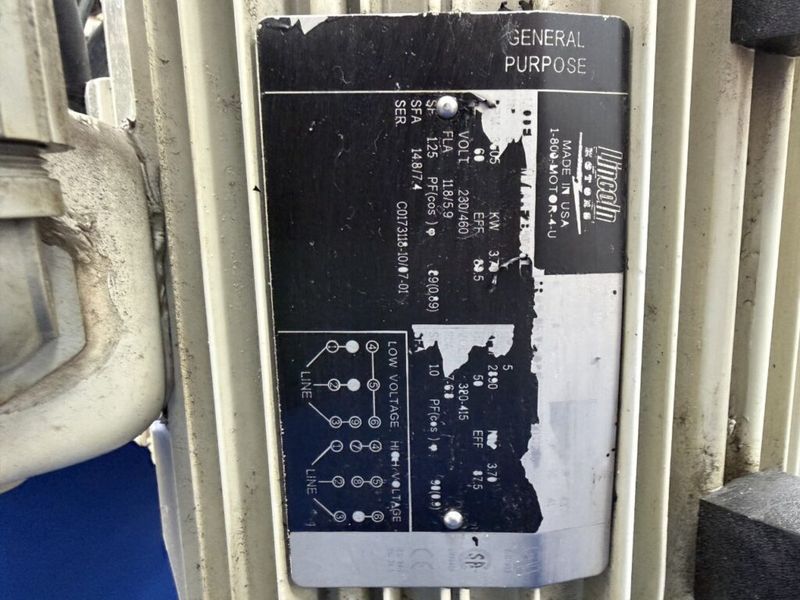

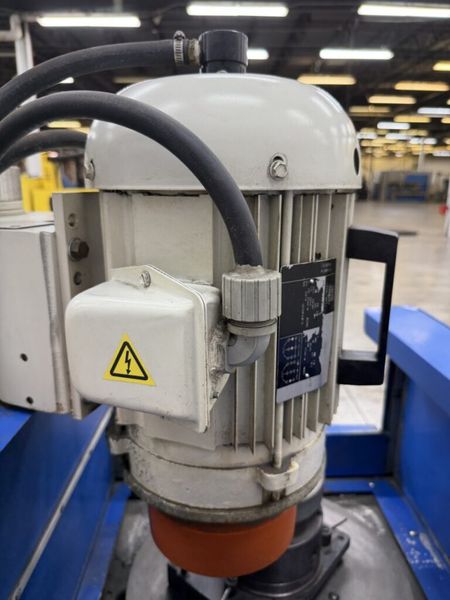

  • Motor: 5HP
  • Autofeed Rate – Infinitely Variable: 0.0005 – 0.020 IPM
  • Manual Handwheel Graduations: 0.001"
  • Cup Wheel Type: 6 or 11
  • Size: 6" OD
  • Spindle Hole: 1-1/4"
  • Tilt Angle: 0 – 10 Deg.
  • 3-Jaw Chuck: 6-1/2"
  • Electrical: 230V/3PH

Equipped With

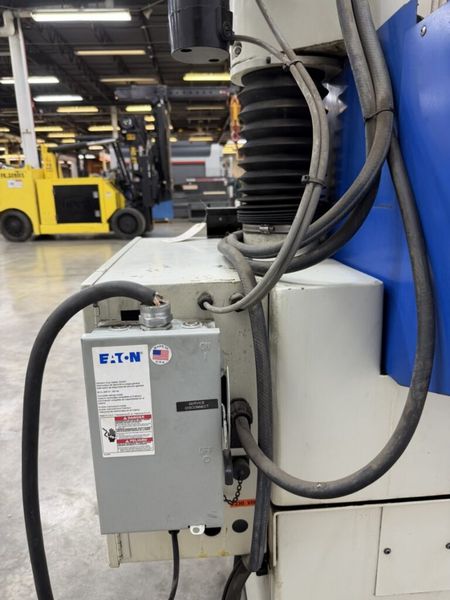

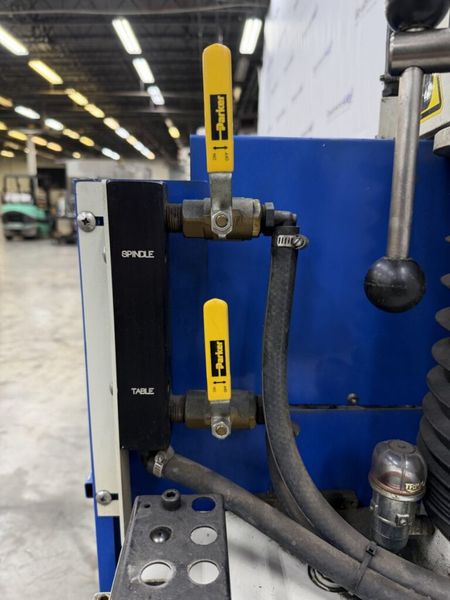

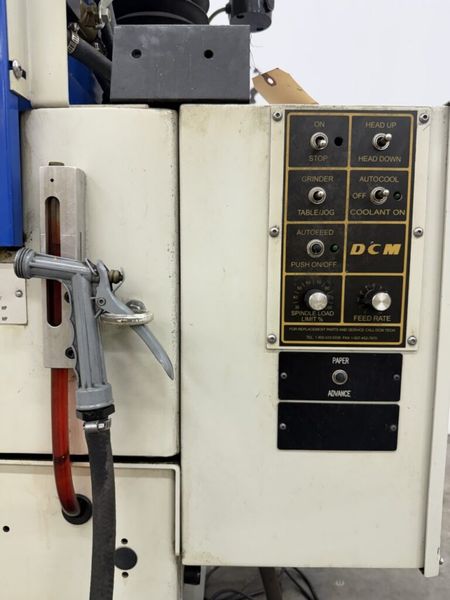

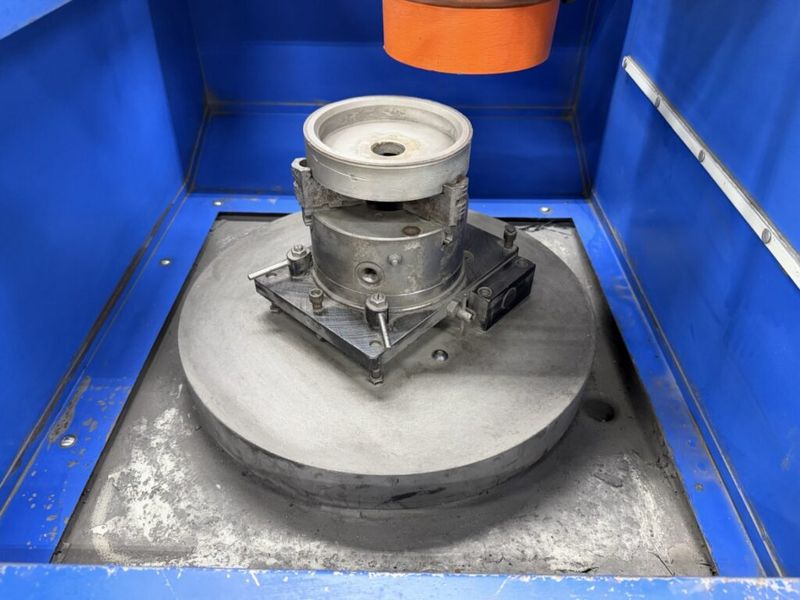

Rotary Magnetic Chuck, Punch And Die Grinding Fixture Mounted On Chuck, Flood Coolant System With Flexible Nozzle, Under-Base Coolant Tank, Coolant Spray Gun, Eaton 30A Service Disconnect, Blue Splash-Guard Enclosure

Additional Info

The Wilson Tool Grinder can be demoed upon request. Check out the video on the listing to see it in operation.
