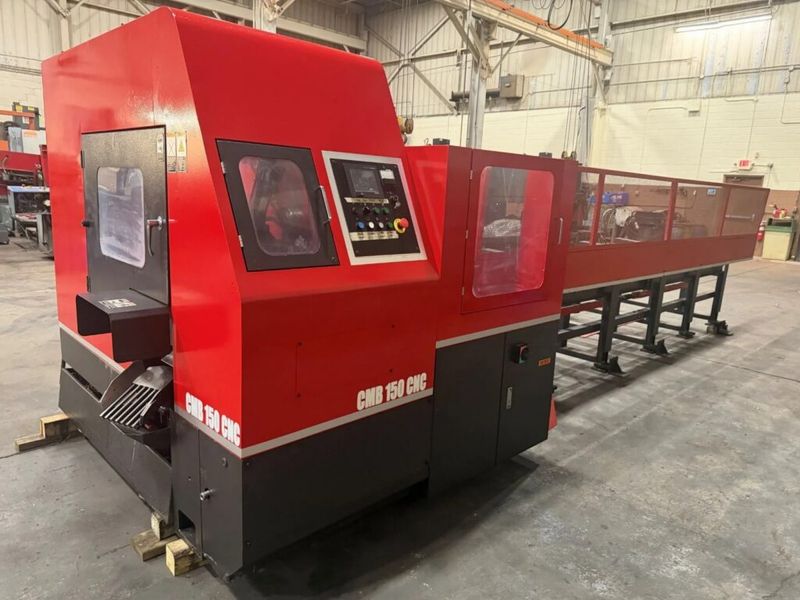

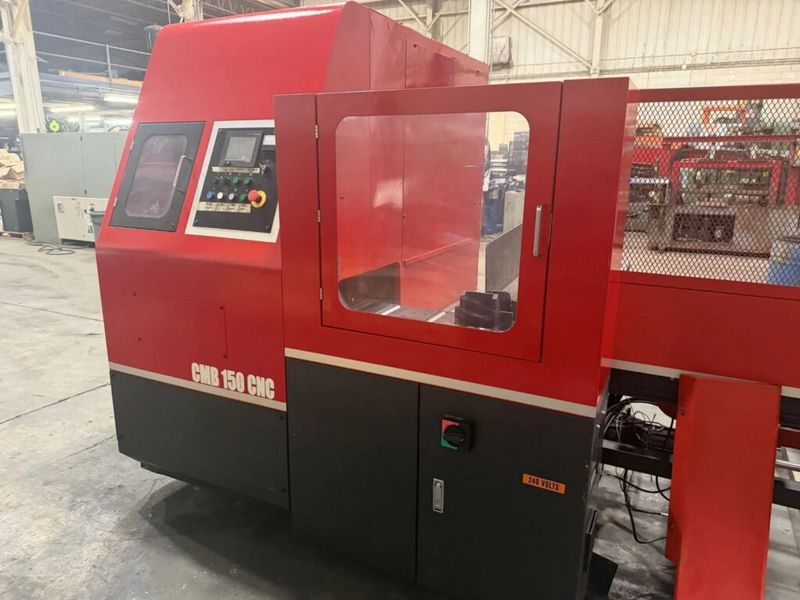

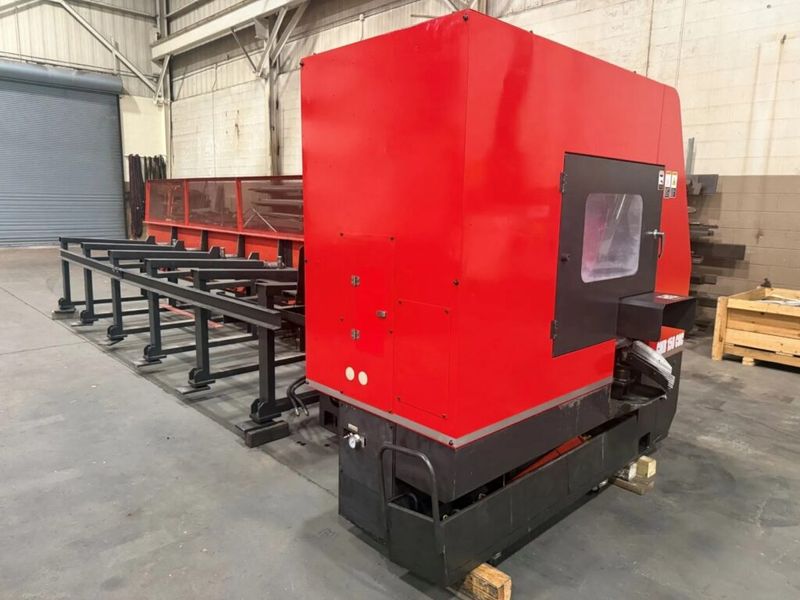

Amada CMB 150 6″ Fully Automatic Circular Cold Saw

Manufacturer

Amada

Category

Saws

Type

SAWS, GENERAL

Stock

153260021

Model

CMB 150

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 153260021
  • Brand: Amada
  • Model: CMB 150
  • Year: 2012

Specifications

  • Blade Dia: 18"
  • Power: 15 hp
  • Round Capacity: 2.95" – 6"
  • Rectangle Capacity: 2.95" x 2.95" – 3.94" x 3.94"
  • Maximum Stock Table Loading Capacity: 19’7" x 6" x 3 bars or 5,732 lbs.

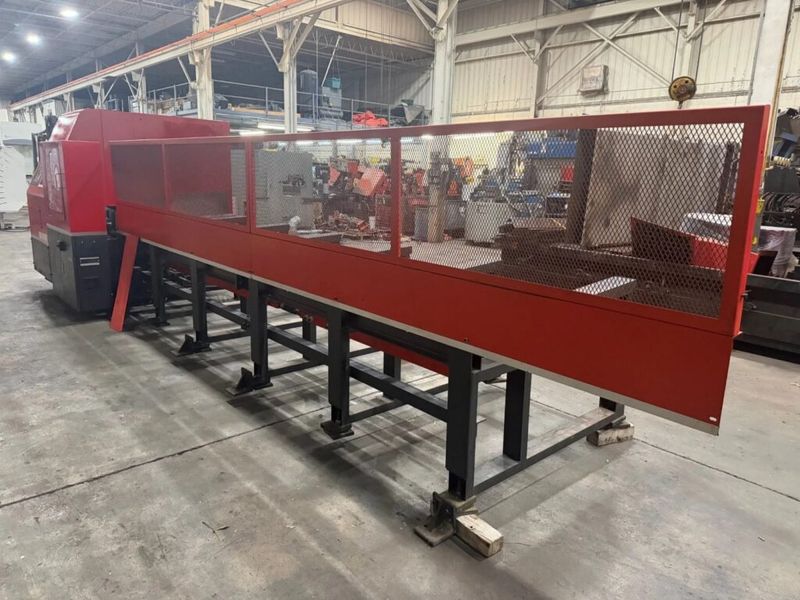

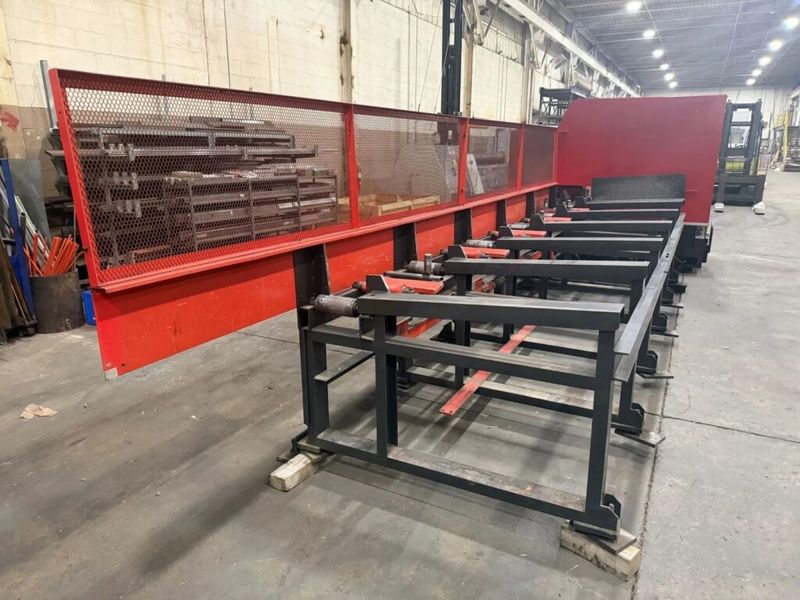

  • Incline Table Dimensions: 17’8" x 46.9" x 44"
  • Material Index Stroke: 29.7"
  • Material Index Length: 1.78" – 472.44" (with multi stroke)
  • End Trim Length: 0.78" – 1.57"
  • Remnant Length: 1.77"

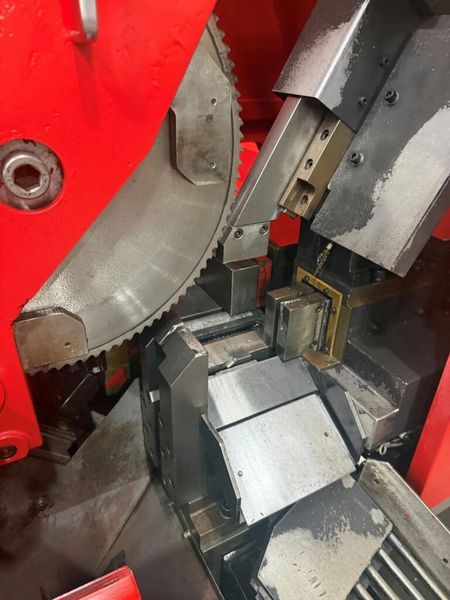

  • Saw Blade Dimensions: 18.1" x 1.97" x 0.11"
  • Blade Speed: 39 – 149 RPM (inverter driven)
  • Feed Motor: 2.75 H.P.
  • Blade Motor: 15 H.P.
  • Hydraulic Pump Motor: 2 H.P.
  • Cut To Length Feed Motor: 3/4 H.P.
  • Hydraulic Tank Capacity: 5.3 gallons
  • Table Height: 31.5"
  • Machine Dimensions: 85.1" x 77.4" x 74.1"
  • Machine Weight: 6,613 Lbs.

Equipped With

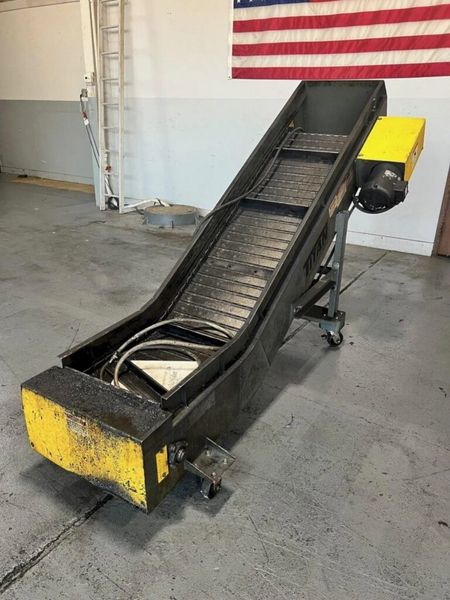

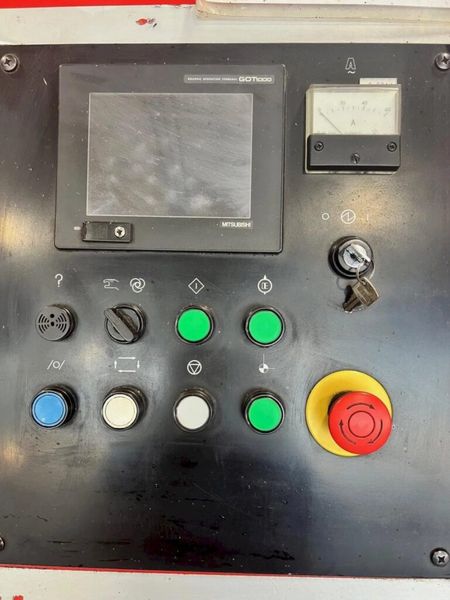

Mist Coolant, Chip Conveyor, Mitsubishi Plc Control, Automatic Sorting Of Cut Parts, Automatic Trim Cut, Anti-Backlash Device, Cut Piece Counter, Carbide Stabilizer Pads, Amp Meter, Dyna Guide Linear Blade Guide System, Wire Chip Brush
