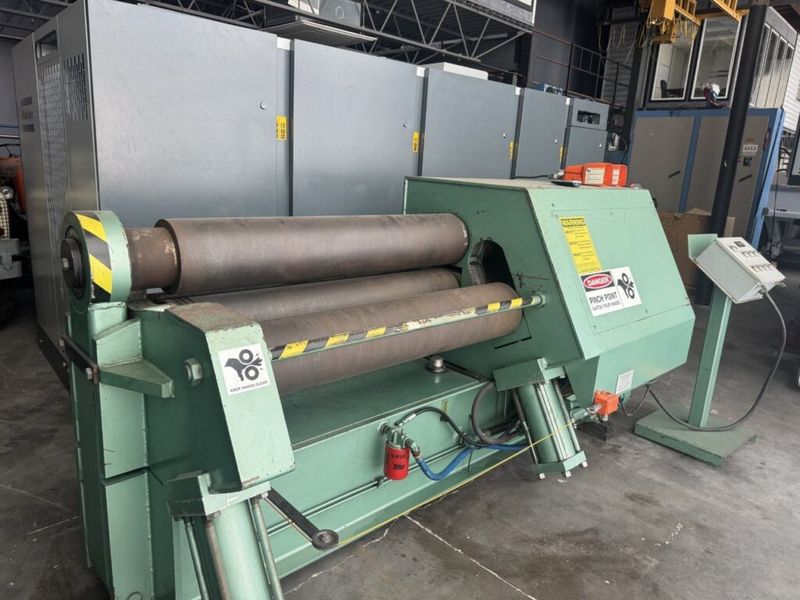

JM Montgomery 4850-H 3-Roll 1/2″ x 4′ Hydraulic Plate Bending Roll

Manufacturer

Jm Montgomery

Category

Rolls

Stock

221260001

Model

4850-H

Dealer Location

Georgia

Spec Sheet

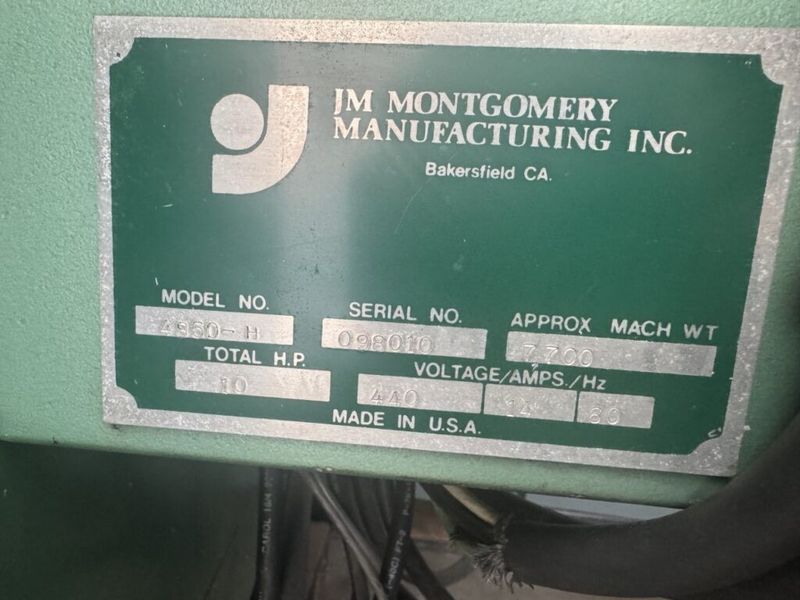

  • Stock #: 221260001
  • Brand: Jm Montgomery
  • Model: 4850-H
  • Serial Number: 098010
  • Approximate Shipping Weight: 7,700 Lbs.

Specifications

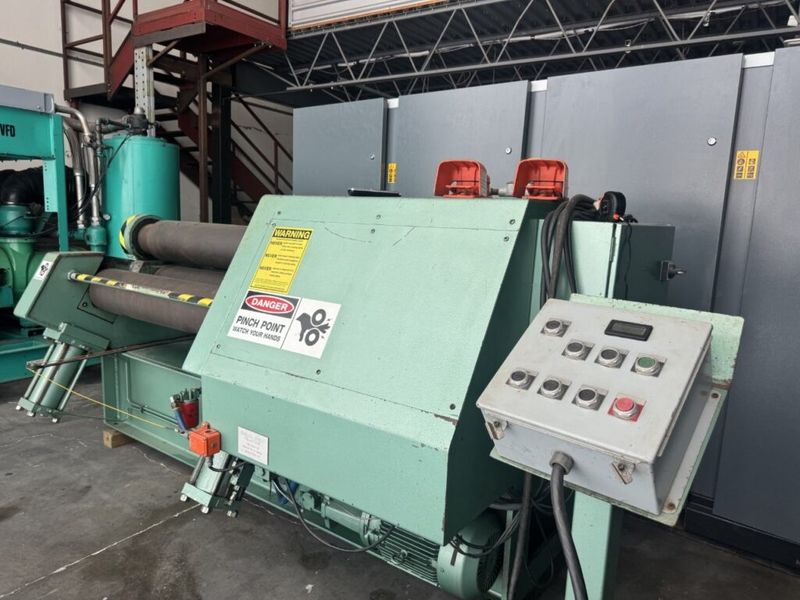

  • Control: Pendant-mounted push button control station with digital readout
  • Voltage: 440V / 3 Phase / 60 Hz
  • Full Load Amps: 14 Amps
  • Total Horsepower: 10 HP

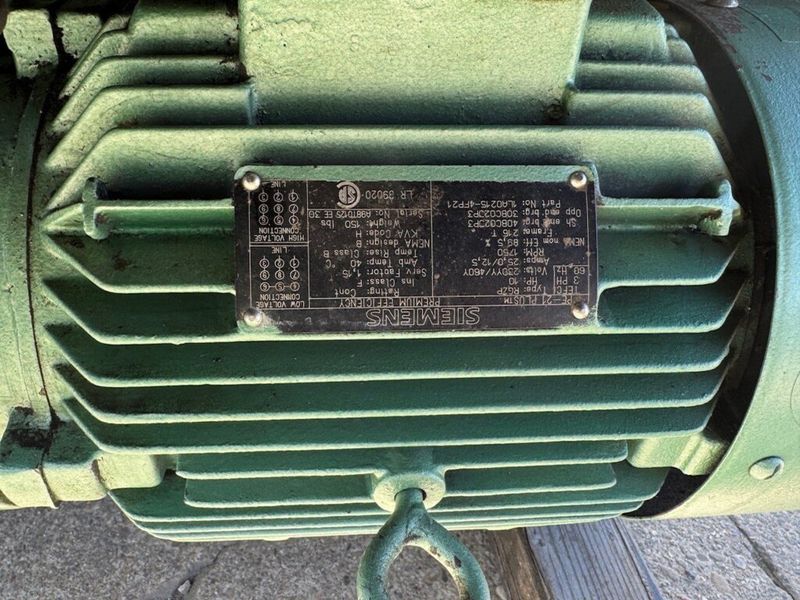

  • Main Drive Motor: Siemens 10 HP, 1750 RPM, 230/460V, 3 PH, Frame 215T
  • Roll Configuration: 3-Roll, hydraulic
  • Country Of Manufacture: Made in U.S.A.

Equipped With

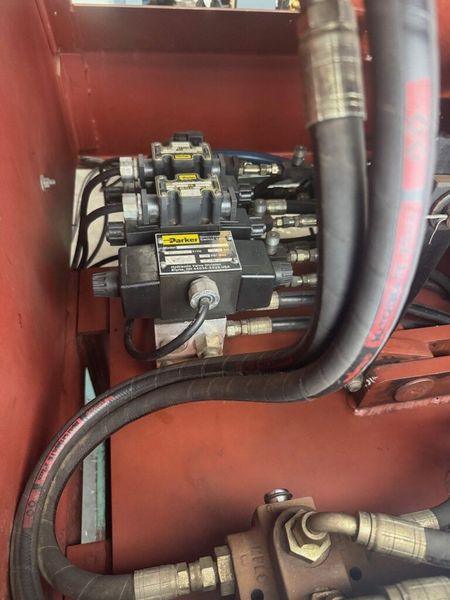

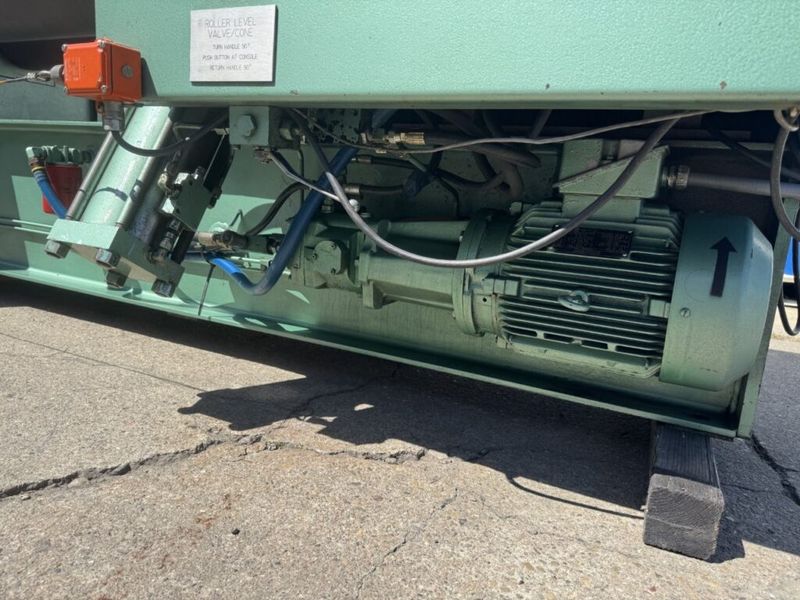

Pendant Control Station On Floor Stand, Dual Foot Pedal Controls, Hydraulic Drop-End For Part Removal, Hydraulic Side Roll Cylinders, Cone Rolling / Roller Level Valve Function, Parker Directional Control Valves, Hydraulic Power Unit
