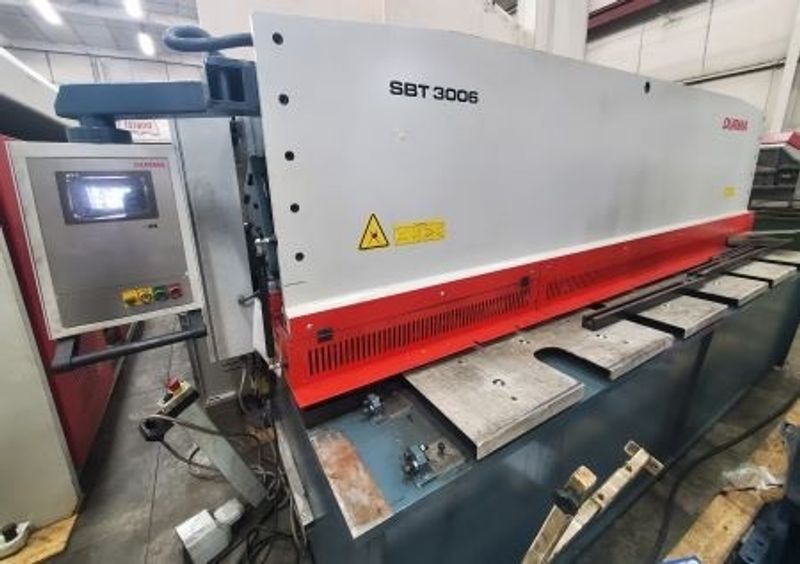

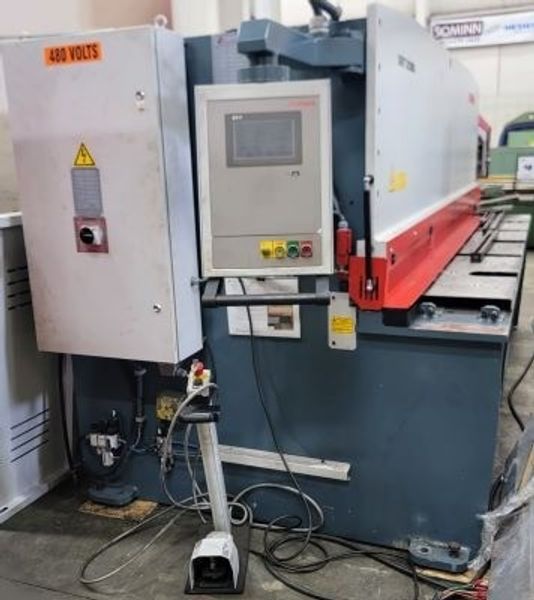

Durma SBT 3006 10′ 2″ x 1/4″ Hydraulic Swingbeam Shear (2019)

Manufacturer

Durma

Category

Shears

Stock

153260008

Model

SBT 3006

Dealer Location

Georgia

Spec Sheet

  • Stock #: 153260008
  • Brand: Durma
  • Model: SBT 3006
  • Year: 2019

Specifications

  • Cutting Length: 10′ 2"
  • Cutting Capacity – Mild Steel: 0.236"
  • Cutting Capacity – Stainless Steel: 0.157"
  • Throat Depth: 1.96"
  • Strokes Per Minute: 15 SPM
  • Cutting Angle: 1.5 Degrees
  • Holddowns: 16
  • Holddown Force: 31,500
  • Backgauge Range: 39.37"
  • Backgauge Power: 1 HP
  • Backgauge Speed: 4.72"/Second
  • Motor: 20 HP, 3 Phase, 480 Volts
  • Oil Capacity: 52 Gallons
  • Table Length: 11′ 6"
  • Table Width: 19.68"
  • Table Height: 34.05"

Equipped With

Pneumatic Thin Sheet Support Device
