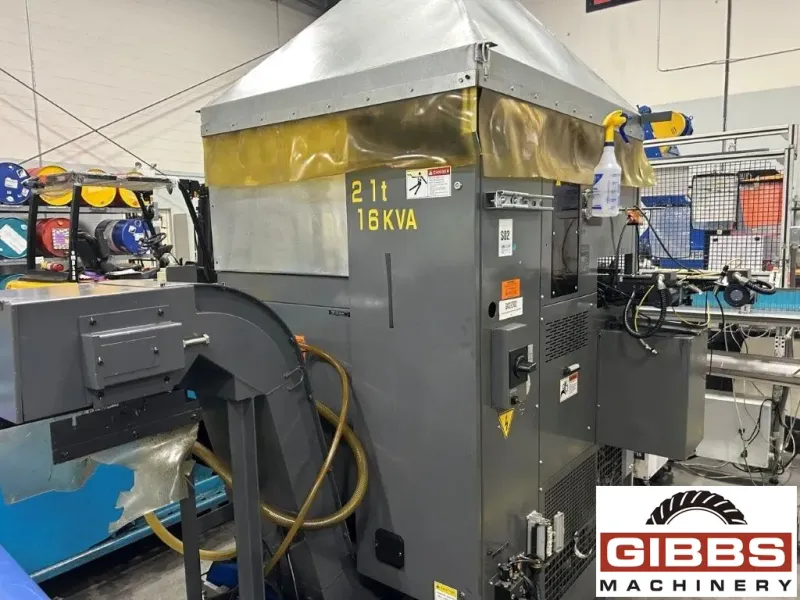

TAKAMAZ XC-100 - Horizontal Lathe

Manufacturer

TAKAMAZ

Category

Lathes

Type

LATHES, TURNING

Stock

25847

Model

XC-100

Dealer Location

Michigan

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Highlights:
  • Fanuc Oi-TD Control

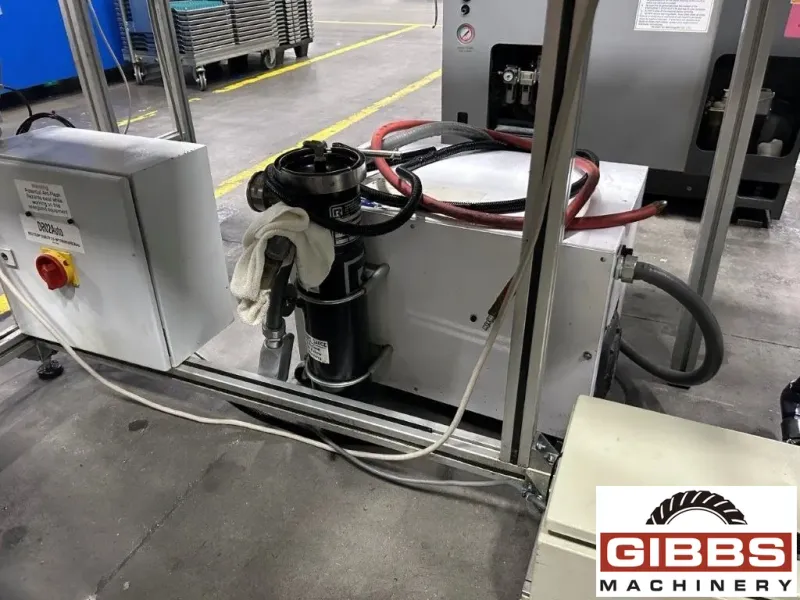

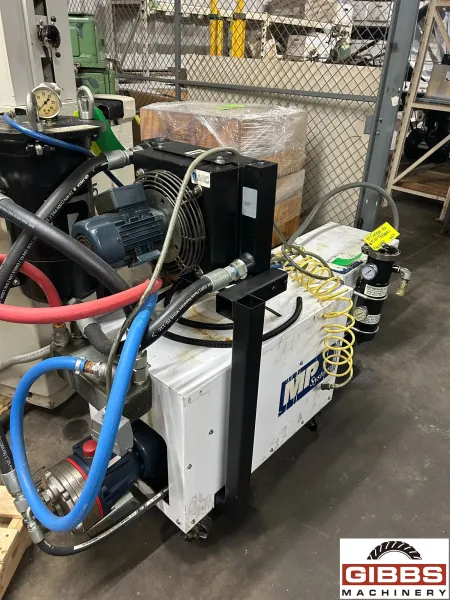

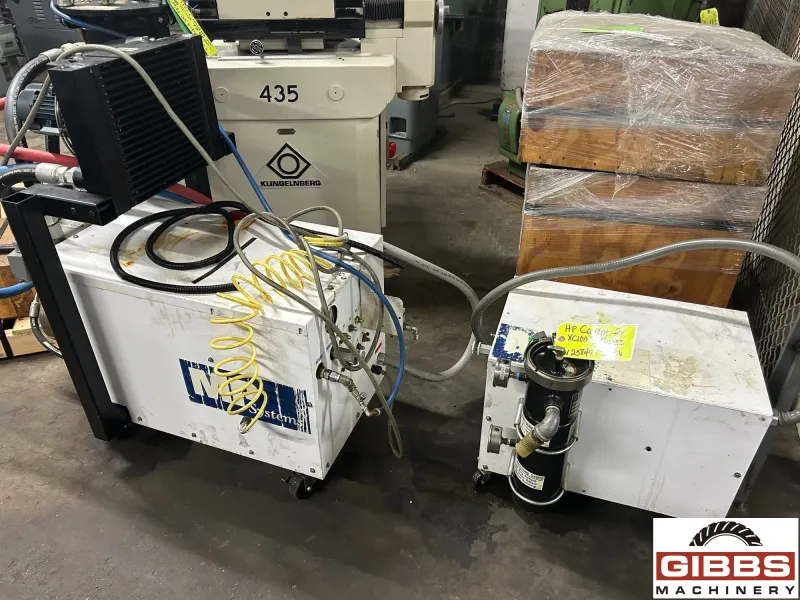

  • MP Systems High Pressure Coolant (1,000 PSI)
  • Collet Chuck
  • Hydraulic Chucking Foot Pedal
  • In/Out Part Conveyor

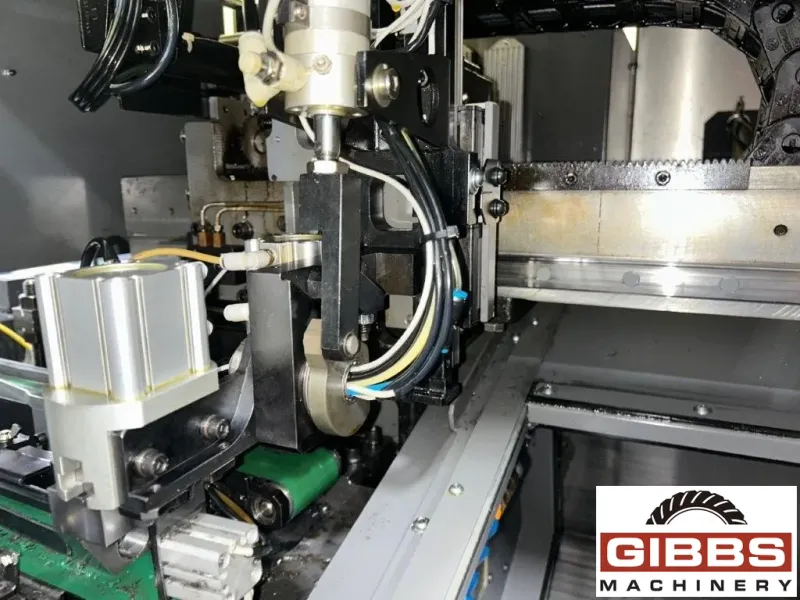

  • Auto Load / Unload Gantry
  • Coolant
  • Chip Conveyor
  • Box Ways

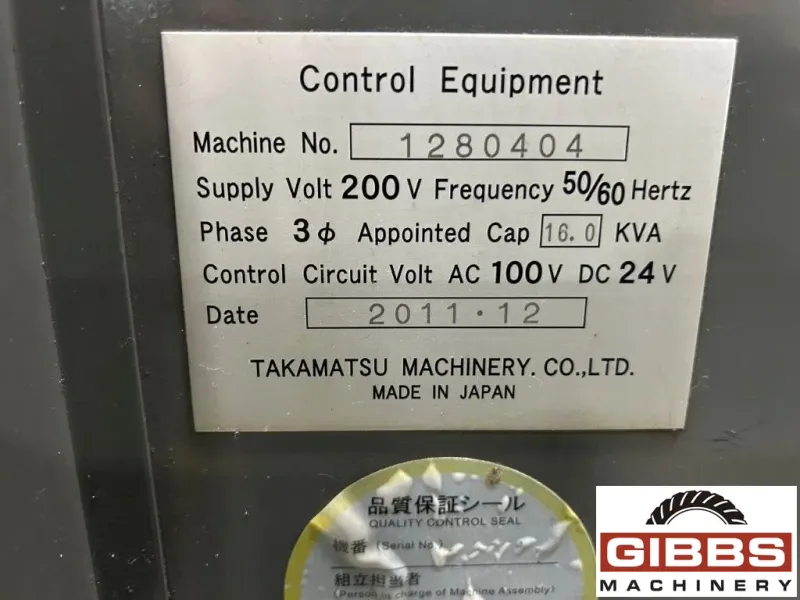

  • 200V-50/60 Cycle
,

Machine Specifications :

  • Year 2012
  • Manufacturer TAKAMAZ
  • Machining Length 7.48"
  • # Axis 2.0
  • Chuck Size 6.0"
  • Bar Capacity 1.67"
  • Power 10.0 HP
  • Max RPM 4,500 RPM
  • Turning Dia 7.08"
  • Tailstock No
  • Live Tooling No
  • Sub Spindle No
,

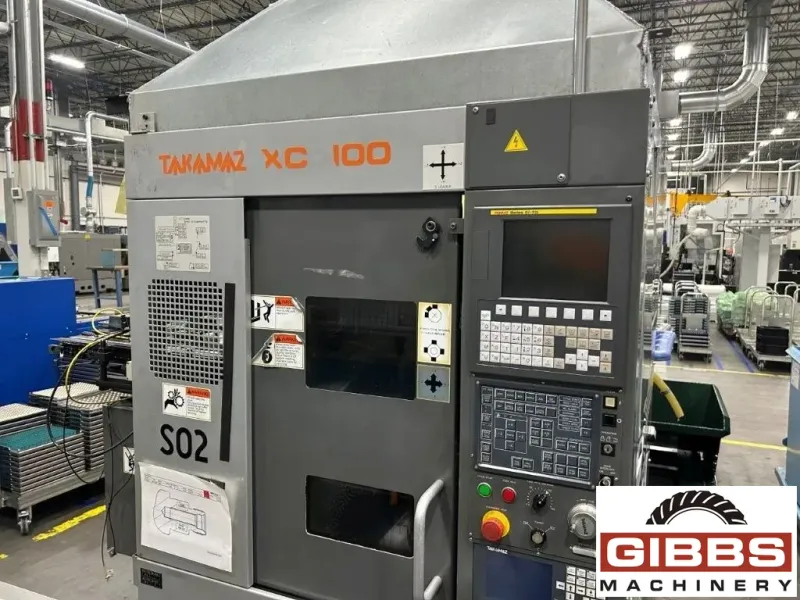

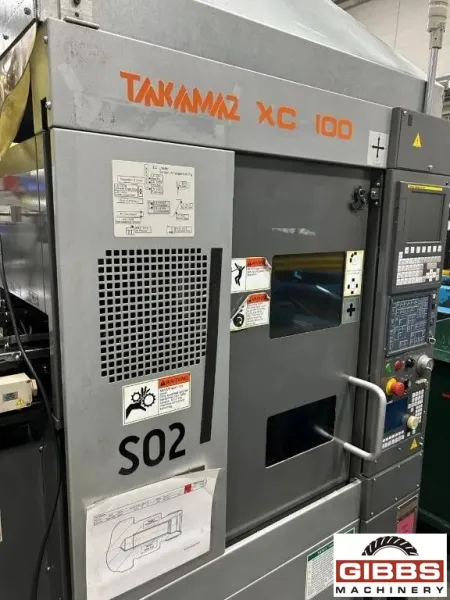

The TAKAMAZ XC-100 is a highly compact, single-spindle, single-turret CNC lathe manufactured by TAKAMAZ. It is designed specifically for high-efficiency, unattended mass production, featuring a built-in gantry-style auto-loader system with integrated in-feed and out-feed conveyors for automated part handling.

    Specifications:

  • Spindle & Capacity:
  • -Chuck Size: 6" (152.4 mm)
  • -Maximum Turning Diameter: 7.08" (180 mm)
  • -Maximum Turning Length: 7.48" (190 mm)
  • -Maximum Bar Diameter/Hole: 1.81" (46 mm)
  • -Maximum Spindle Speed: 4,500 RPM
  • -Spindle Nose: A2-5
  • -Spindle Bearing I.D.: 2.95" (75 mm)
  • -Spindle Motor HP: 10 HP

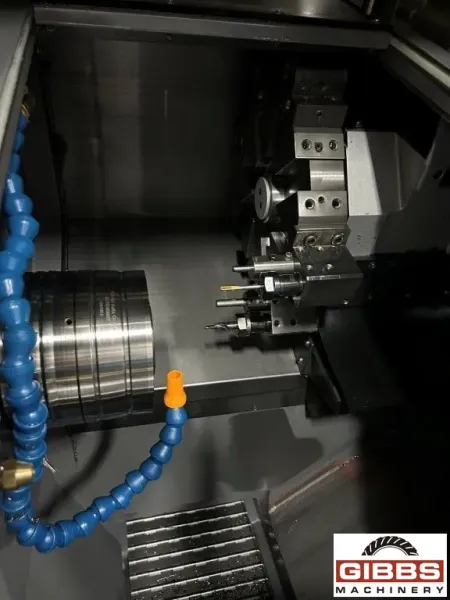

  • Turret & Tooling:
  • -Turret Type: 8-Station Turret
  • -Tool Shank Size: 3/4" (19.05 mm)
  • -Boring Holder I.D.: 1" (25.4 mm)
  • Axis Travel & Feed Rates:
  • -X-Axis Stroke: 4.72" (120 mm)
  • -Z-Axis Stroke: 9.05" (230 mm)
  • -Rapid Traverse Rate (X): 472 IPM (12 m/min)
  • -Rapid Traverse Rate (Z): 708 IPM (18 m/min)
  • Control System & Dimensions:
  • -CNC Control: Fanuc Oi-TD
  • -Machine Width (ultra-slim): 45.2"
  • -Machine Depth: 58.2"
