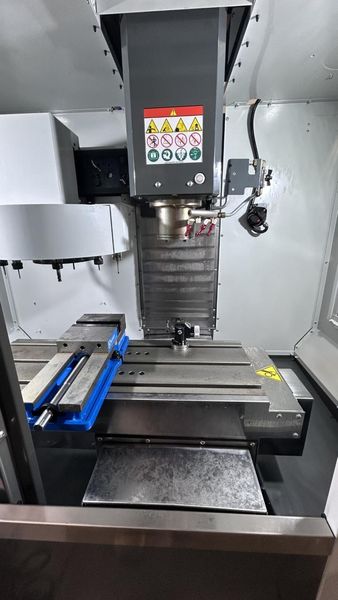

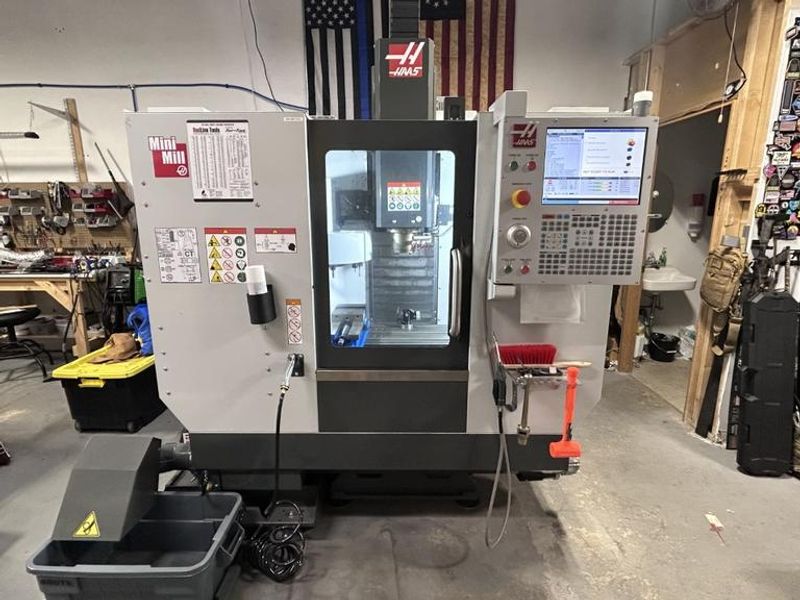

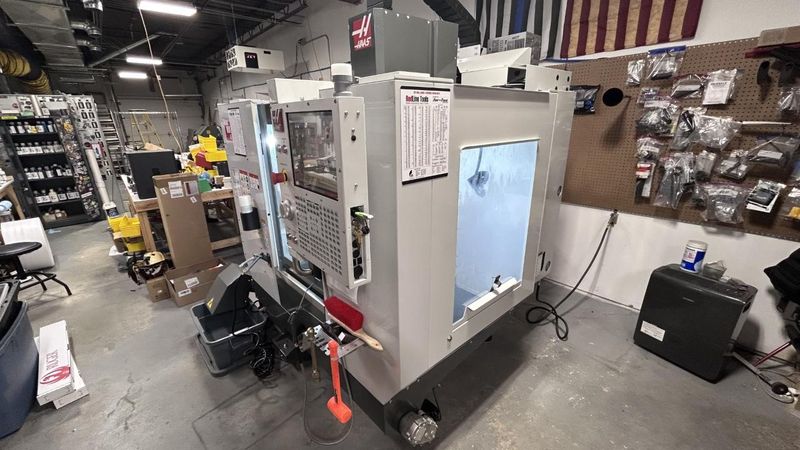

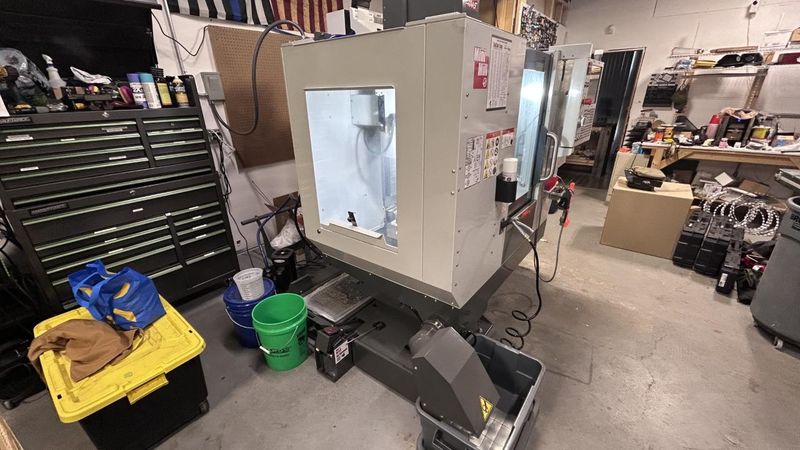

Haas Mini Mill CNC Vertical Machining Center, 8K Spindle, 10 Station ATC, Chip Auger, Probing, High Speed Machining - NEW 2025

Manufacturer

Haas

Category

Machining Centers

Type

MACHINING CENTERS, CNC, 5-AXIS or MORE

Stock

C1010

Model

Mini Mill

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Table Size: 36" x 12"

Machine Control: NextGen CNC Control

Machine Travels (X/Y/Z): 16" x 12" x 10"

Table Capacity: 500 Lbs.

Spindle Taper: Cat 40

Spindle Speeds: 8,000 RPM

Rapid Traverse Rate (X/Y/Z): 600 IPM

Spindle To Table Distance: 4" - 14"

Maximum Cutting Feed Rate: 500 IPM

Tool Changer Style: Carousel

Tool Changer Capacity: 10 Stations

Tool Change Time: 4.2 Seconds

Max Tool weight: 12 Lbs.

Spindle Drive: 7.5 HP

Power Requirement: 220 Volt, 3 Phase

Equipped With:

Haas NextGen CNC Control, 8000 RPM Spindle, CT 40 Taper, 10 Station Carousel Tool Changer, Chip Auger, Renishaw Tool and Parts Probing System, High Speed Machining, Keys, Parameters, Machine Pads

Electrics:

220 Volt, 3 Phase
